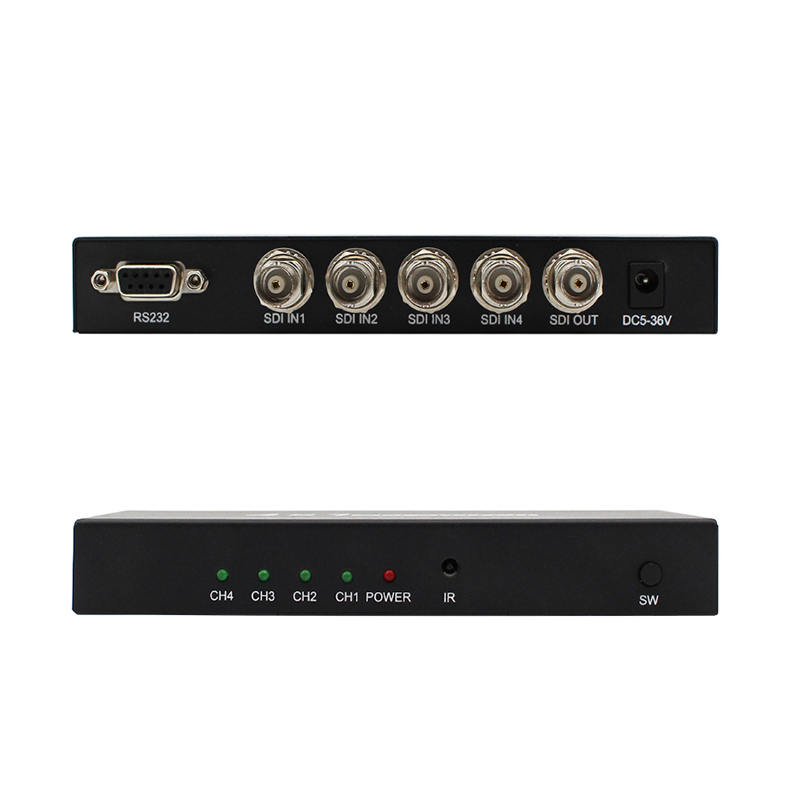

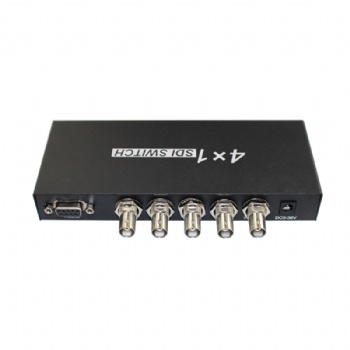

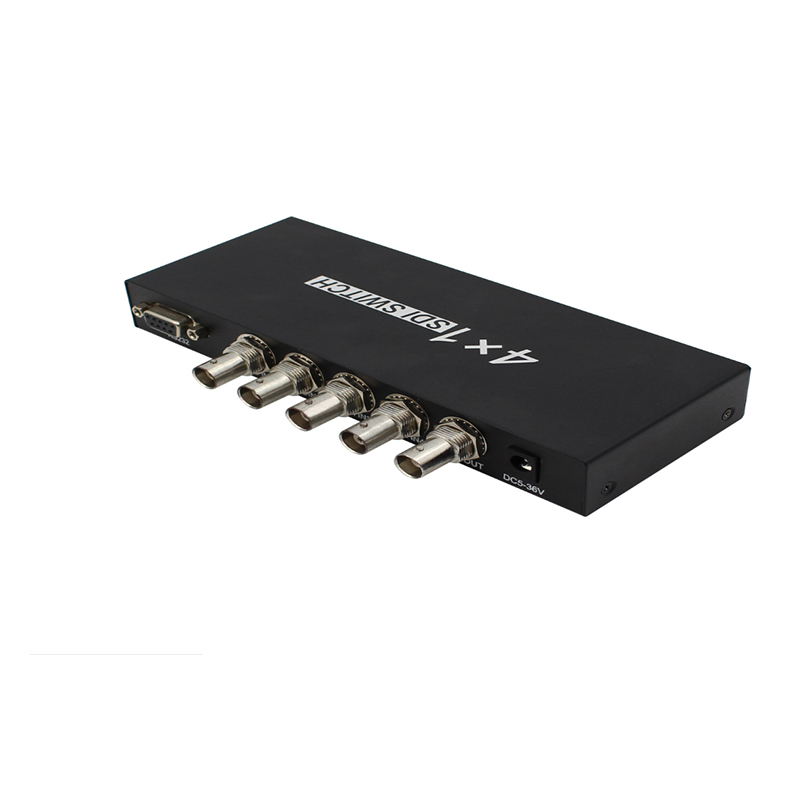

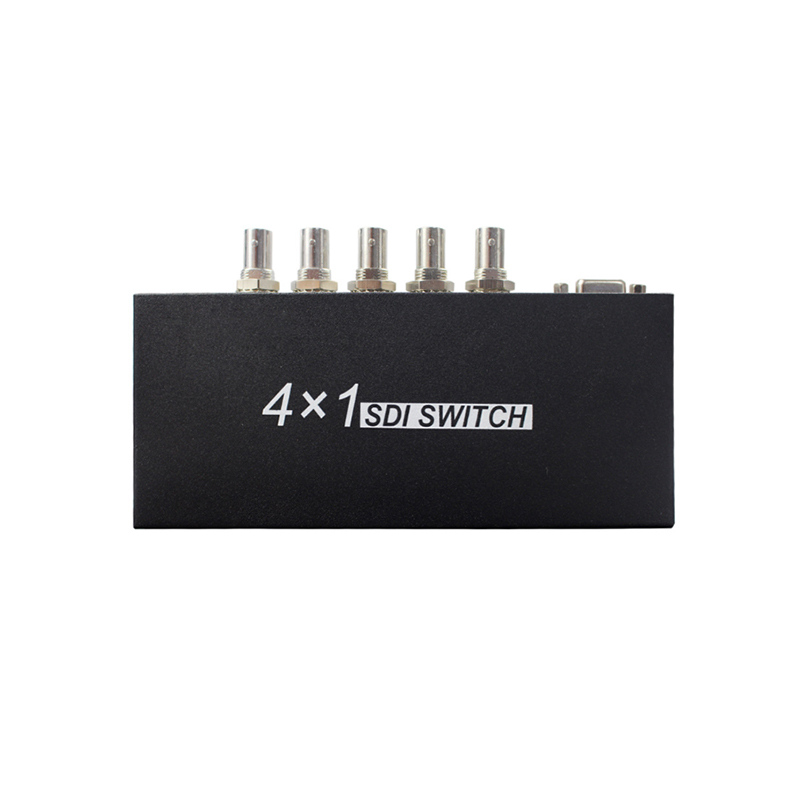

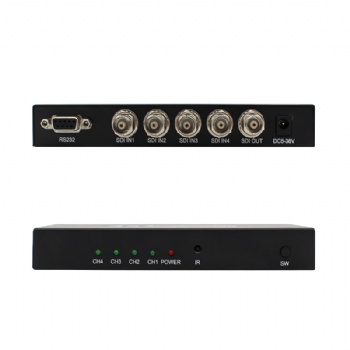

SWSD07,SDI Switch 4x1 support 1080P with RS232 control

Features:

1. Support 4 SDI input, and 1 SDI output

2.Resolution reach up to 1080P

3.Transmit distance reach up to 100M

4.DC 5V-36 Power supply

5.Support IR and RS232 control

Specification：

Power voltage：DC5V~30V  Power Consumption：＜2W

SDI Input interface.......................................................................BNC SDI×4

SDI output interface.......................................................................BNC SDI×1

SDI format.......................................................................SD-SDI  HD-SDI  3G-SDI

SDI Transmit speed.......................................................................143-2970MB/S

SDI Impedance.......................................................................75Ω

SDI input resolution.......................................................................480i@60Hz/576i@50Hz/720@50Hz/720P@60Hz/1080i@50Hz/1080i@60HZ/1080P@24@25@30@50@60Hz/

SDI output resolution.......................................................................480i@60Hz/576i@50Hz/720P@50Hz/720P@60Hz/1080i@50Hz/1080i@60Hz/1080p@24@25@30@50@60Hz

SDI Signal output ranger.......................................................................800mVp-p

Weight.......................................................................205g/340g

Dimension.......................................................................170×68×24(mm)
