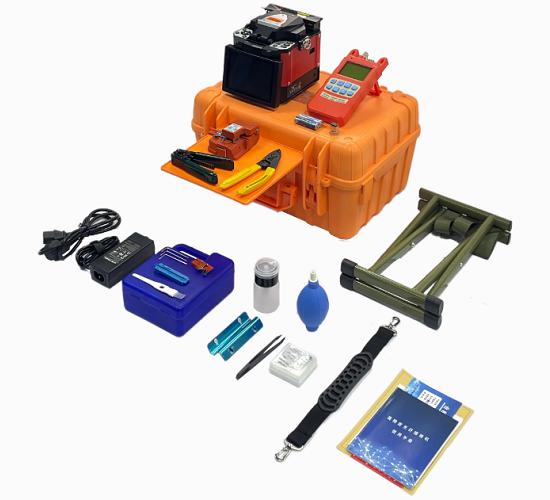

Fiber Fusion Splicer SW-88S

Specification:

Model: SW-88S

Applicable fiber: SM (G.652&G.657), MM (G.651), DS (G.653), NZDS (G.655) and custom fiber types

Connection loss: 0.02db(SM), 0.01db(MM), 0.04db(DS/NZDS)

Typical connection time:9s

Typical heating time:26s(time and temperature can be adjustable)

Fiber alignment: fine alignment, core alignment, cladding alignment

Fiber diameter: cladding diameter 80-150um, coating diameter 100-1000um

Cutting length: coating layer below 250um: 8-16mm; coating layer 250-1000um: 16mm

Tension test: Standard 2N (optional)

Optical fiber clamp: multi-function clamp, suitable for bare fiber, pigtail, jumper, leather cable; replacement clamp can be used for SC and other connectors for various FTTx optical fiber cables

Magnification: 400 times (X-axis or Y-axis)

Display:5.0'' TFT Color LCD Screen

Splicing mode: 17 groups

Heating mode:9 groups

 Storage: 5000 latest splice results are stored in the built-in memory

Battery: continuous welding, heating not less than 200 times

Size:163.5mm(L)*130mm(W)*156mm(H)

Illumination lamp: convenient for placing fiber at night

Weight:1.83kg(no battery)       2.21kg(with battery)
