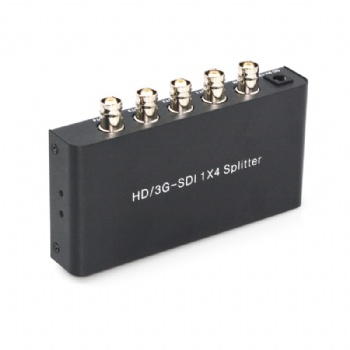

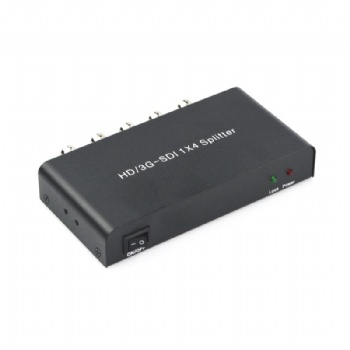

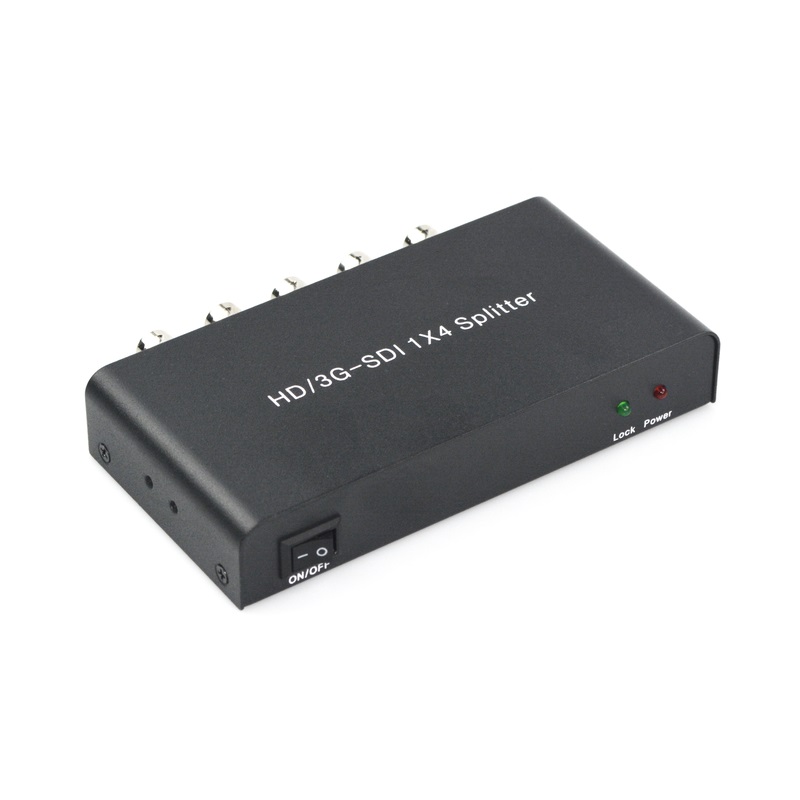

SWSD02,SDI Splitter 1x4

Features：

1.One-way SDI signal input, assigned as four-way SDI output.

2.24bit/192KHz DAC chip ensures high quality sound quality (the splitter only supports 48khz audio sampling rate)

3.No signal loss

4.Support 5V -12V DC wide voltage input

5.Low power consumption and low power adapter requirements

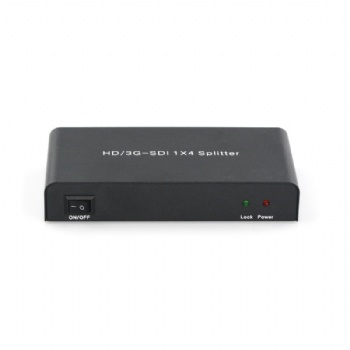

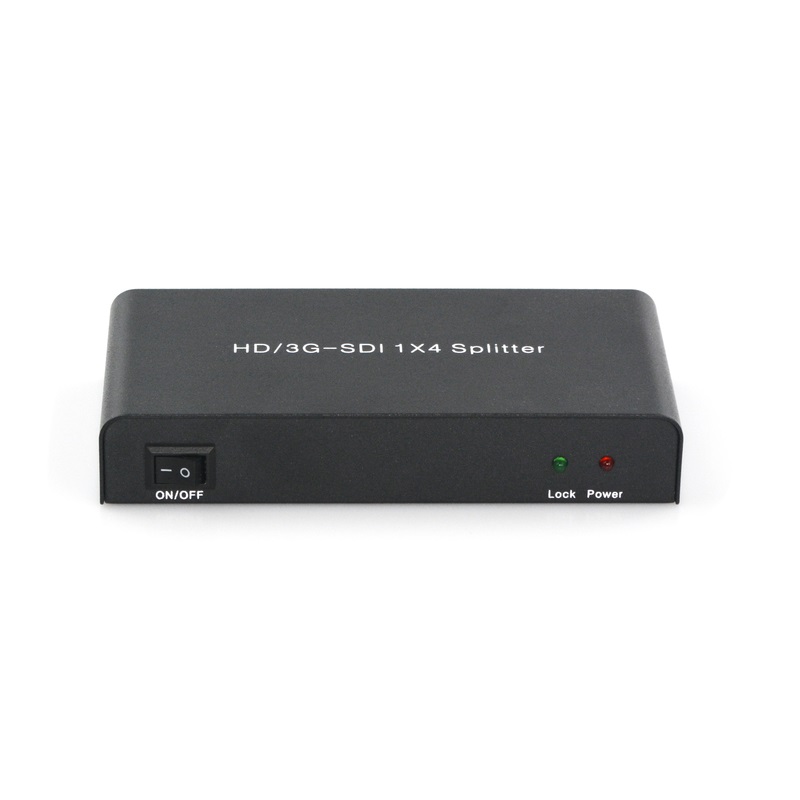

6.With input status indicator, clearly indicate the device usage status

7.Multiple distributors can be connected to achieve long-distance, multi-interface expansion

Specifications：

SMPTE Standard...................................................425M Level A&B, 424M, 292M, 259 MC

SDI transmission rate .............................................. 270Mb/s (SD), 1.485Gb/s (HD), 2.97Gb/s (3G)

Input/output resolution............................................ SD: 480i@60, 576i@50 HD: 720p@50/60, 1080i@50/60 3G: 1080p@24/25/29.97/30 /50/59.94/60

SDI output resolution........................depends on the input resolution

Audio sampling rate............................................... ............... ...48KHZ

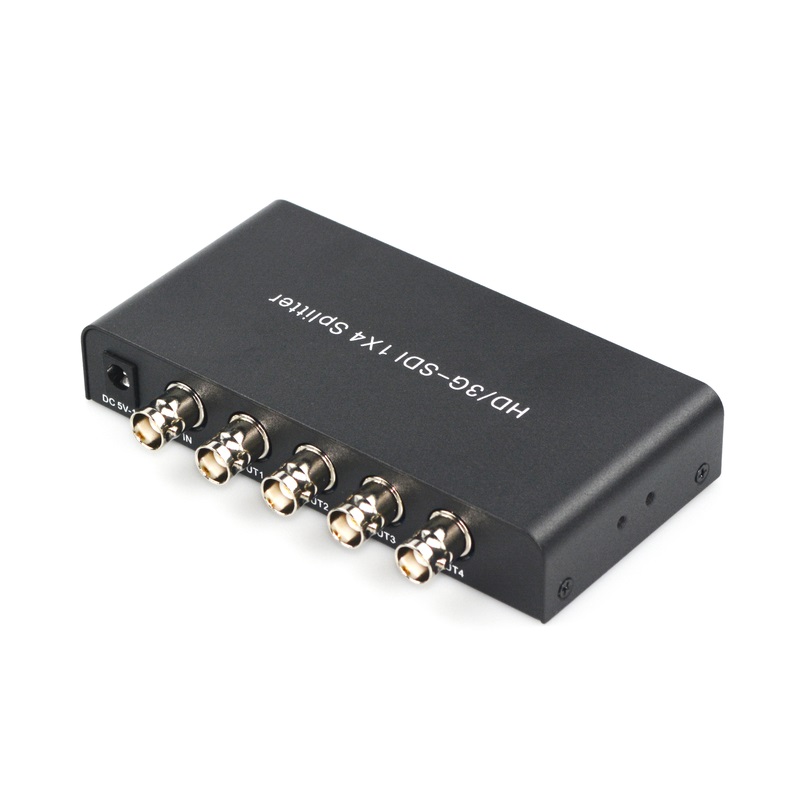

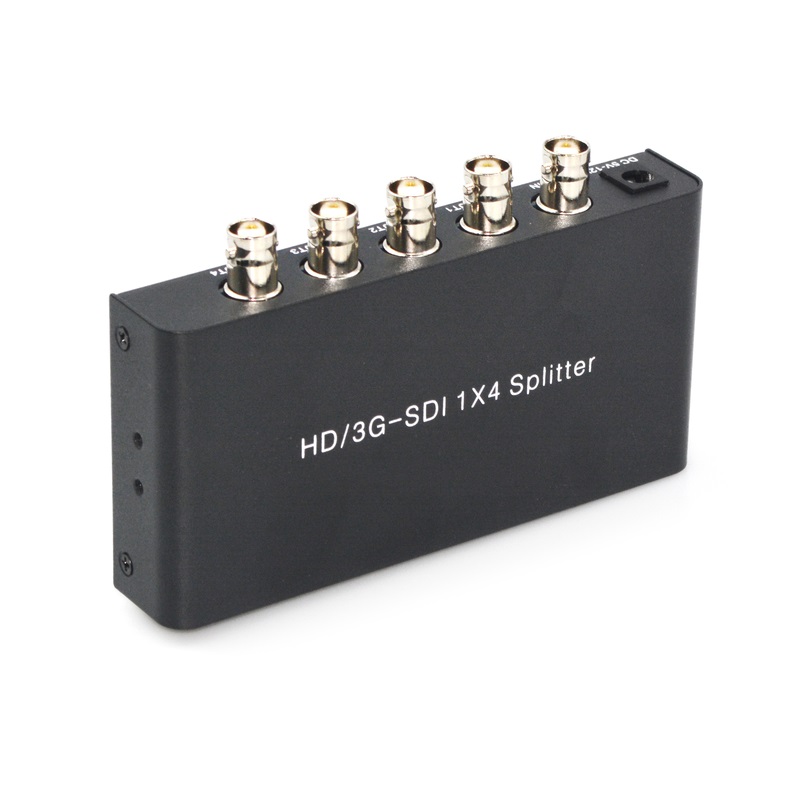

Input port..................................................1 x BNC (SD / HD / 3G-SDI)

Output port..........................................  4 x BNC (SD / HD / 3G-SDI)

SDI transmission cable ..................................Input up to 100 meters output up to 80 meters; Input up to 80 meters output up to 100 meters

Input voltage.......................................................................DC5V-12V

Maximum power consumption.....................................................1.5W

ESD.............................................................±8kV (air gap discharge ), ±4kV (contact discharge)

Operating temperature........................................................................-10~+55°C

Storage temperature ...................................................... ...-20~+60°C

Working humidity.................................10~90% RH (no condensation)

Storage humidity...................................5~95% RH (no condensation)

Shell size................................................ ................125*66.5*22 (mm)

Weight ........................................................................................230 g
