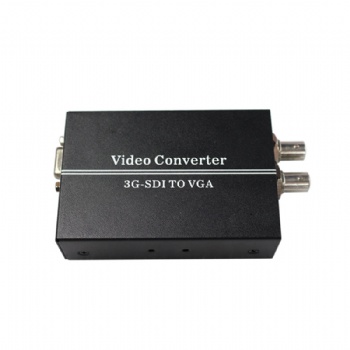

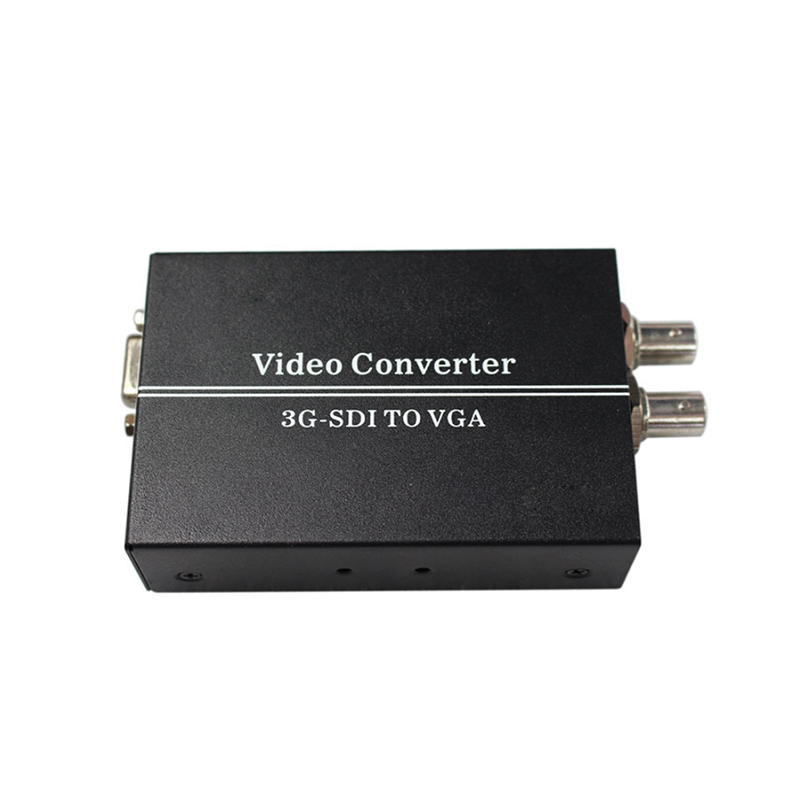

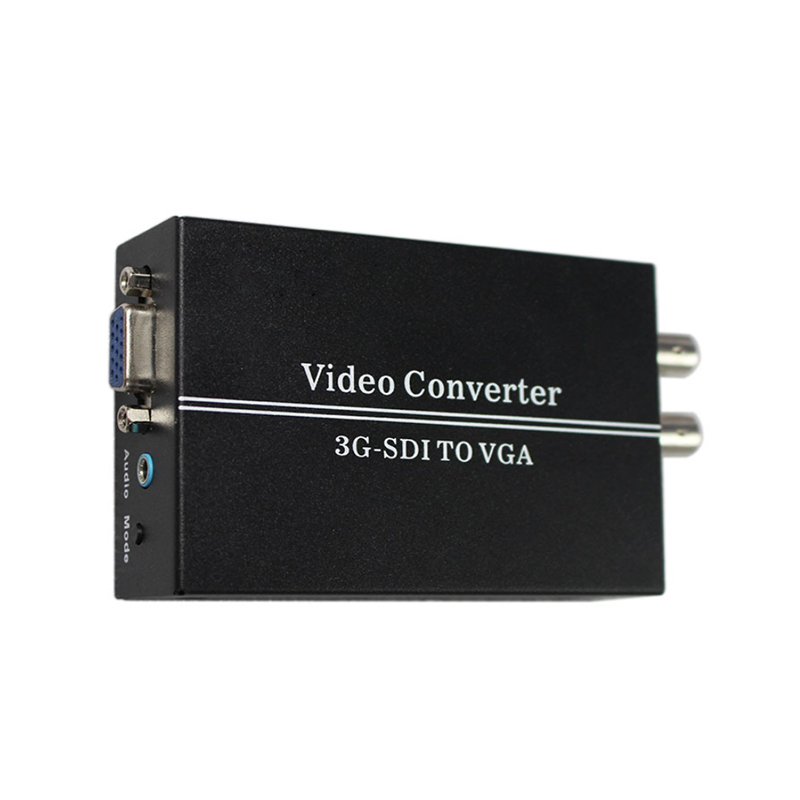

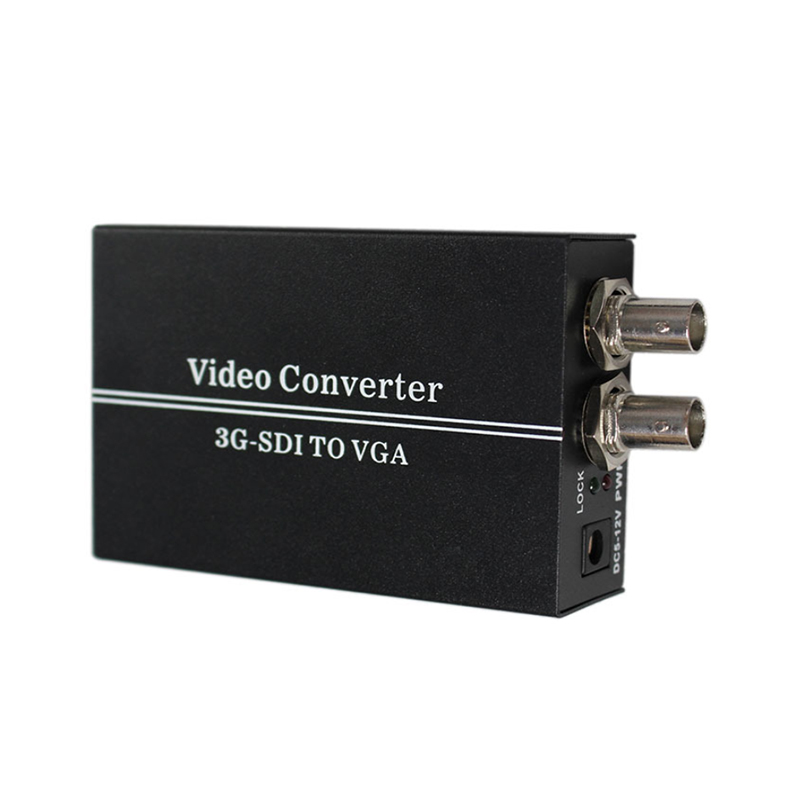

SWSD04,SDI to VGA Converter with SDI looping output

Features:

1. Support SDI in ,and 1x VGA output, 1x SDI output

2. Resolution reach up to 1080P

3.Transmit distance can be 300M.

4.DV5V-12V power supply.

5.Support stereo audio extraction  with the 3.5MM mini Jack.

Specification:

Input Interface type...........................................SDI x1

Output Interface type.........................................SDI BNC x1/VGA x1/3.5MM Mini Jack

Power Consumption...............................................<5W

Power voltage......................................................DC5V----DC12V

VGA output resolution.......................................800x600p60，1024x768p60,1280x720p60, 1280x1024p60, 1360x768p60, 1680x1050p60, 1920x1080P60

SDI   Format..........................................3G-SDI:SMPTE 424M/HD-SDI:SMPTE 292M/SD-SDI:SMPTE 259M

SDI output  Transmission speed ...........................................2.970Gbit/s 1.485Gbit/s

Resolution..............................................................................480i，576i，720p50/60, 1080i50/i60；1080p 23.98/24/25/29.97/30/50/60;

Impedance characteristics.......................................3G-SDI:80m~100m(1694A coaxial cable ）/75Ω

HD-SDI..............................................................................150m~200m(1694Acoaxial cable ）/75Ω

Impedance Characteristic .......................................SD-SDI:250m~300m(1694A coaxial cable ）/75Ω

ESD  Contact Discharge............................................±4KV

                                                                         Air Discharge：±8KV

Dimension..................................................................94x64x27 (mm)

Weight........................................................................206g
