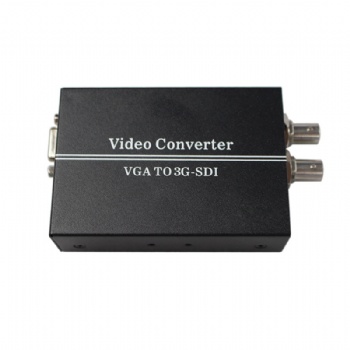

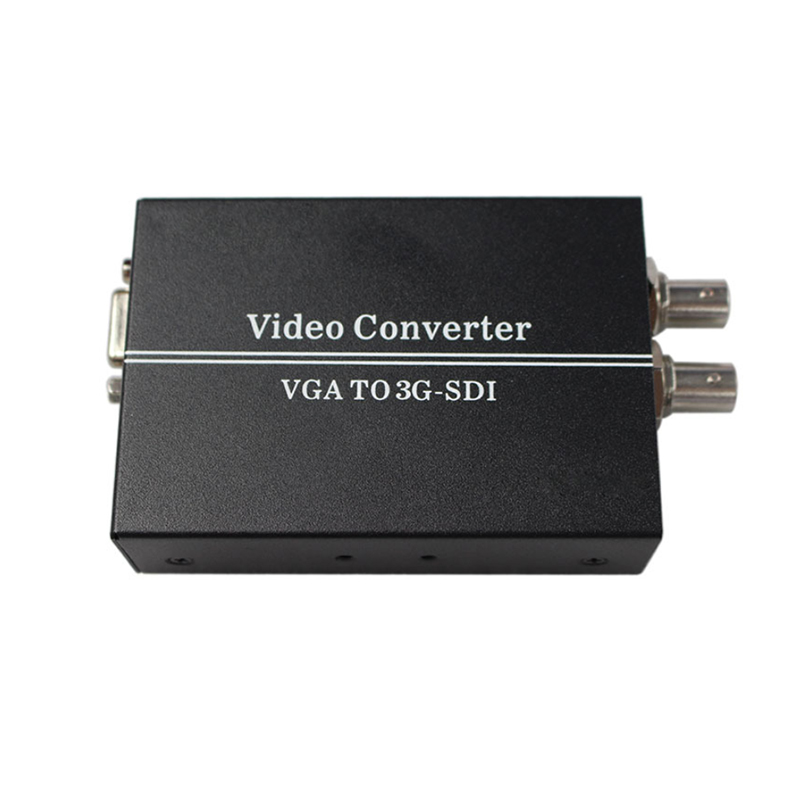

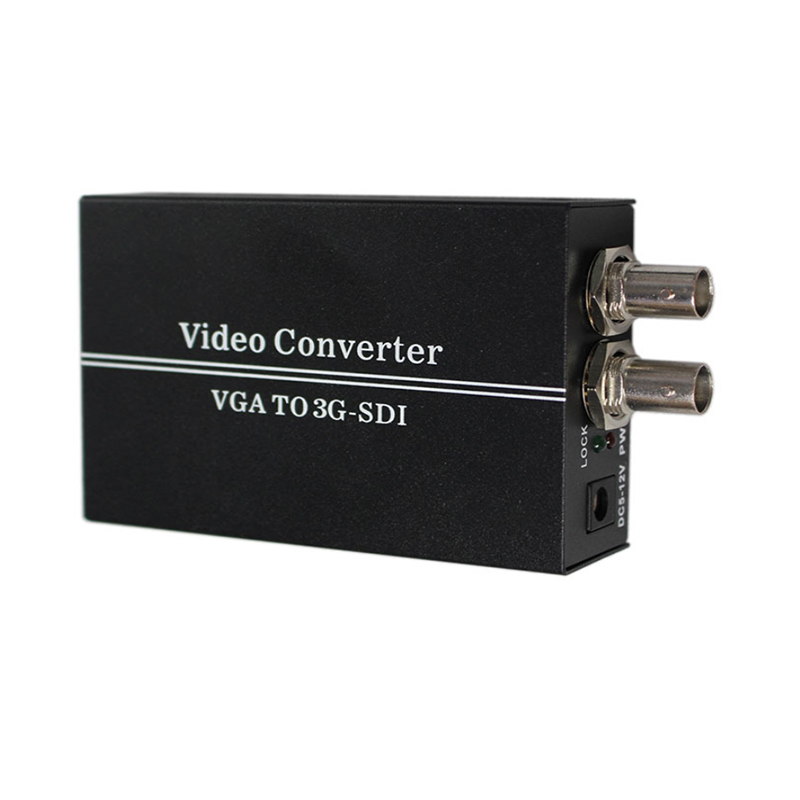

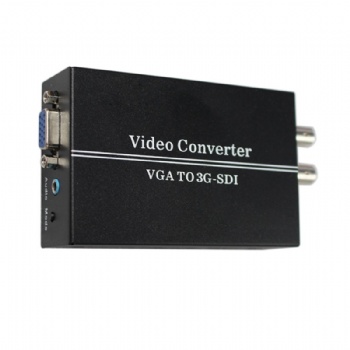

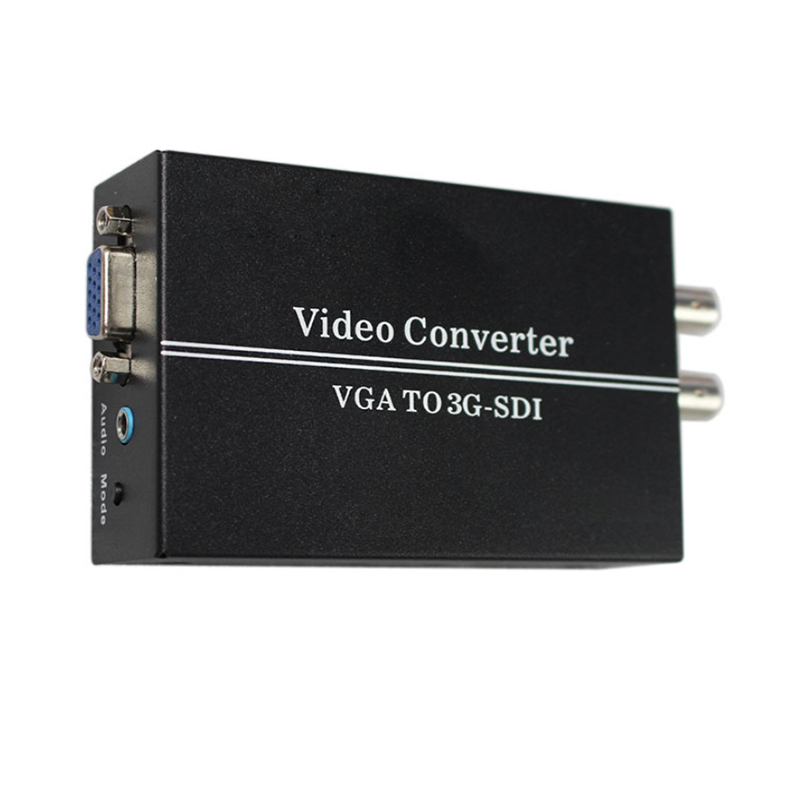

SWSD03,VGA to SDI converter

Features:

1. Support VGA in ,and two SDI output.

2. Resolution reach up to 1080P

3.Transmit distance can be 300M.

4.DV5V-12V power supply.

5.Support stereo audio line in with the 3.5MM mini Jack.

Specification:

Input Interface type...........................................VGA x1

                    3.5MM Mini Jack x1

Output Interface type.........................................SDI BNC x2

Power Consumption...............................................<5W

Power voltage......................................................DC5V----DC12V

VGA Input resolution.......................................640x480p60，800x600p60，1024x768p60,1280x720p60,   1280x768p60,

                                                                  1280x1024p60, 1360x768p60,   1366x768p60, 1680x1050p60,   1920x1080p60

SDI output  Format...........................................3G-SDI:SMPTE 424M

                                                    HD-SDI:SMPTE 292M

SDI output  Transmission speed ...........................................2.970Gbit/s 1.485Gbit/s

Resolution...............................................................................SDI output resolution 720p60（16:9）/1080p60（16:9）

Impedance characteristics.......................................3G-SDI:80m~100m(1694A coaxial cable ）/75Ω

HD-SDI..............................................................................150m~200m(1694Acoaxial cable ）/75Ω

Impedance Characteristic .......................................SD-SDI:250m~300m(1694A coaxial cable ）/75Ω

ESD  Contact Discharge............................................±4KV

                                                                         Air Discharge：±8KV

Dimension..................................................................94x64x27 (mm)

Weight........................................................................206g
