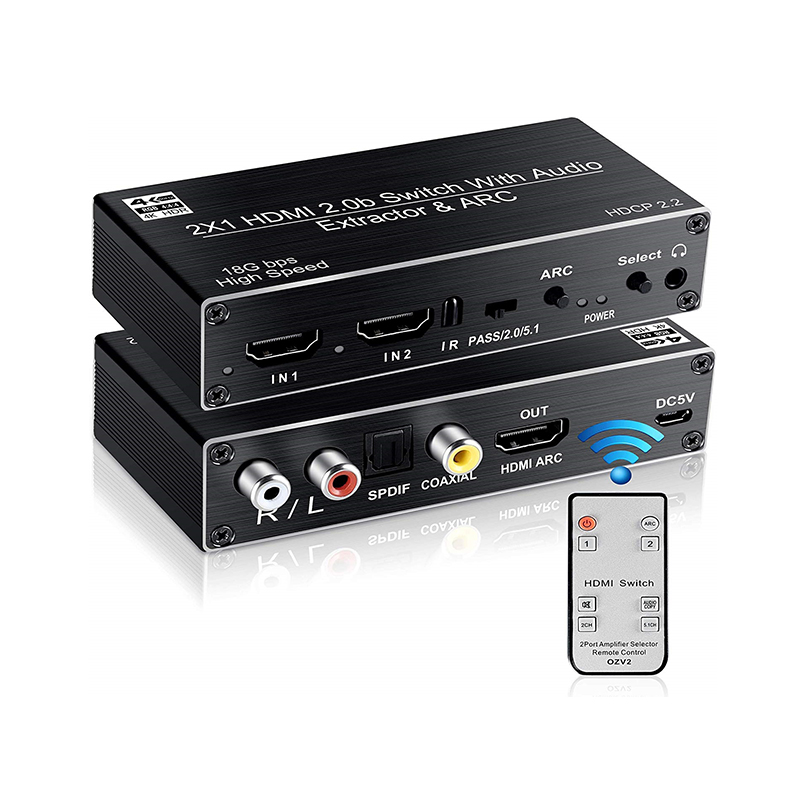

SW04, HDMI 2.0 version Switch 2x1 support ARC and audio Extraction

 Features:

1.Support 2 HDMI inputs, and 1 HDMI output

2.Compliant HDCP 2.2 protocol

3.Support maximum resolutions up 4Kx2K@60hz YUV4:4:4

4.Support 3D, 18G, HDR

5.Support HDMI ARC

6.Support extracting the selected input HDMI to Coaxial/ SPDIF 5.1 and R&L Audio output

7.Extend the transmission distance and improve transmission signal

8.Compatible with DVI by using HDMI TO DVI adapter

9.Plug-and-play, easy to install

10.Metal casing design and overall shielding without signal interference

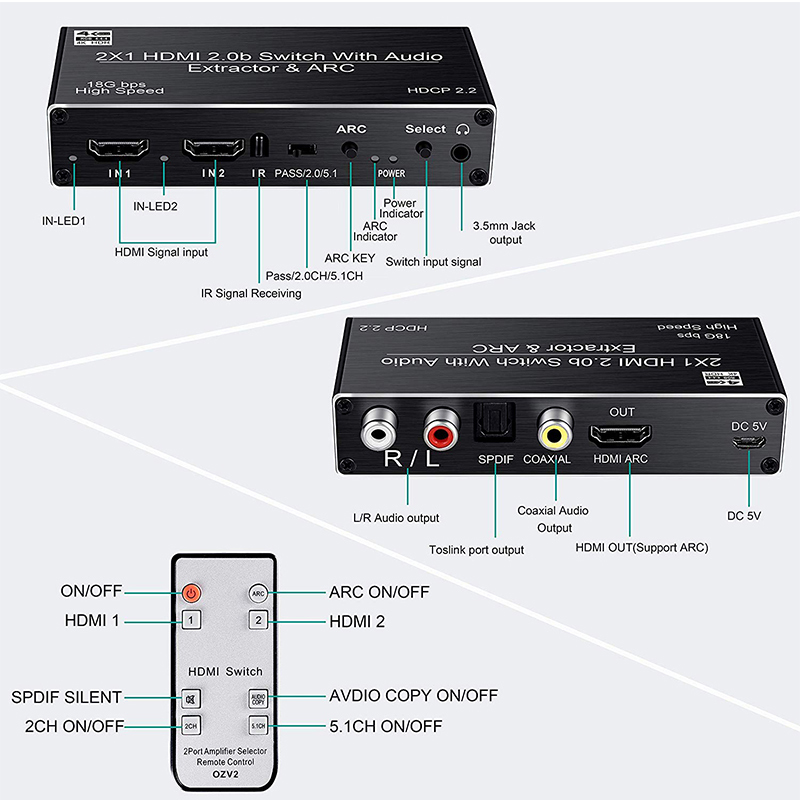

11.Support IR and manual control

12.Support auto switch function

13.DC5V power supply

SPECIFICATIONS:

HDMI resolution ……….......4k2k@60hz YUV4:4:4/3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit/deep color 30bit,36bit

Support audio format……….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/LPCM

Max bandwidth……………………………………………………………………………..600MHz

Max baud rate……………….…….………………….…………………………………..... 18Gbps

Input/Output TMDS signal ………….…………………………..……...… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….………………….≤10m AWG26 HDMI standard cable

Output cable distance……………………………….…...≤10m AWG26 HDMI standard cable

Max working current……………………………………………………………………….....300mA

Power adapter format..Input: ……………........AC (50HZ, 60HZ) :100V-240V; Output: DC5V

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

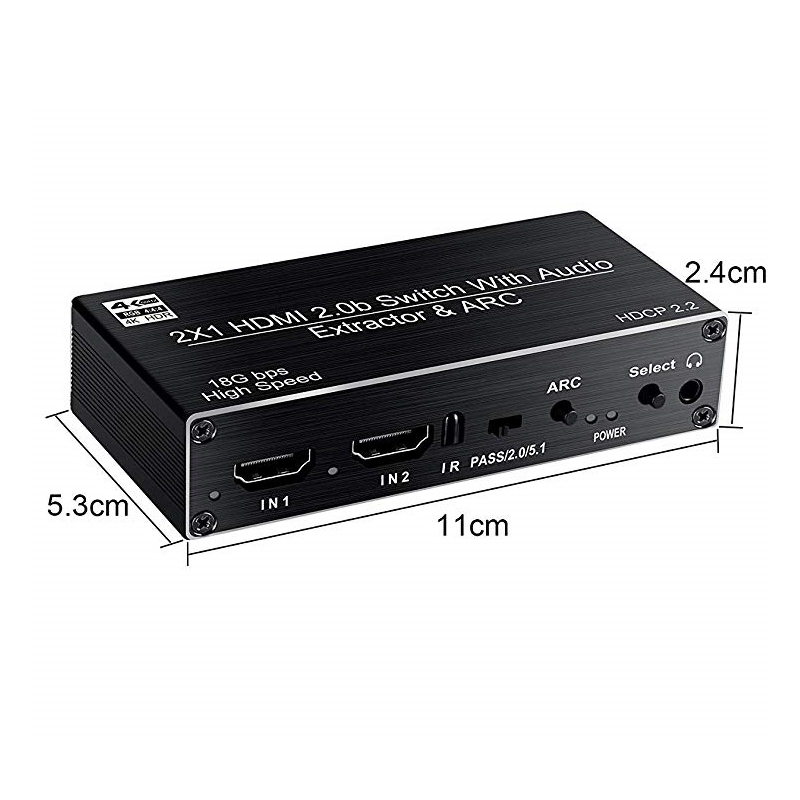

Dimension (L x W x H) ……………………………….…………………………110X53X24 (mm)
