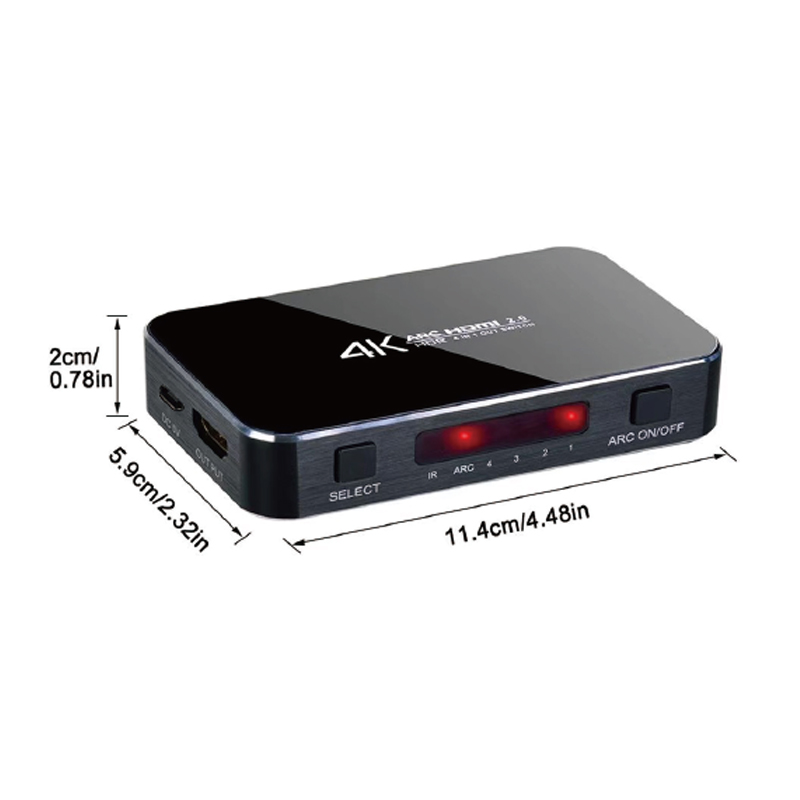

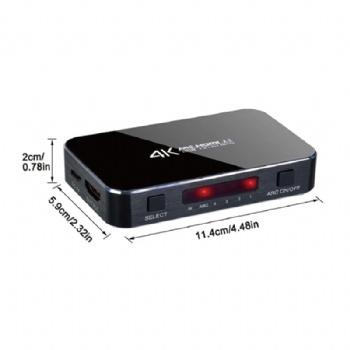

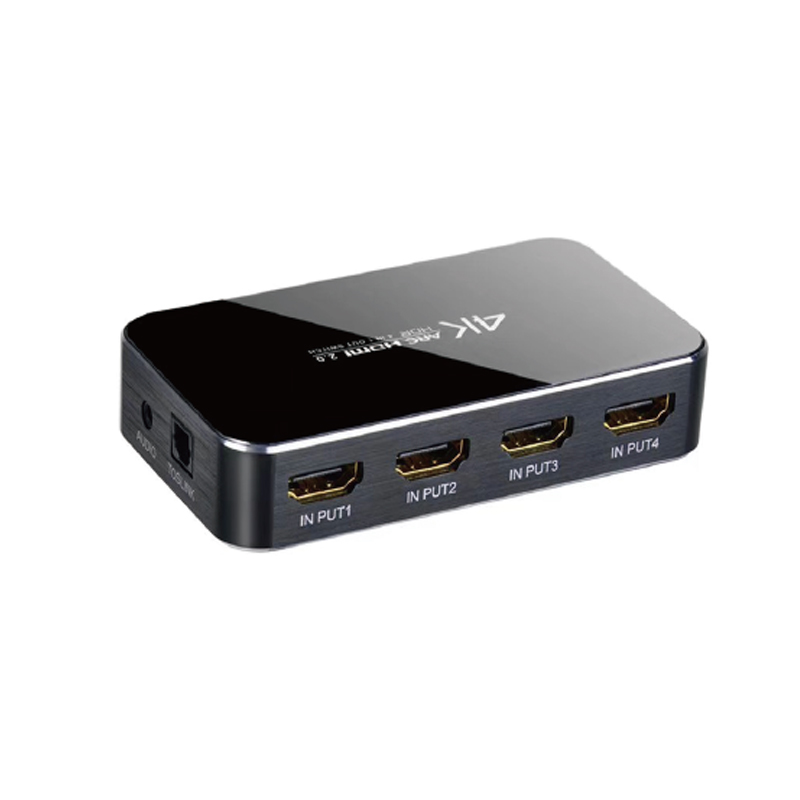

SW06B,HDMI 2.0 version 4x1 HDMI Switch Support Audio extraction and ARC

Features:

1.Compatible with HDMI 2.0 and HDCP 2.2

2.Max resolution reach up to 4K@60hz YUV444

3.Support audio format including DTS, Dolby digital

4.Widebandth reach up to 18Gpbs

5.Support MHL function

6.Support ARC function and audio extraction

7. With IR remote control and manual control

8.Support hot-plugging

Specification:

HDMI version.......................................HDMI 2.0

HDMI resolution............................................up to 3840x2160P/60HzYUV444

Support video color format...............................36 bit deep color

Support audio format...........................................DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max baud rate..........................................................18Gbps

Input cable distance.........................................≤5Mm AWG26 HDMI standard cable at 4K

Output cable distance.........................................≤5M m AWG26 HDMI standard cable at 4K

Material.......................................................................Aluminum Alloy
