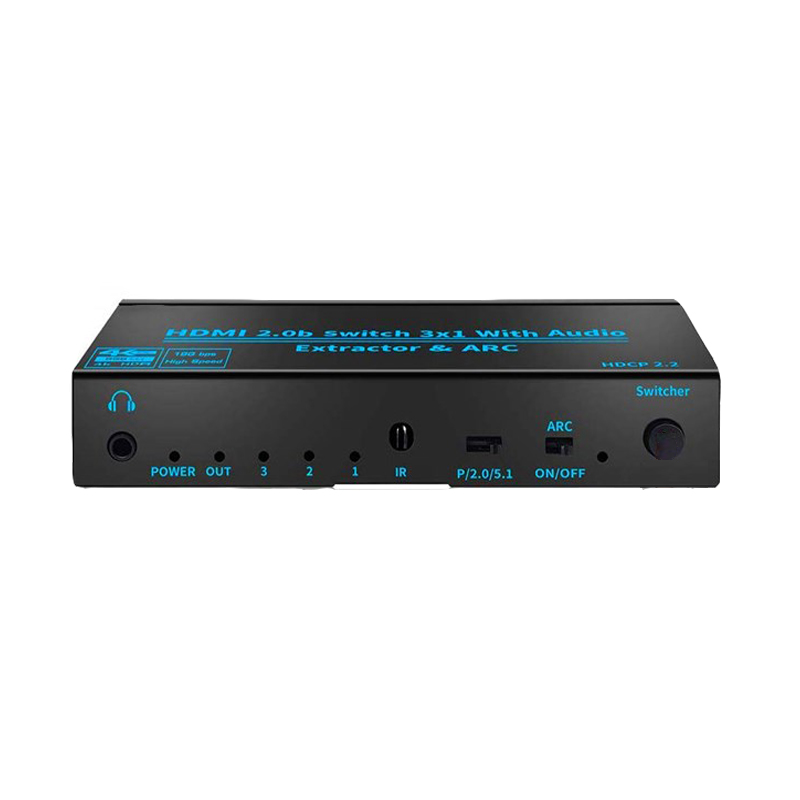

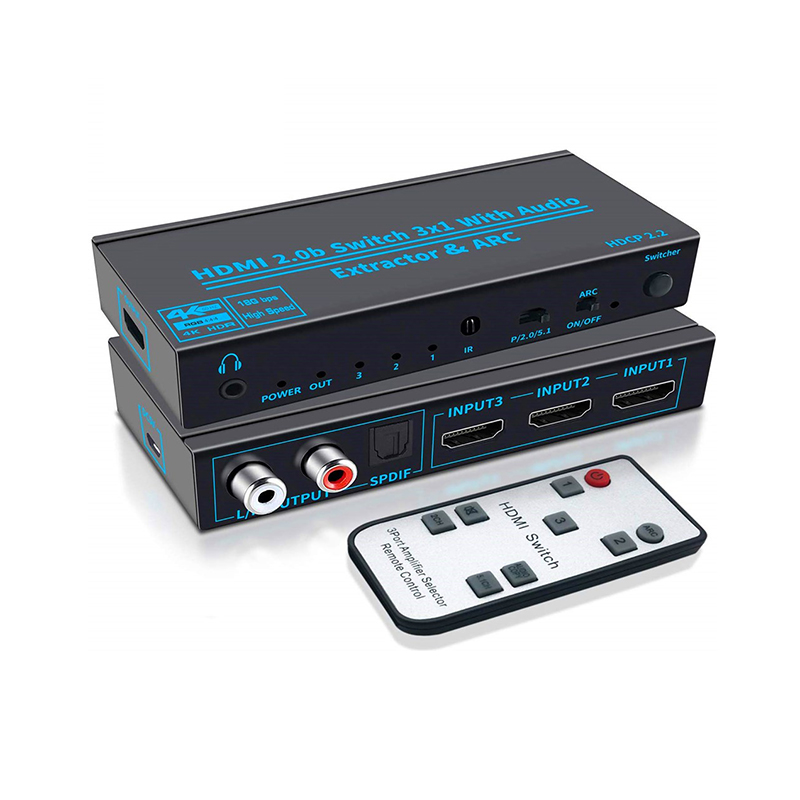

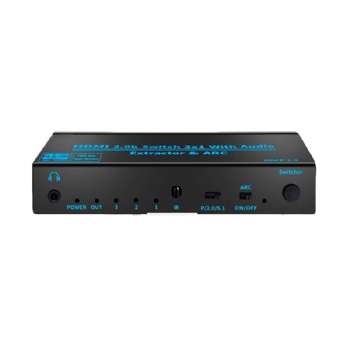

SW05B,2.0V 3x1 HDMI Switch support Audio Extraction and ARC function

Features:

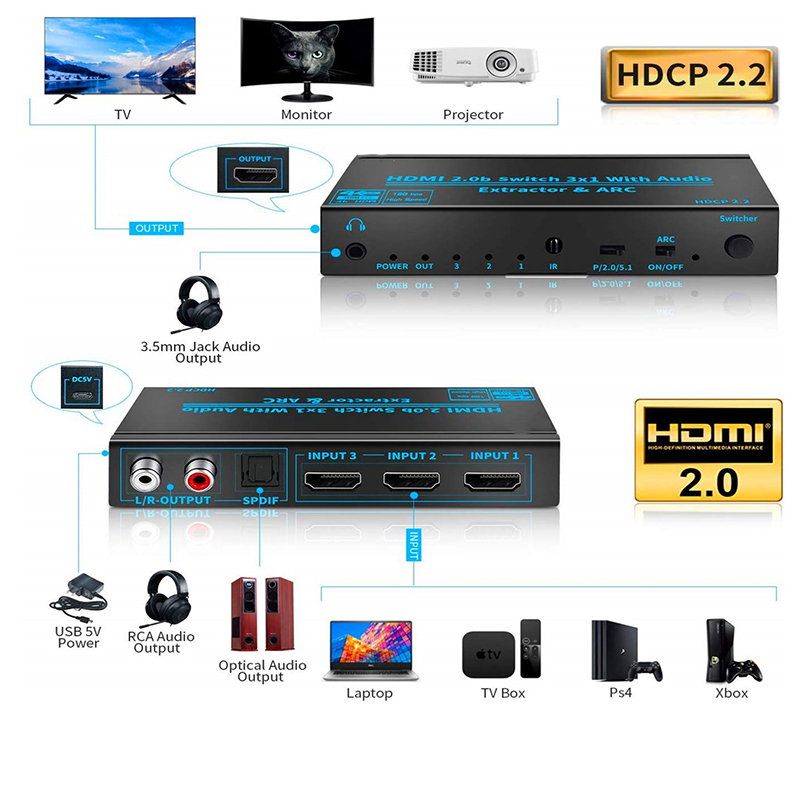

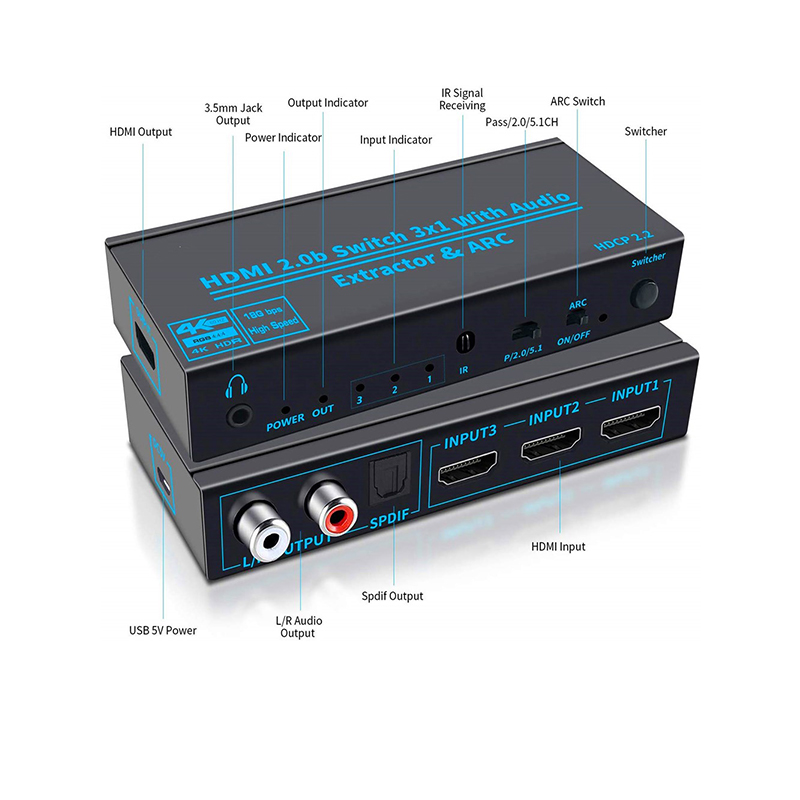

1.There are 3 ports HDMI input,1 port HDMI output with ARC function, Toslink output,  L/R output, 3.5mm Jack output.

2.3.5mm Jack port output and R/L support audio extract function

3.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.

4.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps

5.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2

6.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio

7.Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.

8.Support HDR 2K HDR10 Wide Applicability: Compatible with any HDMI devices such as Nintendo Switch, PS4 Pro, Xbox 360, Xbox One X,PS3, Beamer, DVB Receivers, Blu-ray Player,

   Apple TV 4, Laptop and HDTV/HD Monitor etc.

Specification:

HDMI version.......................................HDMI 2.0b

HDMI resolution............................................up to 3840x2160P/60Hz

Support video color format...............................36 bit deep color

Support audio format...........................................DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max baud rate..........................................................18Gbps

Input cable distance.........................................≤15m AWG26 HDMI standard cable

Output cable distance.........................................≤15m AWG26 HDMI standard cable

Material.......................................................................Aluminum Alloy
