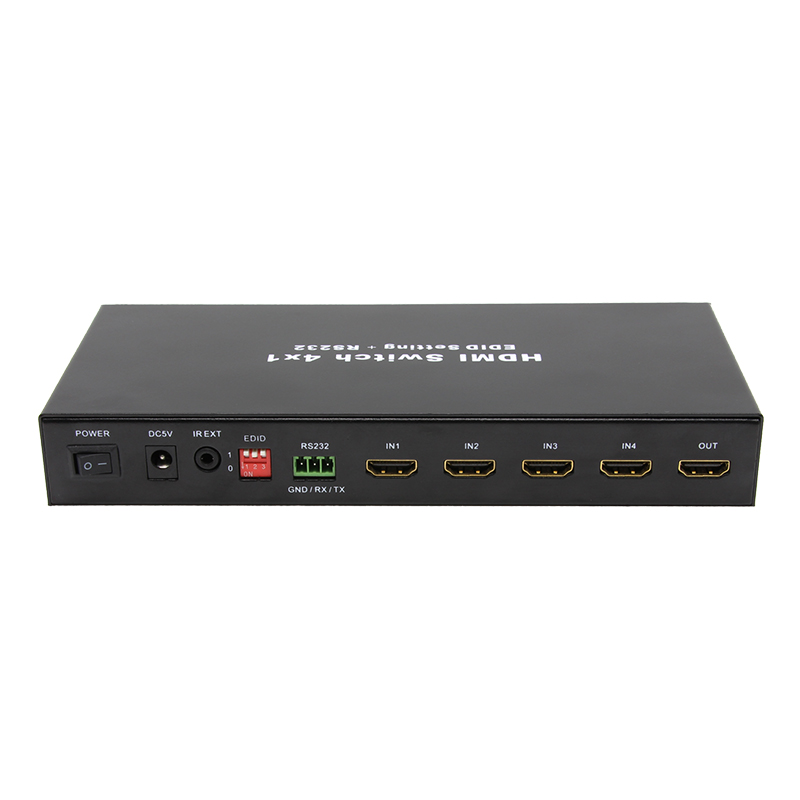

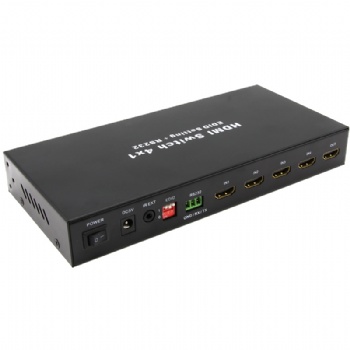

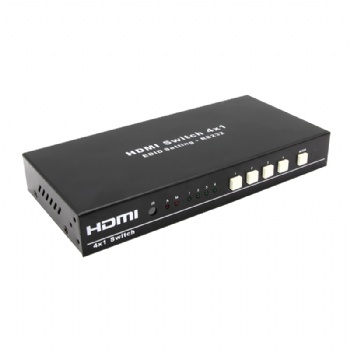

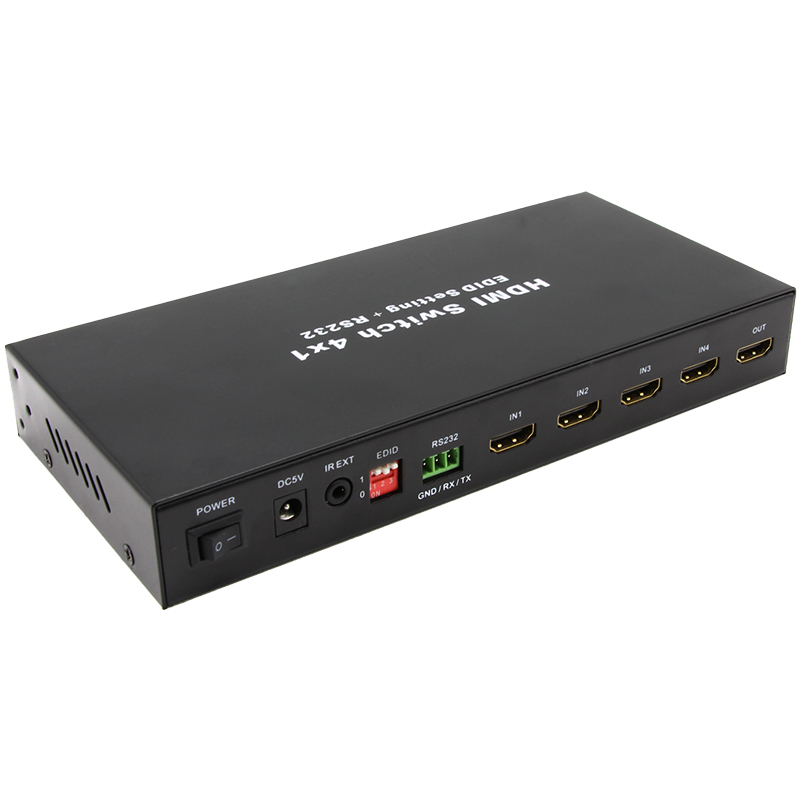

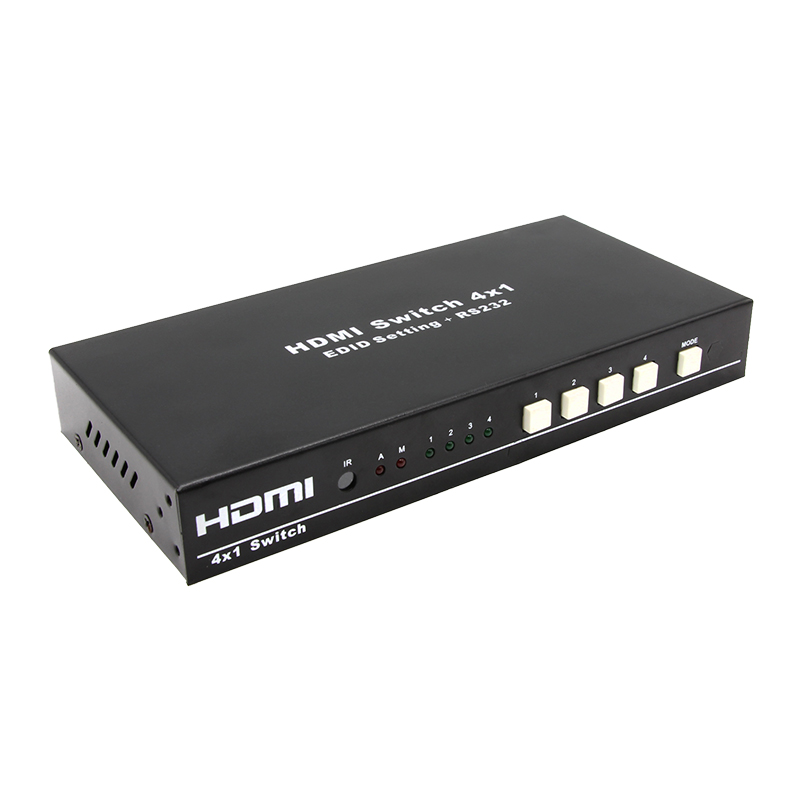

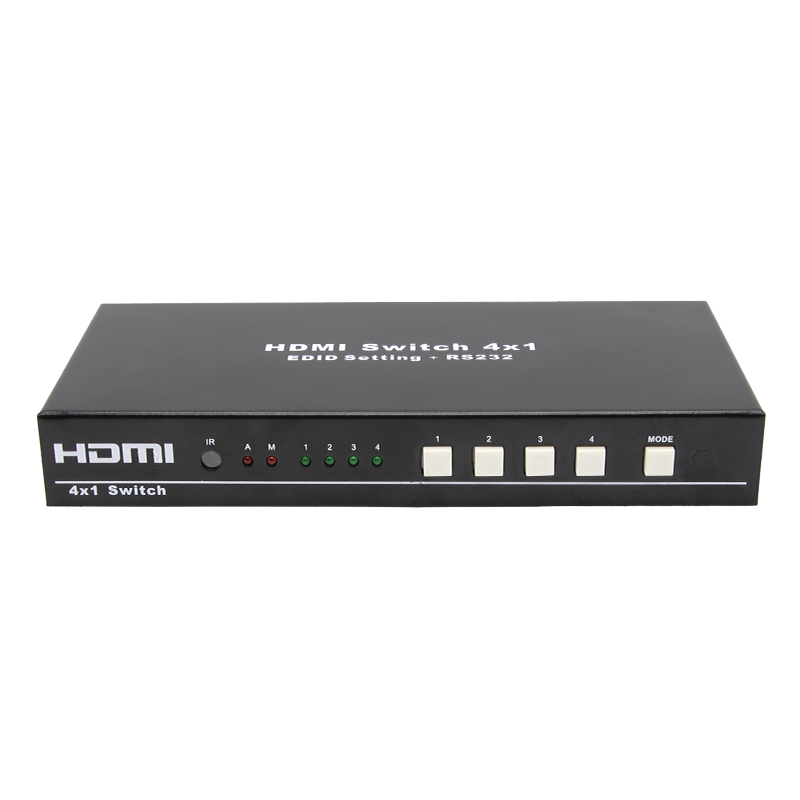

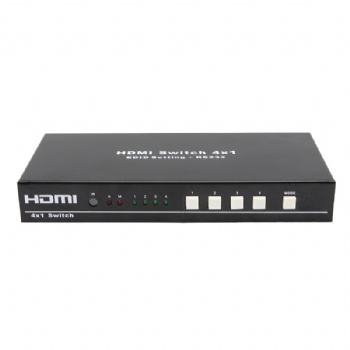

SW02,4x1 HDMI Switch with RS232 and IR control

Features:

Support 4 HDMI input sources, and 1 HDMI output display device.

Support 3D,4K x 2K

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

Support  DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD digital audio.

Support signal retiming

The HDMI input support 5M and output support 8M over AWG26 HDMI cable.

Support Auto-Switch function.

Support IR remote control and manual button control.

Lossless Transmission and easy to Install.

DC5V/1A power supply

Specifications:

HDMI resolution ………………………......4k2k/3D /1080p/1080i/720p/576p/576i/480p/480i

Support audio format……………….DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………..300MHz

Max baud rate……………….…….………………….………………………………….. ….3Gbps

Input/Output TMDS signal ………….…………………………..……...… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….…………………....≤5m AWG26 HDMI standard cable

Output cable distance……………………………….....…...≤8m AWG26 HDMI standard cable

Max working current……………………………………………………………………….....300mA

Power adapter format..Input: ……………....AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Storage Temperature.....................................................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H) ……………………………….…………………………215*100*30 (mm)

Weight…..………………………………………………………..…….…..……………………480g
