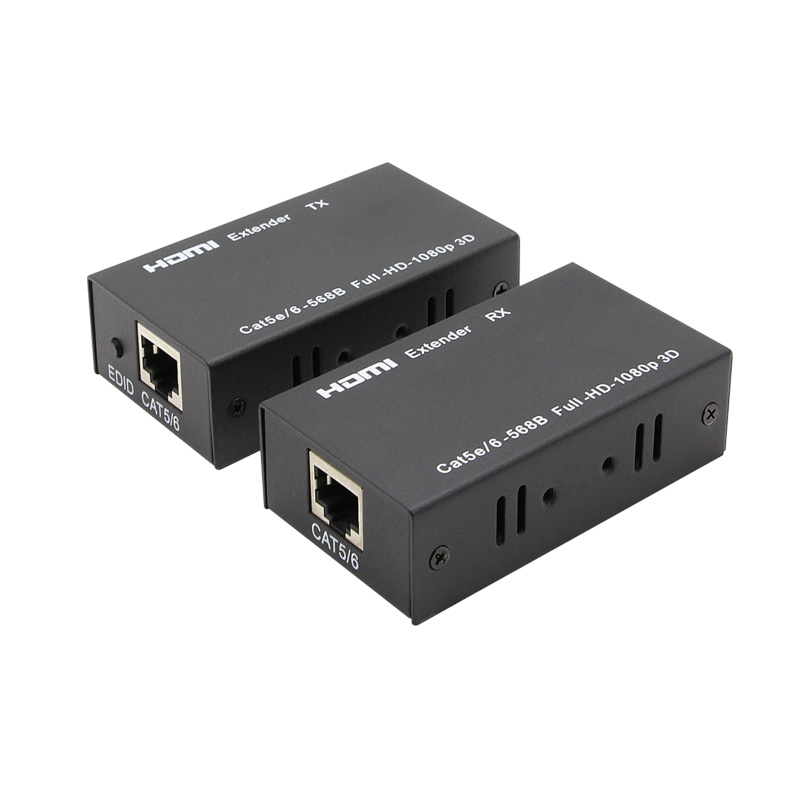

SWEX01, 50M HDMI Extender over single cat6 cable support 3D ,EDID

Features：

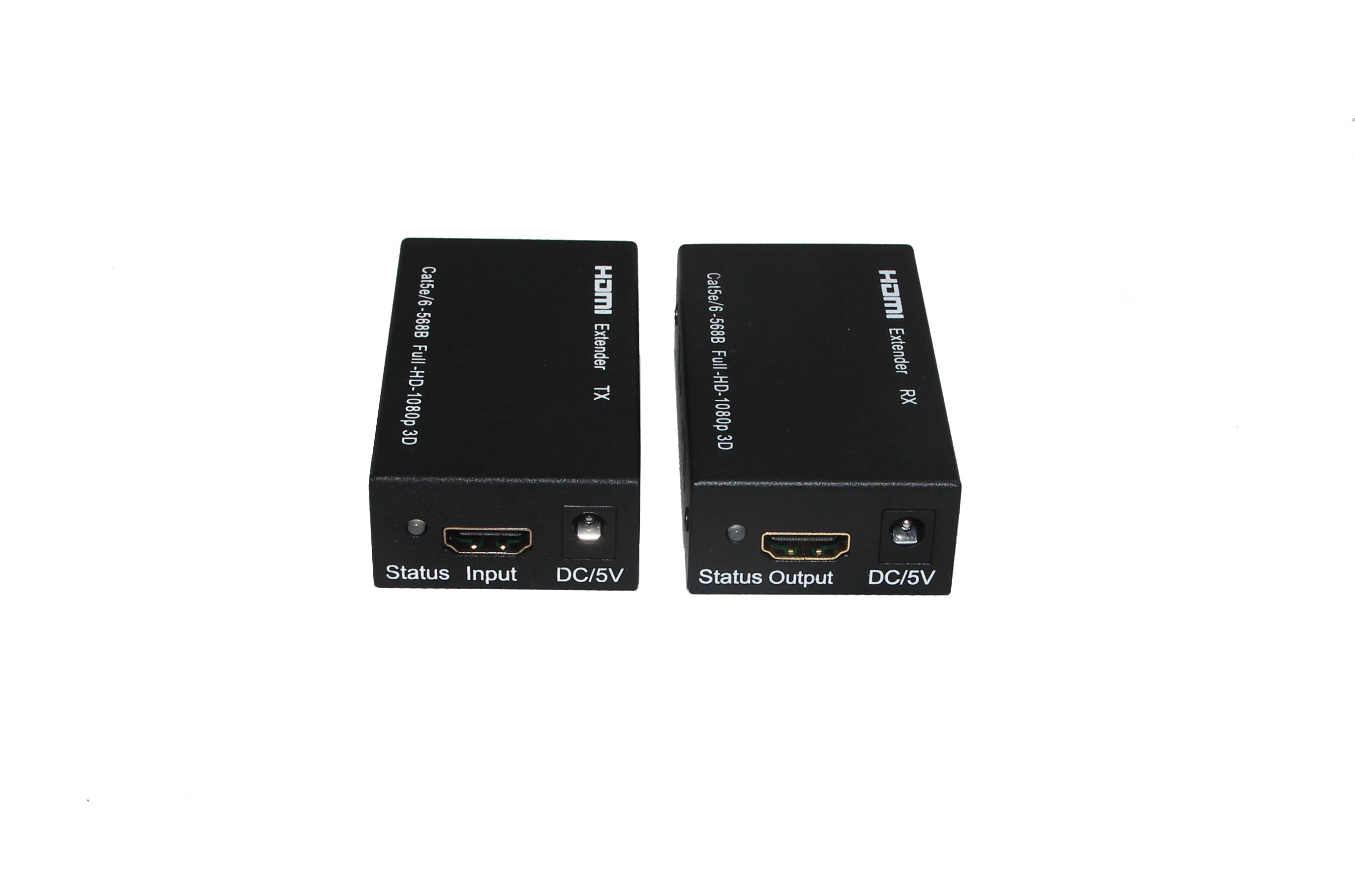

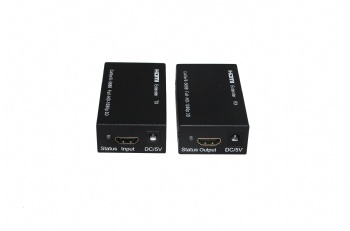

 Each set includes one sender and one receiver.

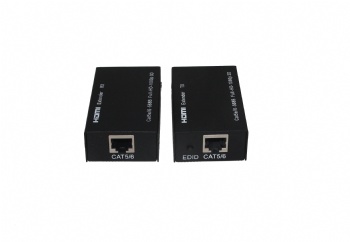

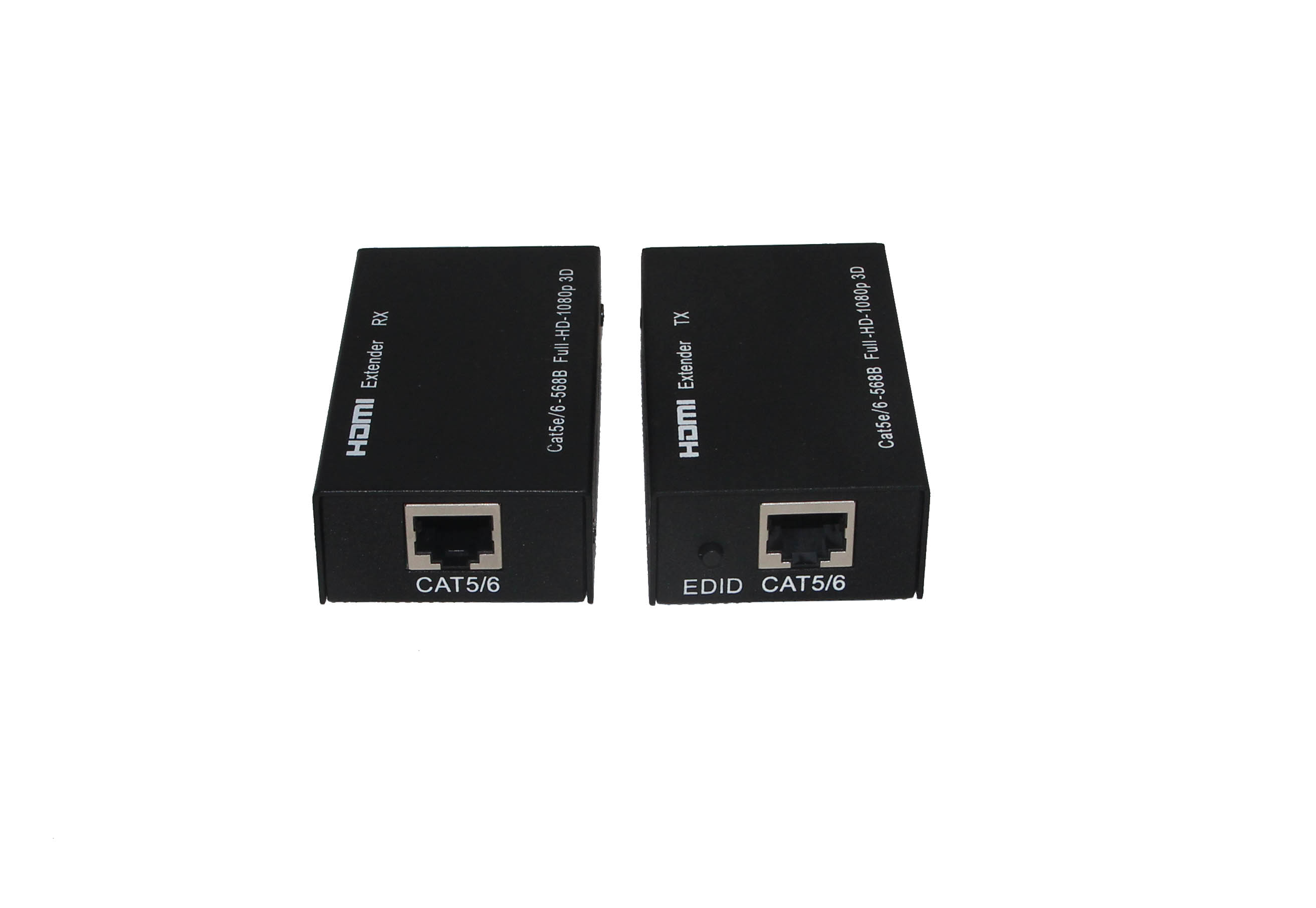

Use single UTP LAN cable（Cat 6)to substitute HDMI cable to achieve long distance transmission,the UTP Cable follows the standard of IEEE-568B.

Transmission distance extend up to 60 meters under 1080P .

Supports Deep Color up to 36 bits.

Supports lossless compressed digital audio:Dolby TrueHD, DTS-HD Master Audio.

Lossless transmission.

Data transfer speed 6.75 Gbps.

DC 5V power supply.

Specifications:

HDMI resolution ……....................3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………...............…...24bit/deep color 30bit,36bit

Support audio format…..................................................DTS-HD/DolbytrueHD/

LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………… ……................…..2250MHz

Max baud rate……………….…….……………….............………....….6.75Gbps

Input/Output TMDS signal …….………..………......…... .0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……….….………………..……..…… 5Volts p-p (TTL)

Input cable distance..…... …………….………………...…....…….≤10m AWG26

HDMI standard cable Output cable distance…............…..…..1080P 8-bit 50M

                      over single CAT5E/6/24AWG/Solid

Max working current…………………………………................………5V/800MA

Power consumption...............................................................5watts(Maximum)

Power adapter format..Input: ....………..…….....AC (50HZ, 60HZ) :100V-240V

Operating Temperature range……….……........……-5 to +35℃(+23 to +95℉)

Operating Humidity range……......…...…….….5 to 90%RH (No Condensation)

Storage Temperature.............................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H)……………….……...... ..................…81.5x43.5x23(mm)

Weight…..…………………………..……....................…………………....…250g

Notes

1: Specifications  are  subject  to change  without  notice. Mass  and  dimensions  are approximate.

2.Sink must support 3D video when source is 3D device

3. When  in  36 Bits deep color mode,we suggest set the hdmi source device output resolution as 1080p or 720P .
