SWEX02 4K 60M Ultra HD Extender Via single cat5e With IR pass through

Features:

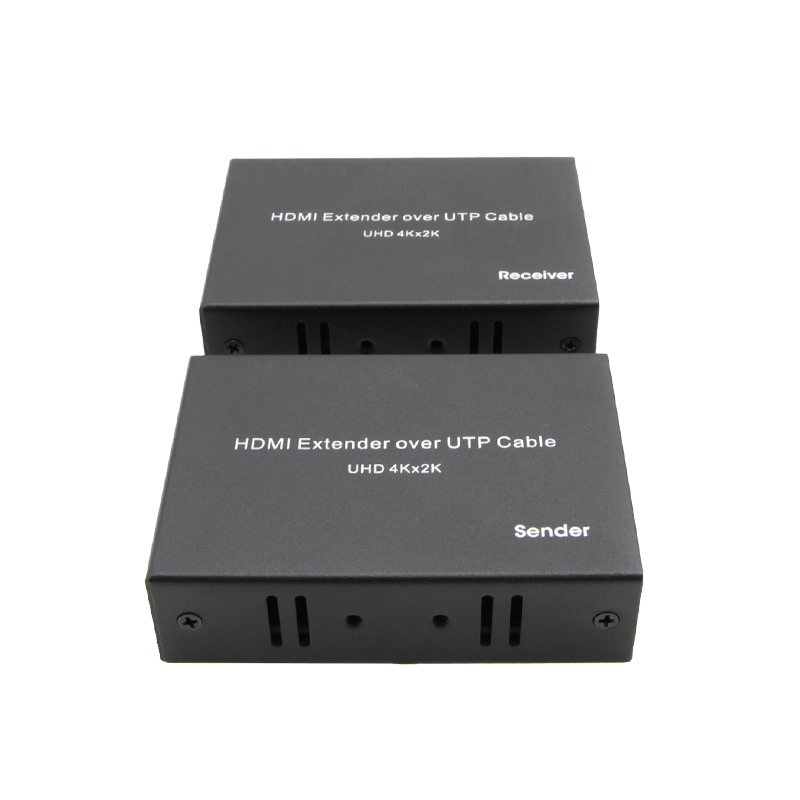

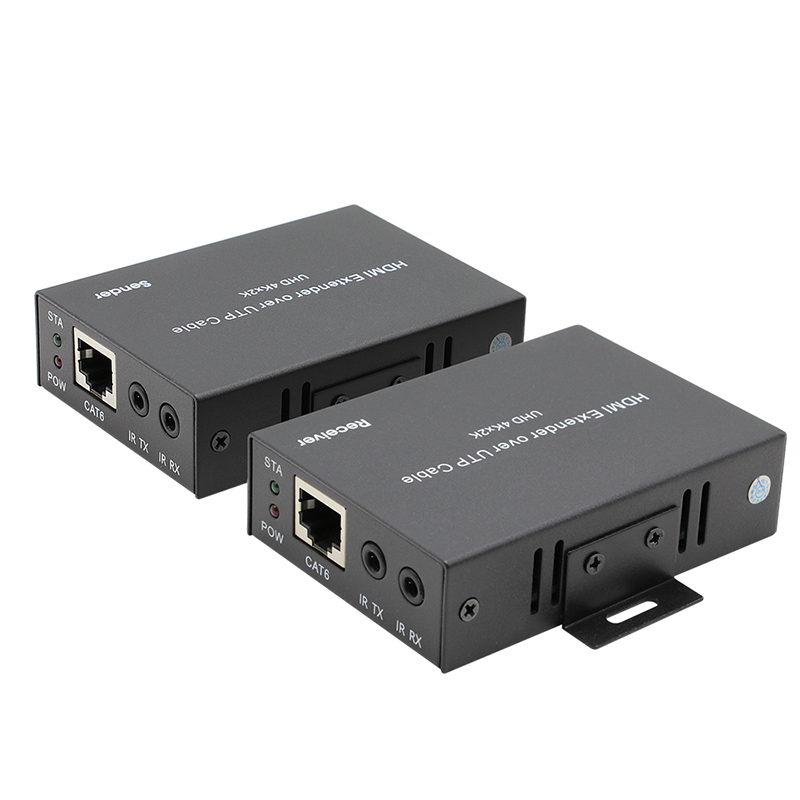

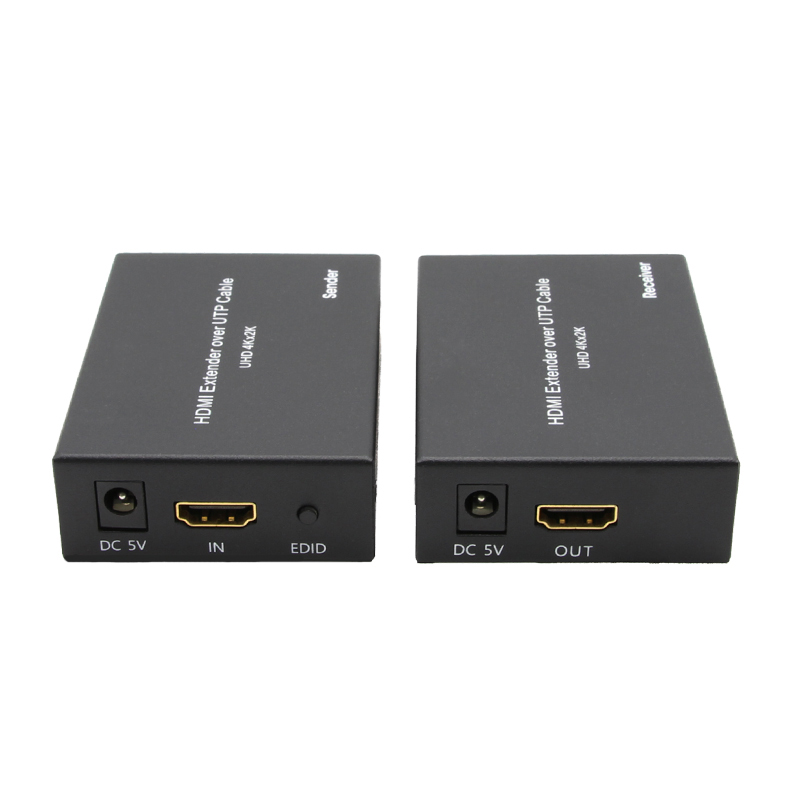

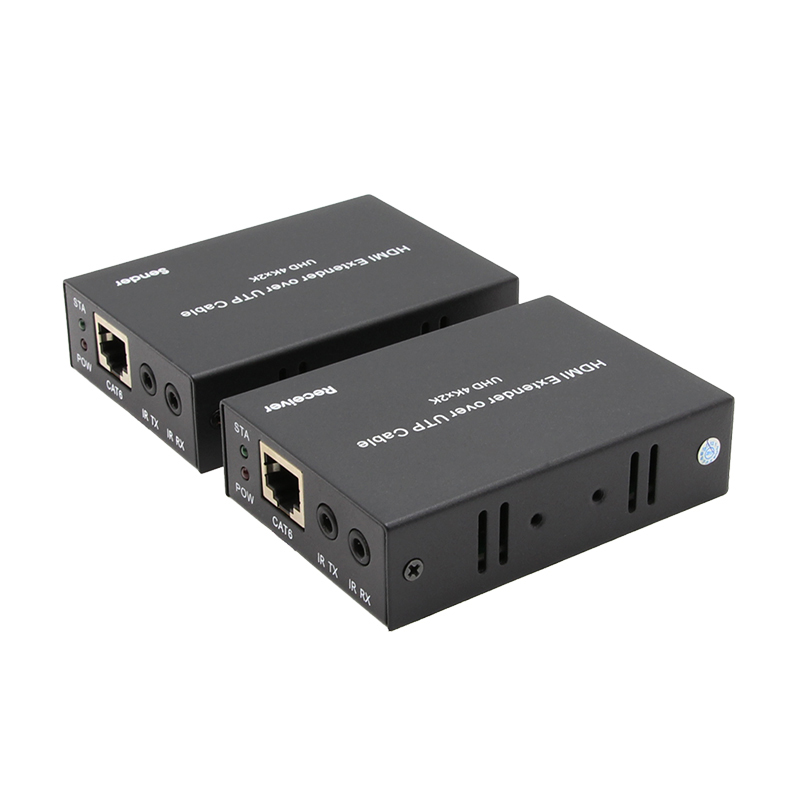

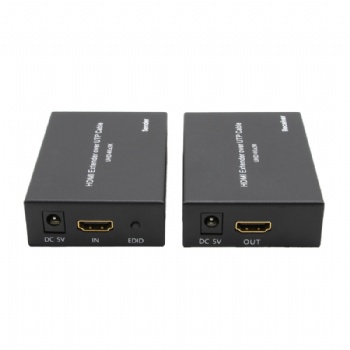

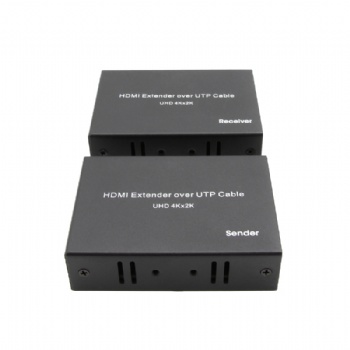

 Each set includes one Sender and one Receiver.

Use single UTP LAN cable（Cat 6)to substitute HDMI cable to achieve long transmission distance, the UTP Cable follows the standard of IEEE-568B.

Transmission distance extends up to 60 meters under 4k2k@30hz.

Supports lossless compressed digital audio: Dolby True-HD, DTS-HD Master Audio.

Support Bi-Directional IR,IR frequency 20-60KHZ.

Lossless Transmission.

Data transfer speed 10.2 Gbps.

DC 5V power supply.

Specifications

HDMI resolution …. ..................... 4K2K@30Hz /3D/1080p/720p/576p/576i/480p

Support video color format …………...................…...24bit/deep color 30bit,36bit

Support audio format….....................................................DTS-HD/DolbytrueHD/

LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth…………………………………….....… ……................…..340MHz

Max baud rate……………….…….……………...….............………....….10.2Gbps

Input/Output TMDS signal …….………..………......…... .0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……….….………………..……..…… 5Volts p-p (TTL)

Input cable distance..…... …………….………………...…....…….≤10m AWG26

HDMI standard cable Output cable distance……….....4k 8-bit 60m(Maximum)

       over single CAT6 /24AWG/Solid

Max working current…………………..………………................………5V/800MA

IR..............................................................................Bi-Directional IR(20-60KHZ)

Power consumption..................................................................5watts(Maximum)

Power adapter format..Input: ....…...……..…….....AC (50HZ, 60HZ) :100V-240V

Operating Temperature range………....……........……-5 to +35℃(+23 to +95℉)

Operating Humidity range……......…......…….….5 to 90%RH (No Condensation)

Storage Temperature................................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H)……………….…...…...... ..................…81.5x43.5x23(mm)

Weight…..…………………………..……........................…………………....…250g
