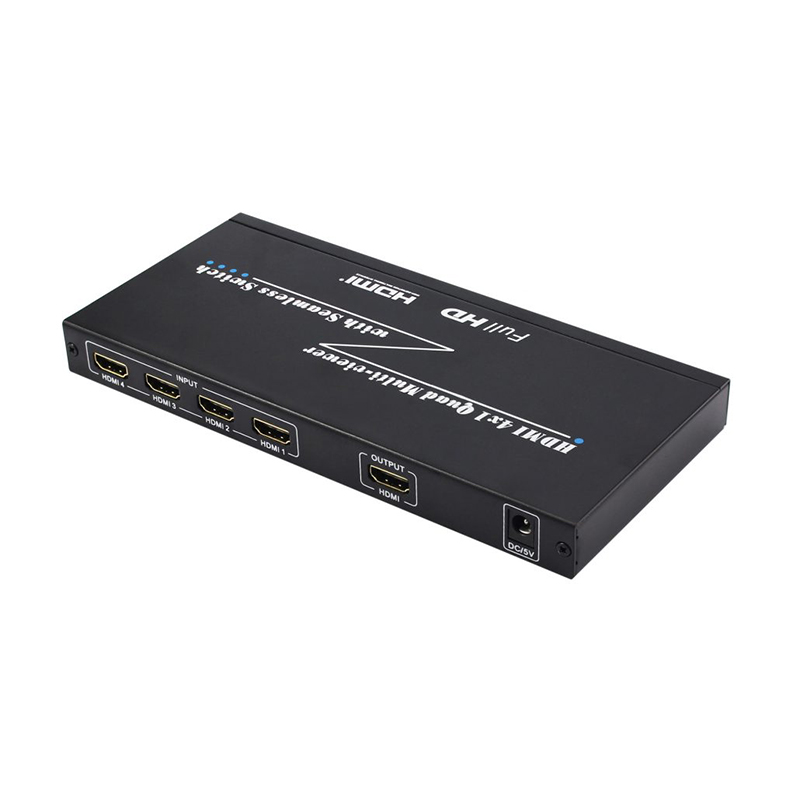

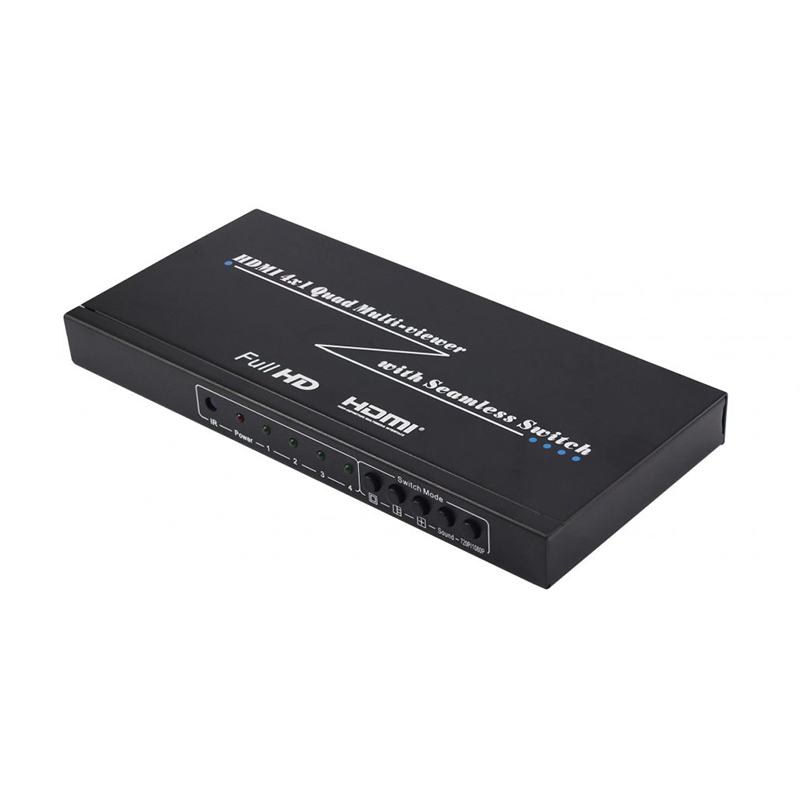

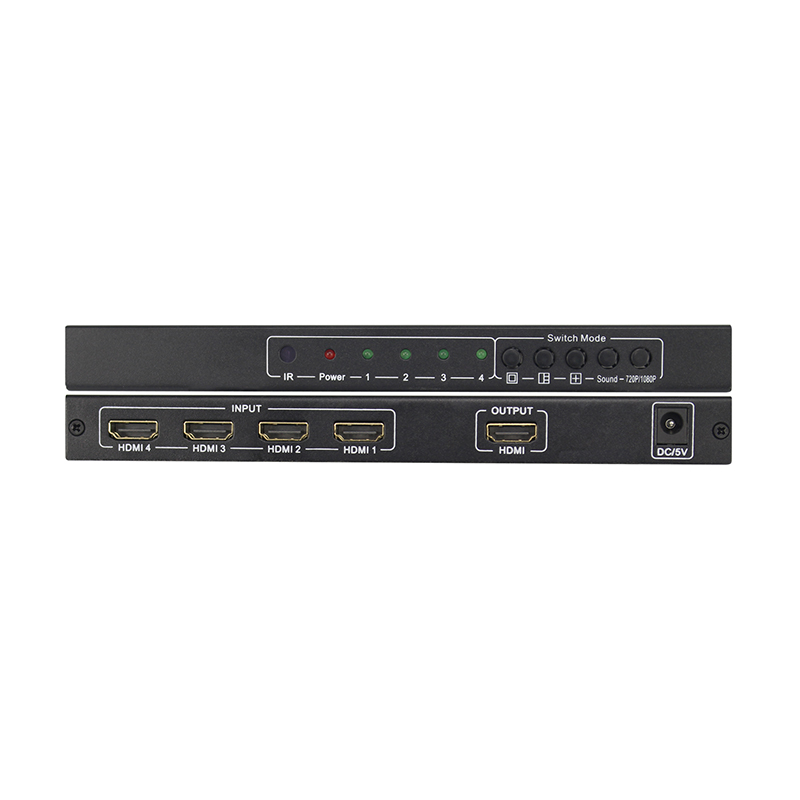

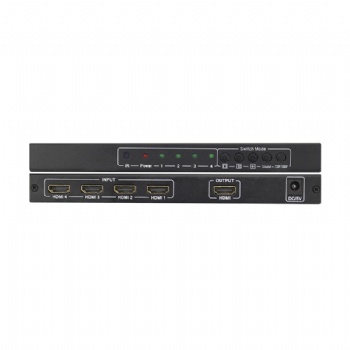

SW03,4x1 HDMI seamless Switch with Multi-viewer support 1080P

Features:

1. Supports 4 HDMI input ports.

2. Supports 1 HDMI output port.

3. Compliant with HDMI 1.3a,HDCP 1.2.

4. Supports multiplexed HDMI 4-input and 1-output.

5. Supports up to 1080p High Definition resolution.

6. Supports 4by1 Quad Multi-viewer and seamless switch.

7. Supports 720p/1080p output resolution.

8. Supports audio switch.

9. Supports fast switching.

10. Supports Equalizer TMDS Output: 25MHz–225MHz TMDS clock.

11. Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.

12. Supports 1080p input up to 15 meters and output up to 20 meters ( Cable

standard AWG26).

13. Inputs can be switched with the IR remote controller, also can be controlled

by built-in button.

14. Extend the transmission distance and improve transmission signal.

15. Compatible with DVI through a HDMI to DVI adapter.

16. Supports hot plug-and-play.

17. LED indicate signal and power mode.

18. No loss of quality.

19. Installs in minutes.

Specification:

Maximum Single Link Range……………………………………………1080P/60Hz

HDMI version…………………………………………………….HDMI 1.3, HDCP 1.2

HDMI input resolution..24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p

HDMI output resolution……………………………………………720p/1080p/60Hz

Supports video color format……..…………………24bit/deep color 30bit, 36bit

Vertical Frequency Range……………………………………….720/1080p@60Hz

Max bandwidth………………………………………………………………….225MHz

Max bandrate……………………………………………………………………6.7Gbps

Input/Output TMDS signal ………………………………0. 5~ 1. 5Volts p- p( TTL)

Input/Output DDC signal ………………………………………….5Volts p- p ( TTL)

1080P Input cable distance………………… 15m AWG26 HDMI standard cable

1080P Output cable distance…………….≤20m AWG26 HDMI standard cable

Max working current…………………………………………………………………..1A

Operating Temperaturer………………………………………………( – 15 to + 55℃)

Operating Humidity range……………………….5 to 90% RH ( No Condensation)

Dimension ( L x W x H)………………………………………………..200x95x20mm

Weight………………………………………………………………………………..460g
