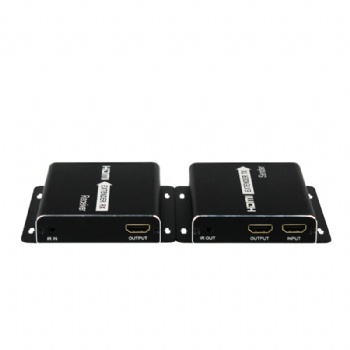

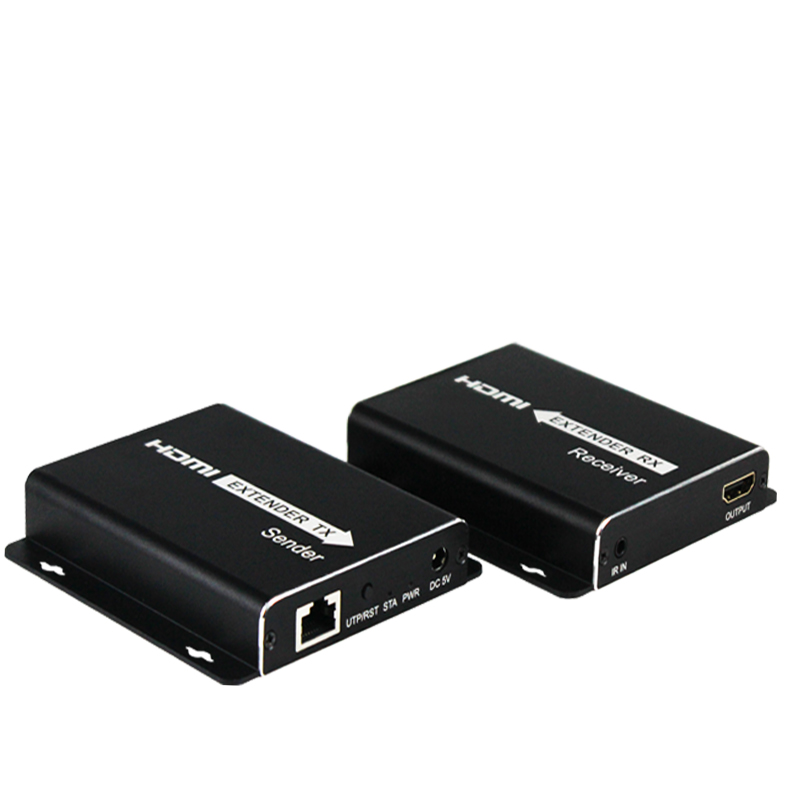

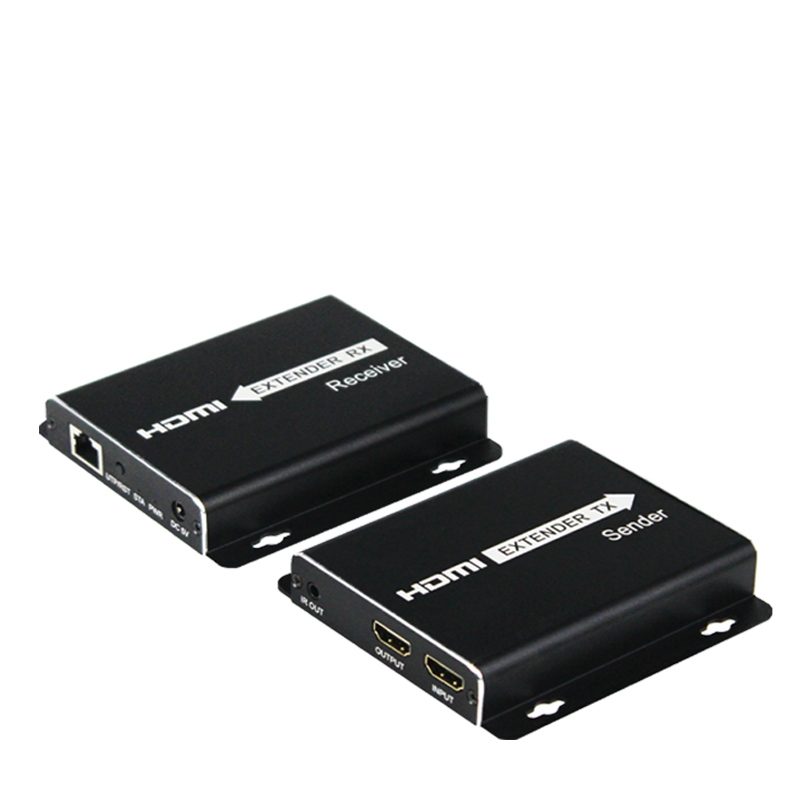

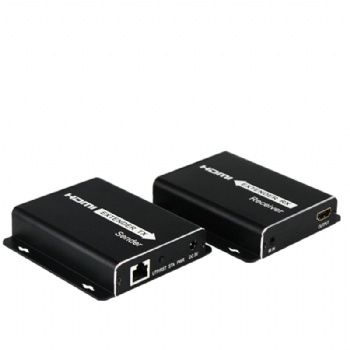

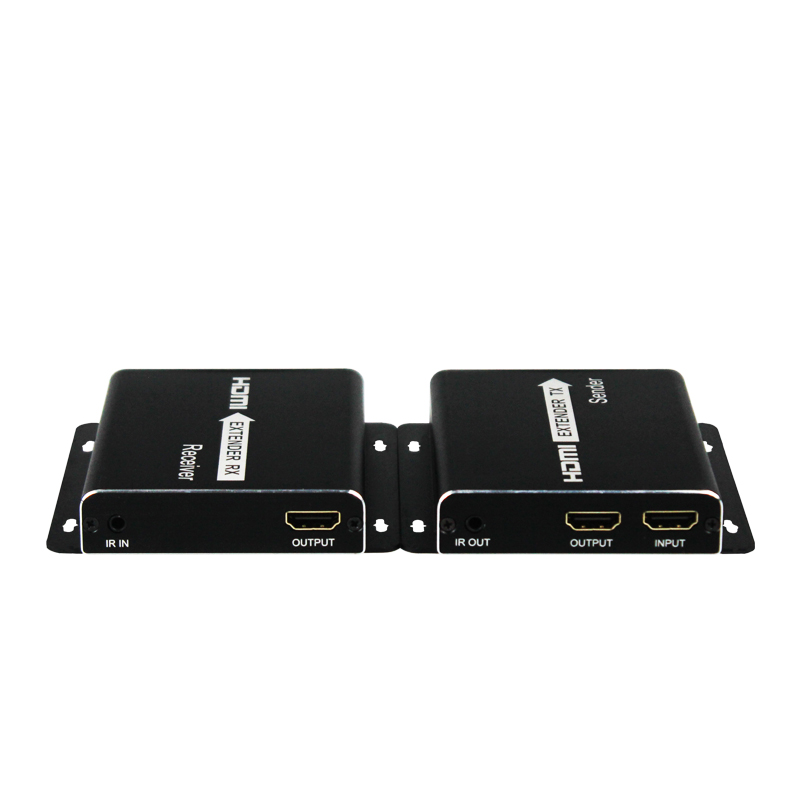

SWEXIP03,150M HDMI Extender over IP with HDMI Looping output

Features：

1.Support HDCP

2. Support 150M Ethernet, Any one of the four Ethernet ports in the receiver and sender can be used as the input of the Ethernet signal, the other Ethernet ports can connect three PC  to go surfing.

3.IR Extension Function, you can use the Signal source remote to control the source device at the receiver.

4.Video Input Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

5.Support 1080p@60Hz@48bit pixels

6.Video Out Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

7.Support Audio Format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

8.Led Status Light:Power Led light go bright, it means the power supply is normal; Led 1 status light go bright, it means there is signal output; Led 2 light go bright, it means the Ethernet cable connection between the sender and receiver is ok.

9.Use standard HDMI Cable and Ethernet Cable,

10.No loss of Signal

11. Easy Operation and Installation

12.With 5V Power Adaptor

Specification

Length of CAT-6 cable between Rx and TX…..………….…….……………..Up to 150 meters

HDMI Input…..……………………..………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format input..………..DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Output…..…………….…...….……24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format output...……. ……………….….………LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth…………………………………………….………….…….………………340MHz

Max baud rate……………….…….………………….…….…….….….…………………10.2Gbps

Input Video signal ………….…………………………..………….….……….… 0.5~1.5Volts p-p

Output DDC signal ……………………………………………….……………… 5Volts p-p (TT1L)

Input HDMI cable distance………….………………………..≤5m AWG26 HDMI standard cable

Output HDMI cable distance………………………………. ≤10m AWG26 HDMI standard cable

Max working current………………………………………….……………………………...1000mA

Power adapter format………...…………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A

Operating Temperature range……..…………….….…….………………………… (-15 to +55℃)

Operating Humidity range………………………….…………….5 to 90%RH (No Condensation)
