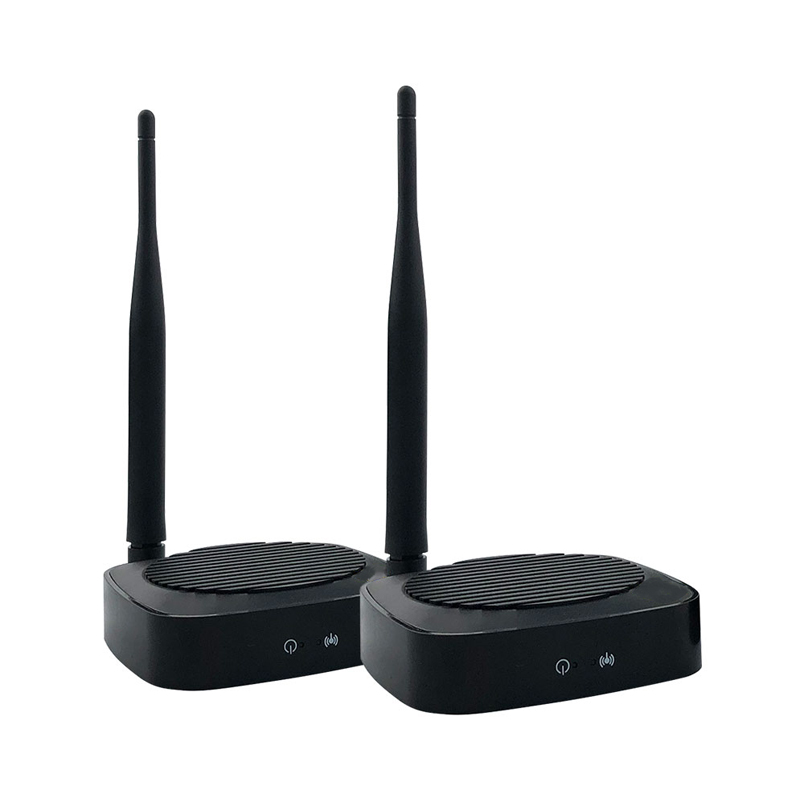

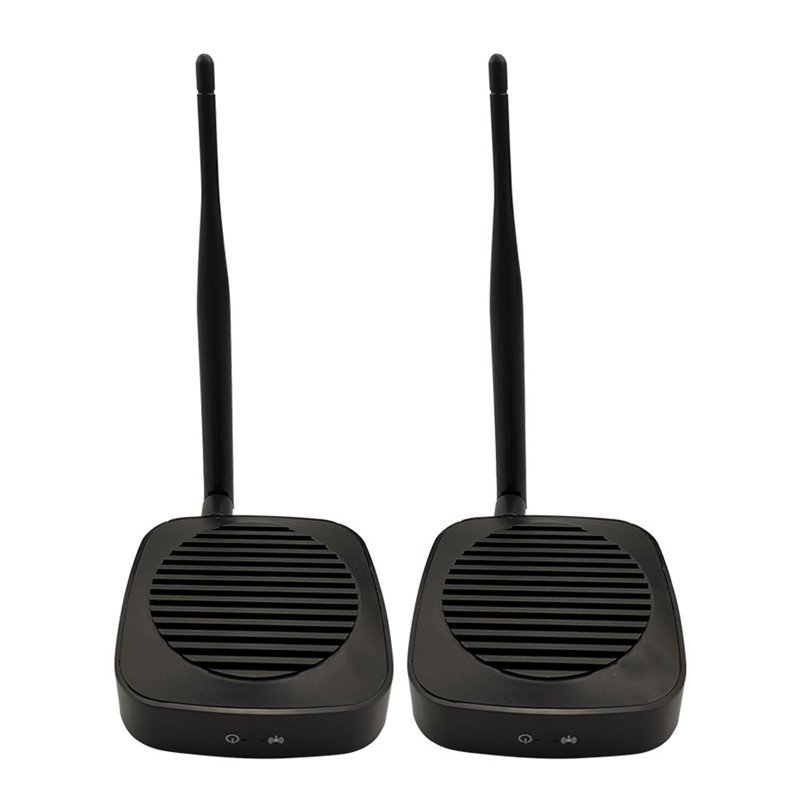

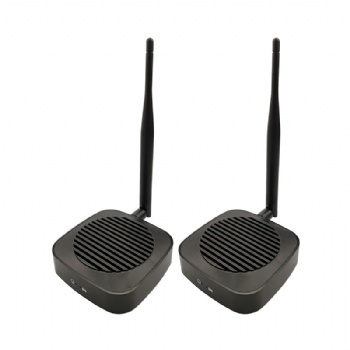

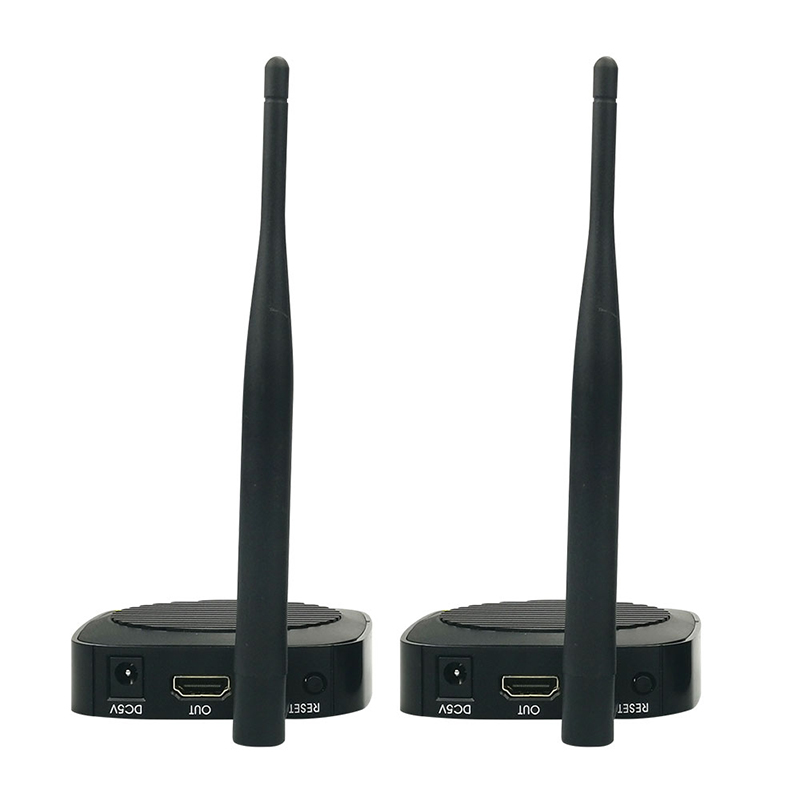

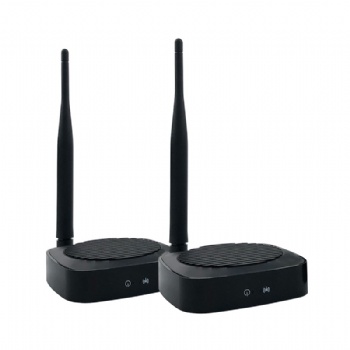

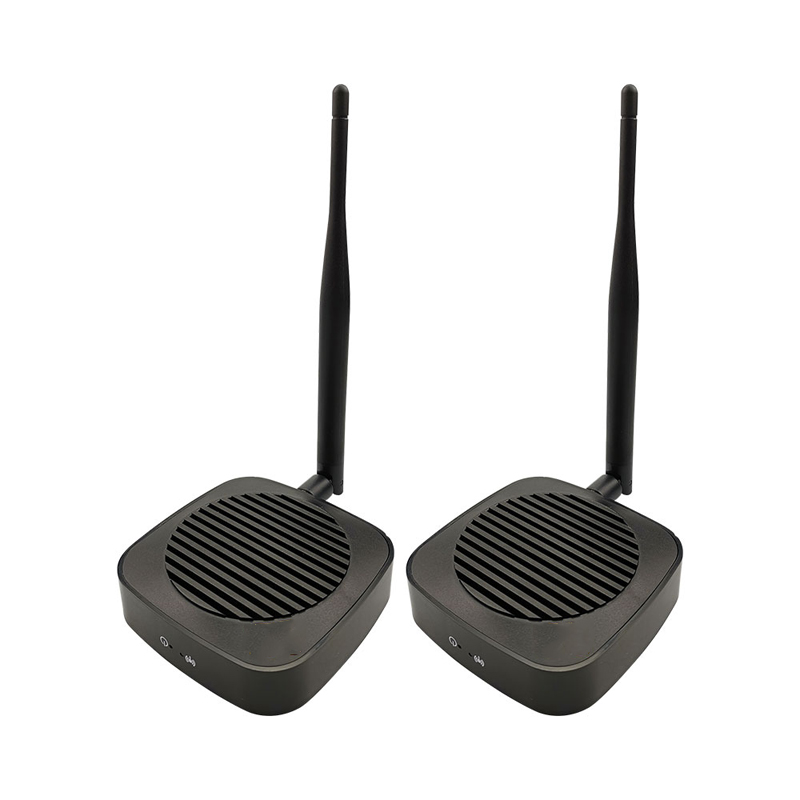

SWEXIP08,50M HDMI Wireless Extender

Features：

1•HDMI video and audio signals are transmitted via built-in    wireless WIFI.

2•The open environment is transported up to 50 meters, and   the partition wall is transmitted up to 25 meters.

3•HD video signal resolution up to 1920*1080P@60Hz.

4•Compatible with HDMI 1.3.

5•Support WIFI automatic link.

6•Use international standard H.264 format to compress and   decompress video, effectively improve transmission efficiency and ensure smooth playback.

7•HDCP 1.2 compliant – high bandwidth digital content       protection technology.

8•Ability to automatically identify and configure various display modes.

9•Built-in automatic equalization system, the picture is smooth, clear and stable.

10•Built-in ESD electrostatic protection circuit to protect system security.

11•Easy to install, plug and play, no need to set.

Specifications:

Video Supporting agreement....................HDMI 1.3; HDCP 1.2

Compression format...............................................H.264

Pixel bandwidth..................................165MHz, all digital

Interface bandwidth................Total bandwidth 6.75Gbps

Maximum support resolution..........1920X1080P@60Hz

Interface...............................................HDMI-A Interface

Impedance..............................................................100Ω

WIFI RF power consumption.........................................13dbm

Wireless standards..........................................................802.11ac

Signal direction...........................................unidirectional

Wireless Frequency............................................................5.8GHz

Other

Dimensions (length, width and height).......................................................119*82*23mm

Weight................................................TX:162g, RX:162g

Shell material.........................................................plastic

Operating temperature..............................-5 °C ~ +70°C

Storage temperature ......................................-20~+60°C

Working humidity.............10~90% RH (no condensation)

Storage humidity...............5~95% RH (no condensation)

Maximum power consumption....................................9W
