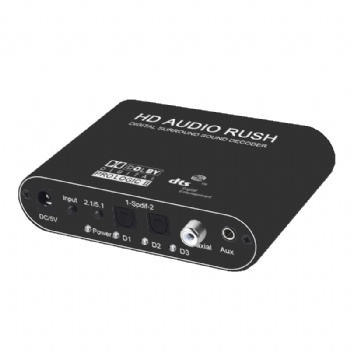

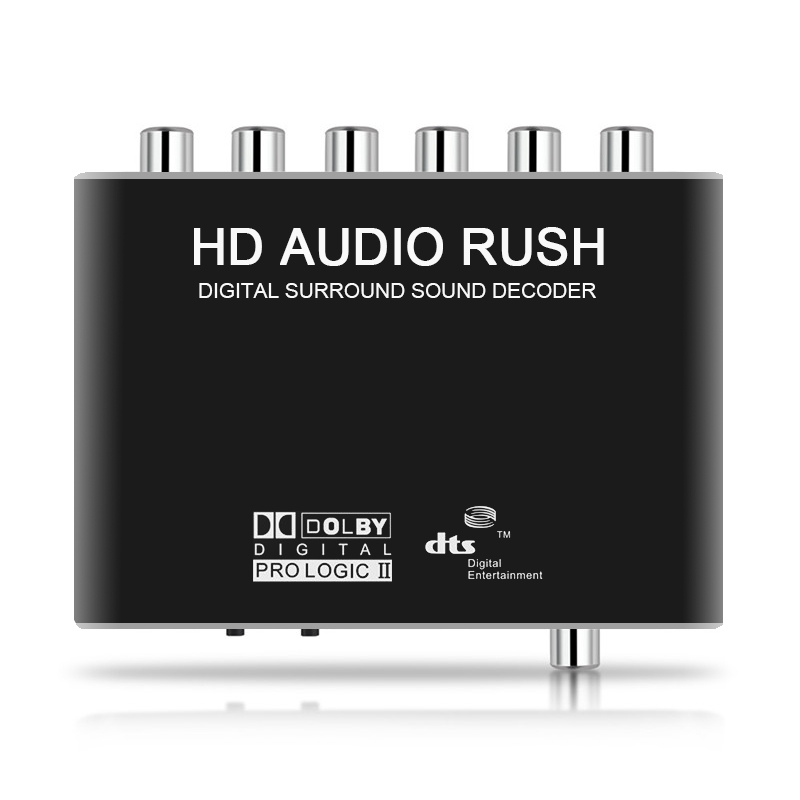

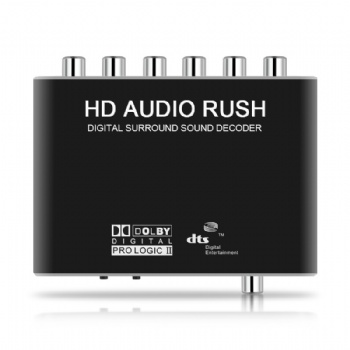

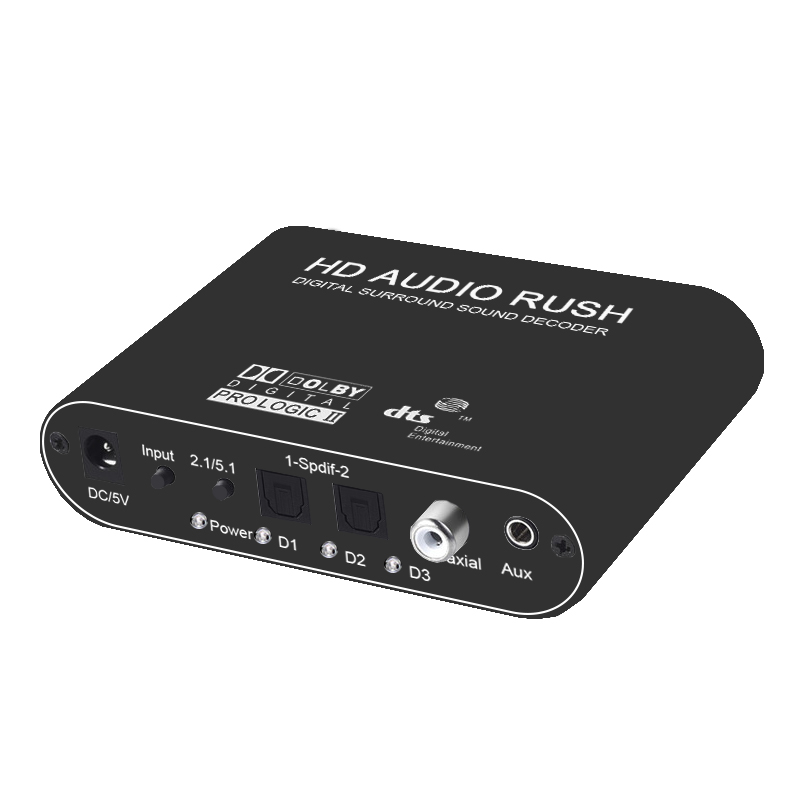

SWAU01,Digital to analog audio Decoder

Features:

1. Support for analog stereo (R / L) audio signal is decoded, the output of 5.1 or 2.1 channel analog audio signal

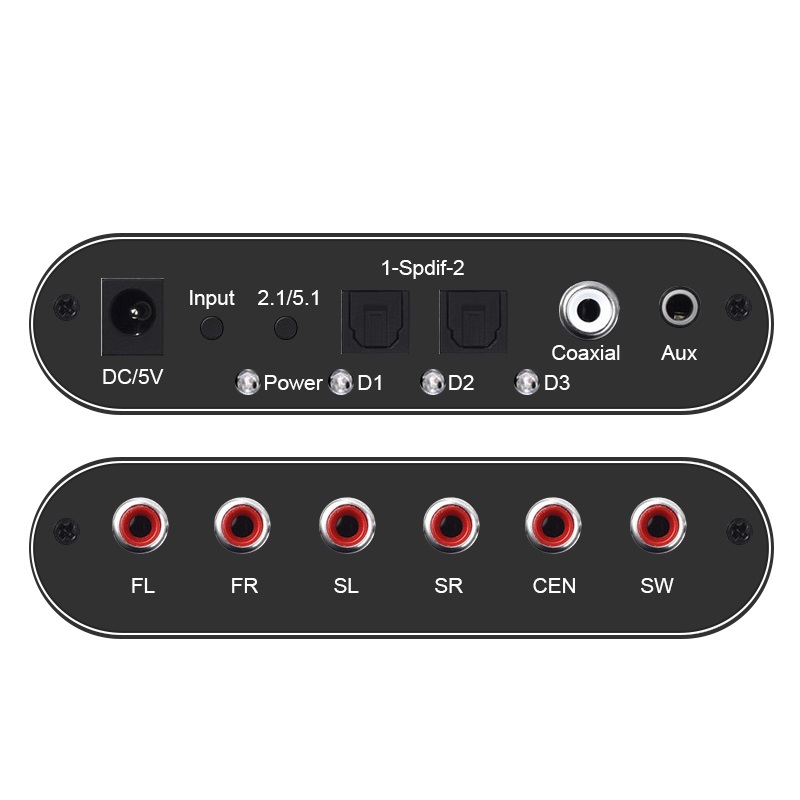

2. All the way to digital OPTICAL (optical) audio signal input, one digital COAXIAL (coaxial) audio signal input, one analog AUX (stereo) input. More complete multi-channel digital audio and analog audio input

3. Multi-channel signal input, one-button switch, convenient

4. Power auto-detection signal input channel, switch to a signal input channel, when no signal input, output mute function

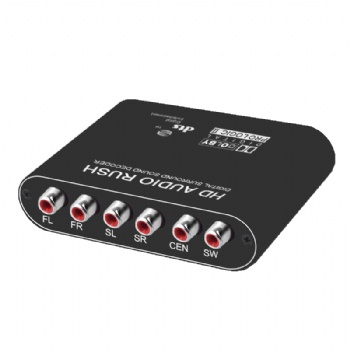

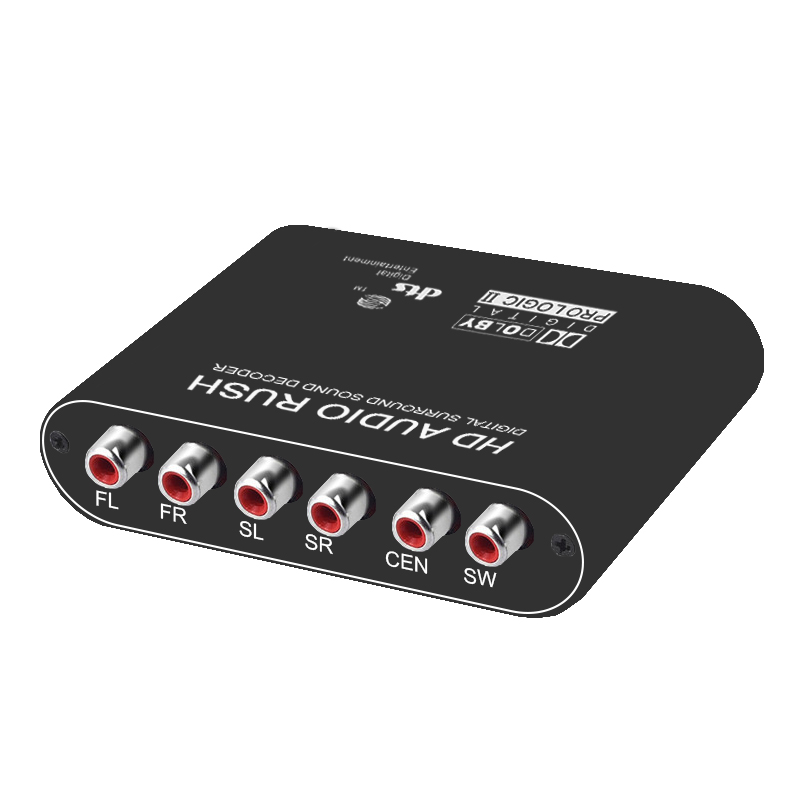

5. 6 RCA (RCA) output, 5.1 or 2.1-channel analog output, one-button switch, power and memory saving

6. 24-bit audio DSP, 96KHZ/24bit ADC and DAC digital processing chip 8. Noise ratio: 120db

Specification:

Type---------------------Digital to 5.1CH Audio Converter

Color---------------------Black

Size----------------------108*86*27mm

Weight------------------145g

Video Output-------------HDMI 1.4

Audio output---------------3.5mm audio, SPDIF support ARC

HDMI Audio-----------------PCM2.1,5.1,7.1CH,Dolby5.1,DTS5.1, D-True HD,DTS-HD

Audio support---------------LPCM 7.1CH.Dolby TrueHD, and DTS.HD Master Audio

Power supply-----------------5V/1A DC

Audio output support---------------ToslinK X1, Analog Audio X1

Support-------------------------------Frequency Bandwidth 2.97Gbps,3D Video & 4Kx2K/30HZ, 8, 10, 12 & 16 bits per color depth

Plug and play-----------------------No need to install drivers, portable, flexible

Operation temperature---------------------0-70°C
