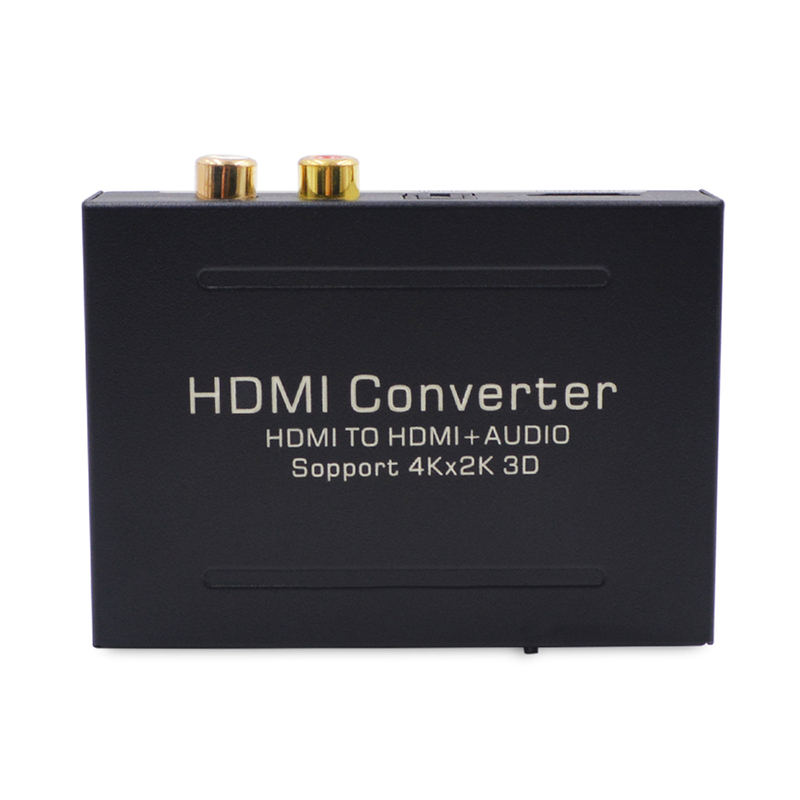

SWAU05,HDMI 1.4V Audio extender support 4K,3D ,SPDIF and Stereo audio output

Features:

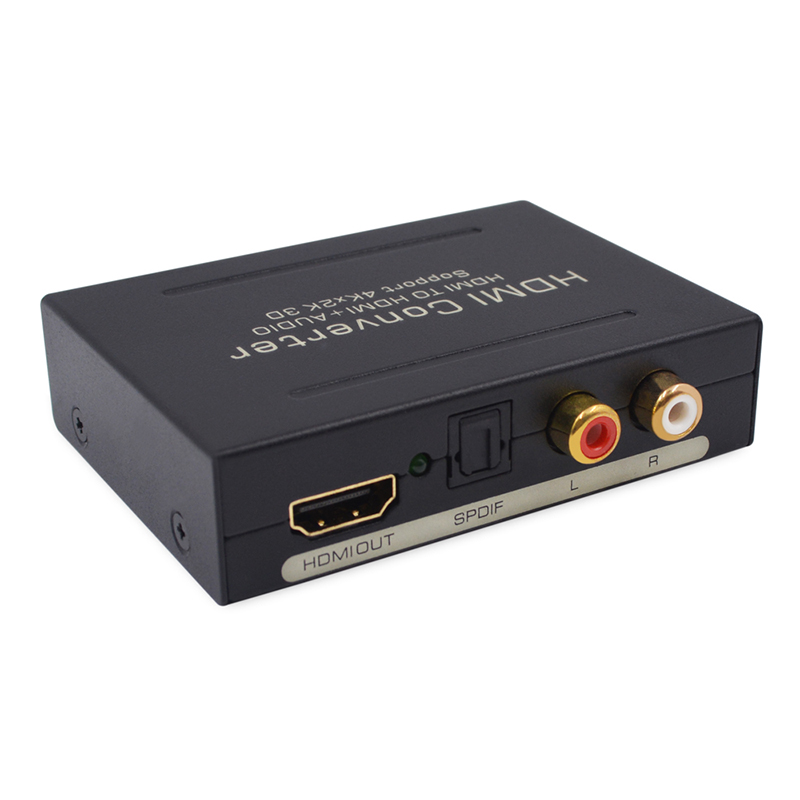

Convert one HDMI input to one HDMI + Audio(SPDIF + R/L)output.

Audio output supports: SPDIF + R/L analog Audio Output.

Input Resolution: Up to 3840x2160@30Hz;4096x2160@30Hz.

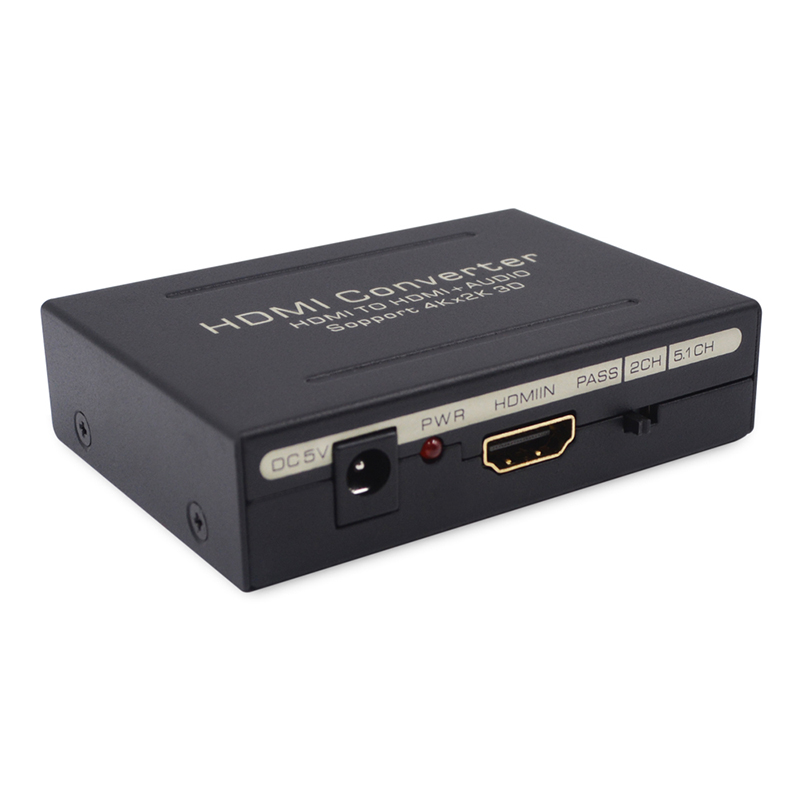

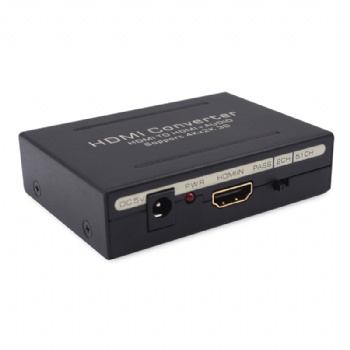

HDMI to achieve the synchronization of audio signal separation. There are PASS/2.0CH/5.1CH three kinds of audio mode options.

LED indication: When the converter is switched on,the red LED indicator will light. When it is connected to the HDTV successfully, the green LED indicator will light.

Specifications:

HDCP Version.................................................HDCP1.4

HDMI Version................................................HDMI1.4b

HDMI resolution..2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i

Support video color format.............24bits/deep color 30bit,36bit

Audio output...............................................L/R+SPDIF

Max bandwidth.................................................340MHz

Max baud rate................................................10.2Gbps

Input/ Output TMDS signal........................0.5-1.5Volts p-p(TTL)

Input/ Output DDC signal.............................5Volts p-p(TTL)

Input cable distance.................<=7m AWG26 standard cable HDMI

Output cable distance................<=8m AWG26 standard cable HDMI

Max working current............................................500mA

Power adapter format........input:AC(50/60Hz)100V-240V;Output:DC5V/1A

Operating temperature range..........................(-15 to +55°C)

Operating humidity range...............5 to 90% RH(NO Condensation)

Dimension (LxWxH)..............................84.5 x 61.8 x 21(mm)

Weight........................................................135g
