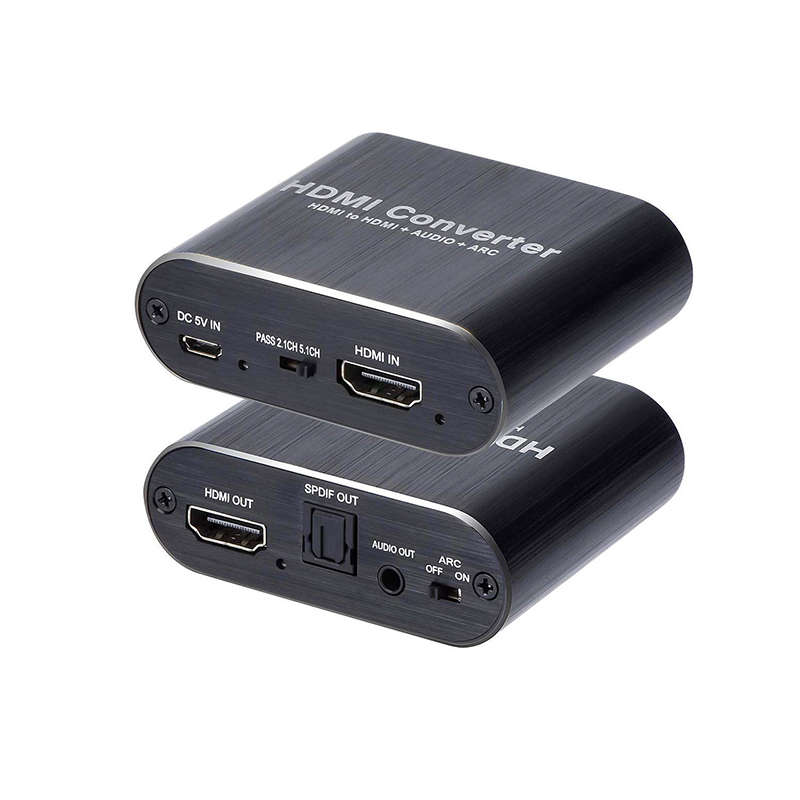

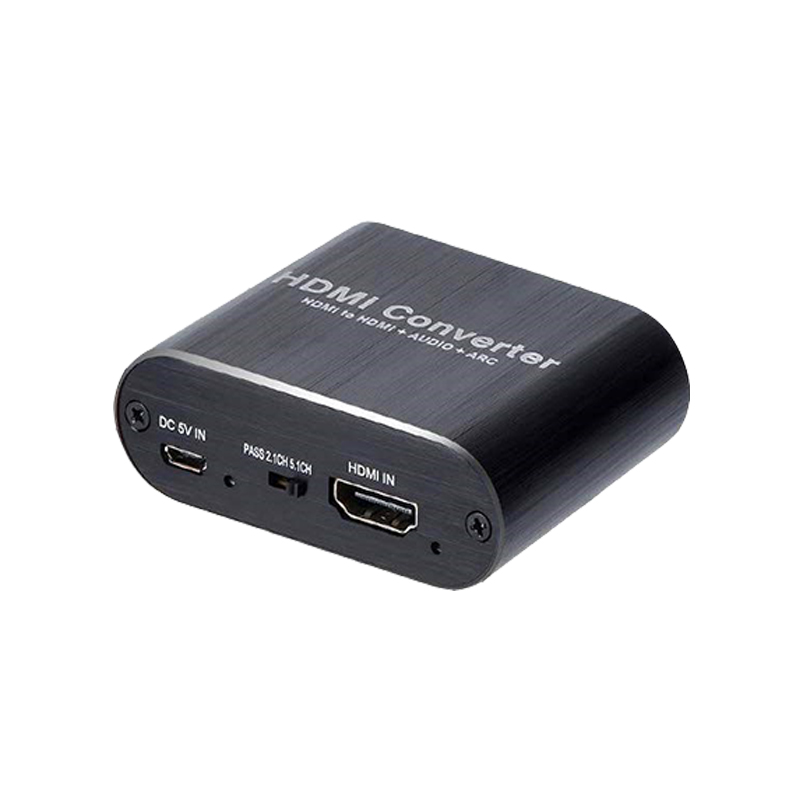

SWAU04,HDMI 1.4V Extractor, support 4k,SPDIF and AUX audio output

Features:

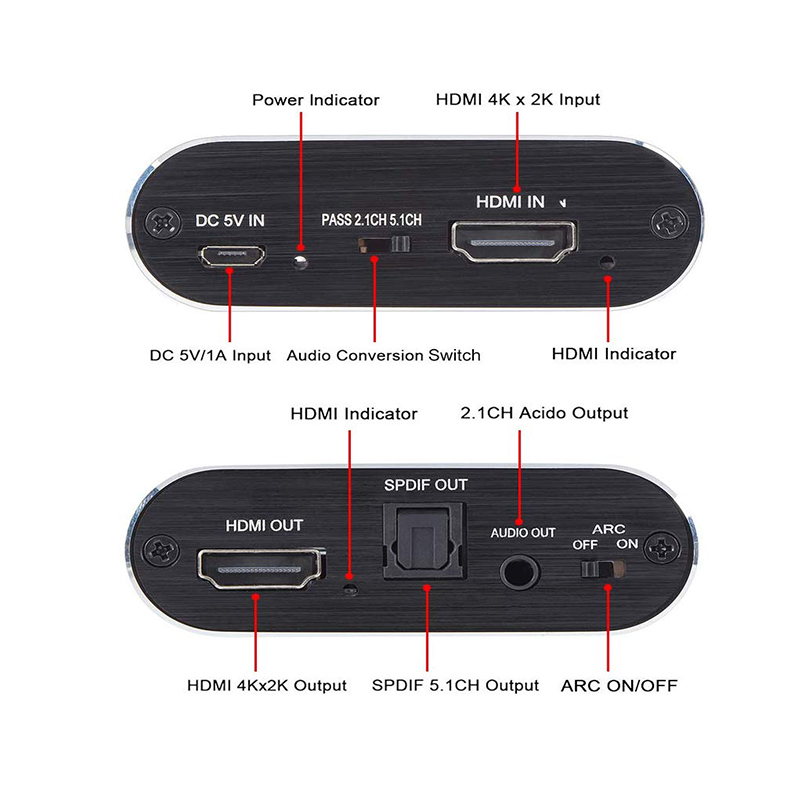

Support extract audio signals from any HDMI compliant source to digital optical or 3.5MM headphone audio output.

Support PASS / 2.0CH / 5.1CH three kinds of audio mode .

Support 4K x 2K@30Hz , Support 3D

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

Support DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD audio.

Support signal retiming

Support lossless transmission.

Compact design and easy to install.

Power adapter is optional.

Specifications:

HDMI resolution …………………......4k2k@30Hz/3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit/deep color 30bit,36bit

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………..340MHz

Max baud rate……………….…….………………….………………………………….. ….10.2Gbps

Input/Output TMDS signal ………….…………………………..……...… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….………………….≤10m AWG26 HDMI standard cable

Output cable distance……………………………….…...≤10m AWG26 HDMI standard cable

Max working current……………………………………………………………………….....350mA

Power adapter format..Input: ……………........AC (50HZ, 60HZ) :100V-240V; Output: DC5V

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Storage Temperature...................................................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H)……………………………….…………………………58X54X22 (mm)

Weight…..………………………………………………………..…….…..……………………135g
