Video wall Series

SWVW01,Video Wall controller support 2x2,4x1,1x4 support 1080P with IR control

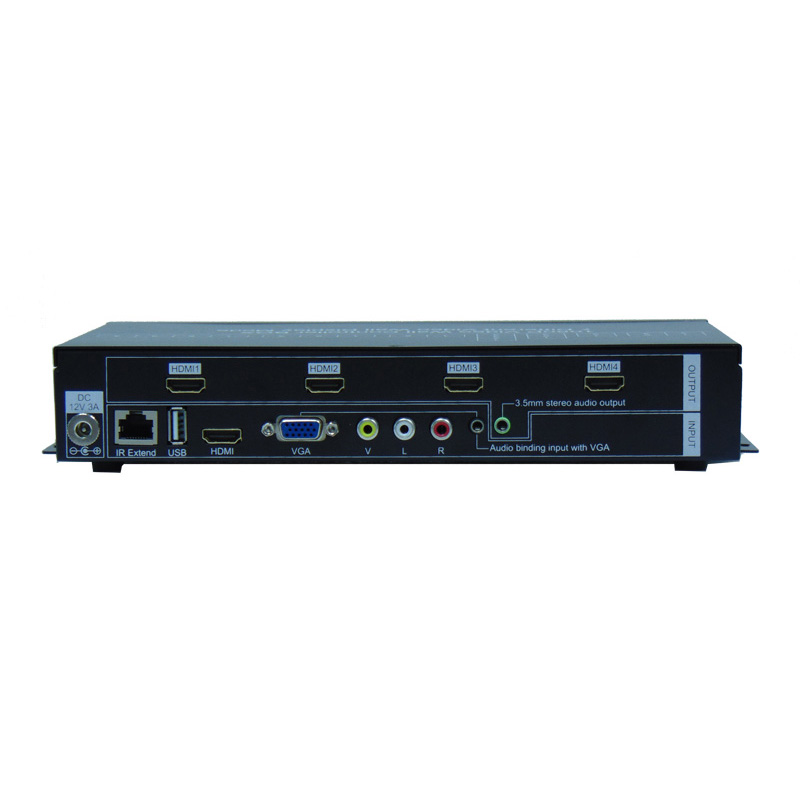

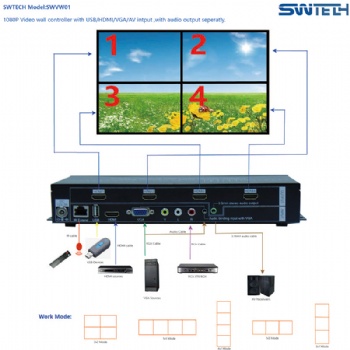

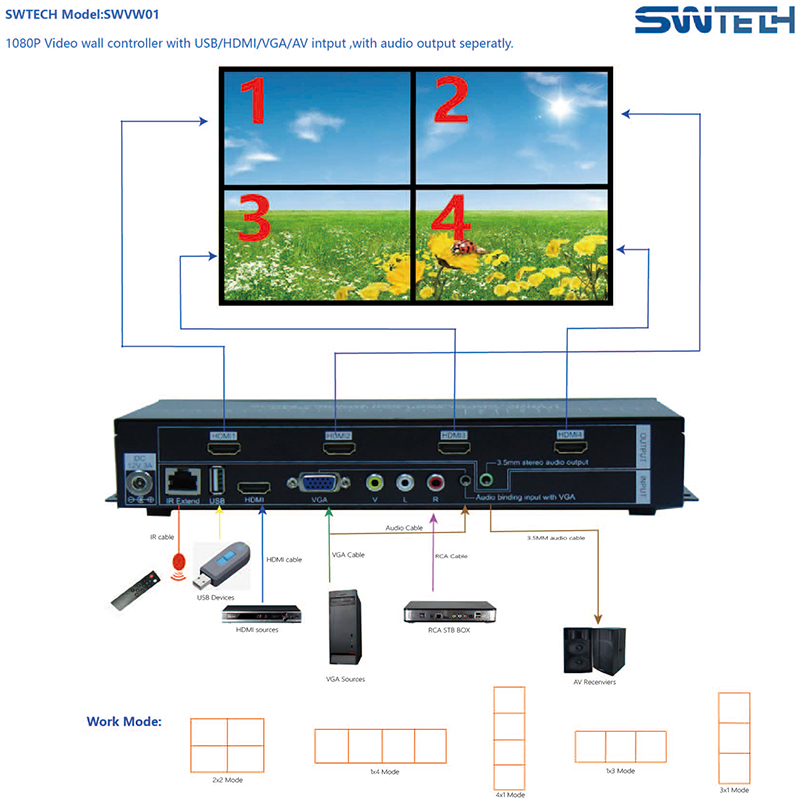

This is a specific 4 or the picture mosaic processor ultra narrow LCD TV, the following 4 side of the LCD screen, projector, support 4 HDMI signal output, with four LCD TV or other display device, the user can set the 1*2, according to the needs of their own 1*3, 1*4, 2*2, 2*1, 3*1, 4*1 mosaic pattern. Products using high-definition processing chip, full HD 1080P internal processing. Support 1 channel USB (comes with decoding audio and video), 1 channel HDMI input，1 channel AV input，1 channel VGA input, 4 input signals can be switched to the big screen for splicing display, and audio and corresponding video synchronization output.

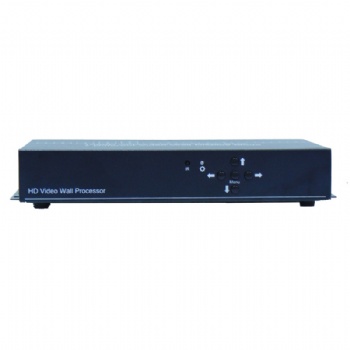

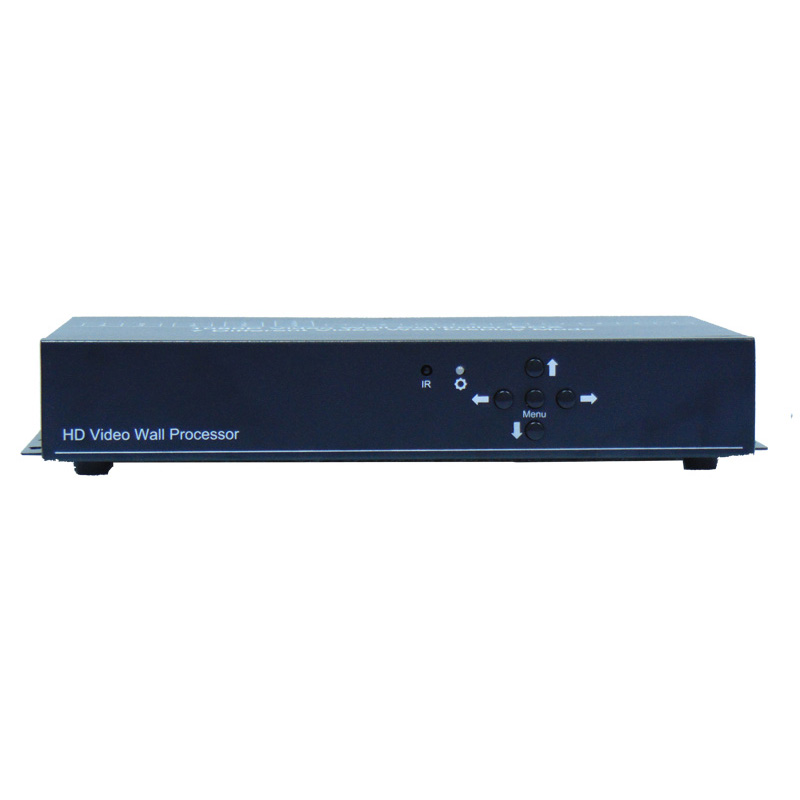

When the user operates the splicing processor, it is simpler and more intuitive. The product designs infrared remote control, and the user passes the remote control to carry out the one button type quick control and the full function control to the splicing machine, and the operation is more humanized and simpler.
INQUIRY

Features:

1. HDMI compatible HDMI1.3 and DVI1.0,and support HDCP1.2

2. Mosaic many different mode as:2*2,1*2,1*3,1*4,4*1,3*1,2*1

3. any output signal can be mirrored

4. input upto 1080P,1920*1200@60Hz

5. USB decode 1080P video and photo and txt

Specification:

HDMI signal..............................................................HDMI1.3(HDCP1.2) compatible DVI1.0

VGA signal................................................................Support 640*480 to 1920*1200@60Hz input,with 3.5mm audio binding input

AV signal.....................................................................Automatic identification of NTSC and PAL

USB signal..................................................................Video format：Mpeg1,2,4（up to 1920*1080@30P）；

Divx，Xvid...................................................................（up to 1920*1080@30P）；

RM,RMVB....................................................................（up to 1920*1080@25P）；

H.264.............................................................................（up to 1920*1080@30P）；

VC-1...............................................................................（up to 1920*1080@30P）；

MJPEG.............................................................................（640*480@30P）.

Audio format.................................................................MPEG1/MPEG2/MP3/AAC-LC/WMA

Photo format...................................................................422/411/420/444/422T

Text format.............................................................................TXT

Output...........................................................................HDMI type

HDMI*4....................................................................（support HDMI1.3 and DVI1.0）

Resolution...................................................................1920x1080@60Hz/1280x720@60Hz/1024x768@60Hz

Audio.............................................................................3.5mm interfacer, stereo audio

Control...........................................................................Remote,Key Panel

Power supply...............................................................DC12V/3A

Power waste...................................................................20W

Work temperature........................................................0-60℃

Size......................................................................................250mm*150mm*45mm
