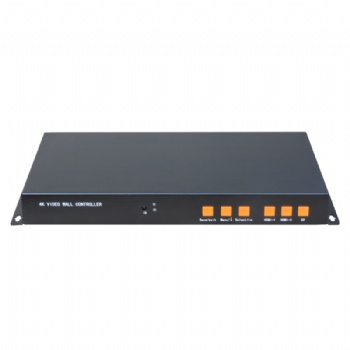

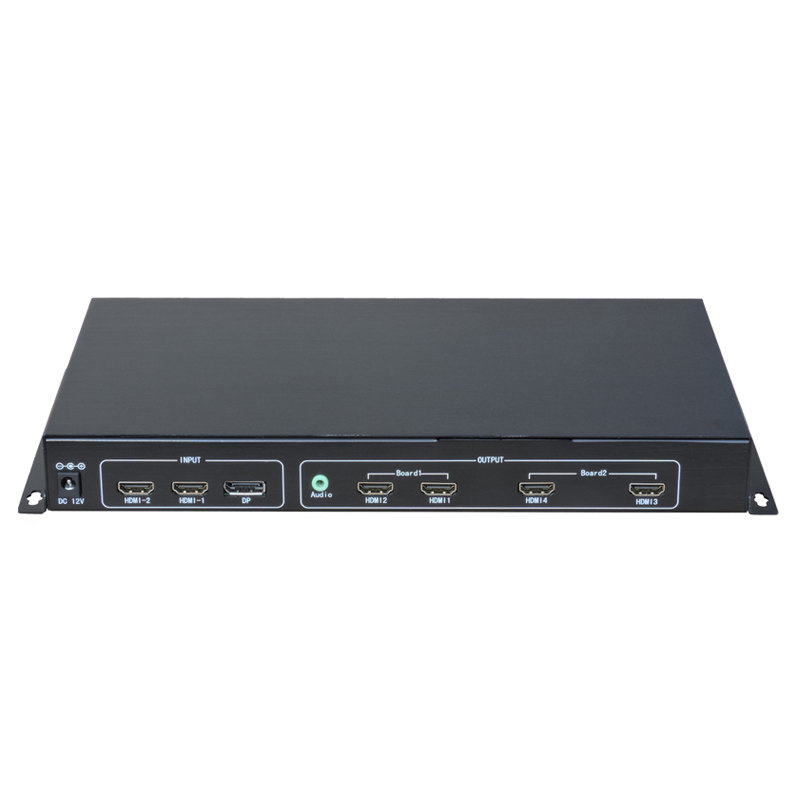

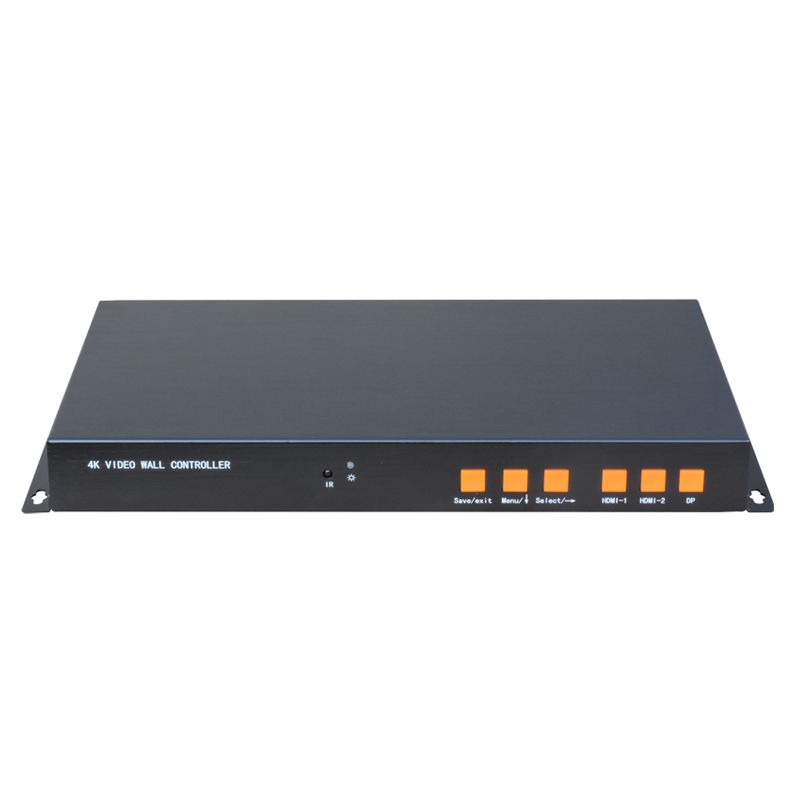

SWVW02,4K Video wall controller with IR control

Features:

1.   HDMI input support HDCP2.2, MHL support HDCP2.0, input signal can be automatically identified

2.  HDMI output support HDMI1.3, output resolution 1080P@60Hz

3.  support for 1 channel HDMI or 1 channel  MHL or 1 channel DP signal input

4.  HMDI input resolution can support 3840x2160@60HZ, true 4K signal input

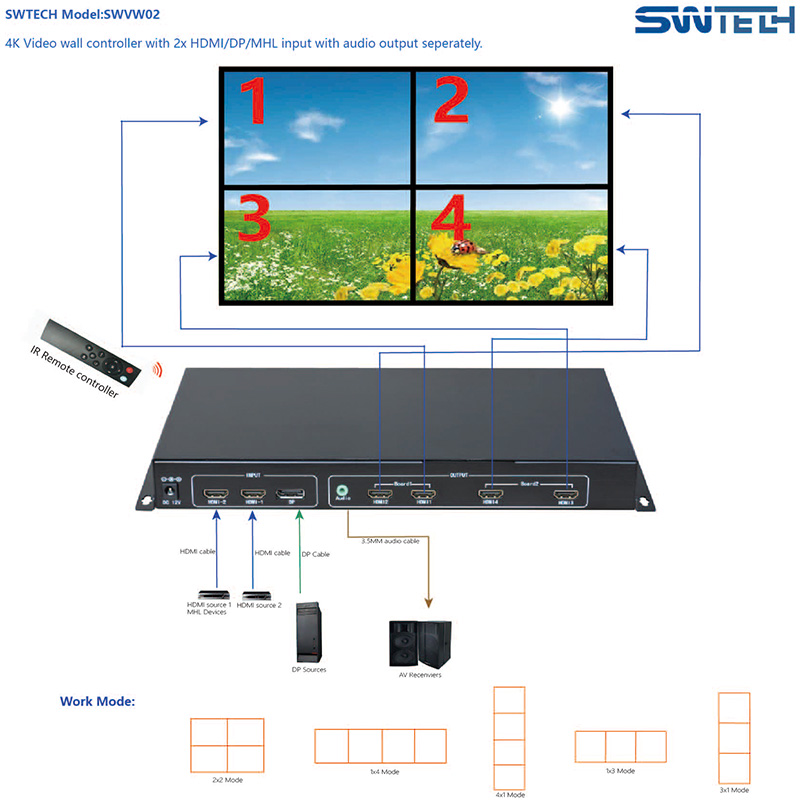

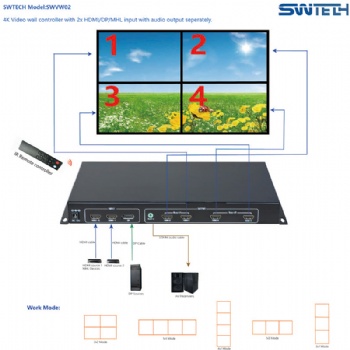

5.  can be compatible with the 2x2,2x1,1x2,1x3,1x4 splicing mode, the output card plate can flip the entire board 180 degrees

Specification:

HDMI input.........................................................HDMI A type（HDMI2.0 support HDCP2.2）

Reslution..............................................................Up to 3840*2160@60Hz

MHL input...........................................................HDMI A type(HDMI1.4 support HDCP2.0 and MHL）

Reslution..........................................................Up to 3840*2160@30Hz

DP Interface...........................................................DP1.2

Reslution.........................................................Up to 3840*2160@60Hz

Audio output...................................................Fit for output video

HDMI output.................................................1920*1080@60Hz

Input Numbers...........................................HDMI*1,MHL*1,DP*1

Output Numbers.........................................HDMIx4

Controller.......................................................Remote,button

Power supply....................................................DC 12V

Operating Ambient Temperature................0℃~60℃

Storage Temperature................................-20℃~70℃

Humidity........................................................＜75%

Demension.......................................................299mm(L)x175mm(W)x44mm(H)
