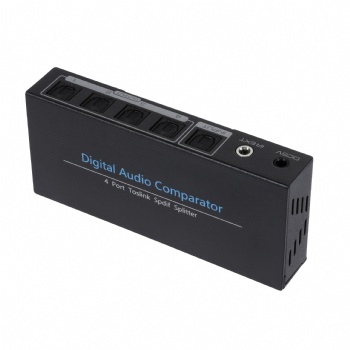

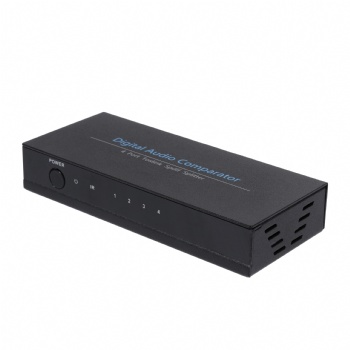

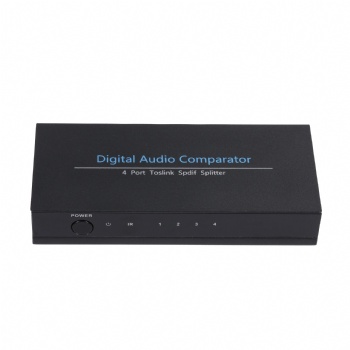

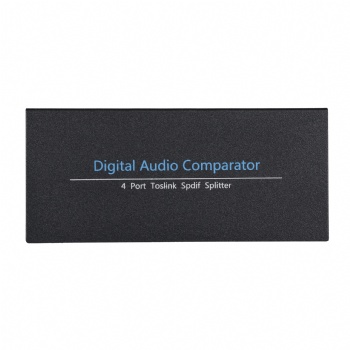

SWAC02,1x4 Digital Audio Splitter with IR Control

Features:

Support distribute one digital optical SPDIF Toslink source to four amplifiers

Simultaneously.

Support IR remote control function,It can turn on or off the corresponding port.

Audio format support : LPCM2.0/DTS/Dolby-AC3

Support signal retiming

Use the line loss less than 0.2dB.M optical cable ,transmit distance can reach up to 40M.

Support last time working state memory when power off

Support over-voltage protection can prevent the damage caused by connecting the

mismatching power adapter.

LED status indication

Support lossless transmission.

DC5V power supply

Specifications：

Support audio format………………………………………………………..LPCM2.0/DTS/Dolby-AC3

Peak wavelength………………........................................... ……...............................………650nm

Max baud rate…..…………….………...…………………………………………………………16Mbps

Output cable distance .. …………………≤40m(Use the optical fiber cable loss less the 0.2Db/m )

Max working current………………………………………………………………..……………...100mA

Power adapter format……………………....….Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V

Operating Temperature range……..…………….................................... 0°C ~ 40°C / 2°F ~104°F

Operating Humidity range…………….…………. …….……….….5 to 90%RH (No Condensation)

Storage Temperature.........................................................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H)……………………………………….…….……….…………54x54x23.5 (mm)

Weight…..…………………………………………………………..……..…………………………235g
