SWEX04,50M HDMI Extender with Bi-Directional IR pass through

Features:

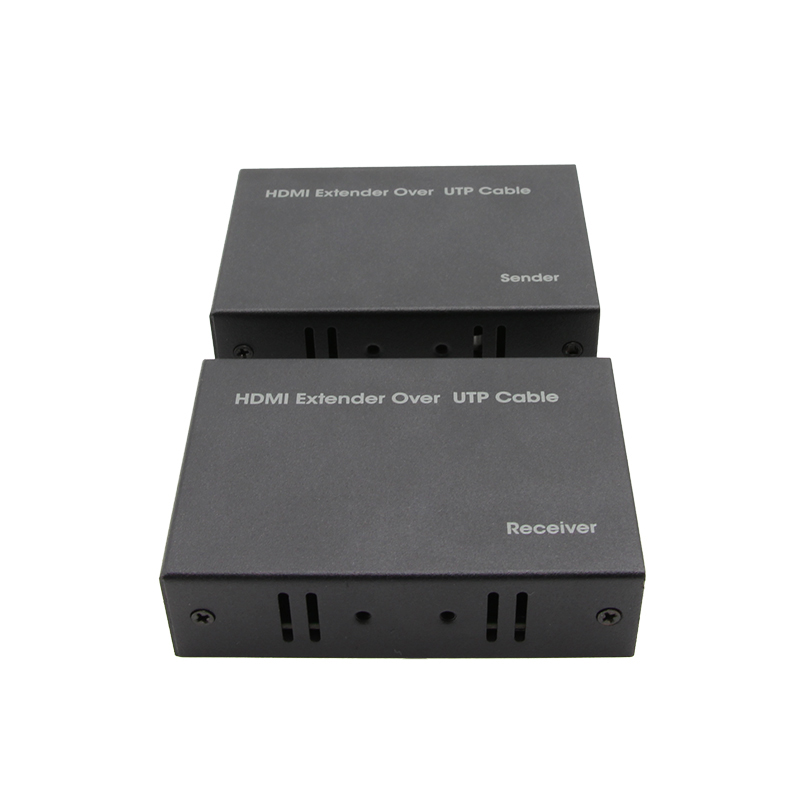

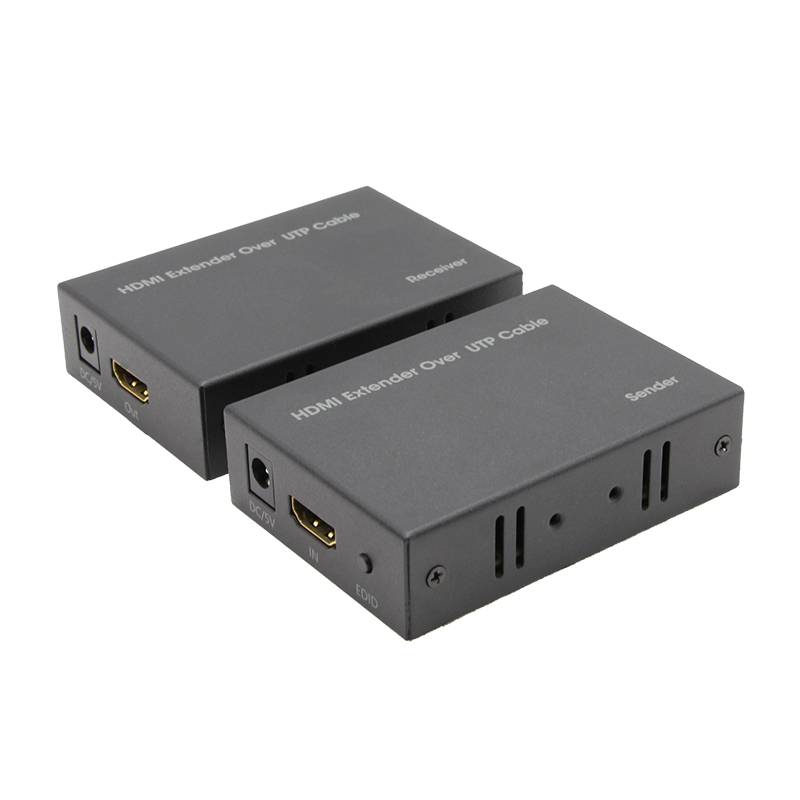

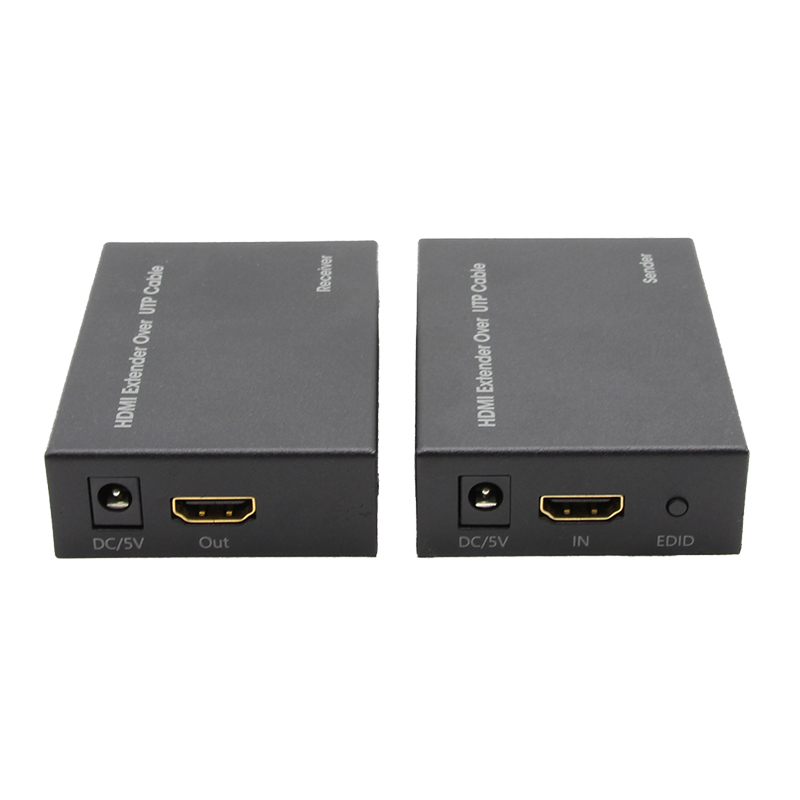

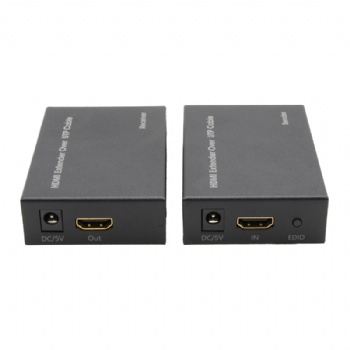

 Each set includes one Sender and one Receiver.

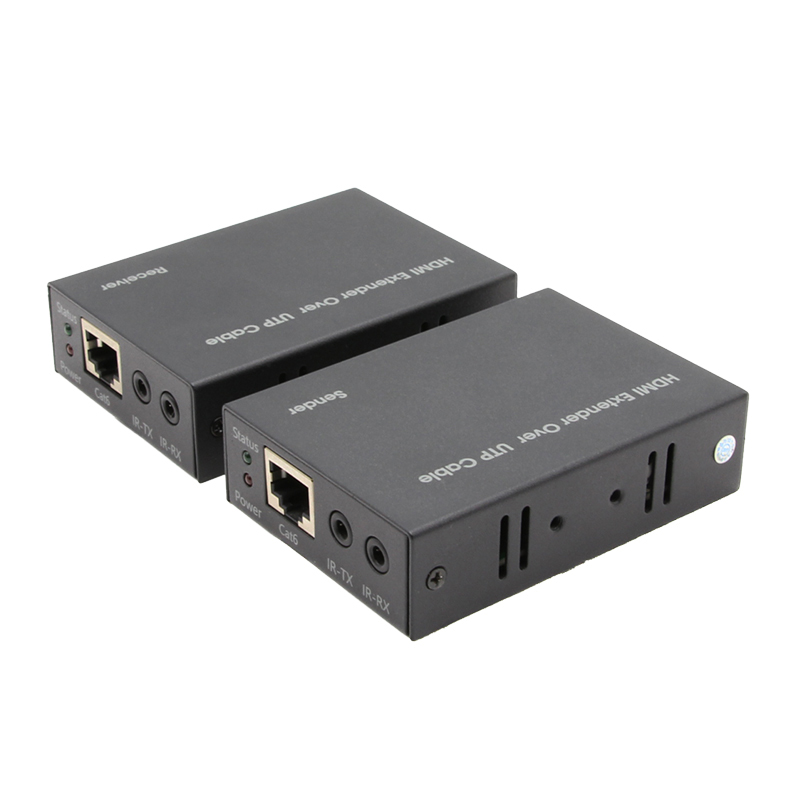

Use single UTP LAN cable（Cat 6)to substitute HDMI cable to achieve long transmission distance, the UTP Cable follows the standard of IEEE-568B.

Transmission distance extends up to 50 meters under 1080P.

Supports lossless compressed digital audio: Dolby True-HD, DTS-HD Master Audio.

Support Bi-Directional IR,IR frequency 20-60KHZ.

Lossless Transmission.

Data transfer speed 6.75 Gbps.

DC 5V power supply.

Specifications

HDMI resolution ……....................3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………...............…...24bit/deep color 30bit,36bit

Support audio format…..................................................DTS-HD/DolbytrueHD/

LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………… ……................…..225MHz

Max baud rate……………….…….……………….............………....….6.25Gbps

Input/Output TMDS signal …….………..………......…... .0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……….….………………..……..…… 5Volts p-p (TTL)

Input cable distance..…... …………….………………...…....…….≤10m AWG26 HDMI standard cable

Output cable distance……….......................................1080P 8-bit 50m(Maximum)

                                                                                  over single CAT5E/6 /24AWG/Solid

Max working current…………………………………................………5V/800MA

IR...........................................................................Bi-Directional IR(20-60KHZ)

Power consumption...............................................................5watts(Maximum)

Power adapter format..Input: ....………..…….....AC (50HZ, 60HZ) :100V-240V

Operating Temperature range……….……........……-5 to +35℃(+23 to +95℉)

Operating Humidity range……......…...…….….5 to 90%RH (No Condensation)

Storage Temperature.............................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H)……………….……...... ..................…81.5x43.5x23(mm)

Weight…..…………………………..……....................…………………....…250g
