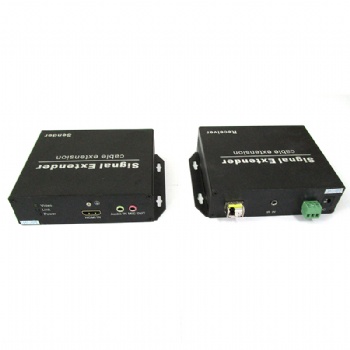

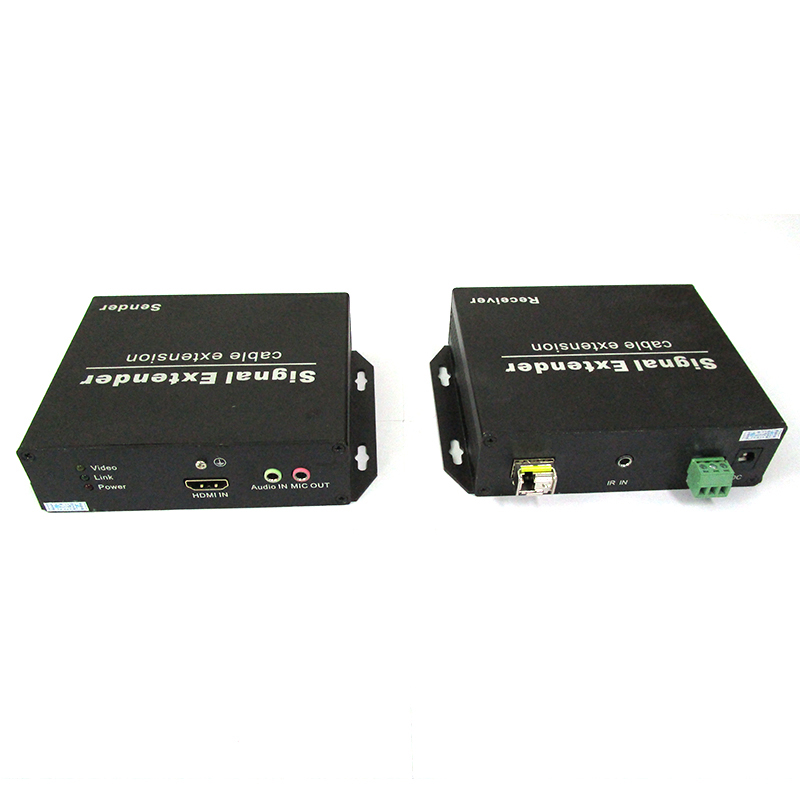

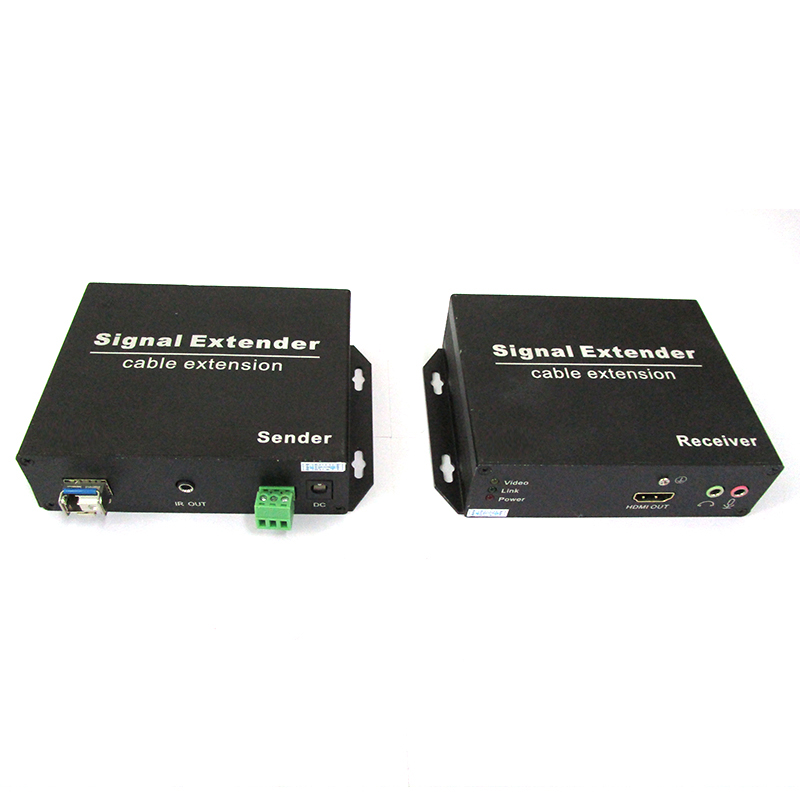

SWEX05,2-20KM HDMI Fiber Extender with IR and RS232 pass through, support audio line in and audio extraction

Features:

1. Digital uncompressed transmission, clear image and strong anti-interference ability;

2. Support multiple resolutions, maximum 4K×2K@30HZ;

3. Support HDMI1.4, support 3D;

4. Support EDID transmission, compatible with different brands of display output devices

5. Transmitter support audio line in, And receiver support audio extraction, Mini 3.5MM audio input/output jack.

6. Support bidirectional transmission of serial port;

7. Infrared, serial port, audio function (optional).

Specificaiton:

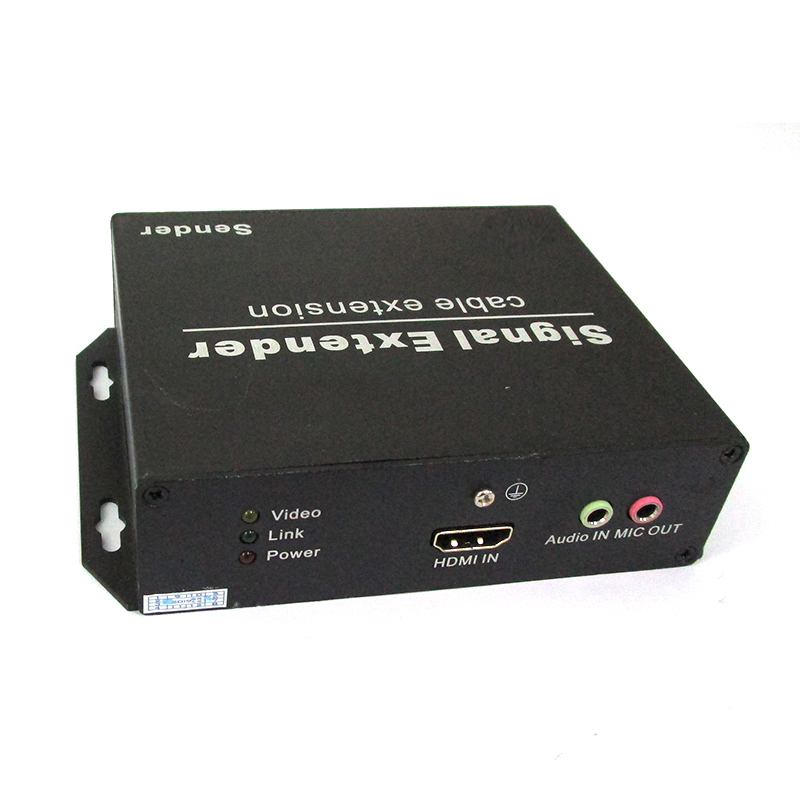

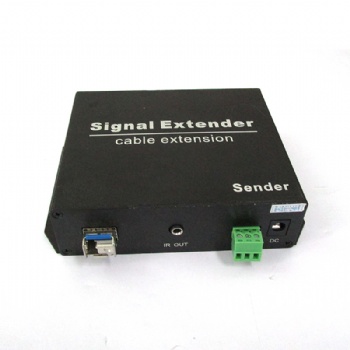

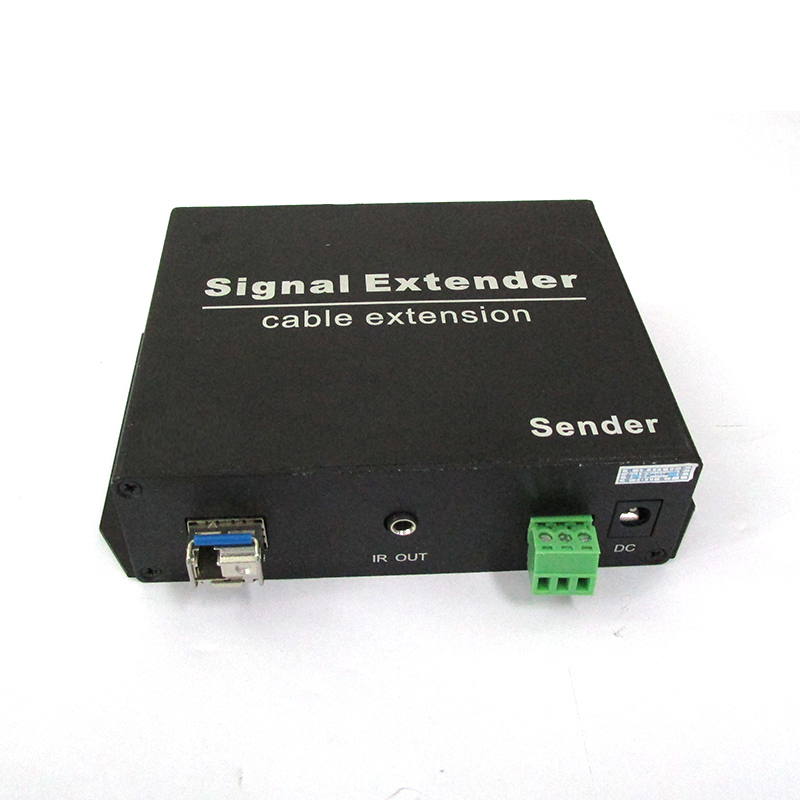

Sender...............................................................................1CH(HDMI、RS232、AUDIO)

Receiver............................................................................1CH(MIC、IR）

Sender...............................................................................1CH(MIC、IR)

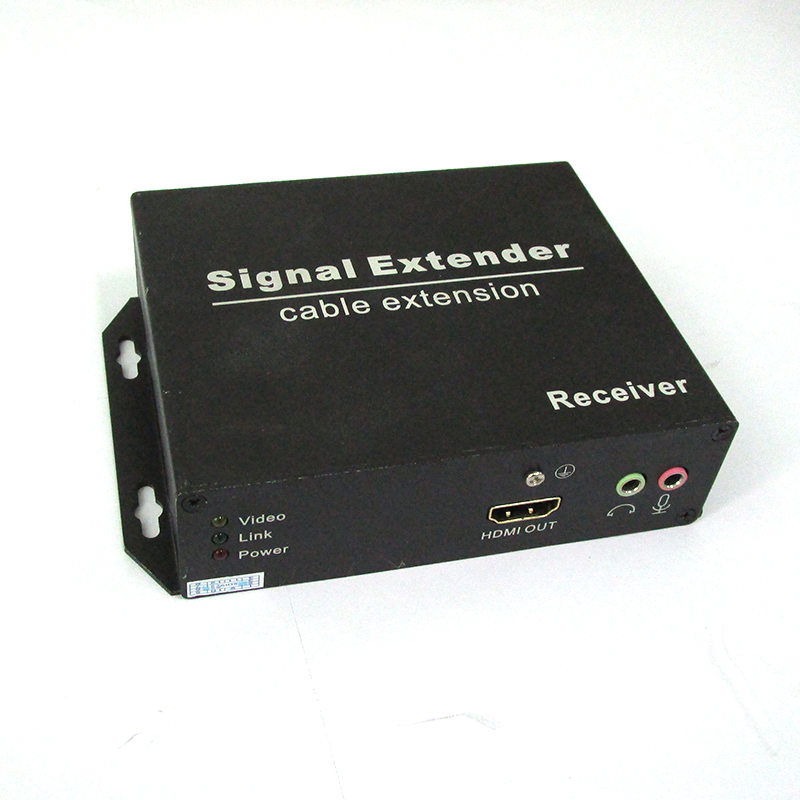

Receiver..............................................................................1CH(HDMI、RS232、AUDIO)

SM........................................................................................0-20km

MM.......................................................................................0-2km

Video input/output interface.........................................HDMI

HDMI version.....................................................................HDMI1.4

HDCP version......................................................................HDCP1.2

HDMI resolution..................................................................Maximum 4K×2K@30HZ

Video color format................................................................24bit/deep color 30bit/deep color 36bit

Audio format..........................................................................DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS........................................................................................0.5-1.5Vp-p(TTL)

DDC...........................................................................................5Vp-p(TTL)

Audio Interface.......................................................................3.5mm stereo audio jack

Serial port Interface................................................................Industrial terminal block

Serial port  Mode.....................................................................bilateral transmission

Remote interface.....................................................................3.5mm audio jack

Remote interface signal.....................................................Infrared control signal

Optical input, output interface.............................Single/multimode LC type

Transmission wavelength.................................850nm/1310nm/1550nm

Size (L×W×H).......................................................Sender:  131mm×93mm×32mm

                                                                       Receiver:  131mm×93mm×32mm

Material.....................................................................Aluminum

Color.........................................................................Black

G.W............................................................................1.2Kg

Adaptive voltage range.........................................DC9V/1A

Transmitter power consumption..........................3W

Receiver power consumption.................................3W

Operating environment Storage temperature.............-40-80℃

Relative humidity...................................................................0-95% (No condensation）

Working Temperature................................................................-15℃-55℃
