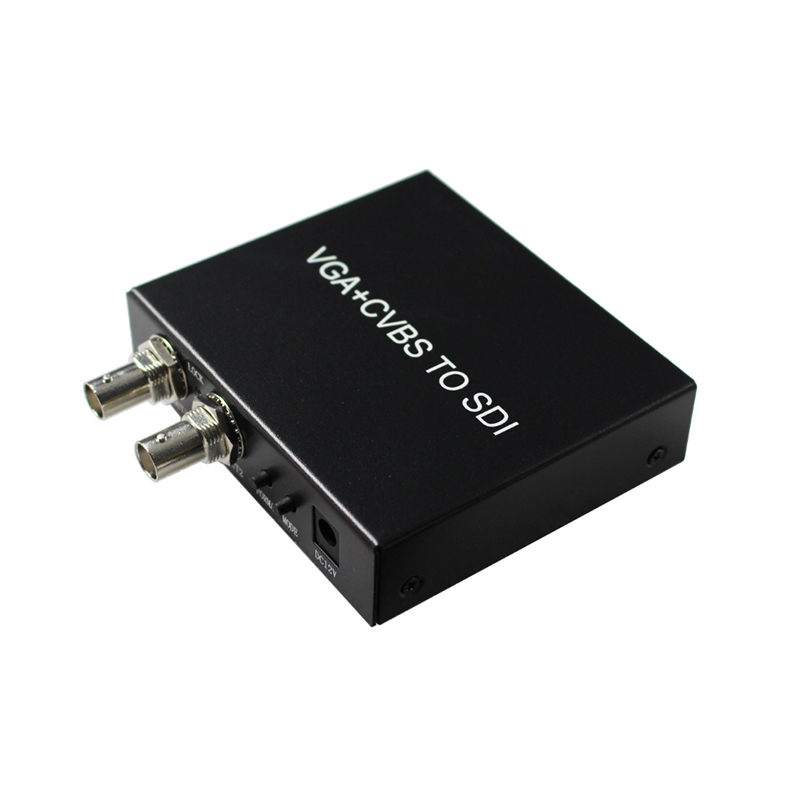

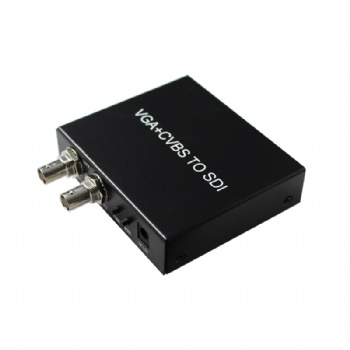

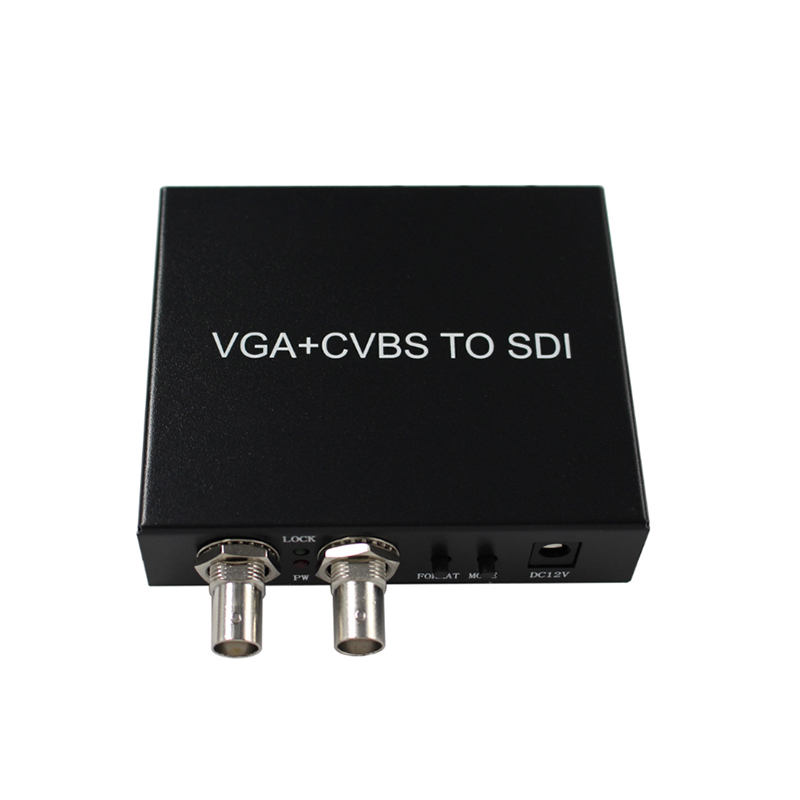

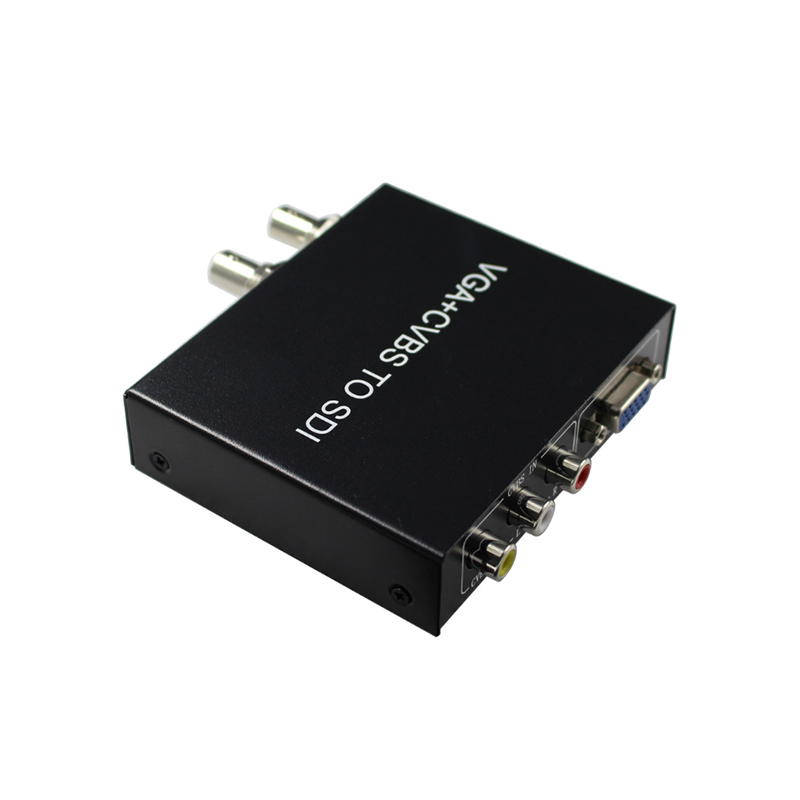

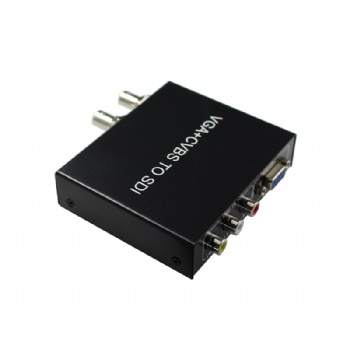

SWSD05，VGA-+CVBS-to-SDI-converter-with-two-output-ports-

Features:

1. Support VGA and CVBS in ,and two SDI output.

2. Resolution reach up to 1080P

3.Transmit distance can be 300M.

4.DV 12V power supply.

Specification:

Input interface...........................................1xSD BNC /1x VGA /1x CVBS

Output interface...........................................2xSDI BNC

Power consumption...........................................5W

Power voltage...........................................DC12V/1A

VGA input resolution........................................... 640x480@60，  800x600@60，  1024x768@60,  1280x720@60,    1280x768@60,

                   1280x1024@60,  1360x768@60,   1366x768@60,  1680x1050@60,   1920x1080@60

CVBS input resolution...........................................480i，576i，480p,576p；

SDI output...........................................3G-SDI:SMPTE 424M/HD-SDI:SMPTE 292M

Transmit speed...........................................2.970Gbit/s 1.485Gbit/s

Resolution............................................VGA intput , then SDI output resolution 720p@60（16:9），1080p60（16:9）

                                                       CVBS input， Then SDI resolution  720p@60（16:9）,1080p25/30/50/60（16:9）, 720p@60（4:3）,1080p25/30/50/60（4:3）

Impedance characteristics...........................................3G-SDI:80m~100m(1694A coaxial cable）/75Ω ；

                                                                               HD-SDI:150m~200m(1694A coaxial cable）/75Ω；

                                                                               SD-SDI:250m~300m(1694A Coaxial Cable）/75Ω

ESD...........................................Contact discharge：±4KV      ；Air Discharge：±8KV

Dimension...........................................98×83×24(mm)

Weight...........................................230g
