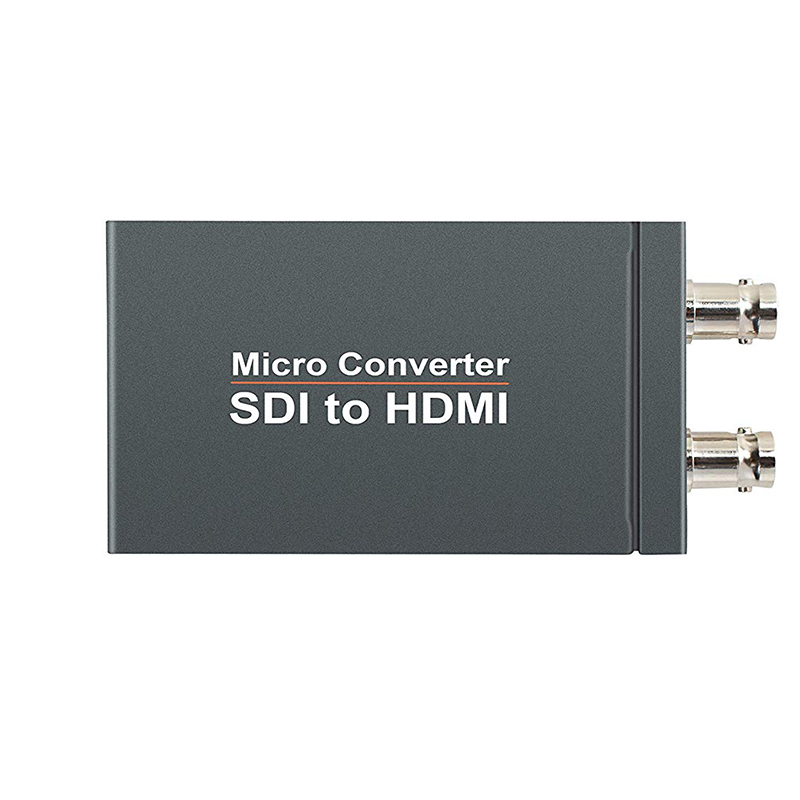

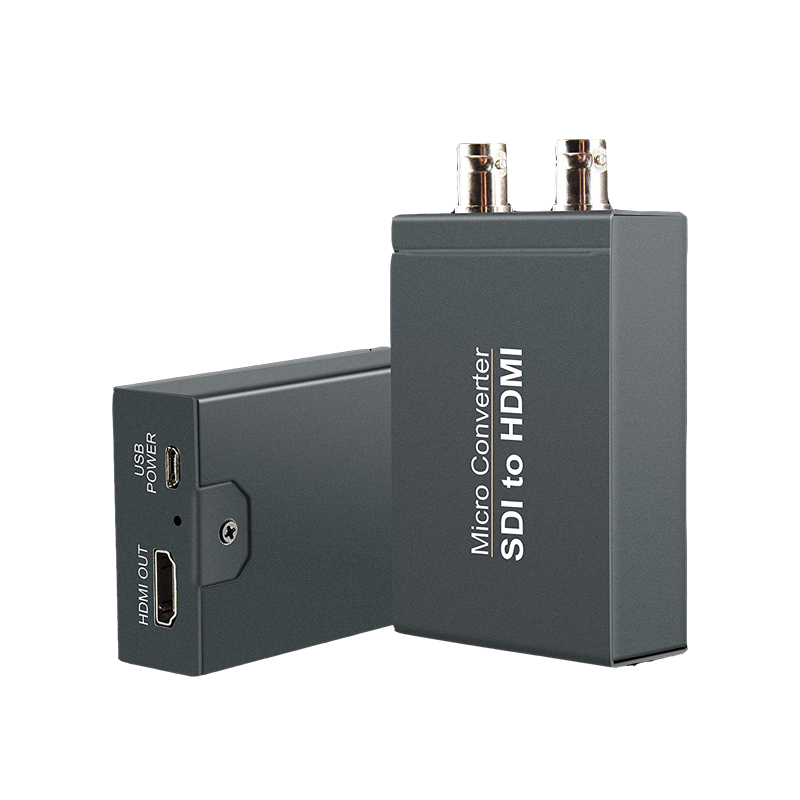

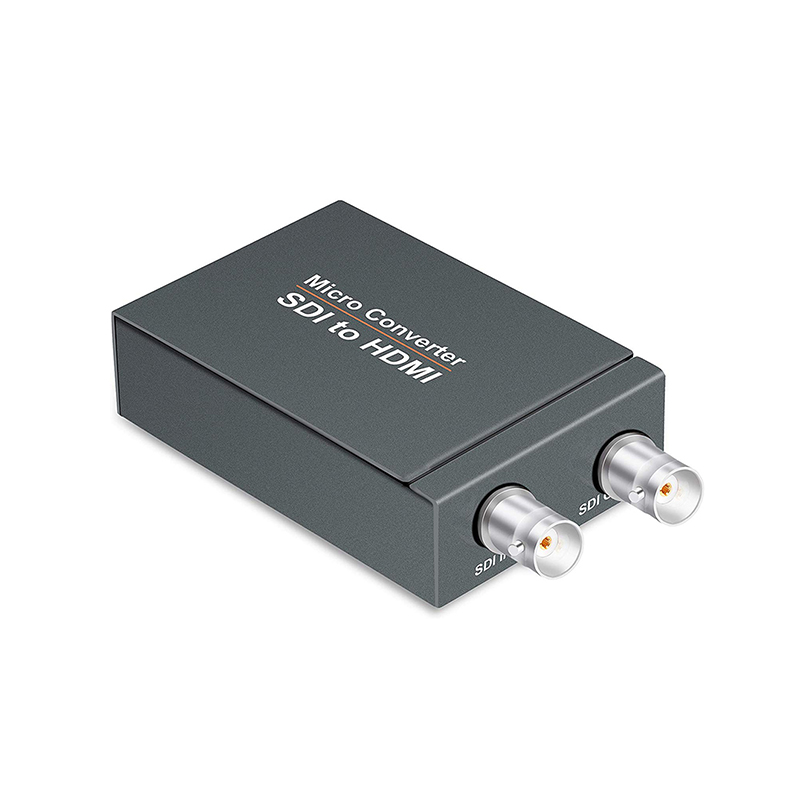

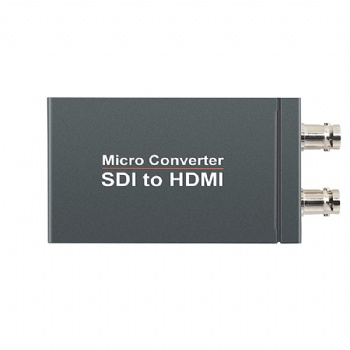

SWCV02,SDI to HDMI converter

Feature:

1). Convert SD/HD/3G-SDI to HDMI

2). Distribute 1 SD/HD/3G-SDI to 1 HDMI output

3). Support SDI input resolutions:

480i (60/59.94 Hz),720p (60/59.94/59 Hz),1080i (60/59.94/50 Hz),1080p (50/60/59.94/30/29.97/25/24/23.98 Hz)

4). Support HDMI / SDI output resolutions:

480i (60/59.94 Hz),720p (60/59.94/59 Hz),1080i (60/59.94/50 Hz),1080p (50/60/59.94/30/29.97/25/24/23.98 Hz)

5). Support transmission distance up to 100m over RG59 cable

6). DC 5V 1A power supply

Specifications:

SDI format ------------SD-SDI HD-SDI 3G-SDI

SDI data transfer rates------------270Mb/s 1.485Gb/s 2.97Gb/s

Impedance -------------------------75Ω

Impedance SDI input resolutions------------720P/50Hz 720P/60Hz 1080i/50Hz 1080i/60Hz 1080P/24/25/30/50/60Hz Recommended resolutions: 720P@50Hz/60Hz or 1080P@50Hz/60Hz

HDMI output reaslutions-------------720P/50Hz 720P/60Hz 1080i/50Hz 1080i/60Hz 1080P/24/25/30/50/60Hz

Dimensions---------------------------120×83×23mm(L×M×H)

Weight----------------------------------74g
