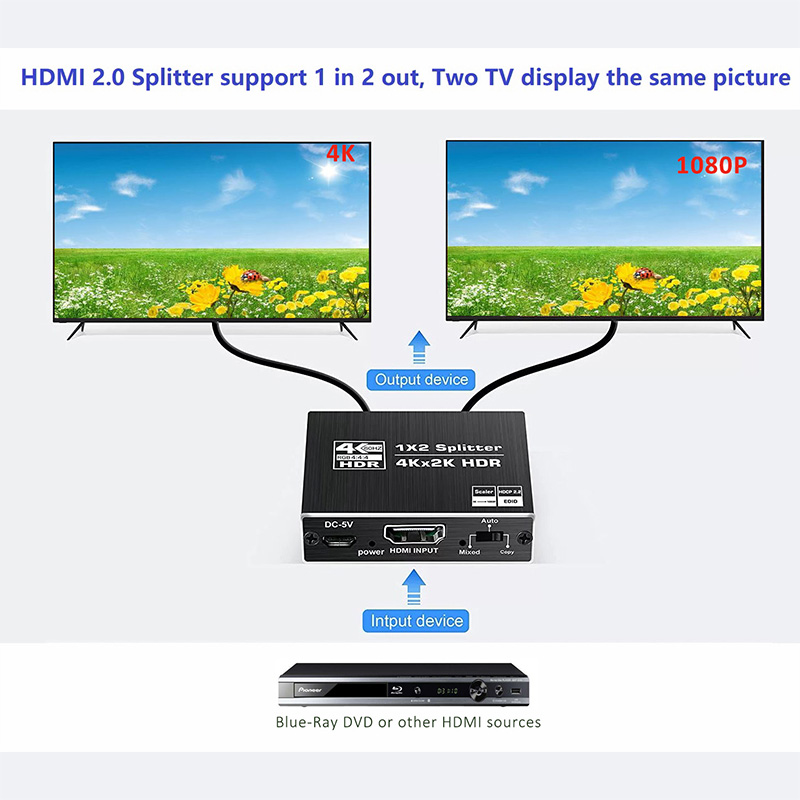

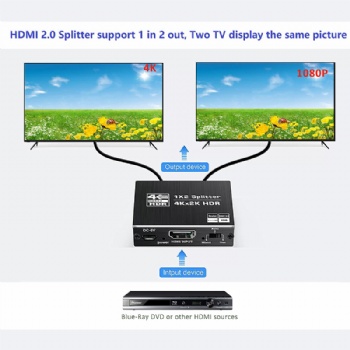

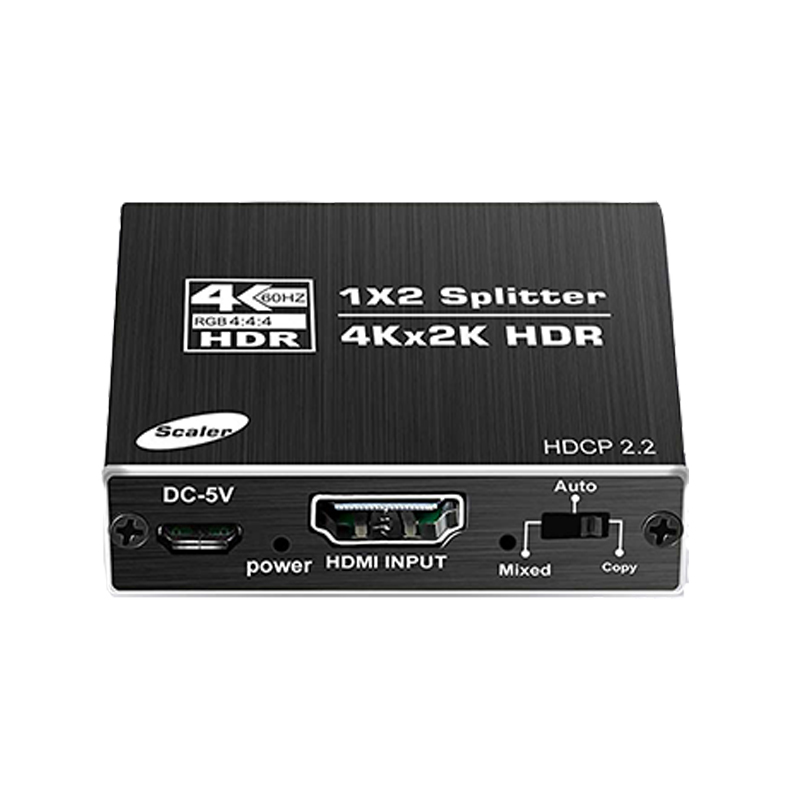

SWSP07B,HDMI 2.0 Splitter 1 in 2 out for two monitors with Scaler function

Features：

2. Supports resolutions up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:4:4 ).

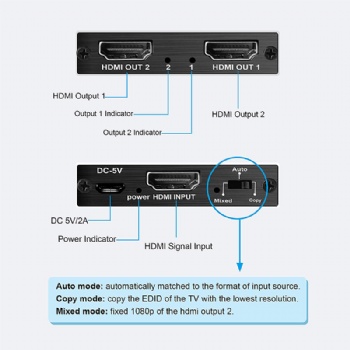

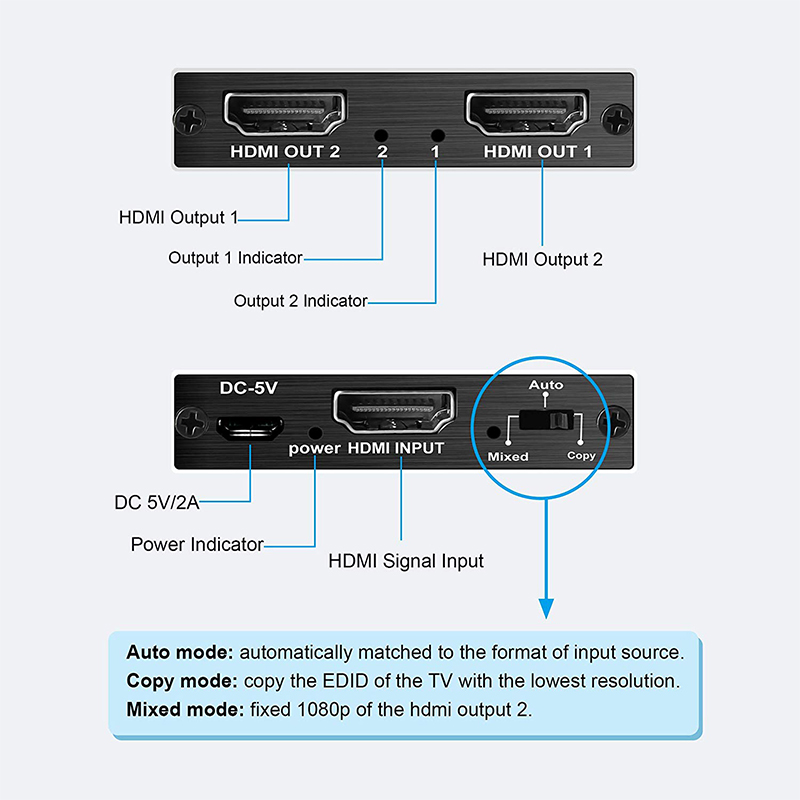

3. Supports three kinds of EDID handling abilities.

4. Supports HDCP2.2/1.4 Compliant.

5. Supports 36 bit Deep Color.

6. Supports LPCM 7.1, Dolby  TrueHD, Dolby digital  Plus, and DTS-HD  Master Audio.

7. Support 3D.

8. Bandwidth 18G.

9. Support HDR.

10.Power supply is optional.

Specification:

HDMI version......................................HDMI 2.0

HDMI resolution..................................up to 3840x2160P/60Hz YUV444

Support video color format................30/36/48 bit deep color

Support audio format..........................DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)

Max bandwidth.....................................1536MHz

Max baud rate.......................................18Gbps

Input cable distance.................................≤8m AWG26 HDMI standard cable

Output cable distance..............................≤8m AWG26 HDMI standard cable

Max working current..............................1200mA

Power Adapter Format........................... 5V/1A

Operate Frequency...................................up to 600mhz

Input DDC signal..........................................5 Volts P-P(TTL)

Input video signal .......................................0.5-1.0 volts p-p
