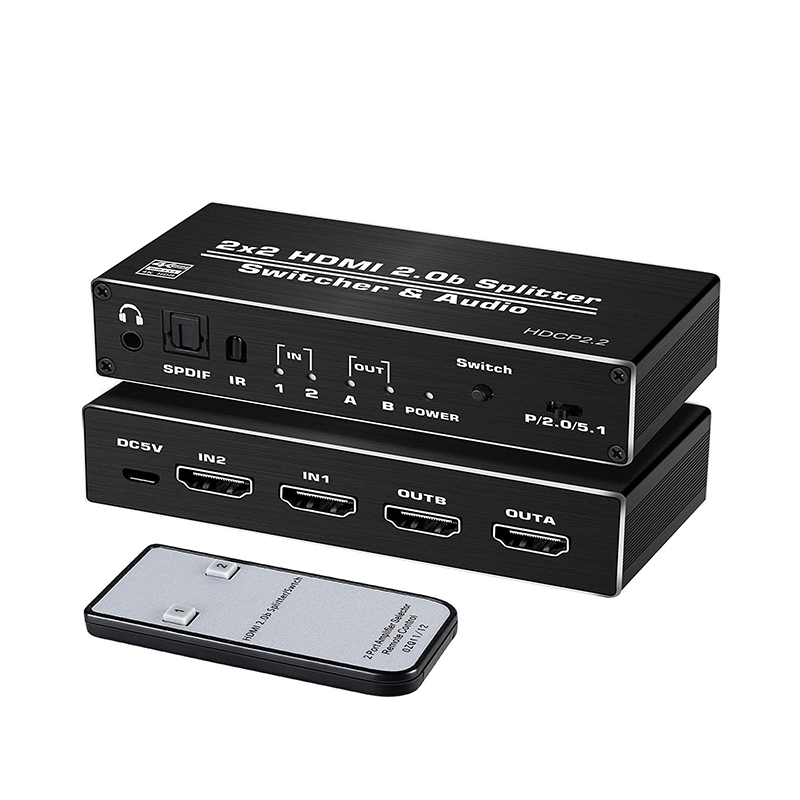

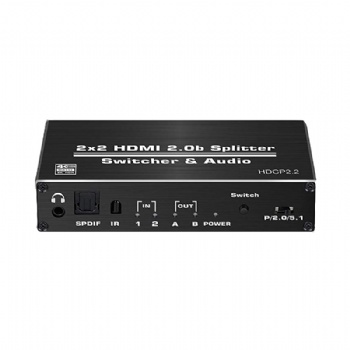

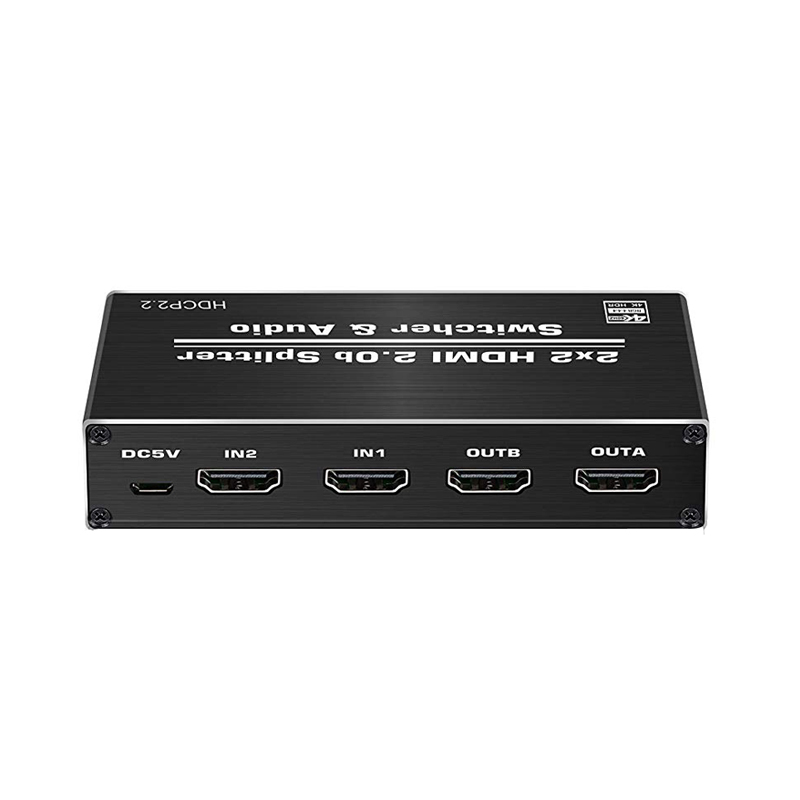

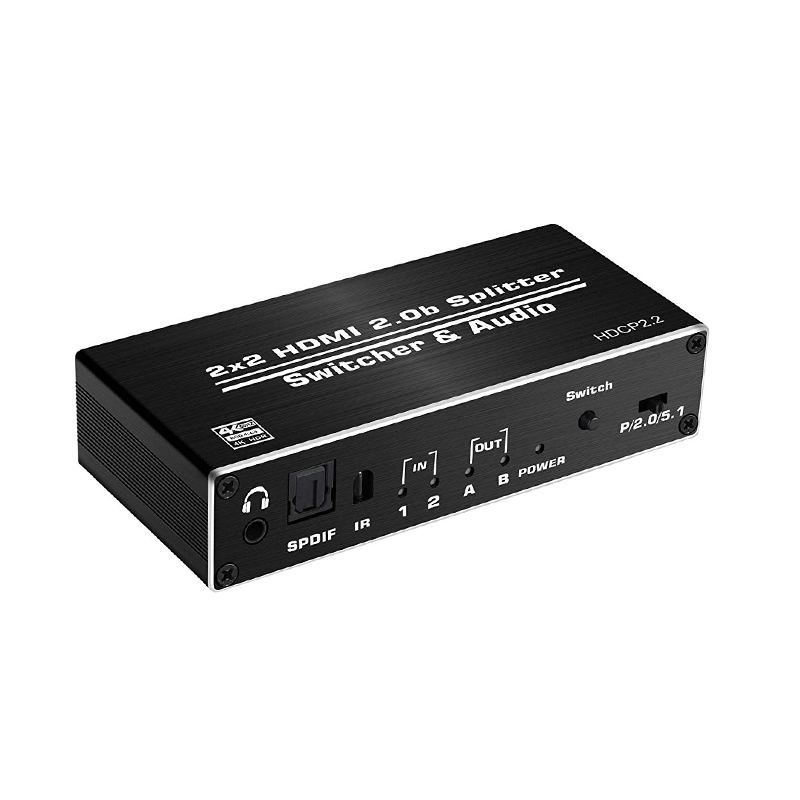

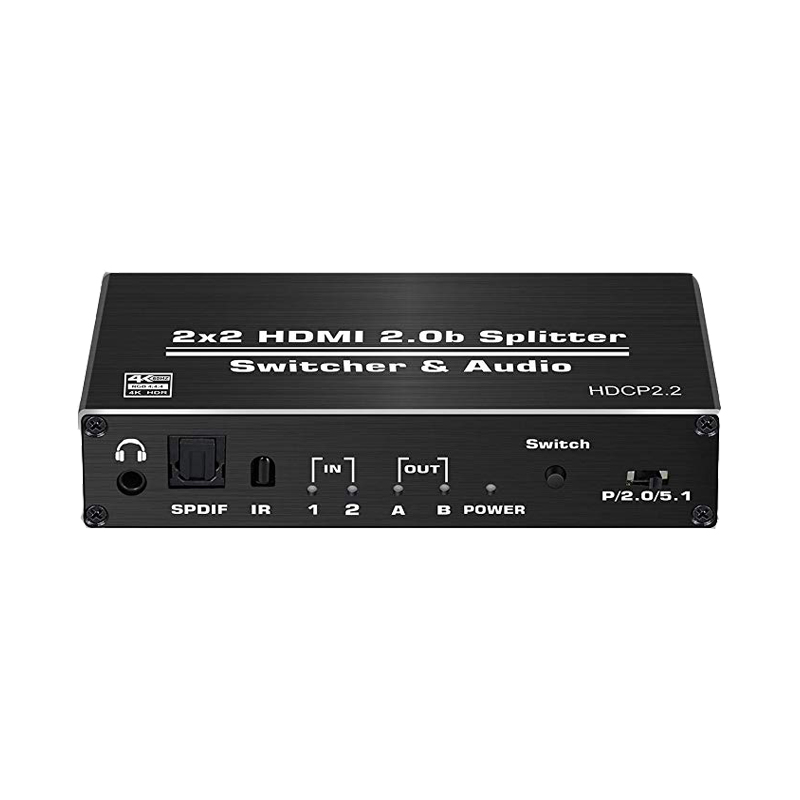

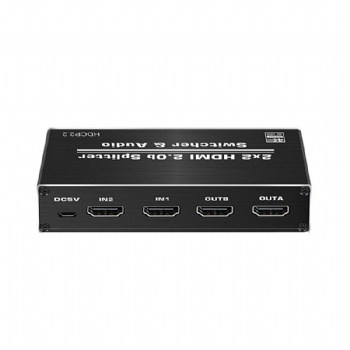

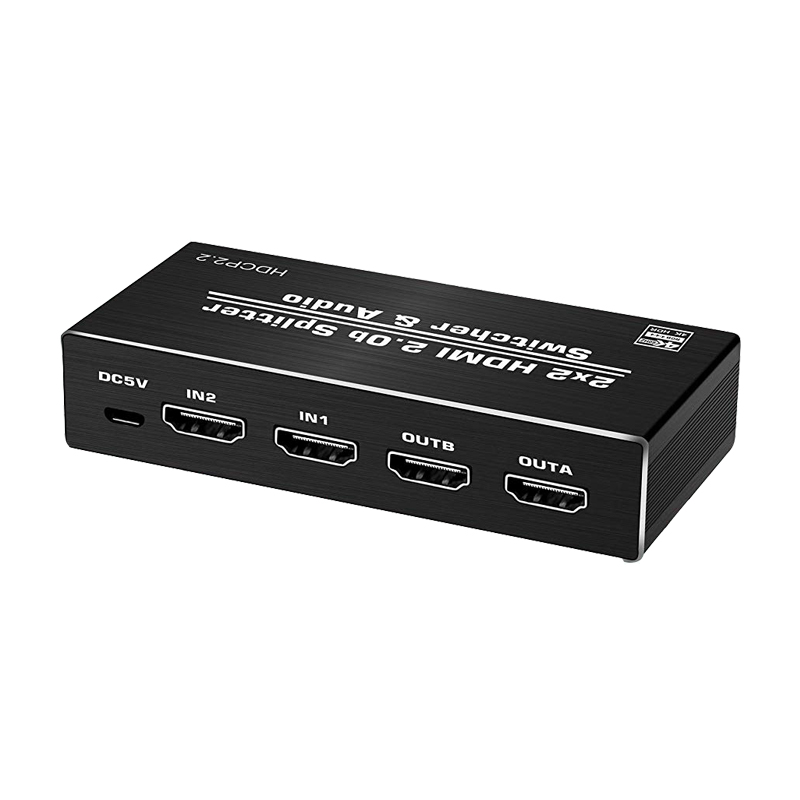

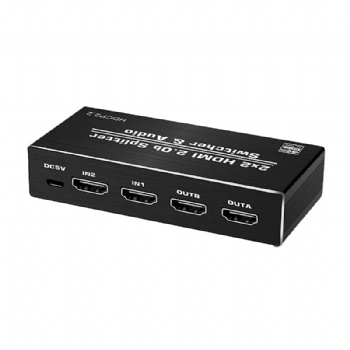

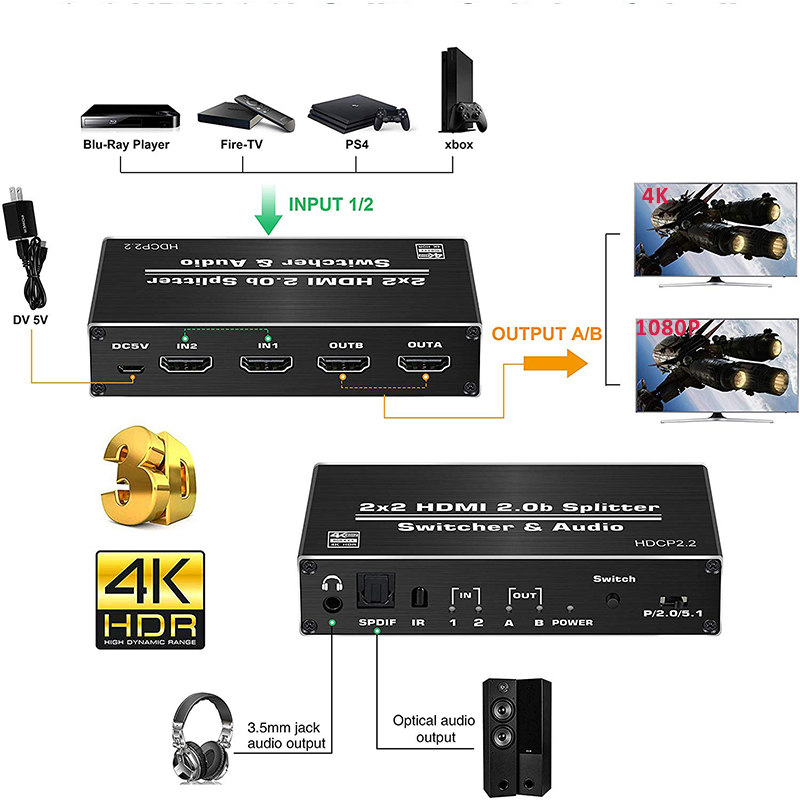

SW04B，HDMI switcher splitter 2 in 2 out with audio extraction

Features:

1. Support HDMI 2.0/HDCP2.2

2. Support highest resolution up to 3840*2160/60Hz,3D

3. Support deep color 8/10/12 bit

4. Support video format:8/10/12 bit deep color

5. Support audio format:LPCM/DTS/Dolby-AC3

6. Max bandwidth :600MHz

7. Max baud rate :6 Gbps

8. Input cable distance: 4k≤10m HDMI 2.0 standard cable

9. Output cable distance:4k≤10m HDMI 2.0 standard cable

Specification:

HDMI resolution ……….......4k2k@60hz YUV4:4:4/3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit/deep color 30bit,36bit

Support audio format……….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/LPCM

Max bandwidth……………………………………………………………………………..600MHz

Max baud rate……………….…….………………….…………………………………..... 18Gbps

Input/Output TMDS signal ………….…………………………..……...… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….………………….≤10m AWG26 HDMI standard cable

Output cable distance……………………………….…...≤10m AWG26 HDMI standard cable

Max working current……………………………………………………………………….....300mA

Power adapter format..Input: ……………........AC (50HZ, 60HZ) :100V-240V; Output: DC5V

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimensions(L*W*H)...........................................................170X56X24mm

Weight...........................................................380g
