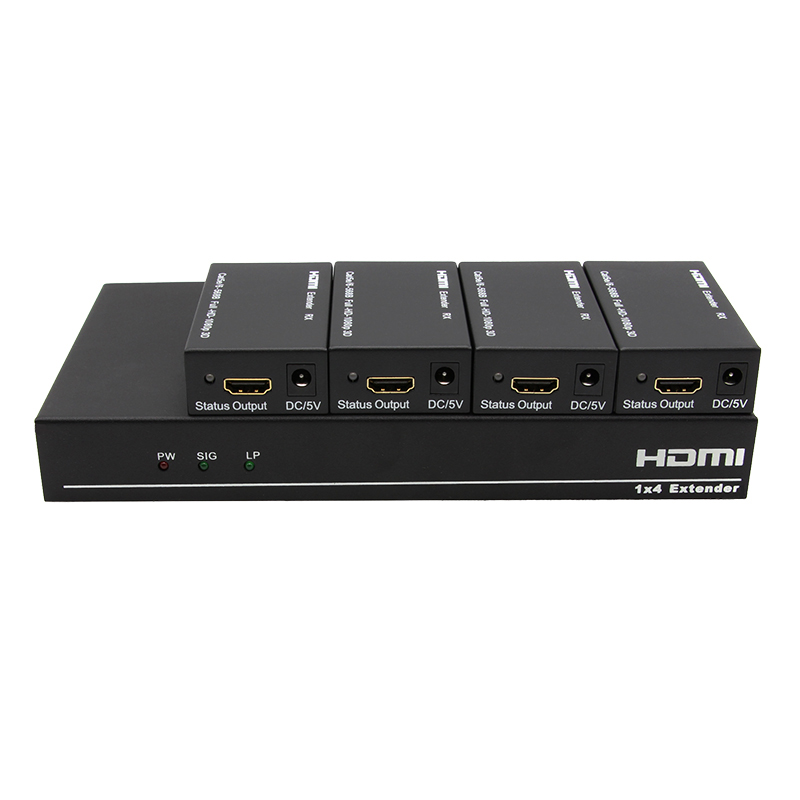

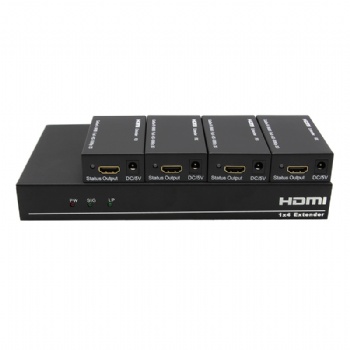

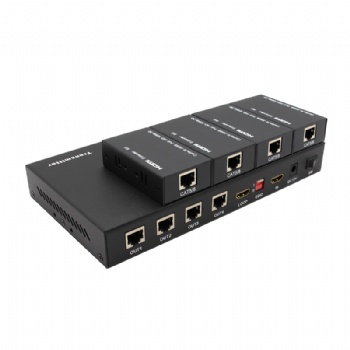

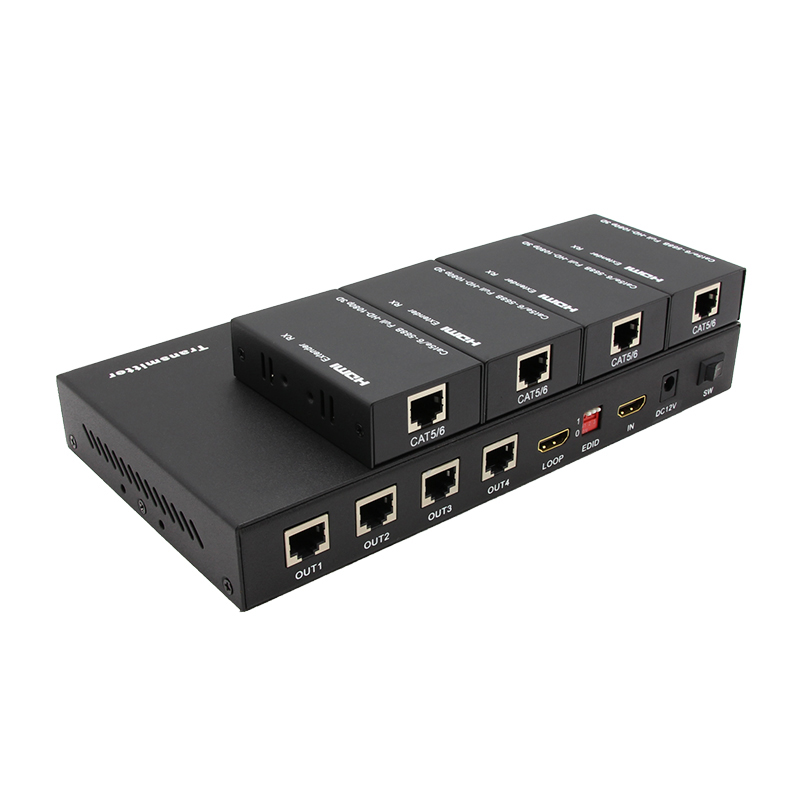

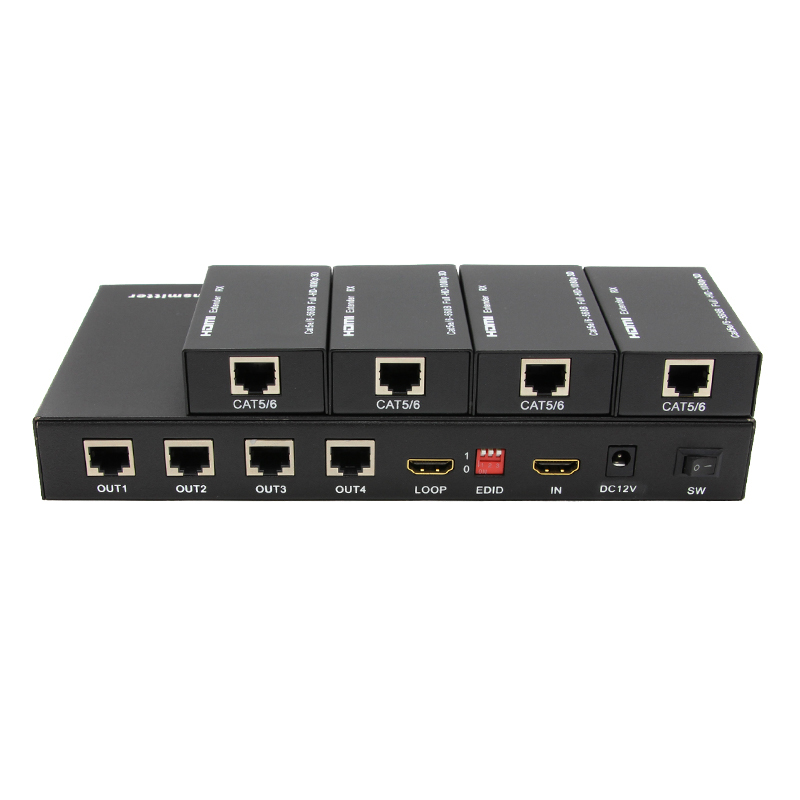

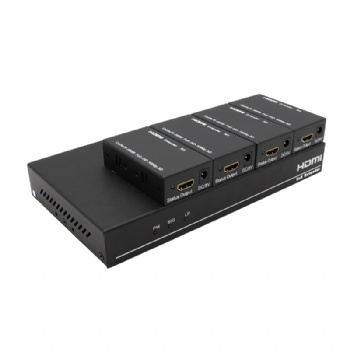

SWSP10,50M 1x4 HDMI Splitter over single UTP cable

FEATURES

Support one HDMI input source distribute to five HDMI sink devices,One HDMI looping output , four UTP output ports connect via the 50M cat5e/6 cable with the receivers.

Resolution reach up to 1080P,3D

Support deep color 30bit, 36bit

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Support signal retiming

Lossless transmission.

Easy to install.

DV 12V power adapter.

SPECIFICATIONS:

HDMI resolution …………………………..............3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format ……………………………..…………….....24bit/deep color 30bit,36bit

Support audio format…………………...DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………........................……………………………….2250MHz

Max baud rate……………….…….………………….…….....................………………………..6.25Gbps

Input/Output TMDS signal ………….…………………………..............…….0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………................…………..….5Volts p-p (TTL)

Input cable distance..….....…………….………………......…≤10m AWG26 HDMI standard cable

Output cable distance…………………………………................……….…...……..≤50m CAT6 cable

Max working current………………………………............…………………………12V/750MA(4PORT)

Power adapter format..Input: ……………..........……..………...AC (50HZ, 60HZ) :100V-240V

Operating Temperature range……..…………….………...........……………………. (-15 to +55℃)

Operating Humidity range…………………………….…..........…5 to 90%RH (No Condensation)

Storage Temperature.........................................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H)………………………………………..…….......................231x128x31 (mm)

Weight…..………………………………………………………….…..……..........................…………780g
