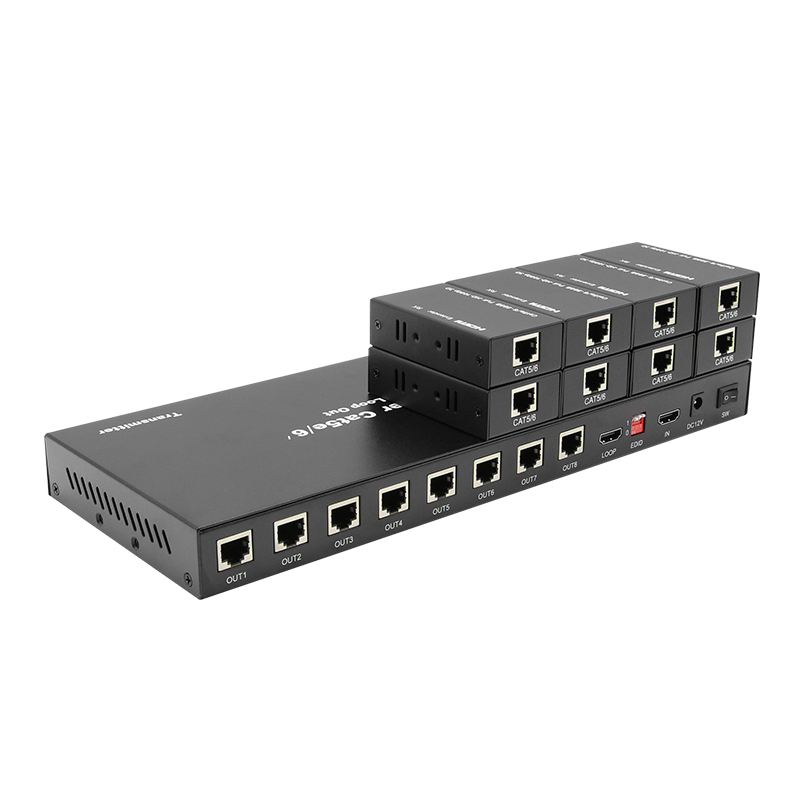

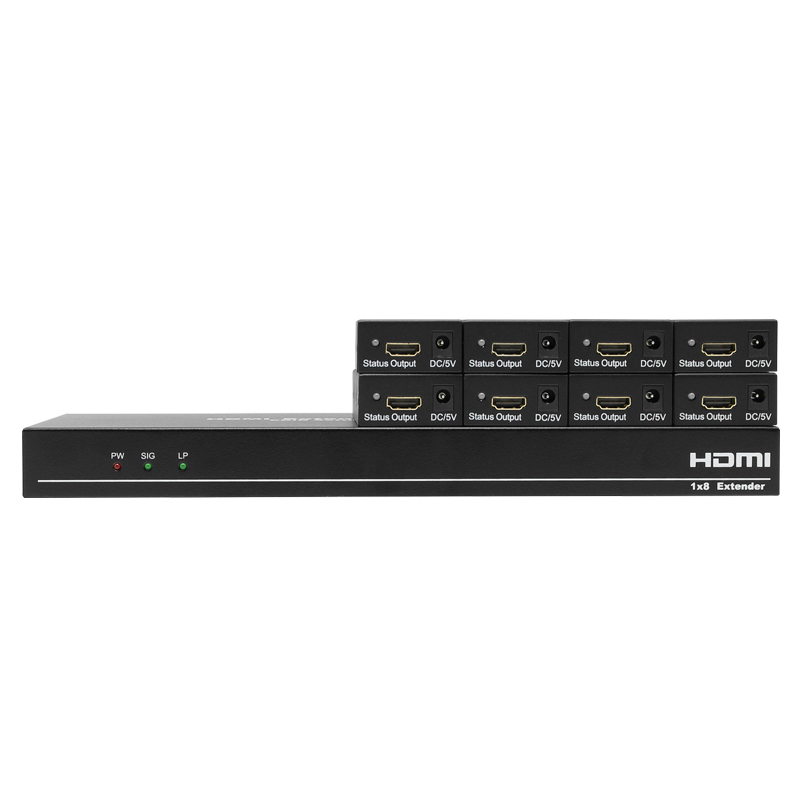

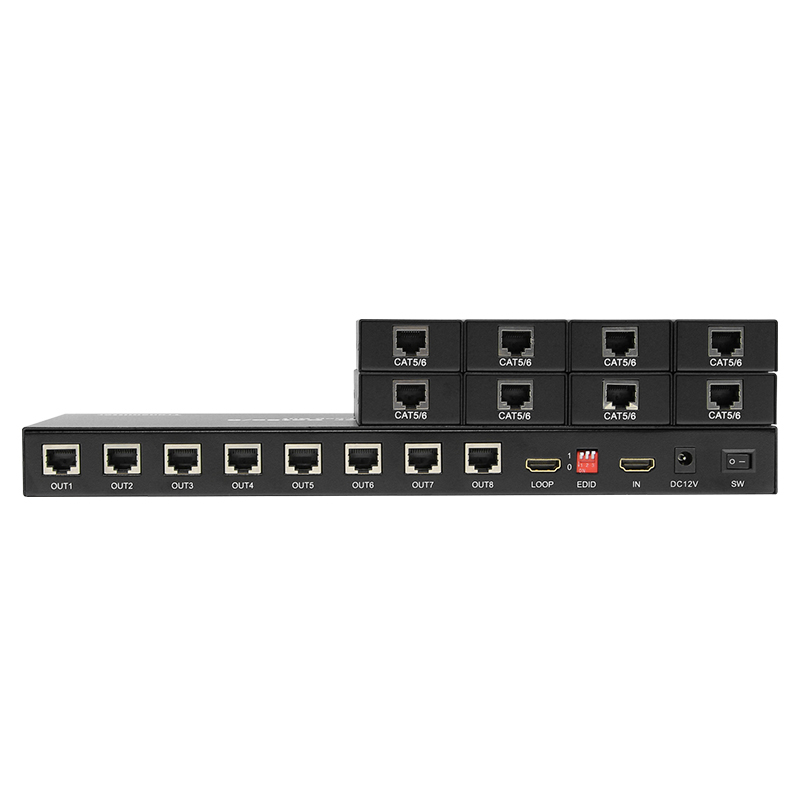

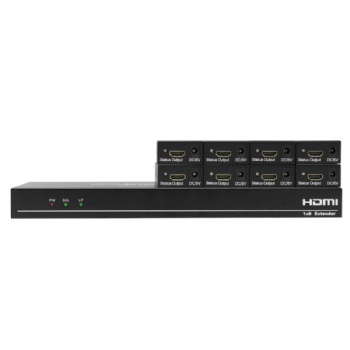

SWSP11,50M 1x8 HDMI Splitter over UTP cable support 1080P ,3D with HDMI looping output

FEATURES

1.Support one HDMI input source distribute to nine HDMI sink devices,

   One HDMI looping output , four UTP output ports connect via the 50M cat5e/6 cable with the receivers.Support 3D 1080P

2.Resolution reach up to 1080P,3D

3.Support deep color 30bit, 36bit

4.Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

5.Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

6.Support signal retiming

7.Lossless transmission.

8.Easy to install.

9.DV 12V power adapter.

Specifications:

HDMI resolution …………………………......3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format ……………………………..…………24bit/deep color 30bit,36bit

Support audio format……………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth…………………………………………………………………………….........2250MHz

Max baud rate……………….…….………………….…………………………………......….6.25Gbps

Input/Output TMDS signal ………….…………………………..………...0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ………………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….………………..≤10m AWG26 HDMI standard cable

Output cable distance………………………………………….…...………….…..≤50m CAT6 cable

Max working current…………………………………………………………….12V/1500MA(8PORT)

Power adapter format..Input: …………….......................AC (50HZ, 60HZ) :100V-240V

Operating Temperature range……..…………….………………………………….(-15 to +55℃)

Operating Humidity range…………………………….….……5 to 90%RH (No Condensation)

Storage Temperature..................................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H)………………………………………......................…328x180x30(mm)

Weight…..……………………………………………………………..……..…………………..….....960g
