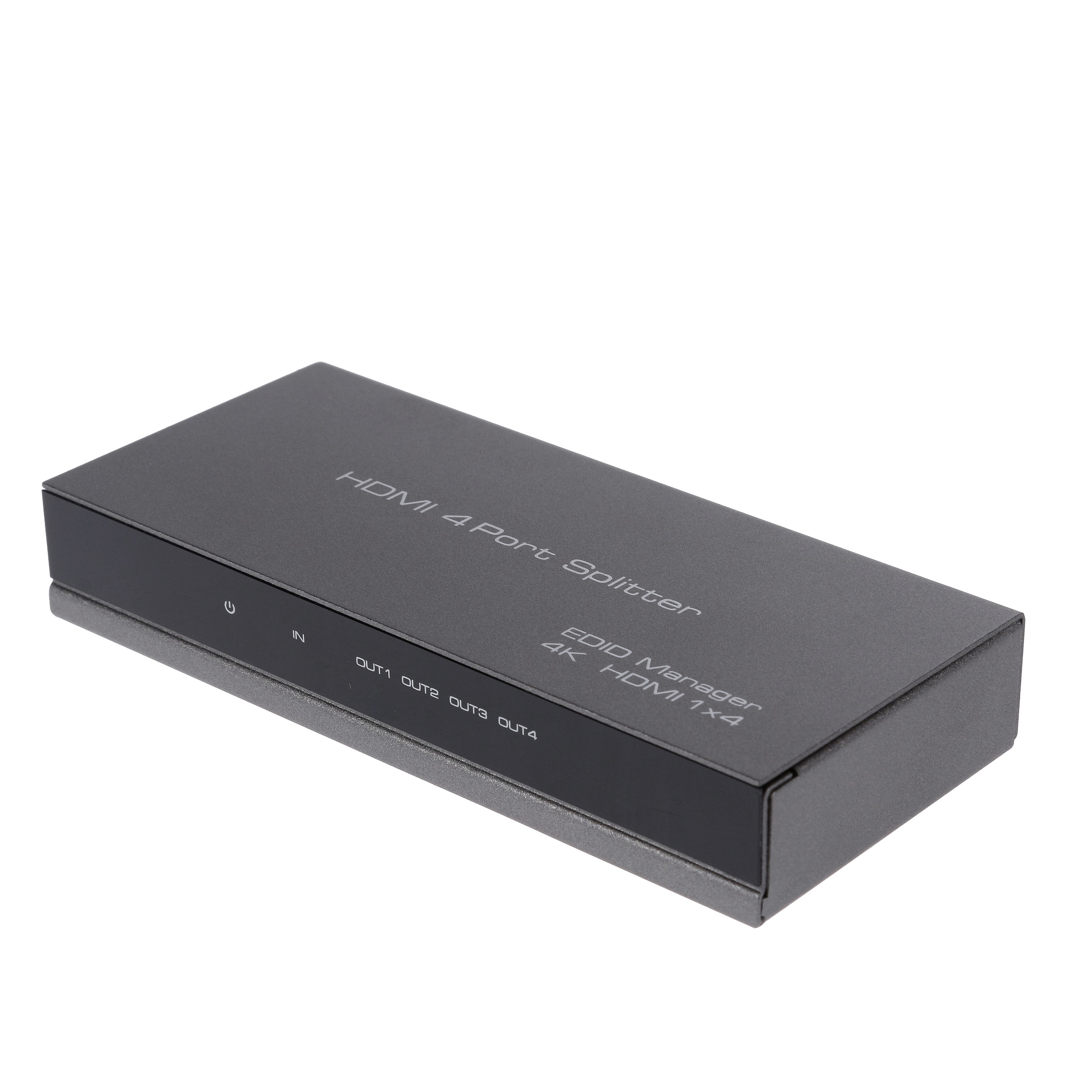

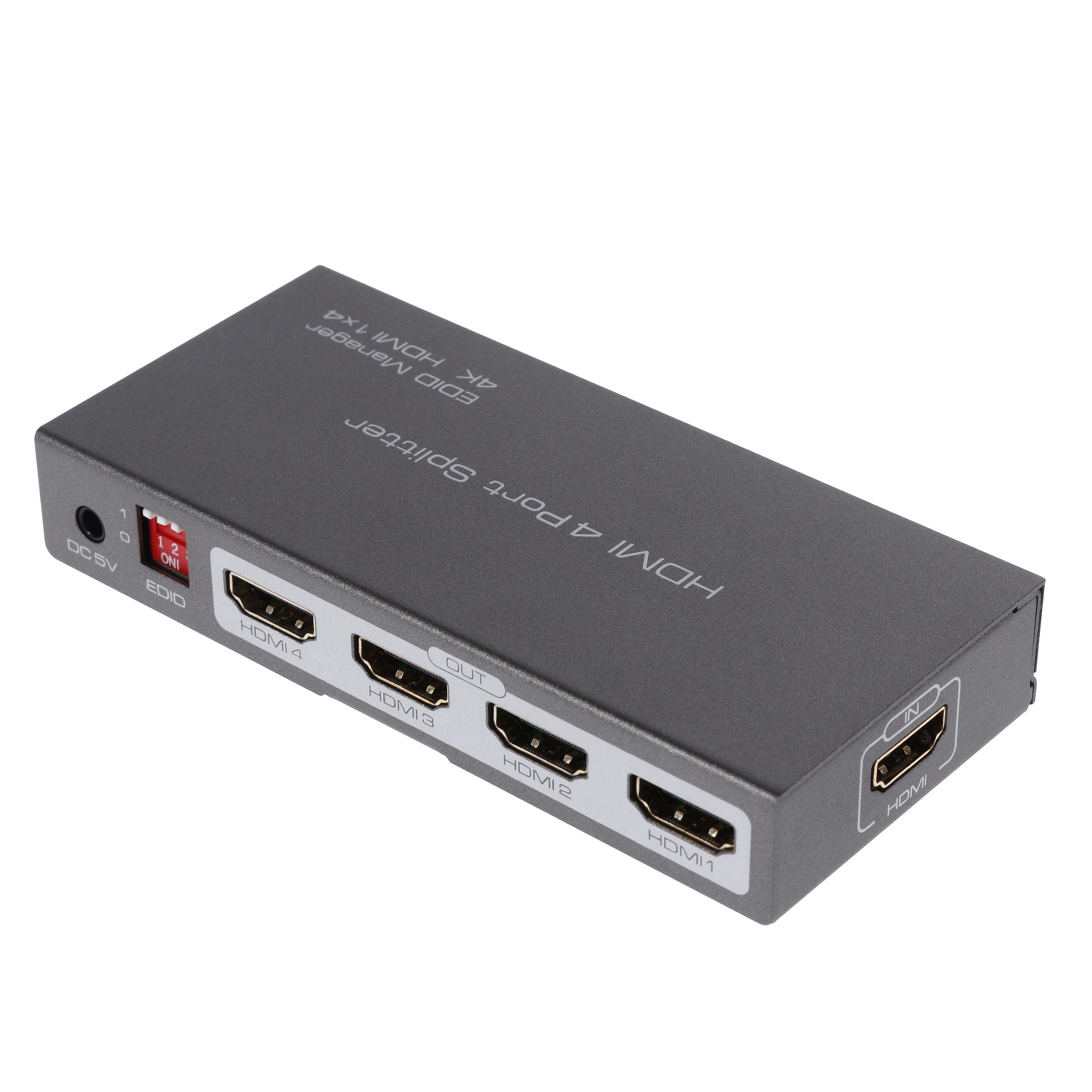

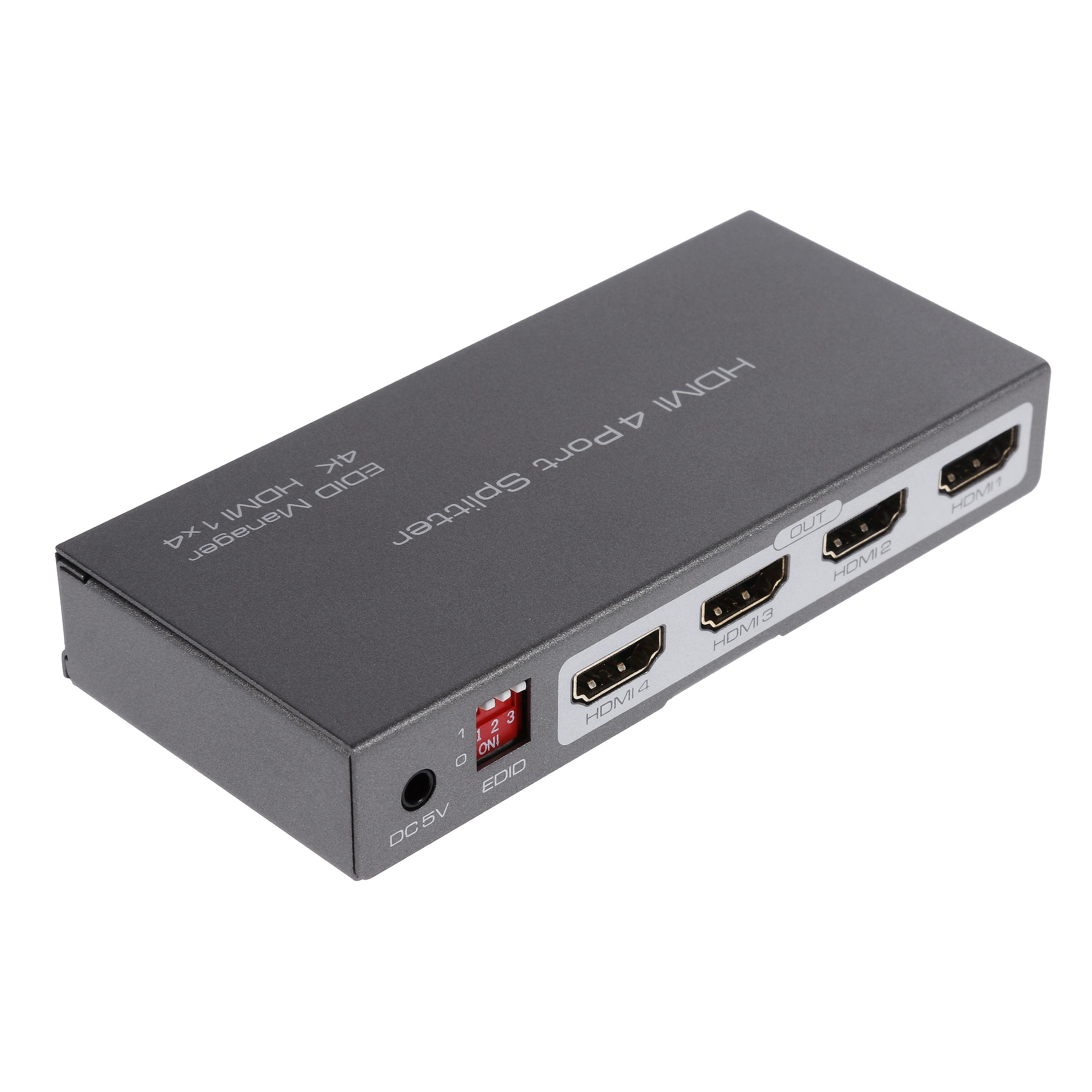

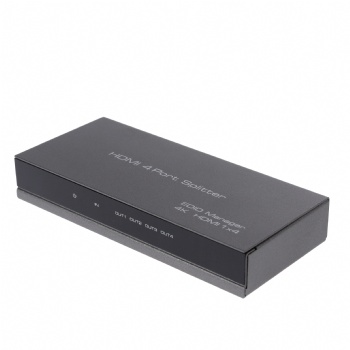

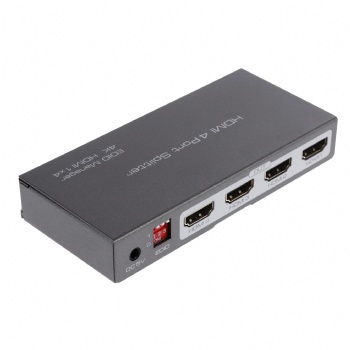

SWSP04,1x4 HDMI Splitter support 4K,3D HDMI 1.4 Version

Features:

Support One HDMI input signal distribute to four HDMI sink devices.

Support 4K x 2K@30HZ.

Support 3D.

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC.

Support DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD digital audio.

Support signal retiming.

Input and output both support 10M transmit distance if use the AWG 26 HDMI cable.

Lossless transmission.

Compact design, easy to install.

DC5V Power supply

Specifications:

HDMI resolution ………………….....…….......4k2k/3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format ……....……………………..…………….......24bit/deep color 30bit,36bit

Support audio format……………....….....DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth………………………..…………………………...…………………………................340MHz

Max baud rate……………….…….………………….…….…………………………….................….3.4Gbps

Input/Output TMDS signal ………….…………………...………..……...….......0.5~1.5Volts p-p(TTL)

Input/Output DDC signal …………………………………...…………..…………...........5Volts p-p (TTL)

Input cable distance..…... …………….……………...…..…......≤10m AWG26 HDMI standard cable

Output cable distance……………………………….......….........≤10m AWG26 HDMI standard cable

Max working current…………………………………..…….………………………………...................800mA

Power adapter format..Input: ………….…......AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A

Operation Temperature....................................................................................-15℃-50℃

Operating Humidity range………………………….….….......……....5 to 90%RH (No Condensation)

Storage Temperature.............................................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H) ……………………………….……………………....….….........122*57*21 (mm)

Weight…..………………………………………………………..…….…..……….....…………...............…310g
