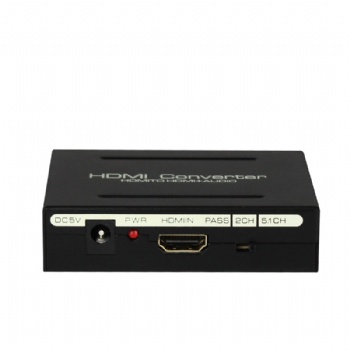

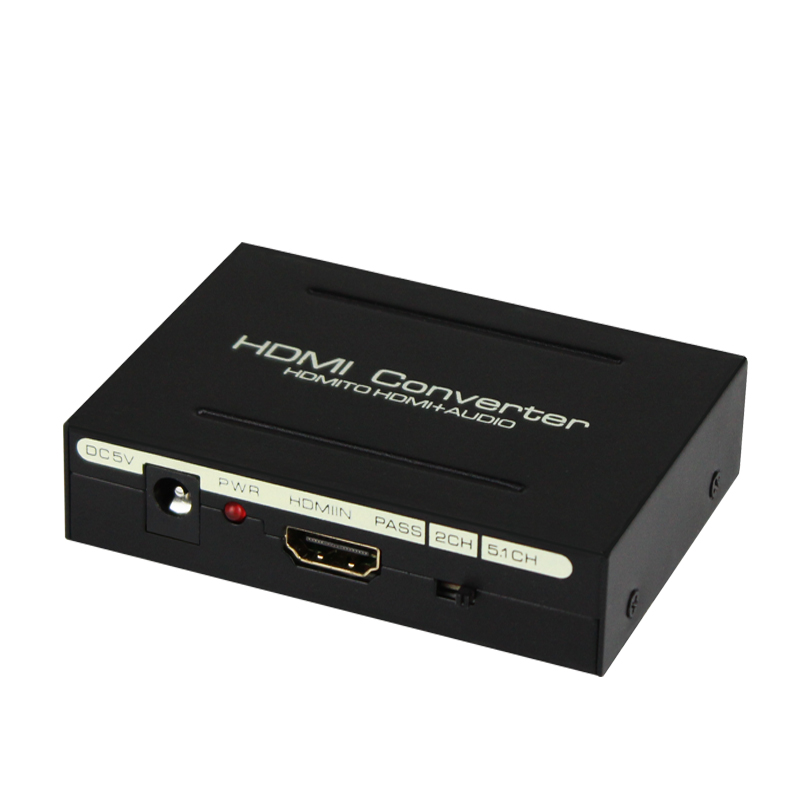

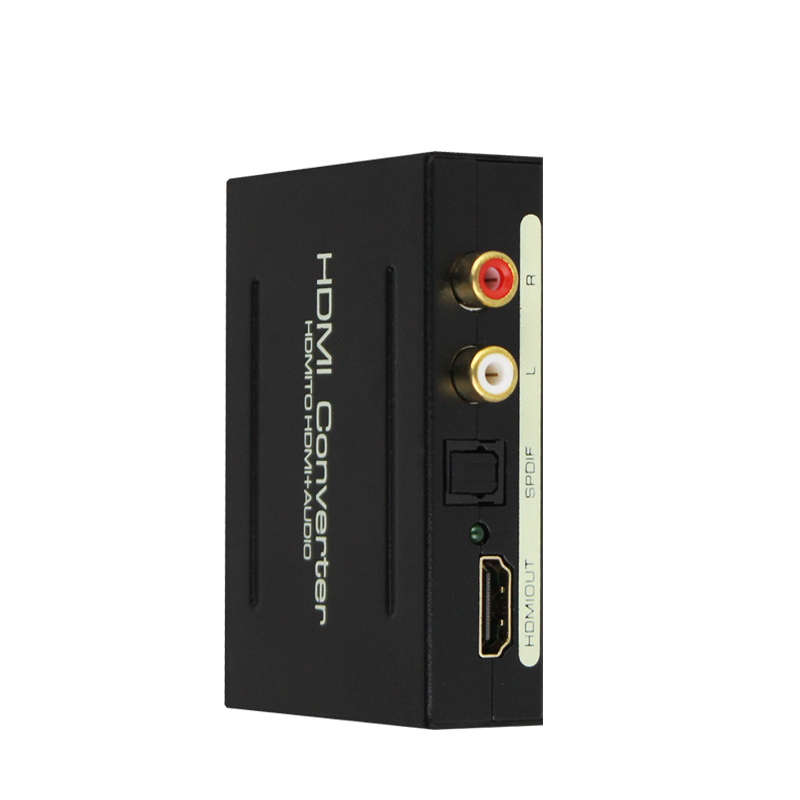

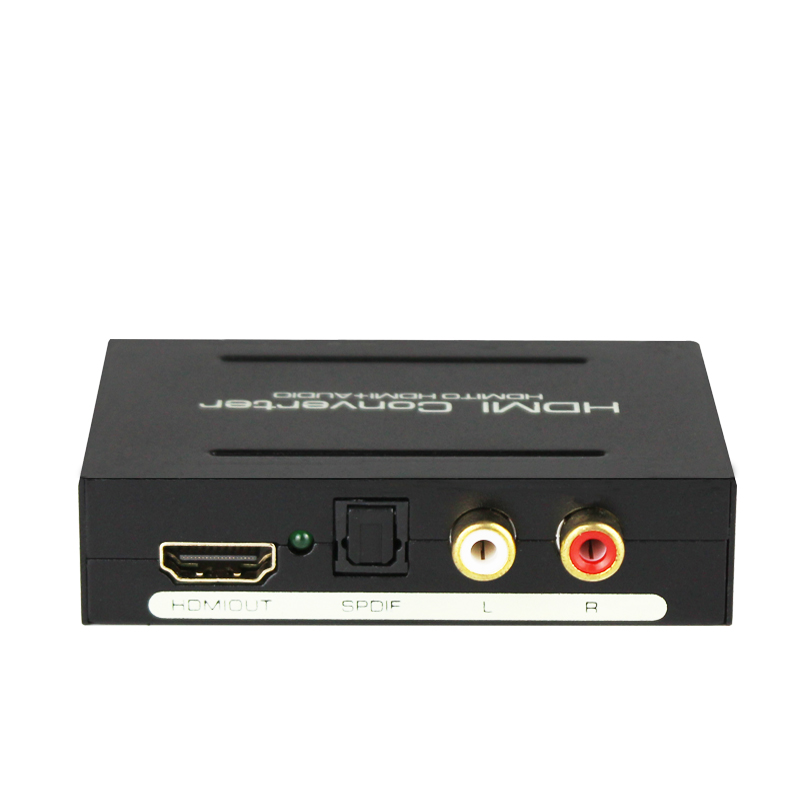

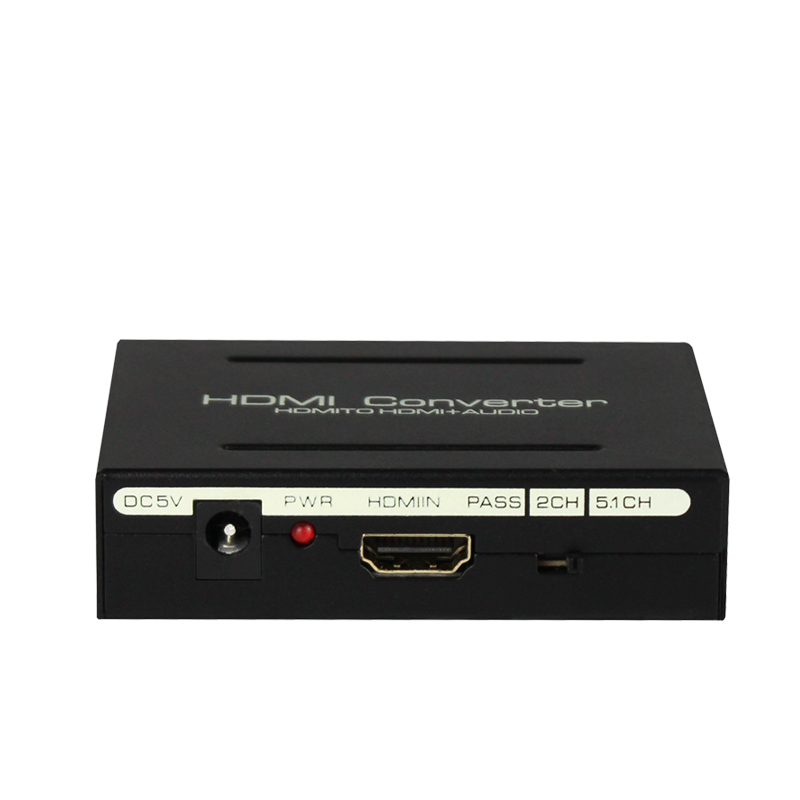

SWAU03,1080P HDMI 1.3Version Audio Extractor,Support SPDIF and R L audio output

Features:

Support extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs.

Support PASS / 2.0CH / 5.1CH three kinds of audio mode .

Support 1080PHz , Support 3D

Support deep color 30bit, 36bit

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

Support DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD audio format.

Support signal retiming

Support lossless transmission.

Compact design and easy to install.

DC5V power supply

SPECIFICATIONS:

HDMI resolution ………………………............ 3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..………….....….24bit/deep color 30bit,36bit

Support audio format……………..….....DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth………………………....……………………………………………………..340MHz

Max baud rate……………….…….…………….….………………………………….. ….10.2Gbps

Input/Output TMDS signal ………….………………………….....……...… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………...………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….………….……...….≤10m AWG26 HDMI standard cable

Output cable distance…………………………….....….…...≤10m AWG26 HDMI standard cable

Max working current………………………………..……………………………………….....350mA

Power adapter format..Input: ……………............AC (50HZ, 60HZ) :100V-240V; Output: DC5V

Operating Temperature range……..…………….……………………………....…… (-15 to +55℃)

Operating Humidity range………………………….….………......5 to 90%RH (No Condensation)

Storage Temperature.........................................................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H)……………………………….…………………………84.5X61.8X21 (mm)

Weight…..……………………………………………………....…..…….…..……………………135g
