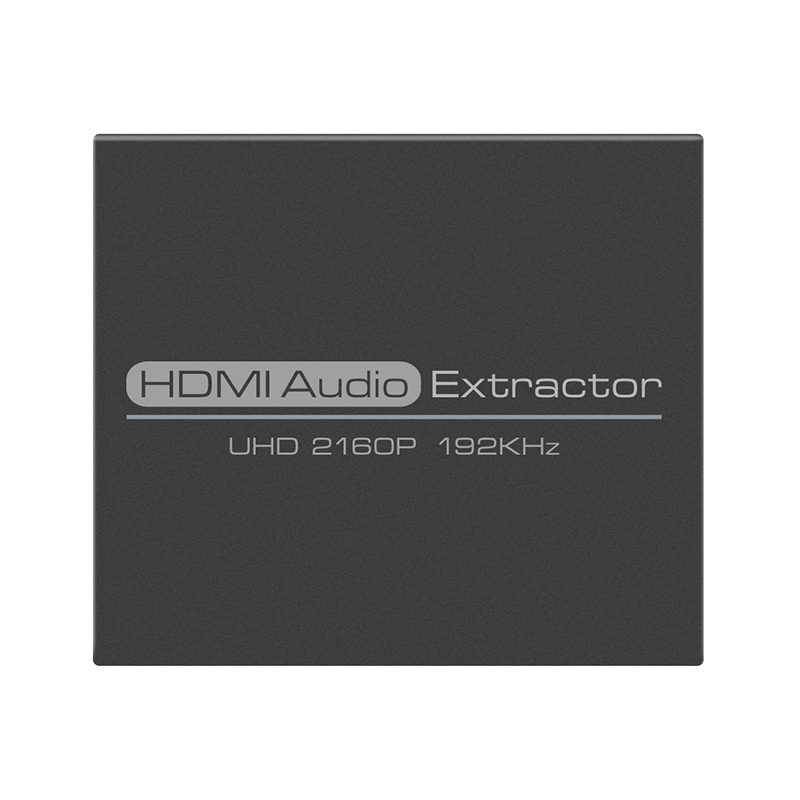

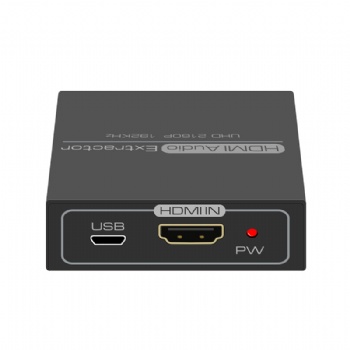

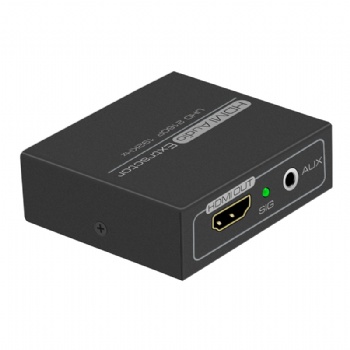

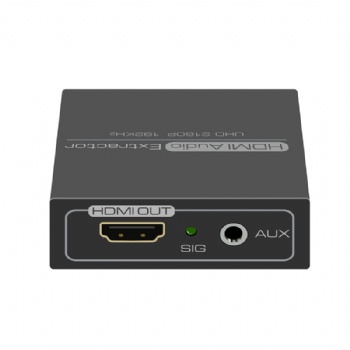

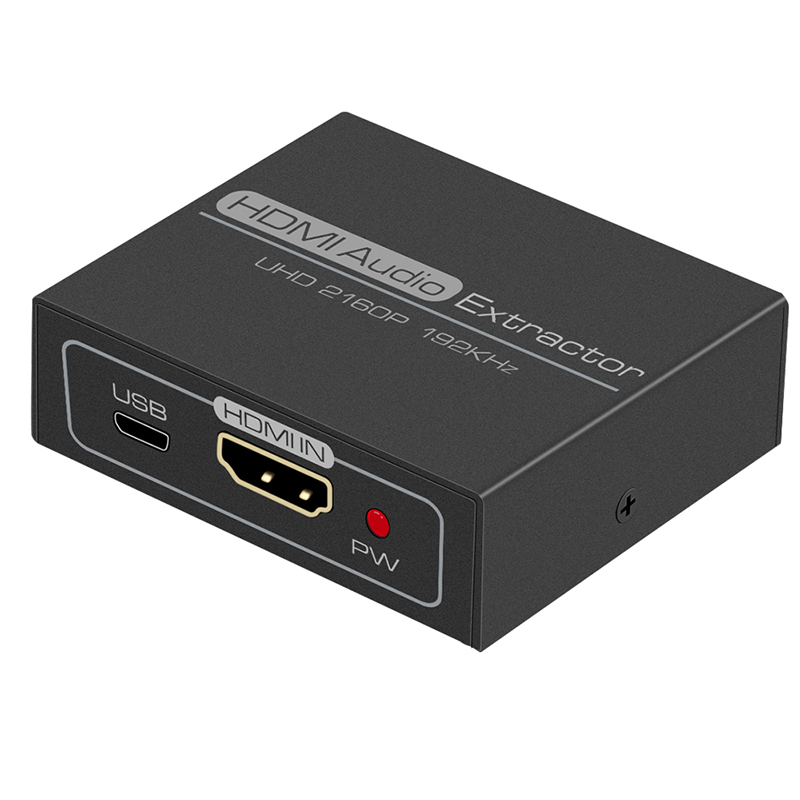

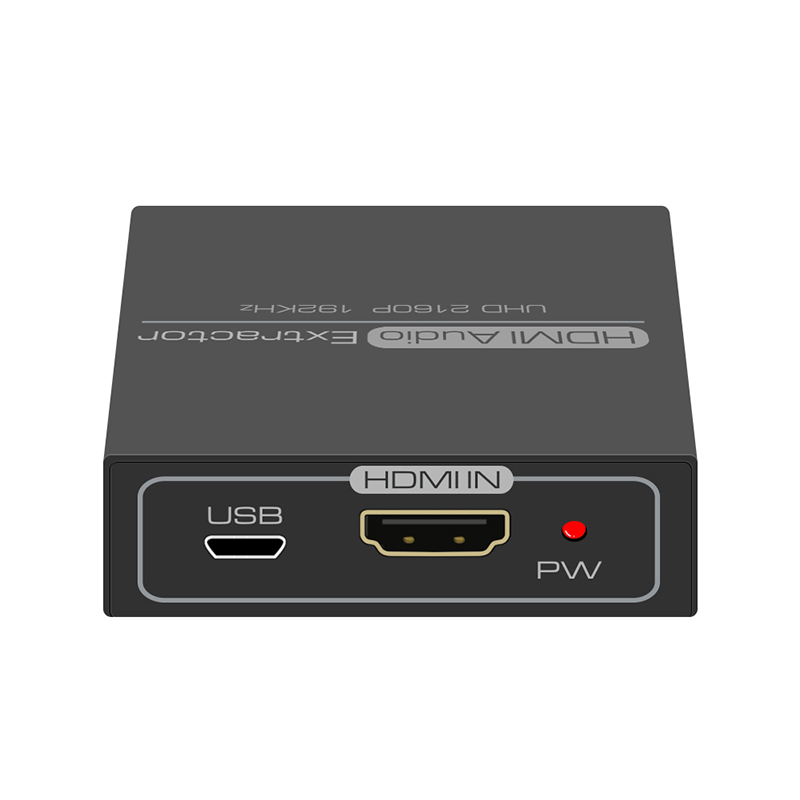

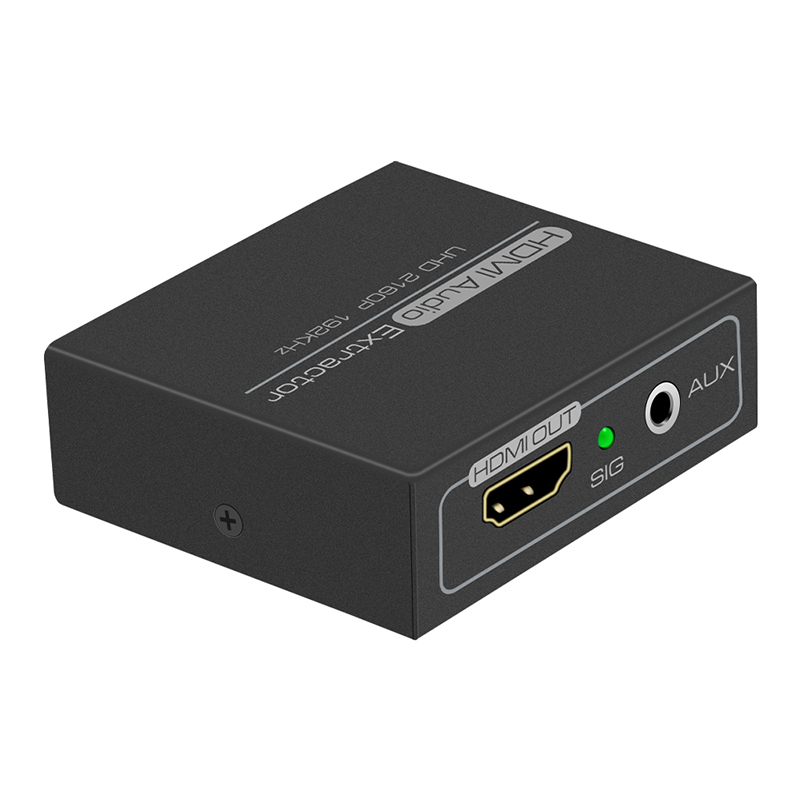

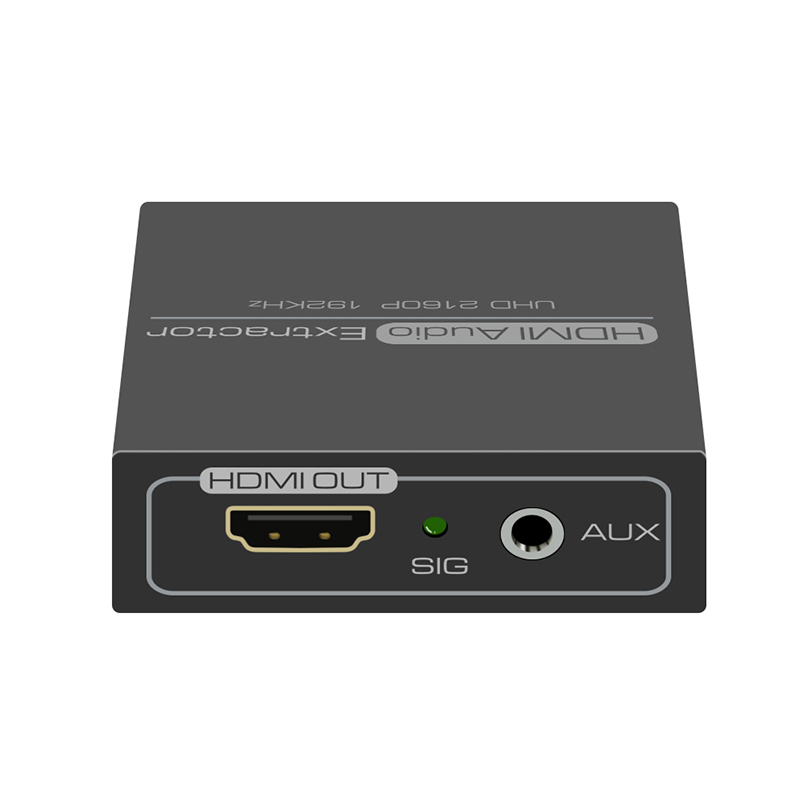

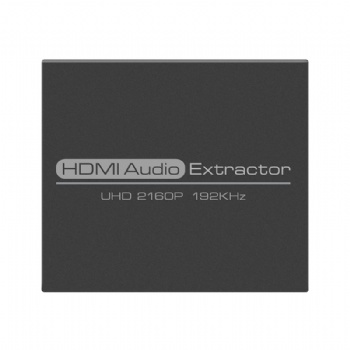

SWAU04B，HDMI 1.4V Audio Extractor with AUX audio output support 4K

Features:

1.Support extract audio signals from any HDMI compliant source to digital optical or 3.5MM headphone audio output.

2.Support 4K x 2K@30Hz , Support 3D

3.Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

4.Support LPCM2.0.

5.Support audio extraction without hdmi input

6.Compliant DVI input ,support HDMI audio extraction

7.Support signal retiming

8.Support lossless transmission.

9.Compact design and easy to install.

10.Low consumption,Power supply is optional,If it can’t work fine,please use the USB 5V power adapter.

Specifications:

HDMI resolution …………………......4k2k@30Hz/3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..……………….24bit/deep color 30bit,36bit

Support audio format………………. ………………………………………………………LPCM 2.0

Max bandwidth………………....……………………………………………………………..340MHz

Max baud rate……………….…….………………….………………………………….. ….10.2Gbps

Input/Output TMDS signal ………….……………………...……..……...… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal …………………………………...…………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….……………....…….≤10m AWG26 HDMI standard cable

Output cable distance……………………………….…......≤10m AWG26 HDMI standard cable

Max working current……………………………………………………………………….....180mA

Power adapter format..Input: ……………....... …………....... …………....... …………. USB-5V

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Storage Temperature...................................................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H) ……………………………….…………………………58X54X20 (mm)

Weight…..………………………………………………………..…….…..……………………135g
