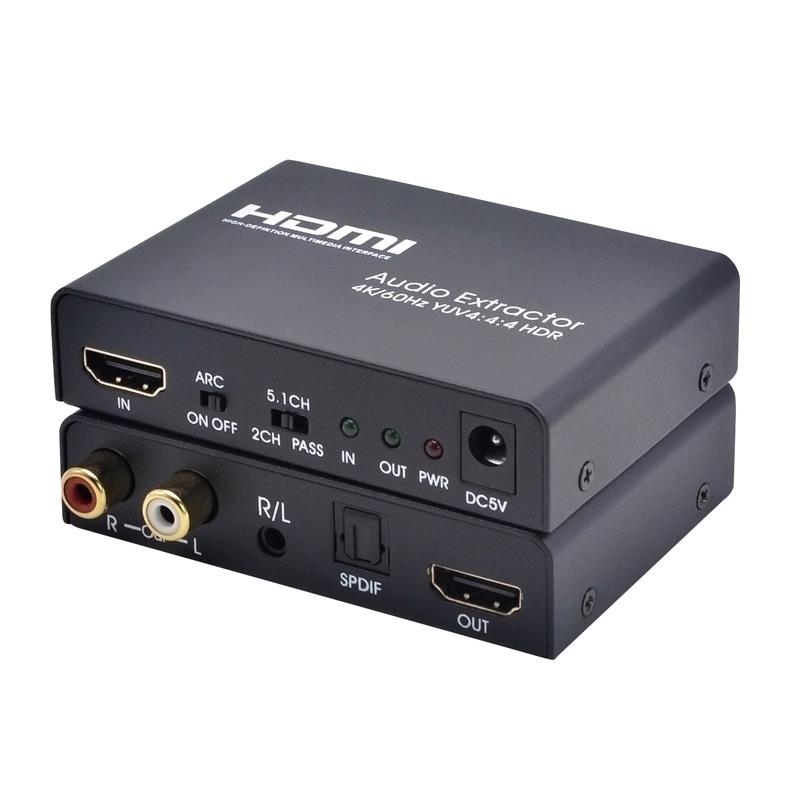

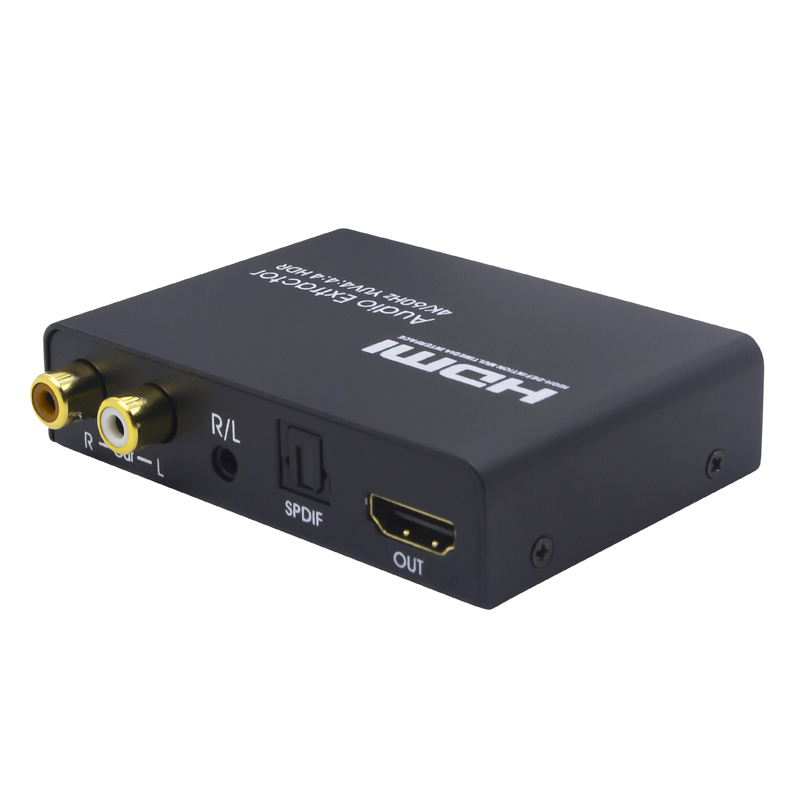

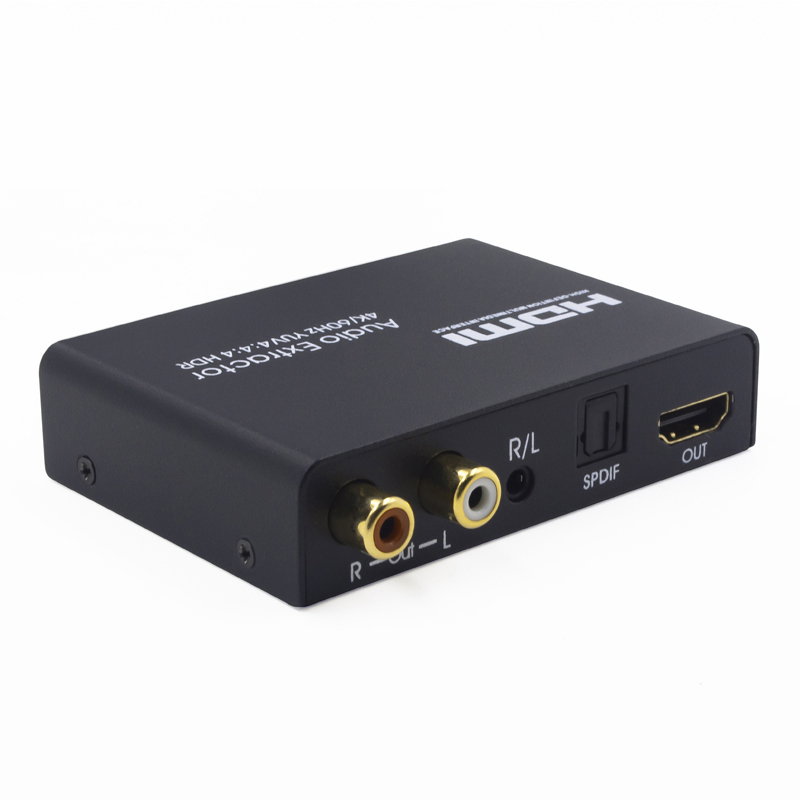

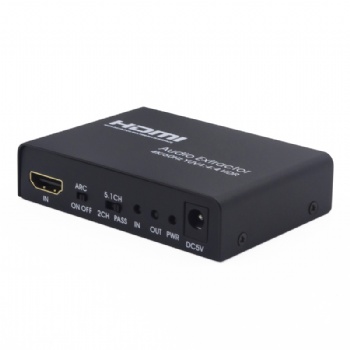

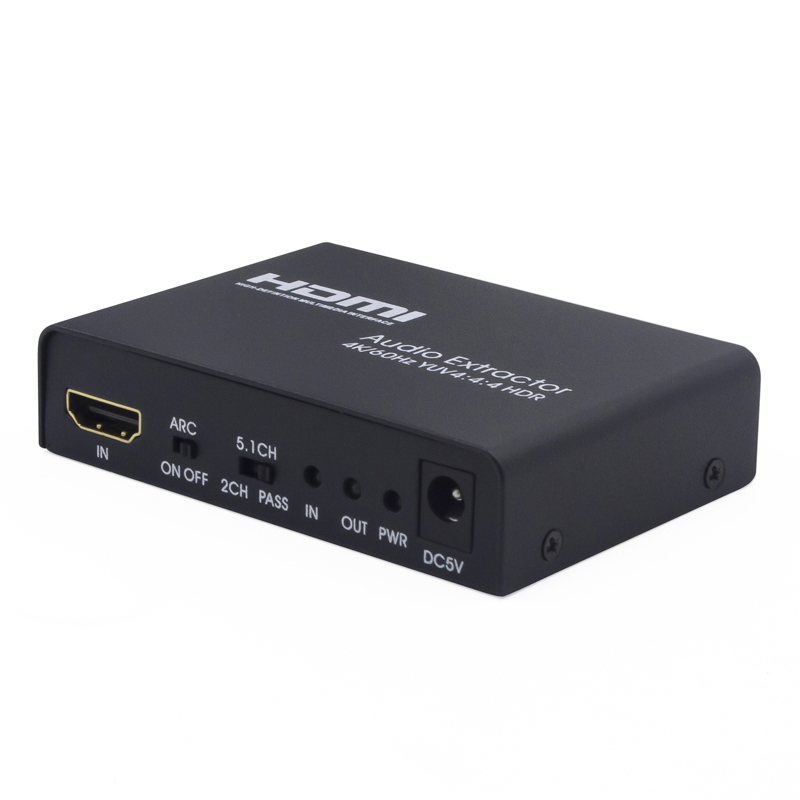

SWAU07，HDMI 2.0 Audio Extractor support 18G,HDCP 2.2 with SPDIF and Analog audio output with ARC

Features:

1·HDMI resolution supports up to 4K/60fs and supports3D

2·SPDIF optical output supports Dolby Digital AC3, DTS, LPCM and other digital audio formats, supporting 5.1CH output

3·Supports switching between 3 audio EDID read modes (2CH/5.1CH/PASS)

4·Support ARC

5·Panel design LED indicator to clearly indicate the working status of the product

6·24-bit/192KHz DAC chip ensures high quality sound quality

7·No signal loss

8·Simple installation

9·Powered by DC5V/1A

Specification

Suppoort HDMI HDCP Version ............................................HDCP 2.2

HDMI Input/Output Resolution............... .........................Up to4K/60fs

Support HDMI Video Color Format.... ..........................2160P,10/12bit

10/12 bits, 24/25/30Hz, 2160p, 10/12 bits, 50/60Hz

HDMI Audio Format......................DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/olby-AC3/DSD

SPDIF Digital Audio Formate.................................Dolby Digital（AC3）/DTS/LPCM

HDMI MaxBandwidth..............................................................600MHz

HDMI Max Baud Rate..............................................................18Gbps

Input Output TMDS Signal.......................................0.5~1.5Vp-p(TTL)

Input Output DDC Signal....................................................5Vp-p(TTL)

DAC sampling frequency .................................................32~192 KHz

DAC bit rate...........................................................................16~24 Bit

RCA analog output (1KHz@0dB)............................................1V RMS

Signal to noise ratio @0dB(CC1R/ARM)..................................≥90dB

Distortion degree......................................................................≤0.1%

Frequency response.......................................................20HZ~20KHz

HDMI Input Cable Distance..........≤3m AWG26 HDMI Standard Cable

HDMI Output Cable Distance.......≤3m AWG26 HDMI Standard Cable

Max Working Current................................................................400mA

Power Adapter Format..................AC 100V-240V 50/60HZ,DC 5V/1A

Operating Temperature Range............................................-10~+55℃

Storage Temperature Range...............................................-20~+60℃

Operating Humidity Range..............10~90%RH（No Condensation）

Storage Humidity Range....................5~95%RH（No Condensation）

Case Dimension....................................................85×60.5×20（mm）

Weight..........................................................................................124g
