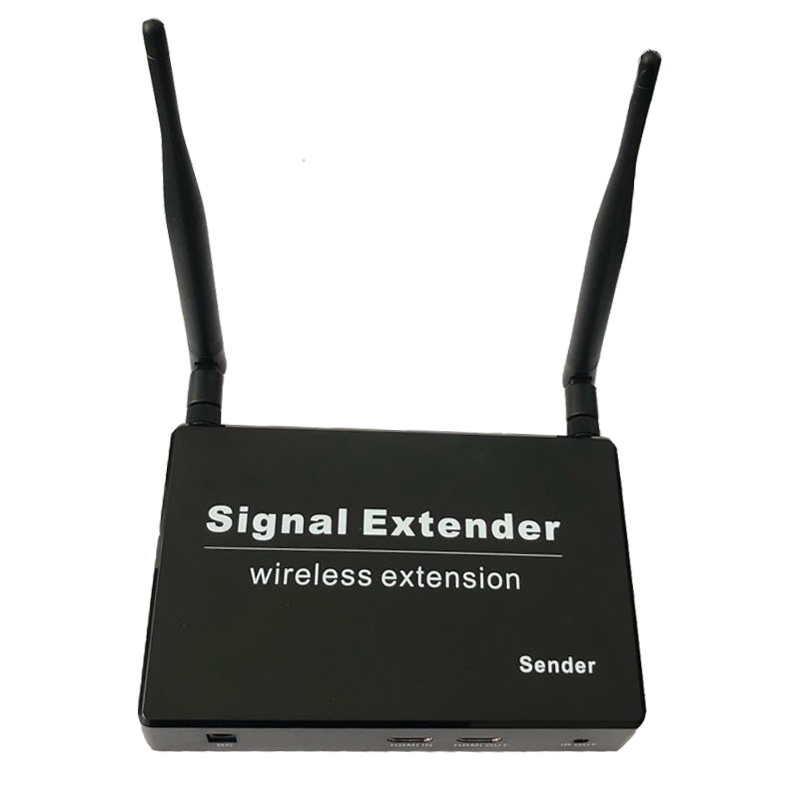

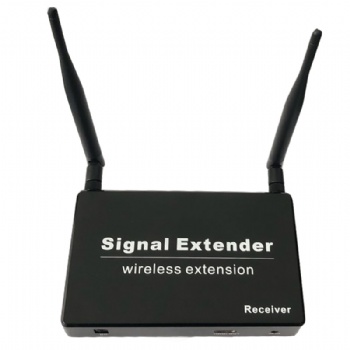

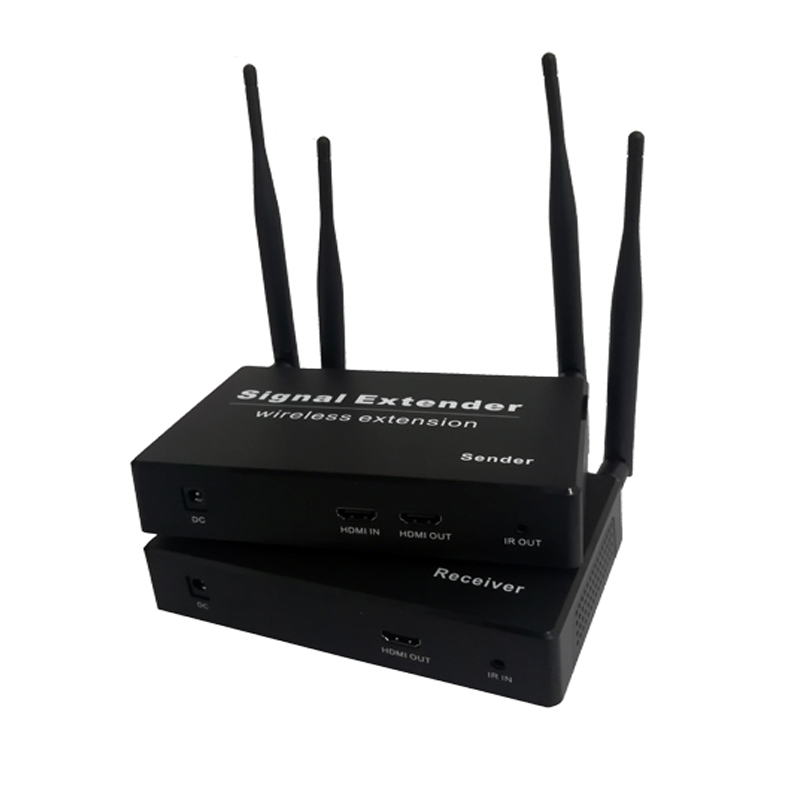

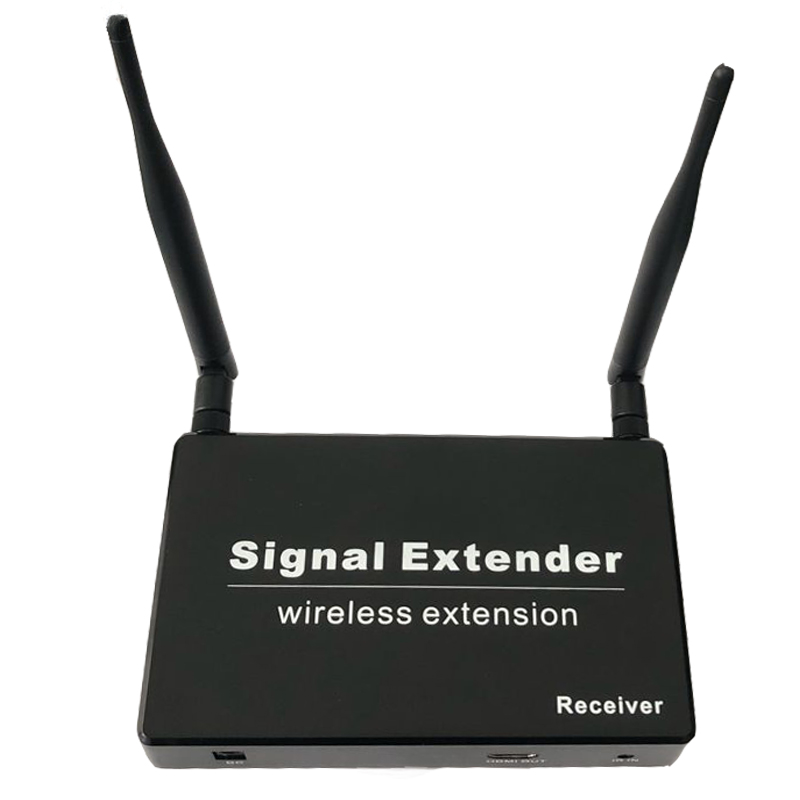

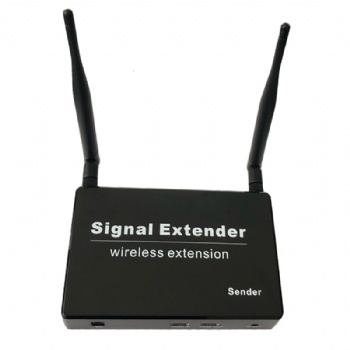

SWEXIP07,500M HDMI wireless Extender with looping HDMI output

Features:

1.Support 1080P HD resolution

2.Support HDCP

3.The wireless configuration made the room to be clean and convenient from the wiring.

4.The Transmitter with HDMI loop-through.

5.Support one sender with many receivers.

6.Strong anti-interference, No interference with other WIFI equipment.

7.Strong penetration, easy crossing obstacles.

8.IR Function(optional)

Specification:

Input signal.............................................Sender：one CH HDMI

                                                          Receiver：one CH IR

Output signal..........................................Sender：one CH HDMI、IR

                                                          Receiver：one CH HDMI

Transmission distance..........................Open range transmission：0-500M

Video transmission performance and interface part................Video input/output interface

Support HDMI version..............................HDMI1.3

Support HDCP version..............................HDCP1.2

HDMI Resolution...........................................1080p/1080i/720p/720i/576p/576i/480p/480i

Support video color format...........................24 bits/dark 30 bits/dark 36 bits

Support audio format...................................DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

Input and output TMDS signal............................0.5-1.5Vp-p(TTL)

Input and output DDC signal..............................5Vp-p(TTL)

Remote control interface....................................3.5mm audio

Remote interface signal......................................Infrared control signal

Frequency...................................................5.8GHZ

Sending/Receiver antenna.......................Outer

Sender................................................165 mm×105 mm×30 mm

Receiver.........................................165 mm×105 mm×30 mm

Adaptive voltage range....................................DC9V/2A

Sender consumption..........................................7W

Receiver consumption........................................6W

Working Temperature...............................................-15℃-55℃

Storage temperature...................................................-40-80℃

Relative humidity............................................................0-95% (No condensation)
