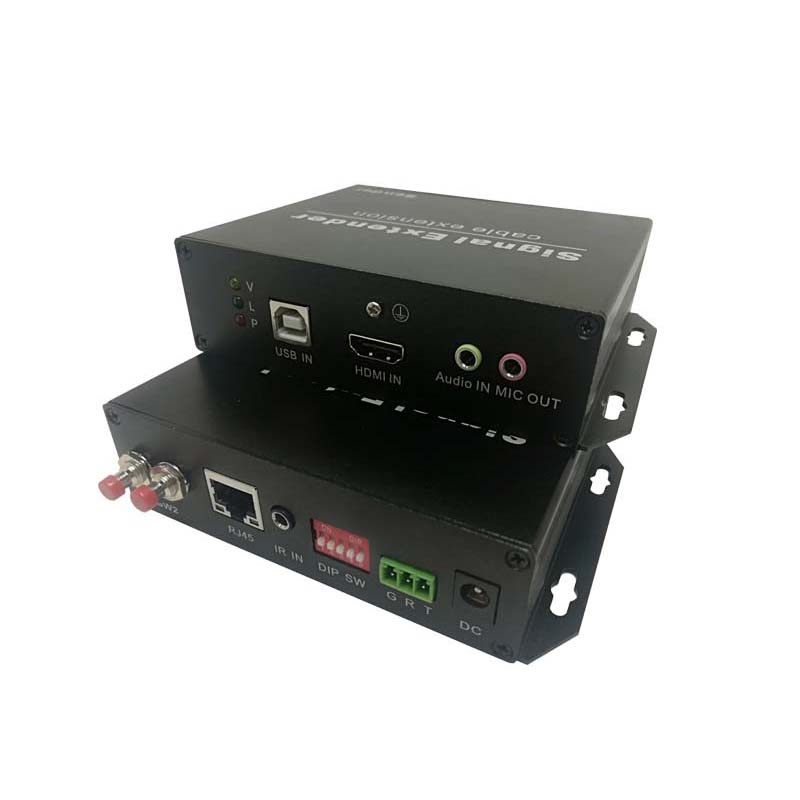

SWEXIP07,120M HDMI KVM Extender over IP with IR and RS232 pass through

Features:

1. Digital uncompressed transmission, clear image and strong anti-interference ability;

2. Support multiple resolutions up to 4K×2K@30HZ;

3. Support HDMI1.4, support 3D;

4. Support reading EDID, compatible with different brands of display devices and able to lock screen

5. Support USB2.0 protocol, USB device compatibility is good, up to 4 USB interfaces, support USB mouse and keyboard, HD camera, mobile phone charging and copying data, mobile storage device, touch screen, etc. High current design, will not drop the line, convenient for users;

6. Support bidirectional transmission of audio;

7.Support bidirectional transmission of RS232;

8. Support transmission through Gigabit LAN;

9. Access to Gigabit switches for one-to-many transmission;

10. Infrared, serial port, audio function (optional).

Specification:

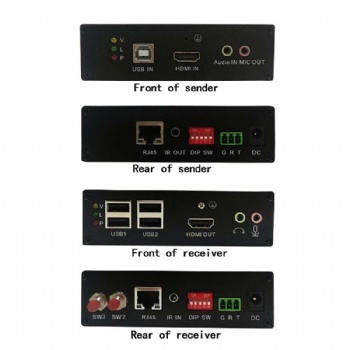

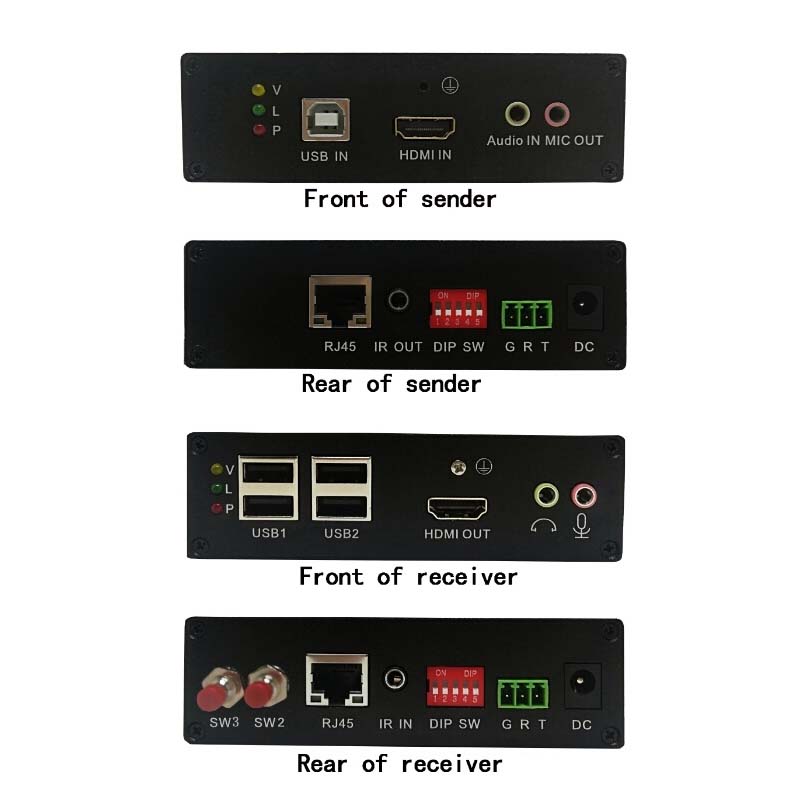

Sender.............................................................1CH(MIC,IR);1CH(HDMI,USB,RS232,AUDIO)

Receiver.............................................................1CH(HDMI,RS232,AUDIO),4CH USB;1CH(MIC,IR)

Transmission distance.............................................................Cable directly connected:0-125m

Video input/output interface.............................................................HDMI

Support HDMI version.............................................................HDMI1.4

Support HDCP version.............................................................HDCP1.2

HDMI Resolution.............................................................Max support 4K×2K@30HZ

Support video color format.............................................................24bit/deep color 30bit/deep color 36bit

Audio format support.............................................................DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

Input and output TMDS signals.............................................................0.5-1.5Vp-p(TTL)

Input/output DDC signal.............................................................5Vp-p(TTL)

size（L×W×H）.............................................................Sender:  131mm×93mm×32mm

                                                                             Receiver:  131mm×93mm×32mm

GW.............................................................1.2Kg

Voltage range.............................................................DC9V-12V/2A

Sender consumption.............................................................3W

Receiver consumption.............................................................3W

Working Temperature.............................................................-15℃-55℃

Storage temperature.............................................................-40-80℃

Relative humidity.............................................................0-95% (No condensation）
