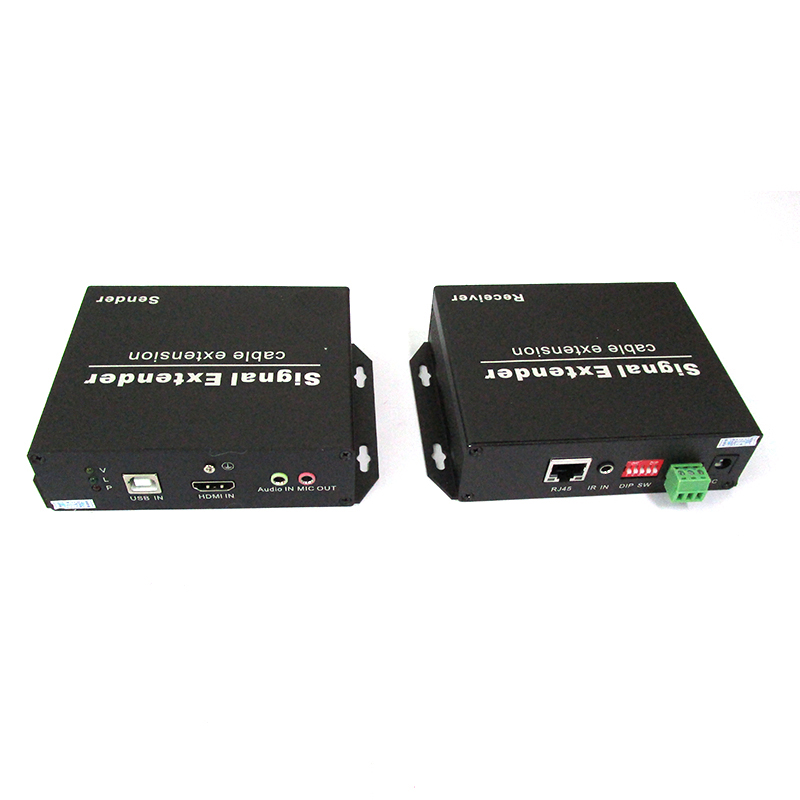

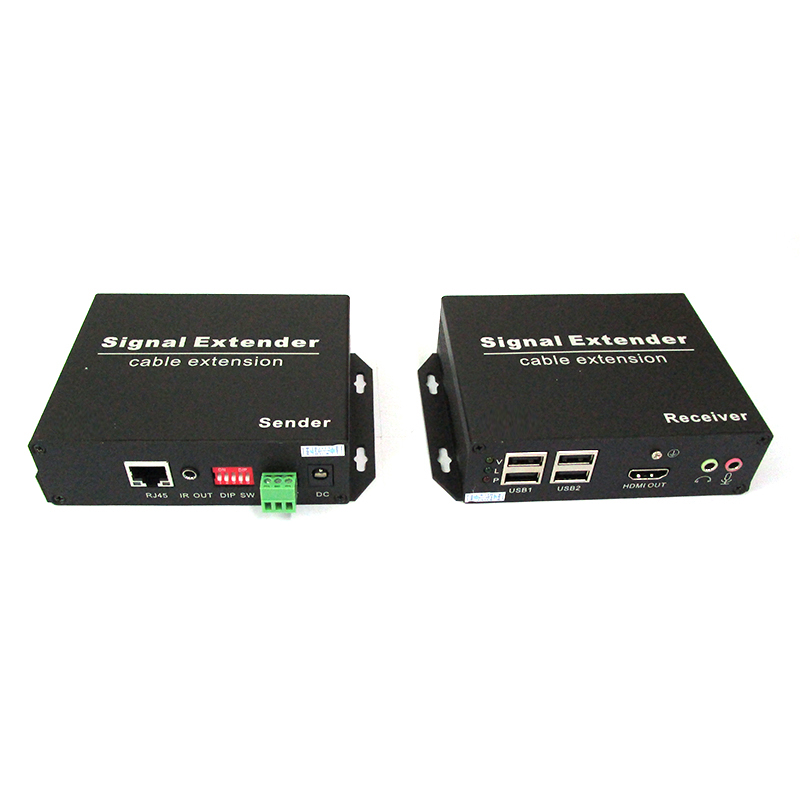

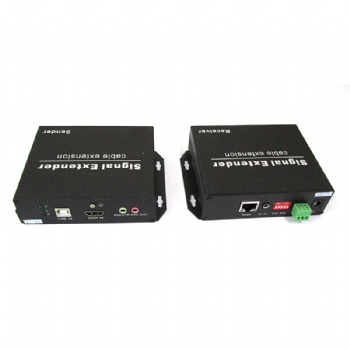

SWEXIP06,4K 120M HDMI KVM Extender over IP with IR and RS232 pass through

Features

1. Digital uncompressed transmission, clear image and strong anti-interference ability;

2. Support multiple resolutions up to 4K×2K@30HZ;

3. Support HDMI1.4, support 3D;

4. Support USB2.0 protocol, USB device compatibility is good, up to 4 USB interfaces, support USB mouse and keyboard, HD camera, mobile phone charging and copying data, mobile storage device, touch screen, etc.

5. Support bidirectional transmission of audio;

6. Support transmission through Gigabit LAN;

7. Infrared, serial port, audio function (optional).

Specification:

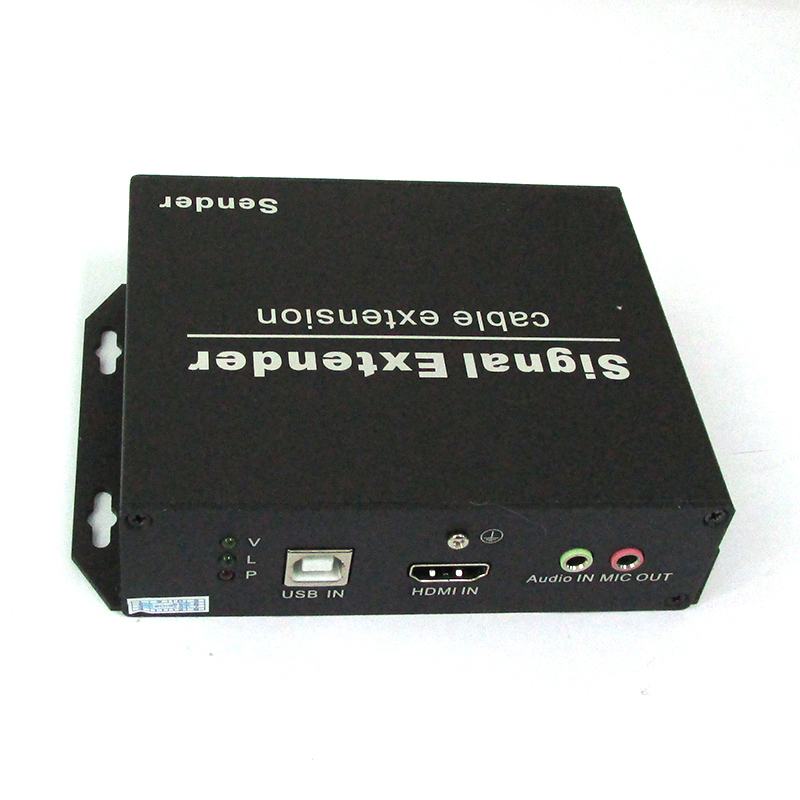

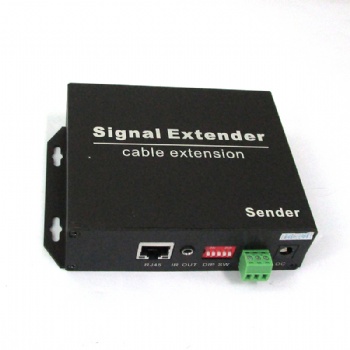

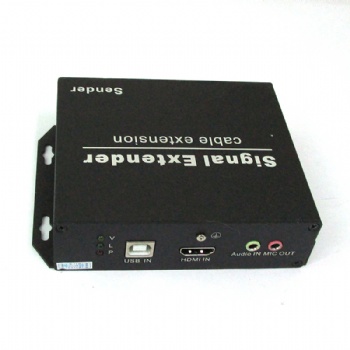

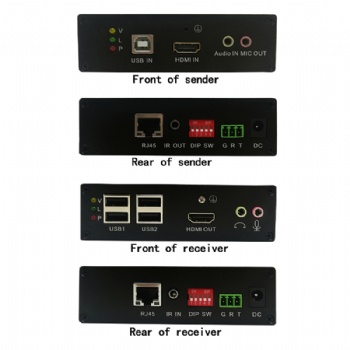

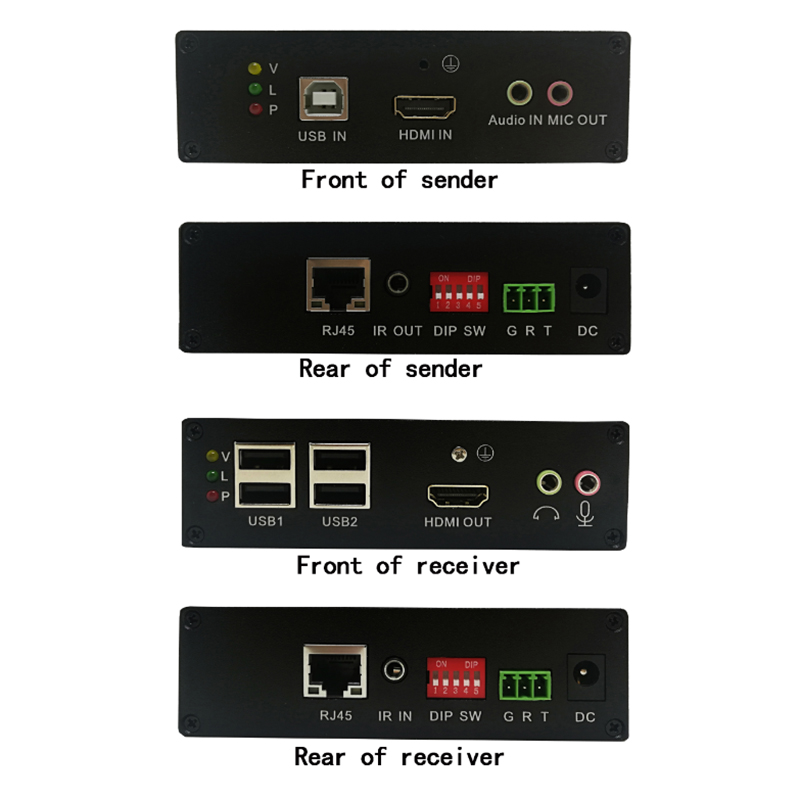

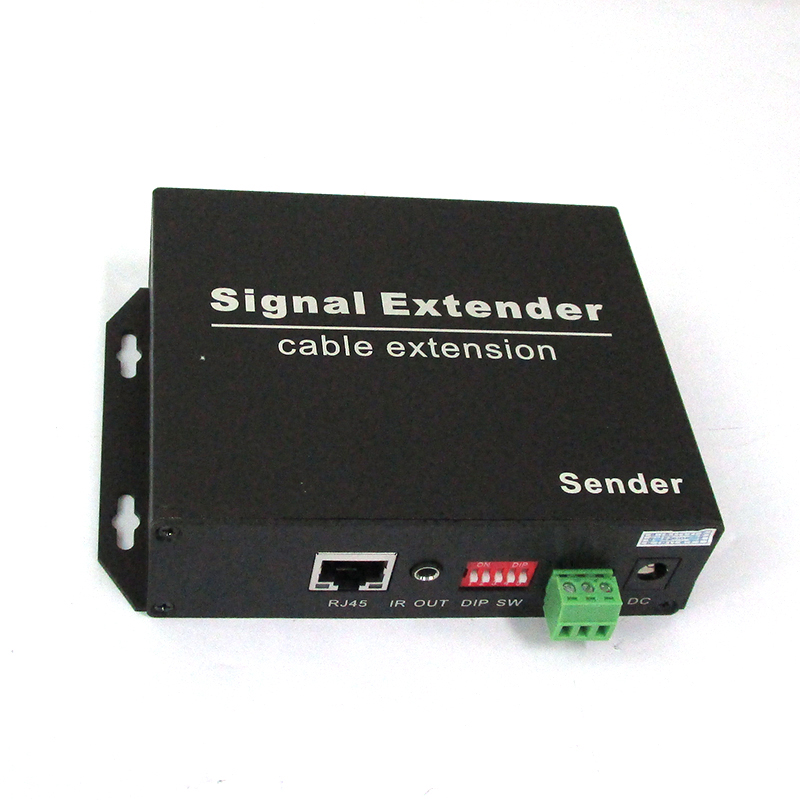

Number of input signal.............................................................Sender：1CH(HDMI、USB、RS232、AUDIO)

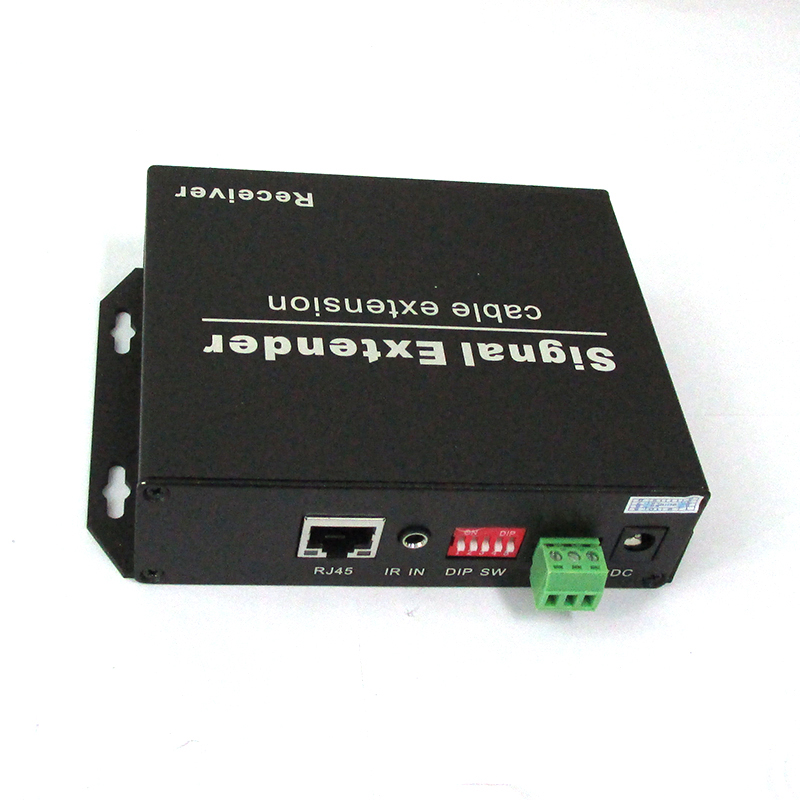

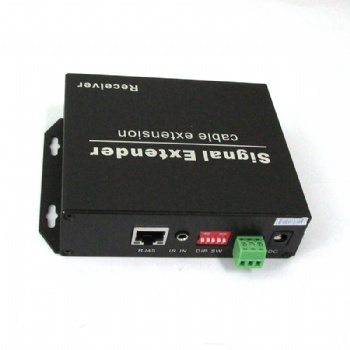

                                                                                           Receiver：1CH(MIC、IR）

Number of output signal.............................................................Sender：1CH(MIC、IR)

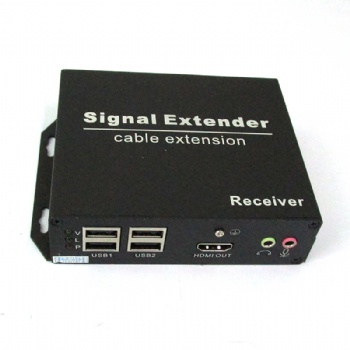

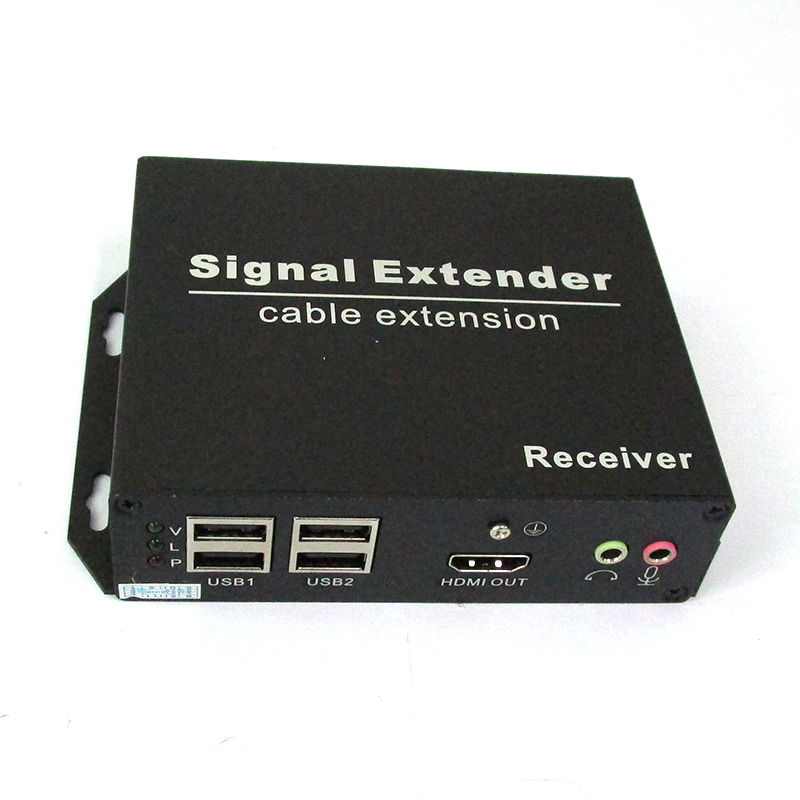

                                                                                                 Receiver：1CH(HDMI、RS232、AUDIO)，4CH USB

Transmission distance.............................................................Cable directly connected：0-120m

Video input/output interface.............................................................HDMI

Support HDMI version.............................................................HDMI1.4

Support HDCP version.............................................................HDCP1.2

HDMI Resolution.............................................................Max support 4K×2K@30HZ

Support video color format.............................................................24bit/deep color 30bit/deep color 36bit

Audio format support.............................................................DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

Input and output TMDS signals.............................................................0.5-1.5Vp-p(TTL)

Input/output DDC signal.............................................................5Vp-p(TTL)

size（L×W×H）.............................................................Sender:  131mm×93mm×32mm

                                                                                Receiver:  131mm×93mm×32mm

GW.............................................................1.2Kg

Voltage range.............................................................DC9V/1A

Sender consumption.............................................................3W

Receiver consumption.............................................................3W

Working Temperature.............................................................-15℃-55℃

Storage temperature.............................................................-40-80℃

Relative humidity.............................................................0-95% (No condensation）
