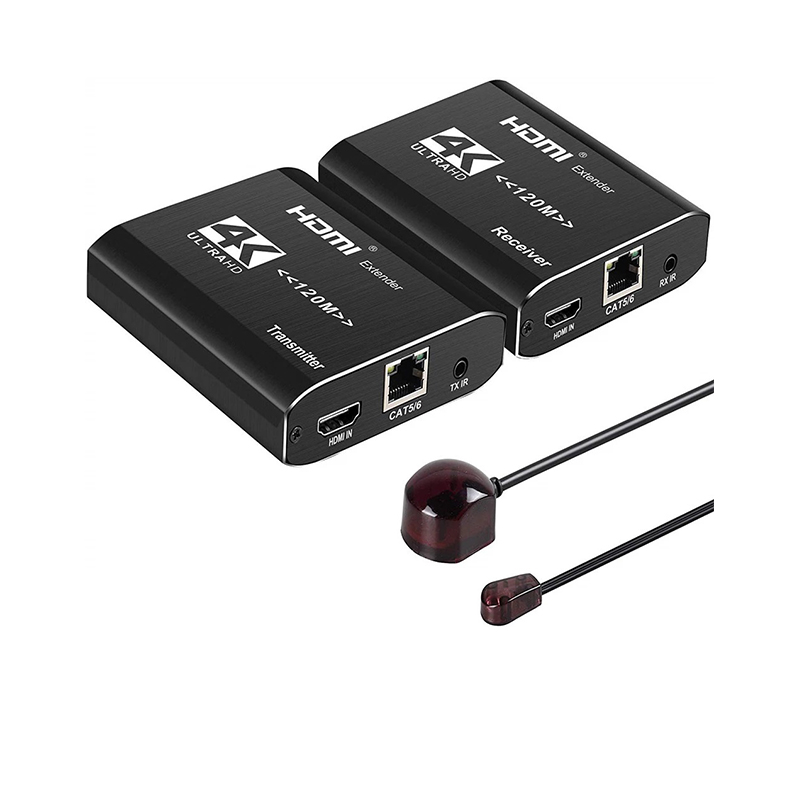

SWEXIP01A，120M 4K HDMI Extender support daisy connection

FEATURES:

1.Support HDMI 1.4a

2.Support 3D

3.Support highest video resolution 4K/30Hz

4.Support 3x3.4Gbps data rate and tmds clock up to 340MHz

5.Support 8/10/12 bit deep color

6.Support AWG26 HDMI standard cable, input up to 15m, output up to 15m

7.Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 60m between TX and RX.

8.No loss of quality

9. Need 5V/1A power supply

SPECIFICATION:

Resolution..........................................................3840*2160@30hz/1080p/720/560P

TTL........................................................................5Volts p-p

Support audio format......................................DTS/Dolby/LPCM

Wide bandth in Max.........................................340Mhz

Transmit rate........................................................3x3.4gpbs

Input transmit distance.......................................<=15M AWG26 HDMI standard cable

Output Transmit distance...................................<+15M AWG 26 HDMI Standard cable

Work Current in Max...........................................TX:350MA;RX:200MA

DV power adapter spec.......................................Input:Ac(50Hz.60HZ) 100V-240V;Output:DC5V1A

Dimension Size......................................................94*84*24MM

Weight........................................................................223G*2
