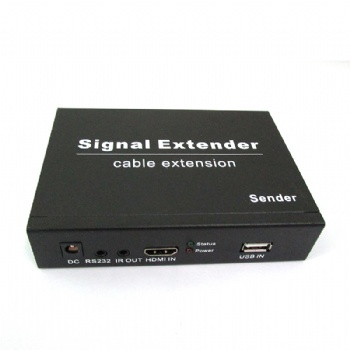

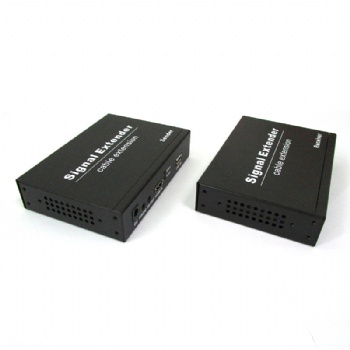

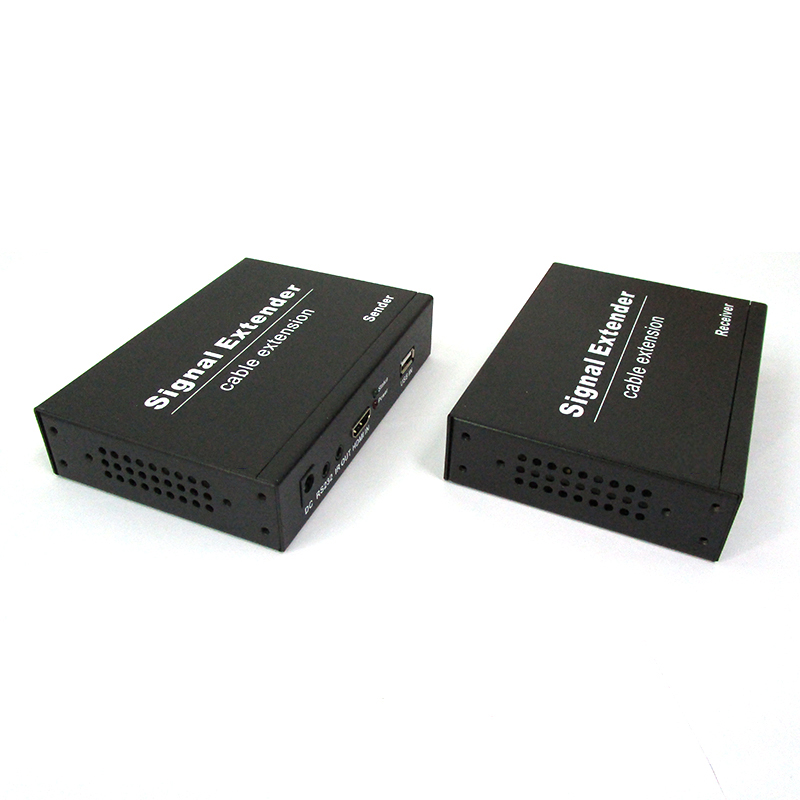

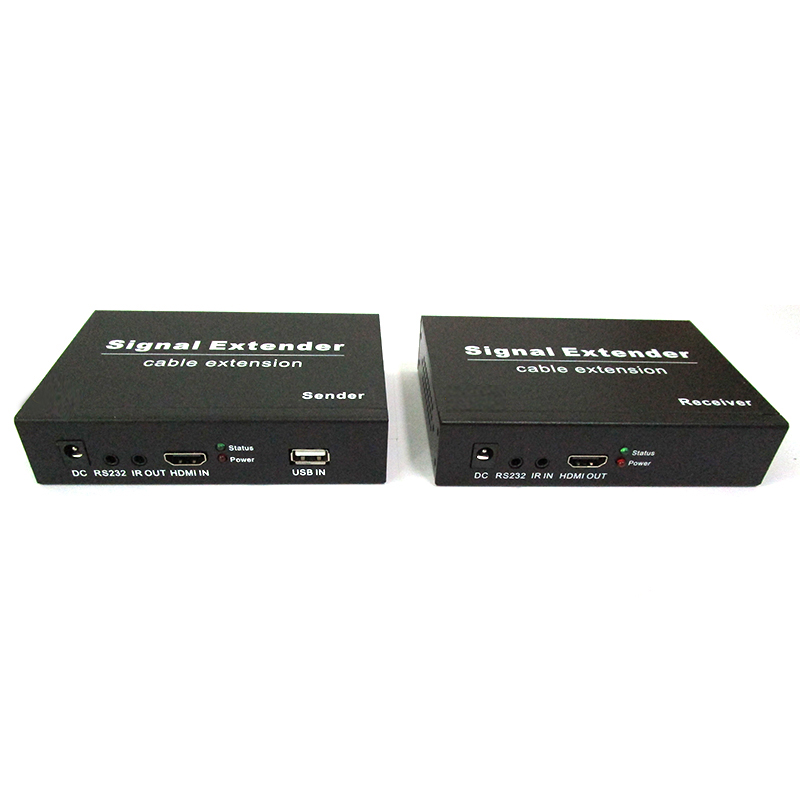

SWEXIP05,200M HDMI KVM Extender over IP, WIth USB,IR Pass through.

Features:

1. Supports HDMI1.3, HDCP1.2, all standard resolutions under 1920x1080@60Hz

2. Supports TCP/IP, a sender can work with many receivers via network switch, works like a HDMI splitter, as long as LAN (local Area Network) covers.

3. Up to 200m range for point to point connection, the distance can be extended via 100/1000M network switch, each switch can provide 100m extra distance.

4. Supports DVI-D with HDMI to DVI gender cable

5. Supports IR signals transmission too (optional)

6. Plug & play, no software or driver

Specifications:

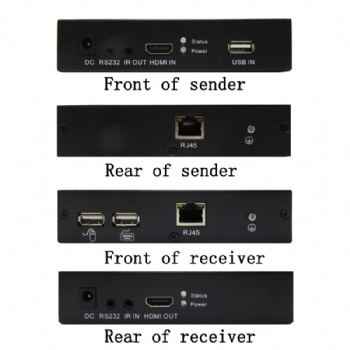

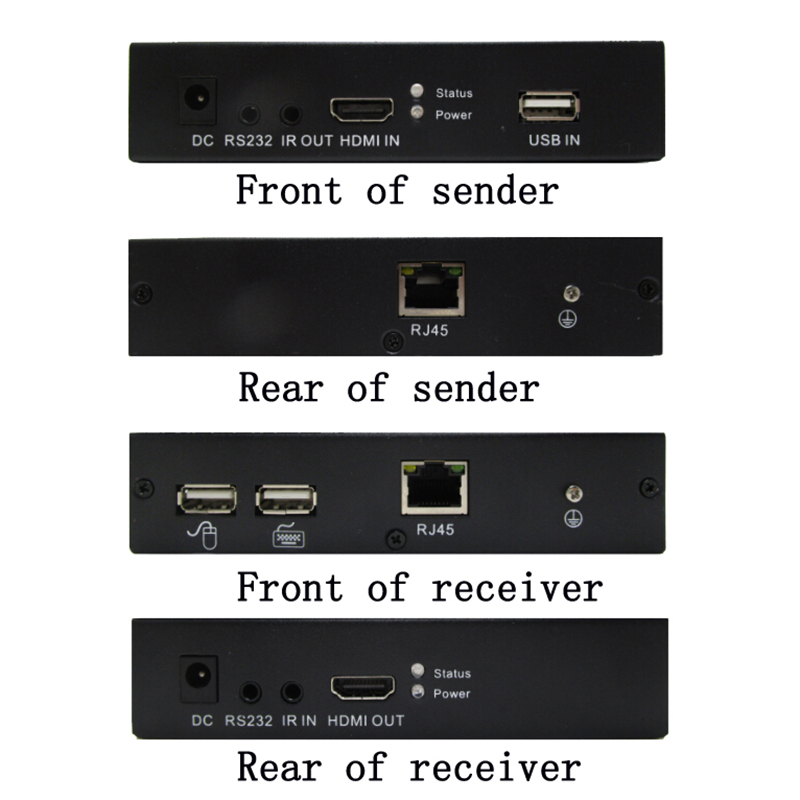

Number of input signal..........................................................Sender：One way（HDMI、USB、IR）

Number of output signal.......................................................... Receiver：One way（HDMI、2*USB、IR）

Range.......................................................... 200m

Input.......................................................... HDMI

Output.......................................................... HDMI

HDMI Version.......................................................... HDMI1.3

HDCP Version.......................................................... HDCP1.2

Resolution .......................................................... 1920x1080@60Hz

Video Color Format ..........................................................24bit/30bit/36bit

Support audio format.......................................................... DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

Input/Output TMDS signal..................................................... 0.5-1.5Vp-p(TTL)

Input/Output DDC signal..........................................................5Vp-p(TTL)

Connector..........................................................USB Type A

Protocol..........................................................Supports USB keyboard and mouse

Connector..........................................................3.5mm audio jack

Signals..........................................................IR signals from remote control

Dim（LxWxH）..........................................................Sender: 130mm x 93mm x 30mm

                                                                   Receiver: 130mm x 93mm x 30mm

Net Weight..........................................................1Kg

Operating Voltage Input..........................................................AC110V-220V，50/60HZ

Output..........................................................DC9-12V/1A

Sender Power..........................................................<5W

Receiver Power..........................................................<4W

Operating Temp..........................................................-15℃-55℃

Storage Temp..........................................................-40-80℃

Humidity..........................................................0-95% (No condense）
