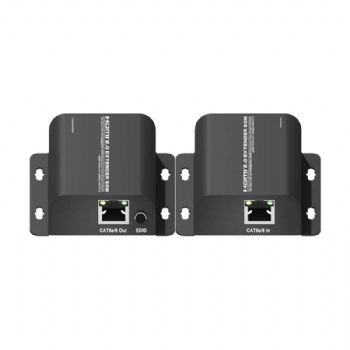

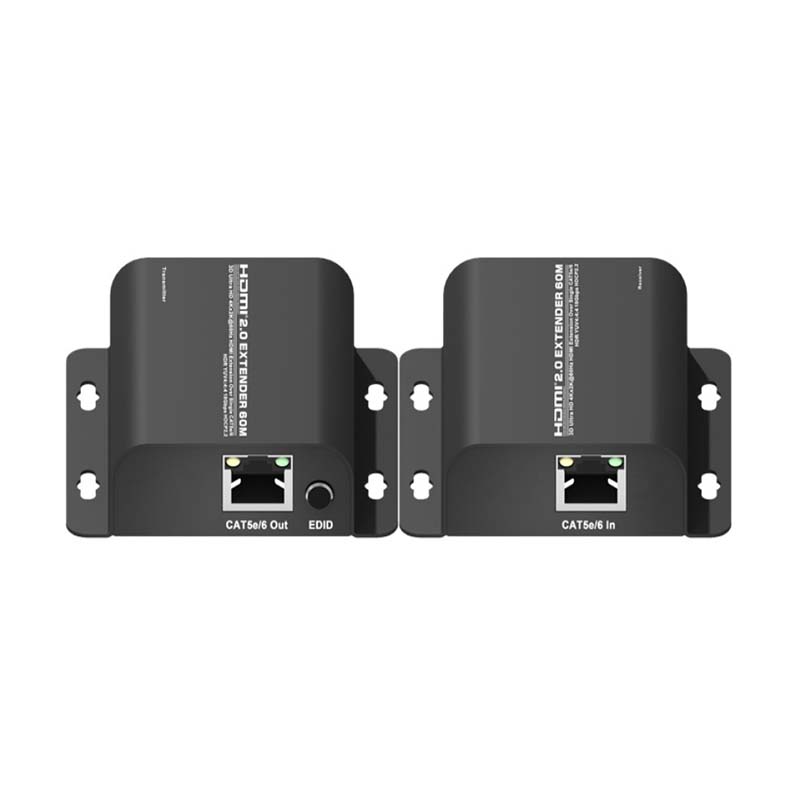

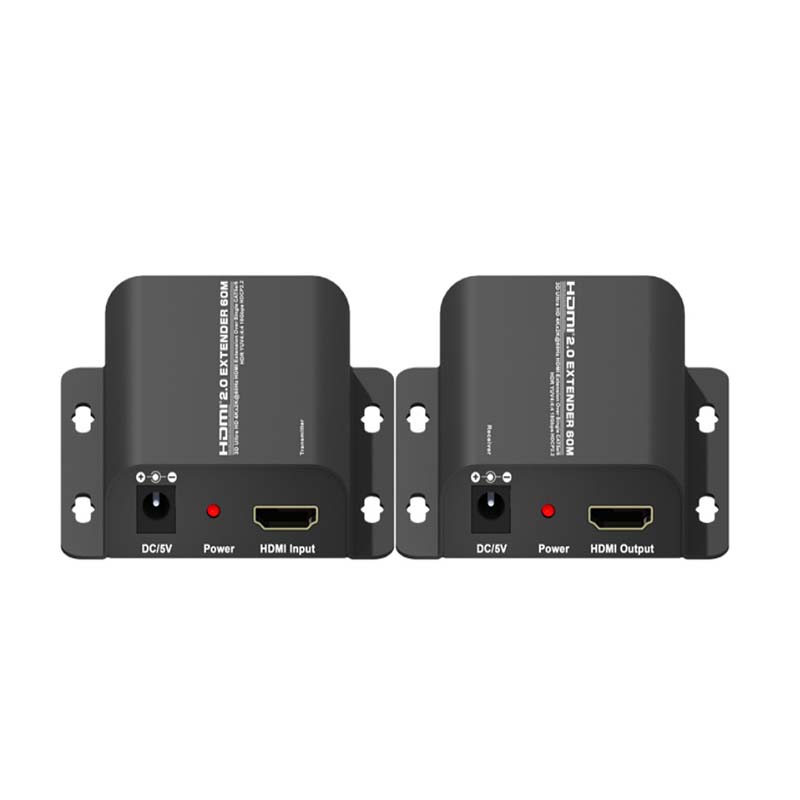

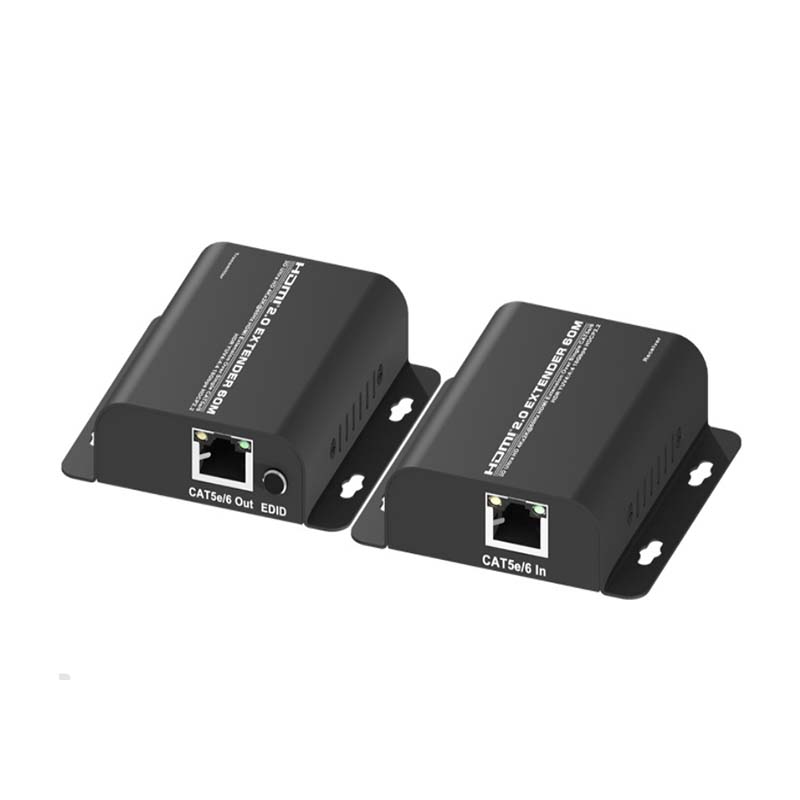

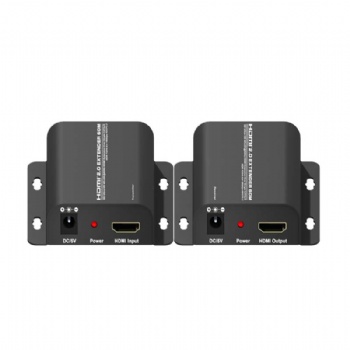

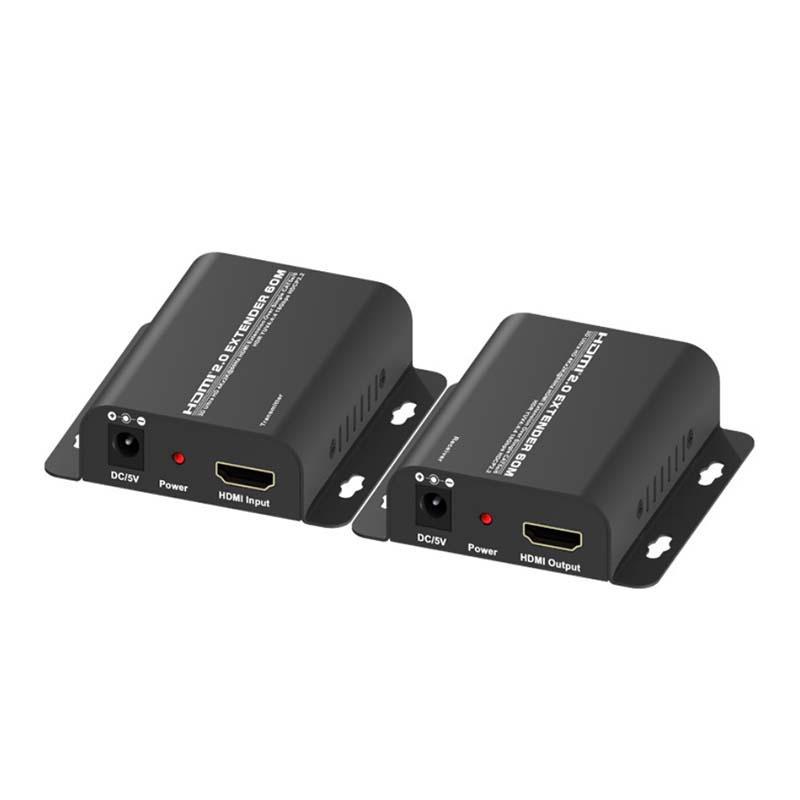

SWEX12,HDMI 2.0 version 60M HDMI Extender

Features

1.Signal transmission :cat5e or cat-6(recommended) cables up to 60

   meters instead of HDMI cables are connected between TX and RX

   Extender;

2.Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;

3.Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR

   4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;

4.Support 3D frame sequential video format up to 1080p@60;

5.Support EDID Switch;

6.Audio format support :

   DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;

7.Extend the transmission distance and improve transmission signal;

Specification

Length of CAT-6 cable between Transmitter and Receiver ........................................................................Up to 60 meters

HDMI Input/Output........................................................................4Kx2K@60Hz/1080p/1080i/720p/576p/576i/480p/480i

Support audio format........................................................................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth........................................................................600MHz

Max baud rate........................................................................18Gbps

Input Video signal ........................................................................0.5~1.5Volts p-p

Output DDC signal........................................................................5Volts p-p (TT1L)

Input/Output HDMI cable distance........................................................................≤10m AWG26 HDMI standard cable

Max working current........................................................................800mA

Power adapter format ........................................................................Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range........................................................................ (-15 to +55℃)

Operating Humidity range........................................................................5 to 90%RH (No Condensation)

Dimension(L x W x H)........................................................................82x43.5x23.5mm
