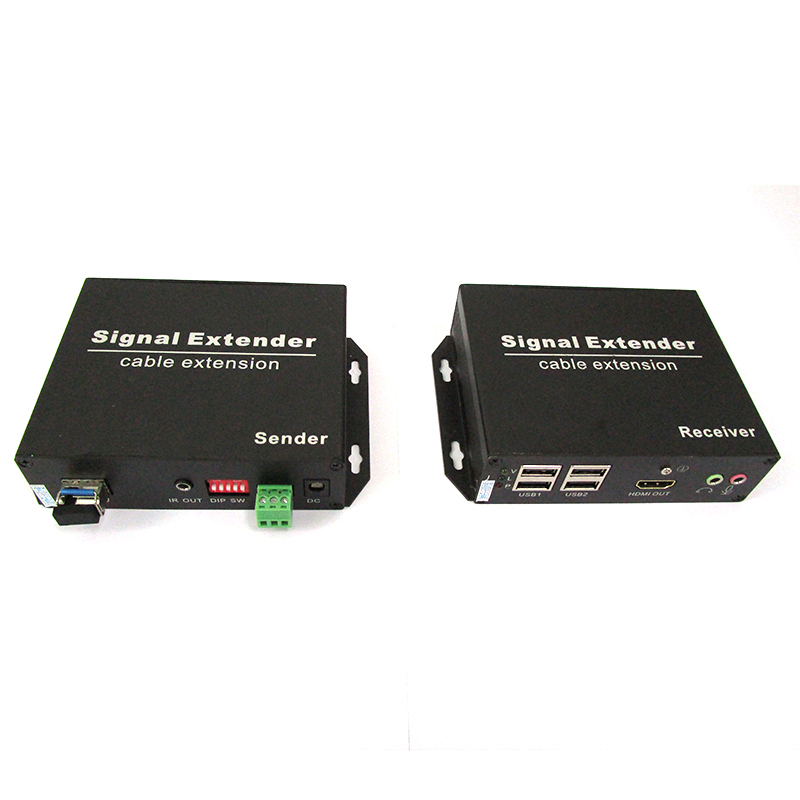

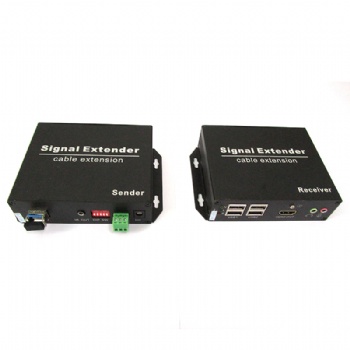

SWEX06,2-20KM HDMI KVM Extender over Fiber with IR and Pass through,

Features:

1. Digital uncompressed transmission, clear image and strong anti-interference ability;

2. Support multiple resolutions, maximum 4K×2K@30HZ;

3. Support HDMI1.4, support 3D;

4. Support USB2.0 protocol, excellent USB device compatibility, up to 4 USB interfaces, support USB mouse and keyboard, HD camera, mobile phone charging and copying data, mobile storage device, touch screen, etc.

5. Support bidirectional transmission of audio;

6. Support bidirectional transmission of serial port;

7. Infrared, serial port, audio function (optional).

Specification:

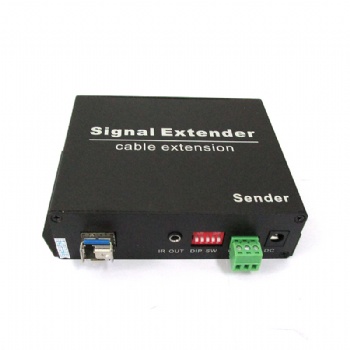

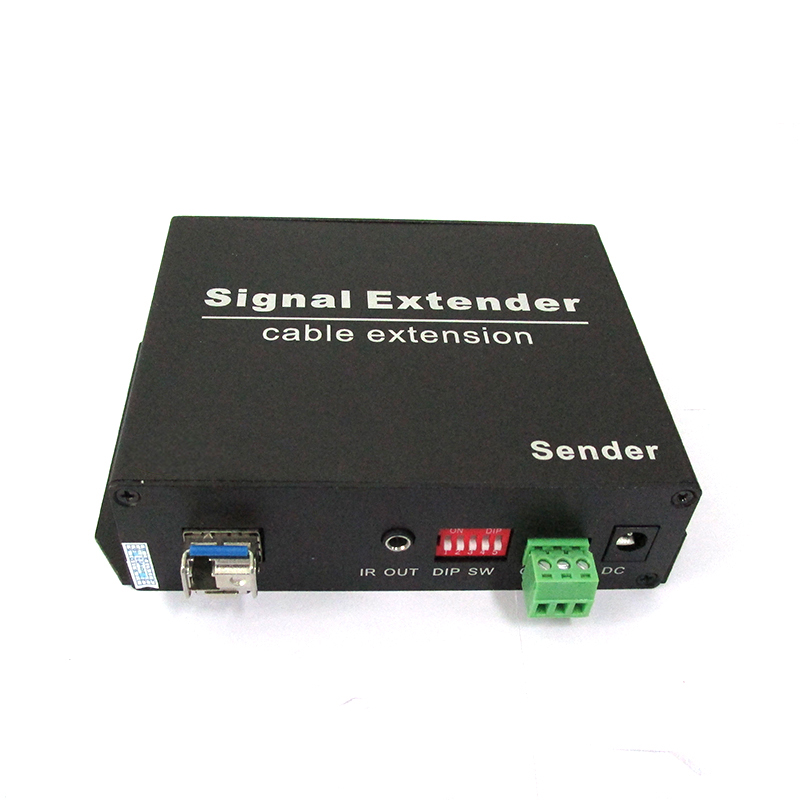

Sender.........................................................1CH(HDMI、USB、RS232、AUDIO) ;1CH(MIC、IR)

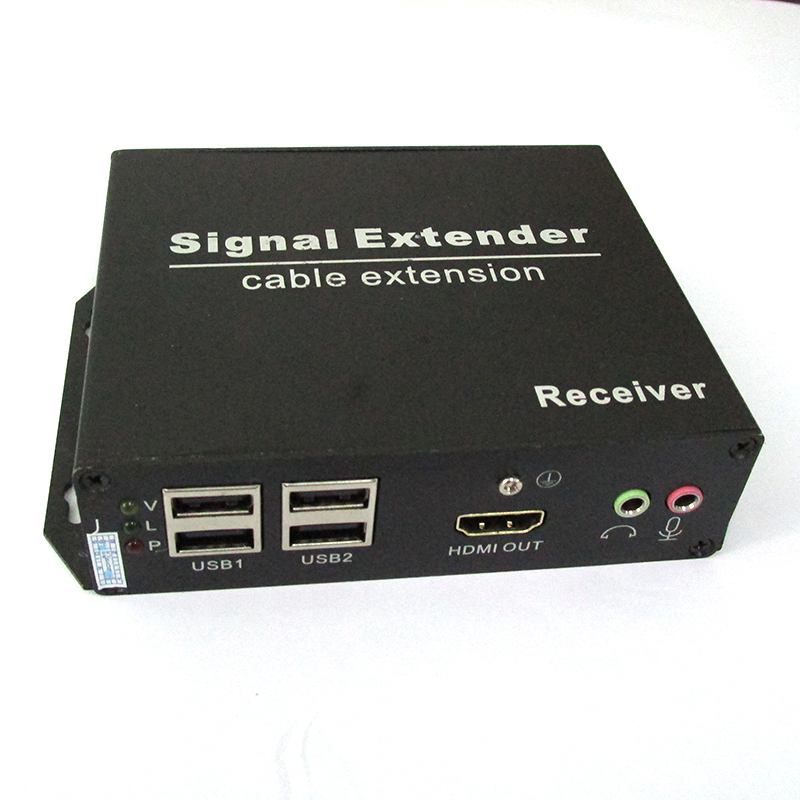

Receiver......................................................1CH(MIC、IR）;1CH(HDMI、RS232、AUDIO)，4CH USB

Transmission distance SM...............................................0-20km

Transmission distance MM................................................0-2km

Video input/output interface......................................................HDMI

HDMI version...................................................................................HDMI1.4

HDCP version.....................................................................................HDCP1.2

HDMI resolution..............................................................................Maximum 4K×2K@30HZ

Video color format..........................................................................24bit/deep color 30bit/deep color 36bit

Audio format...................................................................................DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS.....................................................................................................0.5-1.5Vp-p(TTL)

DDC........................................................................................................5Vp-p(TTL)

USB Interface Sender..........................................................................................Type B

USB Interface Receiver...........................................................................................Type A

Protocol......................................................................................................................USB2.0

Audio Interface...................................................................................................3.5mm stereo audio jack

Serial port Interface...........................................................................................Industrial terminal block

Serial port Mode..................................................................................................bilateral transmission.

Remote interface..................................................................................................3.5mm audio jack

Remote interface signal.......................................................................................Infrared control signal

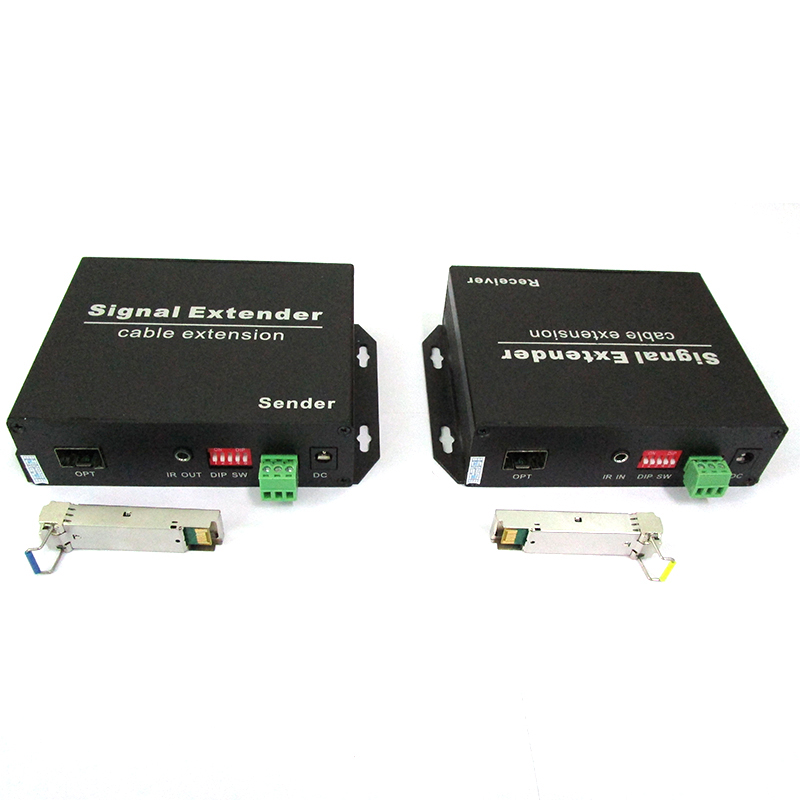

Optical port.............................................................................................................Optical input, output interface

Single/multimode LC type Transmission wavelength.....................................850nm/1310nm/1550nm

Size (L×W×H)........................................................................................................Sender:  131mm×93mm×32mm

                                                                                                                Receiver: 131mm×93mm×32mm

Material....................................................................................................................Aluminum

Color.......................................................................................................................Black

G.W................................................................................................................................1Kg

Power supply Adaptive voltage range...............................................................DC9-12V/2A

Transmitter power consumption..............................................................................3W

Receiver power consumption...................................................................................3W

Storage temperature...................................................................................................-40-80℃

Relative humidity...........................................................................................................0-95% (No condensation）

Working Temperature......................................................................................................-15℃-55℃
