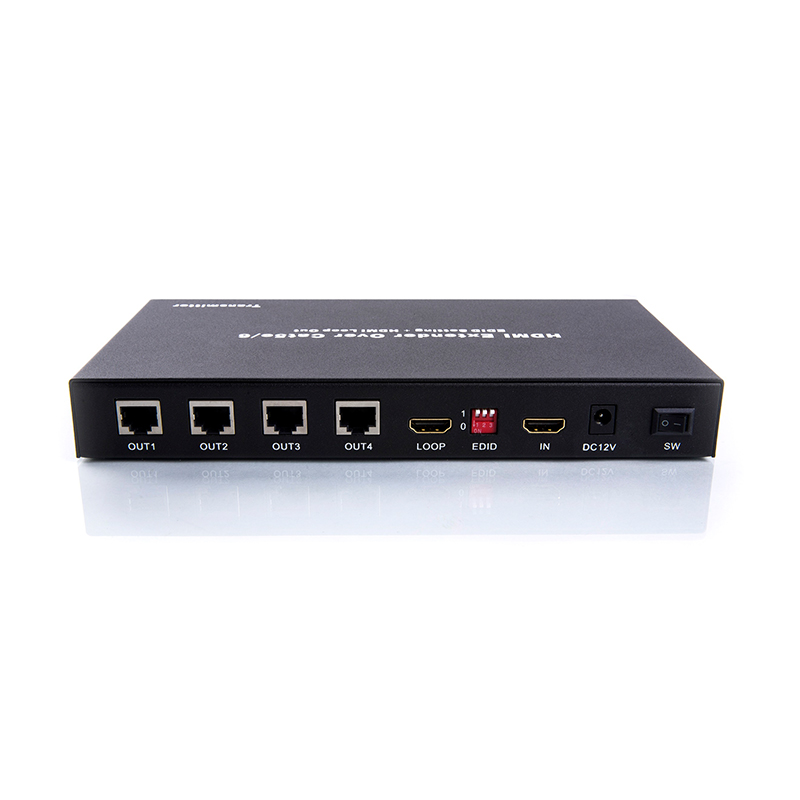

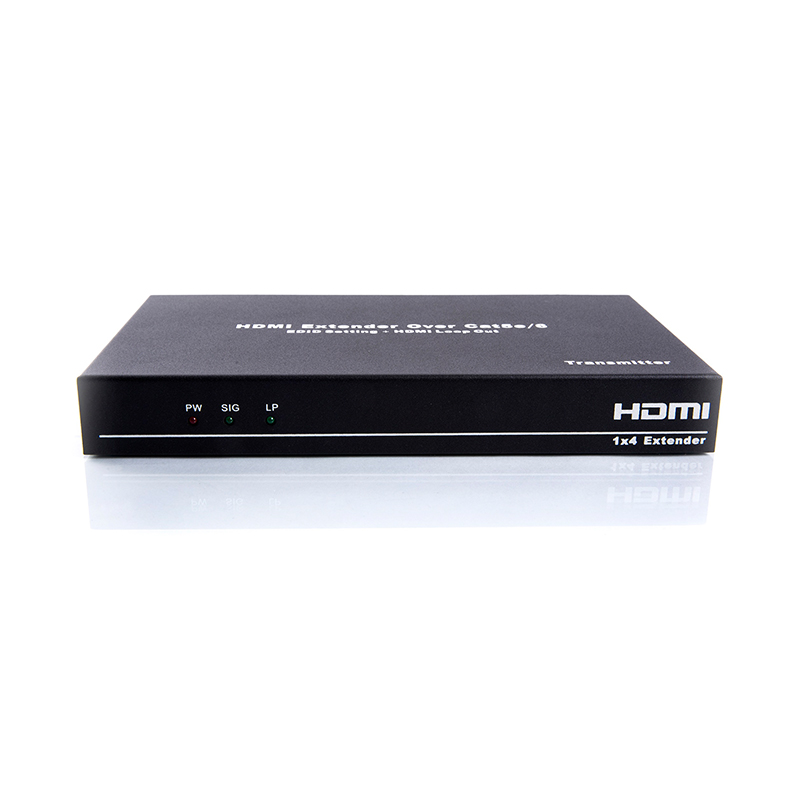

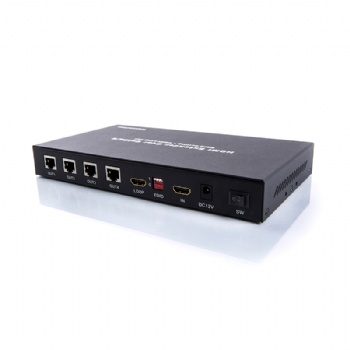

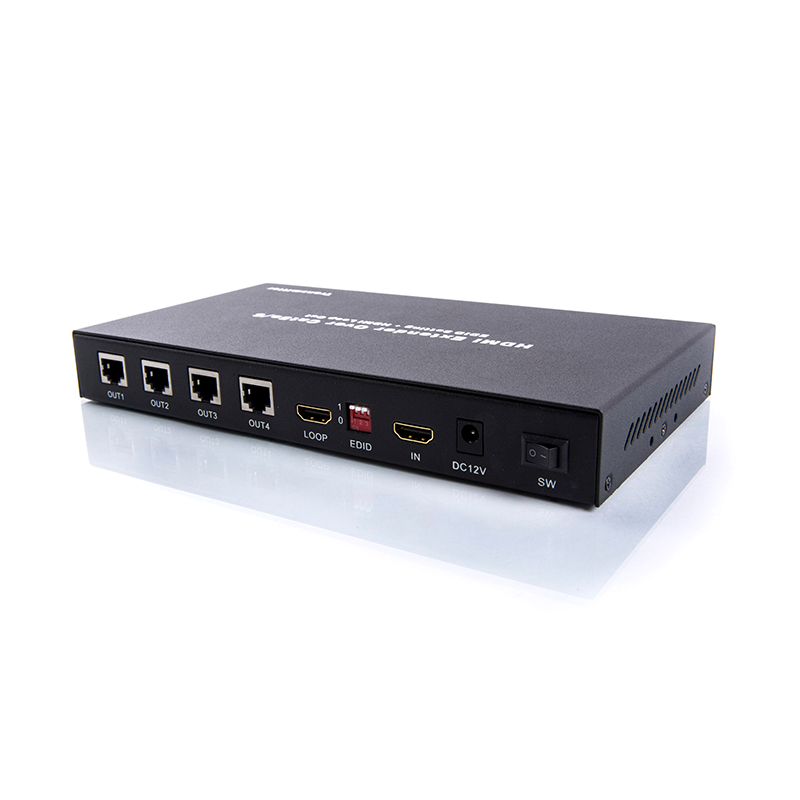

SWSP10B，50M HDMI 1.4 Splitter 1 in 4 out over single UTP cable with looping HDMI Output

• This splitter is not just only a splitter, it also can be a 50M HDMI extender, connect with the receivers, it support long transmit distance, support 3D, with looping HDMI output
  Max resolution reach up to 4KFEATURES

  Support one HDMI input source distribute to five HDMI sink devices,One HDMI looping output , four UTP output ports connect via the 50M cat5e/6 cable with the receivers.

  Resolution reach up to 1080P,3D

  Support deep color 30bit, 36bit

  Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

  Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

  Support signal retiming

  Lossless transmission.

  Easy to install.

  DV 12V power adapter.



  SPECIFICATIONS:

  HDMI resolution …………………………..............3D /1080p/1080i/720p/576p/576i/480p/480i

  Support video color format ……………………………..…………….....24bit/deep color 30bit,36bit

  Support audio format…………………...DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

  Max bandwidth……………………………………........................……………………………….2250MHz

  Max baud rate……………….…….………………….…….....................………………………..6.25Gbps

  Input/Output TMDS signal ………….…………………………..............…….0.5~1.5Volts p-p(TTL)

  Input/Output DDC signal ……………………………………................…………..….5Volts p-p (TTL)

  Input cable distance..….....…………….………………......…≤10m AWG26 HDMI standard cable

  Output cable distance…………………………………................……….…...……..≤50m CAT6 cable

  Max working current………………………………............…………………………12V/750MA(4PORT)

  Power adapter format..Input: ……………..........……..………...AC (50HZ, 60HZ) :100V-240V

  Operating Temperature range……..…………….………...........……………………. (-15 to +55℃)

  Operating Humidity range…………………………….…..........…5 to 90%RH (No Condensation)

  Storage Temperature.........................................................-20°C ~ 60°C / -4°F ~ 140°F

  Dimension (L x W x H)………………………………………..…….......................231x128x31 (mm)

  Weight…..………………………………………………………….…..……..........................…………780g
