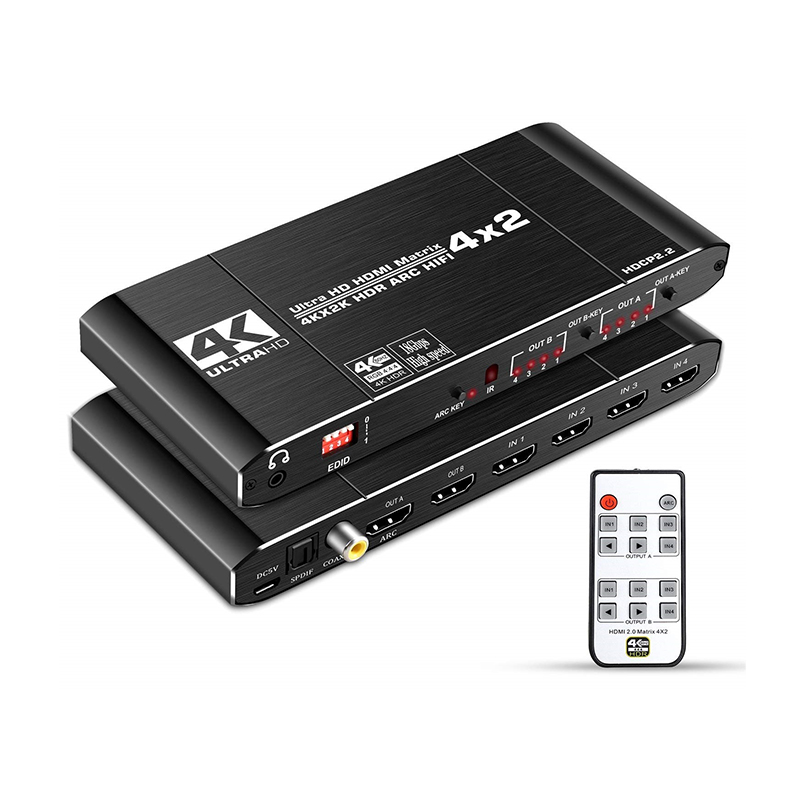

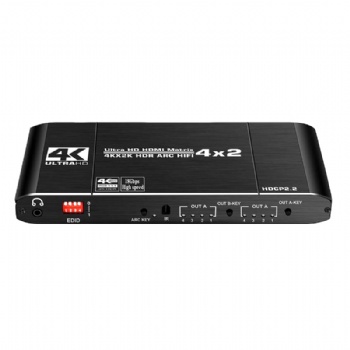

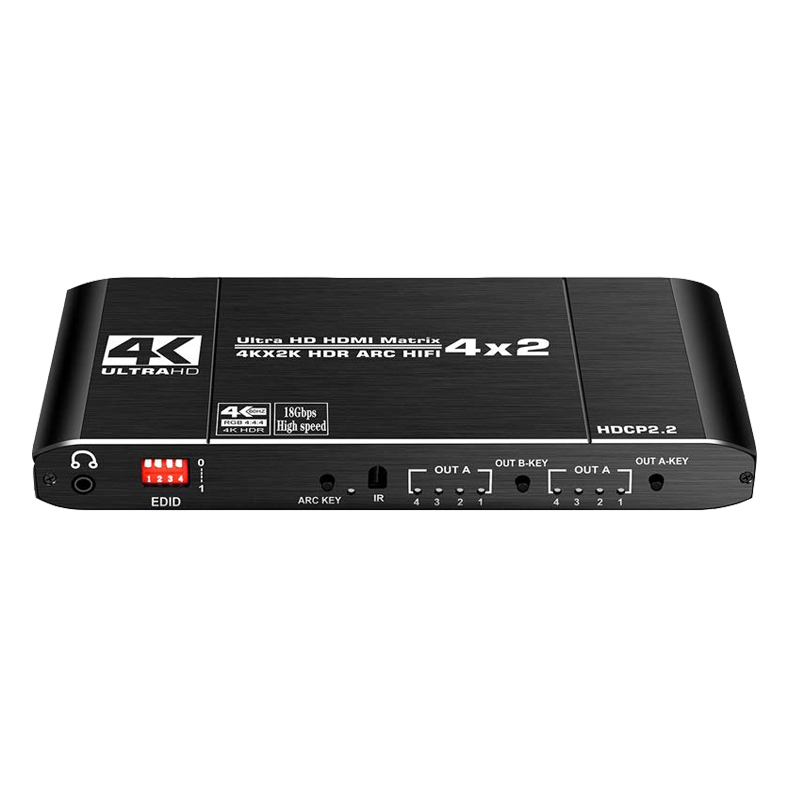

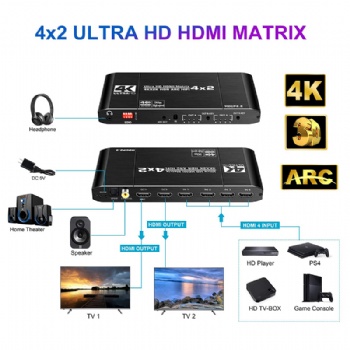

SWMX42B, HDMI 2.0 Matrix 4x2 support Audio Extraction and ARC

Features:

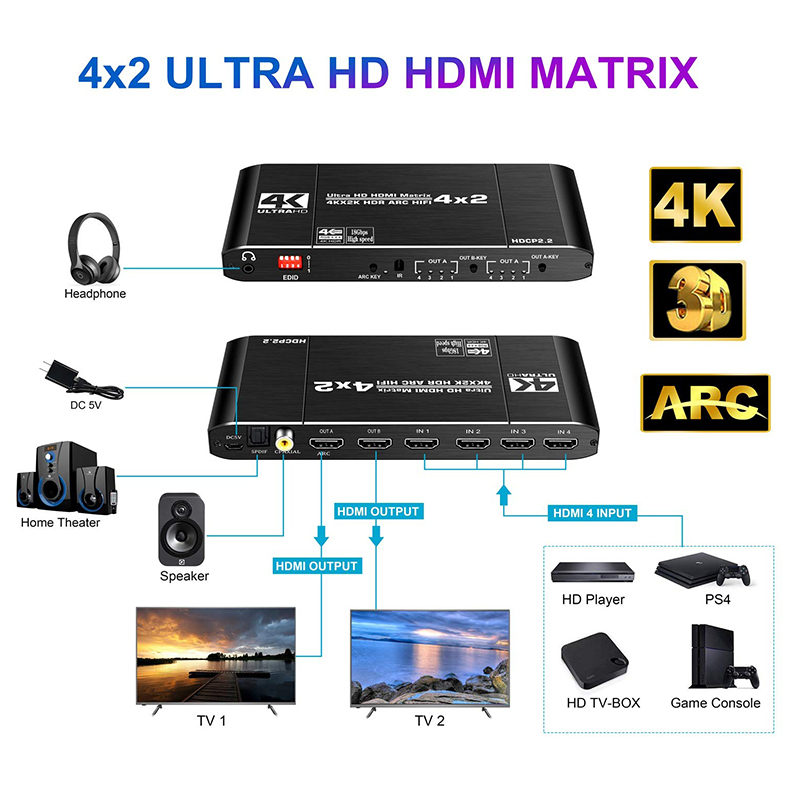

1. Support four HDMI input to be switched or split to two HDMI output

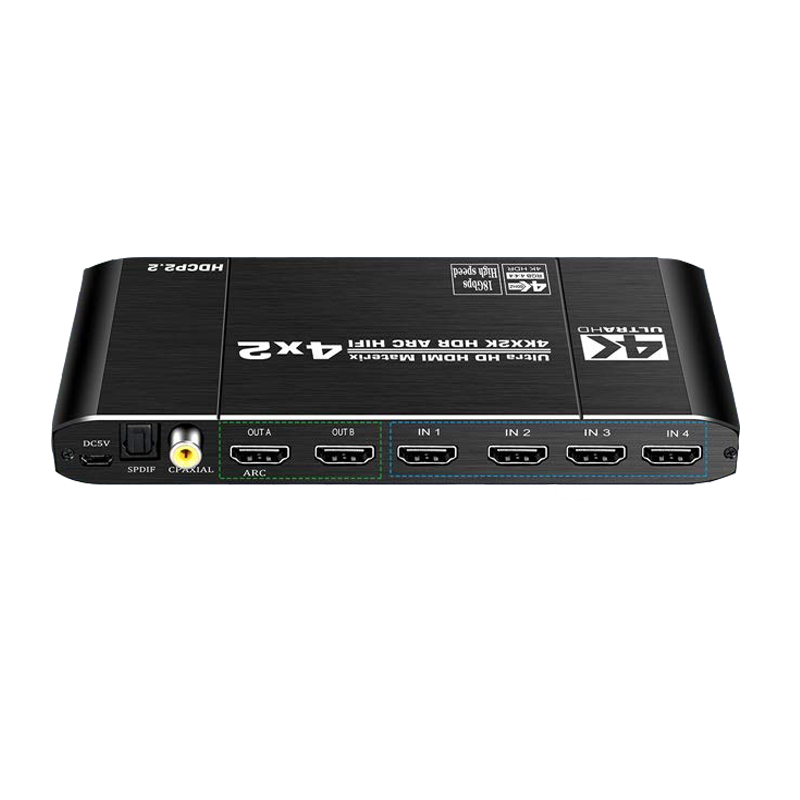

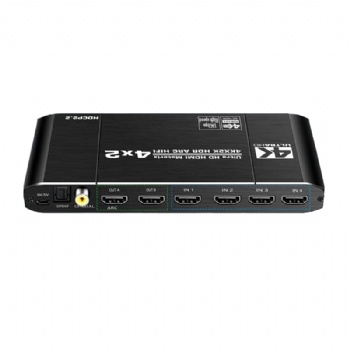

2. Input Ports : 4 × HDMI (Female type)

3. Output Ports : 2 × HDMI (Female type) + 1*SPDIF + 1*COAX + 1*3.5mm stereo audio

4. Support HDMI 2.0b, HDCP2.2, ARC, HDR

5. Support 3D video format

6. HDMI Resolution: 4KX2K@60Hz/3D/1080P@60Hz/1080i/720p/576p/576i/480p/480i(highest resolution up to 4096*2160/60Hz) ;

7. Support 18G data rate and TMDS clock up to 320Mhz

8. Support video format : 8/10/12 bit deep color

9. Support audio format DTS-HD/Dolby-trueHD//DTS/Dolby-AC3/DSD

10. Support 3.5mm stereo audio output and optical output

11. Support 5.1 audio channel

12. Support 5V-12V wide voltage input

13. With EDID management, make it compatible with most display devices.
