SWMX42,HDMI Matrix 4x2 Support 4K with Audio extraction

Features:

1. Support HDMI1.4b HDCP2.2

2. Support 3D video format

3. Support highest resolution up to 3840x2160P/30Hz

4. Support 3.4Gbpsx3 data rate and tmds clock up to 340Mhz

5. Support deep color 8/10/12 bits deep color.

6. Support HDMI audio outputs, 3.5mm earphone jack and optical output at same time

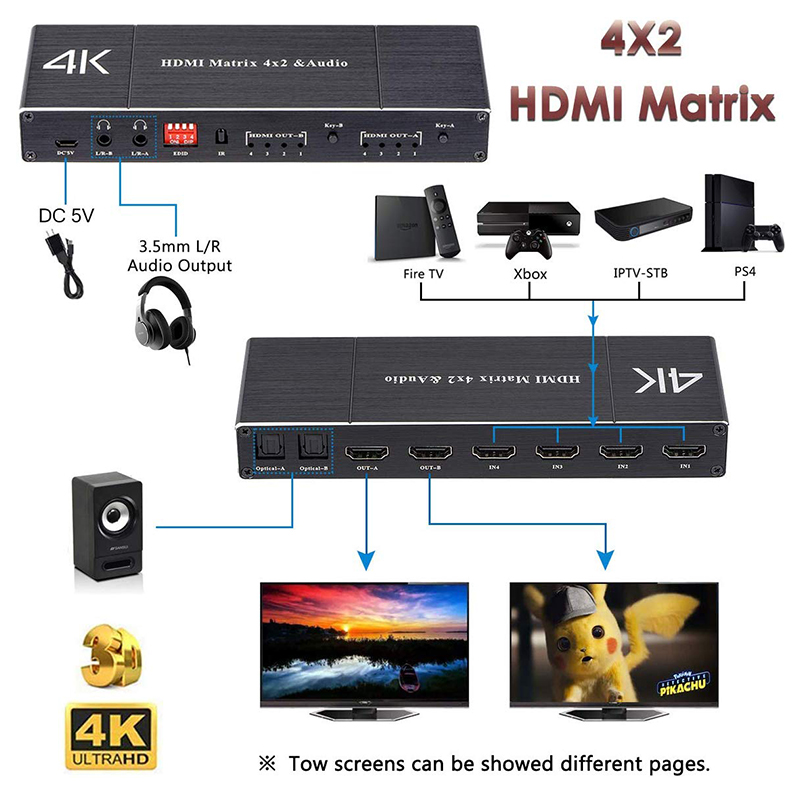

7. 4 HDMI inputs switch and split to 2 HDMI displays

8. Support LPCM/Dolby/DTS 5.1 audio

Specifications:

HDMI version................................................HDMI1.4b

HDMI resolution................................................up to 3840x2160P/30Hz

Support Video format................................................8/10/12 bits deep color

Support Audio format................................................LPCM/DTS/Dolby-AC3

Max bandwidth................................................340MHz

Max baud rate................................................3.4Gbpsx3

Input cable distance................................................10m AWG26 HDMI1.4 standard cable

Output cable distance................................................15m AWG26 HDMI1.4 standard cable

Max working current................................................600mA

Power adapter format................................................Input: AC (50Hz, 60Hz) 100V-240V; Output:DC 5V/2A

Dimensions(L*W*H)................................................170X56X24mm

Weight................................................175g
