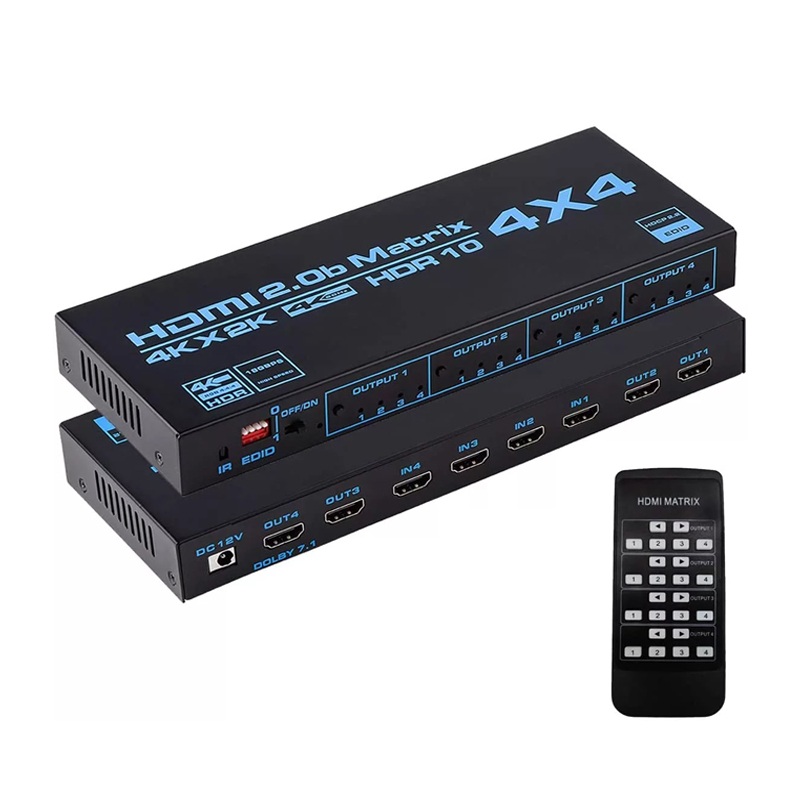

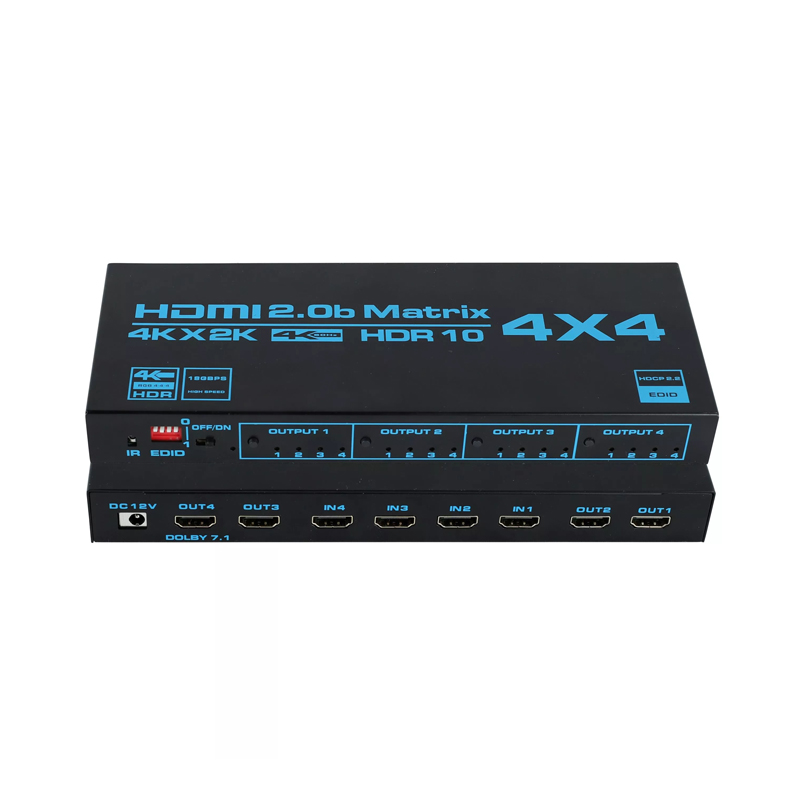

SWMX44A,HDMI 2.0 Matrix 4x4 support 18Gpbs, HDCP 2.2

Features:

1. Support HDMI 2.0/HDCP 2.2

2. Support 3D video format

3. Support highest resolution up to 4K@60Hz, YUV 4:4:4

4. Support deep color 8/10/12 bit

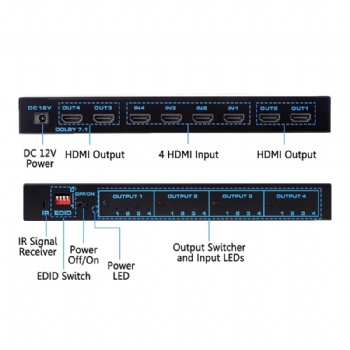

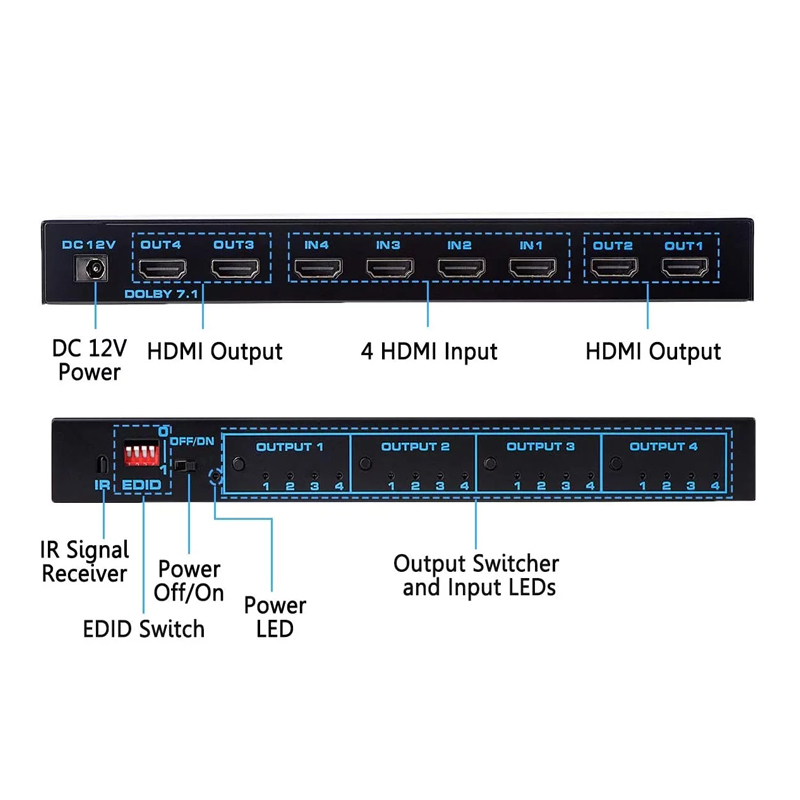

5. 4 HDMI inputs switch and split to 4 HDMI displays

6. Extra power is needed.(DC12V)

Specifications:

HDHDMI resolution.........................................up to 3840x2160P/60Hz

Support Video format...............................8/10/12 bits deep color

Support Audio format................................DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth.............................................600MHz

Max baud rate................................................18Gbps

Input cable distance....................................8m AWG26 HDMI2.0 standard cable

Output cable distance................................8m AWG26 HDMI2.0 standard cable

Max working current...................................600mA

Power adapter format................................Input: AC (50Hz, 60Hz) 100V-240V; Output:DC 12V/2A

Dimensions(L*W*H)...................................230X90X25mm

Weight...........................................................470g
