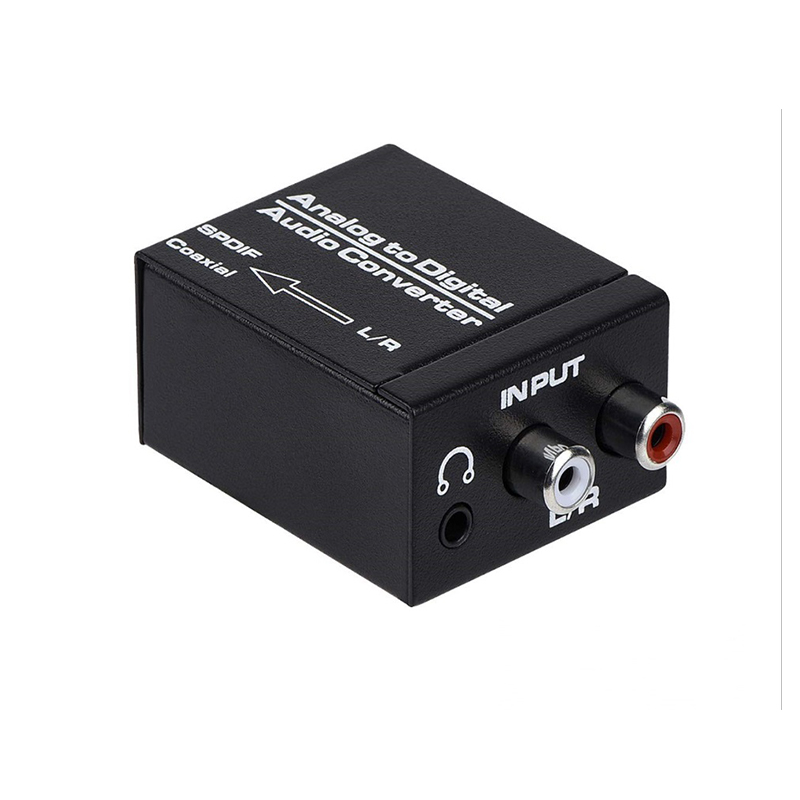

SWAC01C, Analog to digital audio converter

Features:

1,Supports uncompressed 2-channel LPCM digital audio signal output.

2,Supports output sampling rate at 48 KHz.

3,Provides electromagnetic-noise-free transmission.

4,Easy to install and simple to operate.

 Specification:

Input Audio.....................................................R/L & AUX

Output Audio.....................................................LPCM

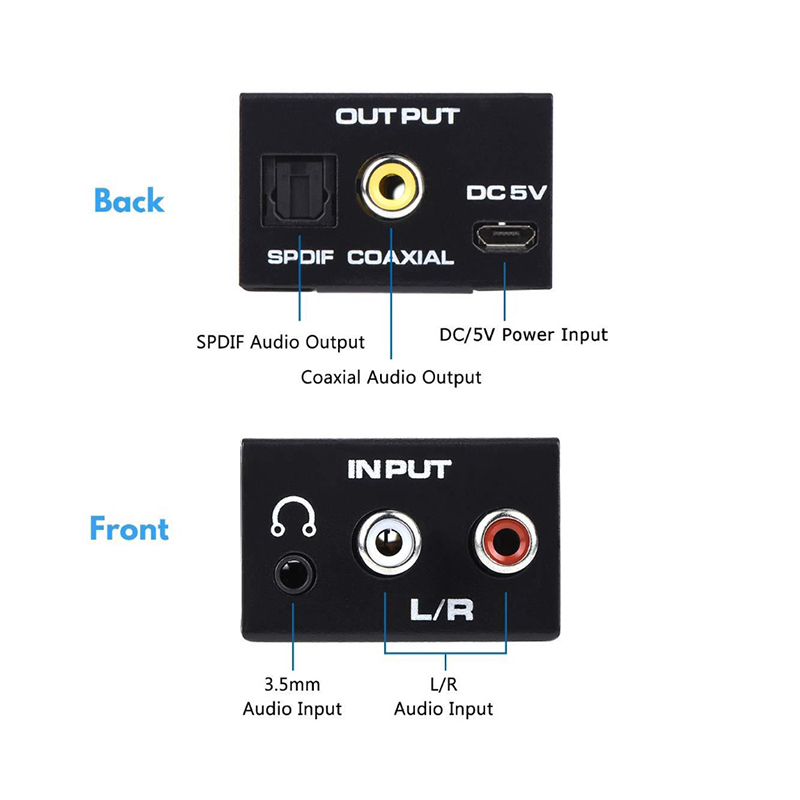

 Input audio connector.....................................................2XRCA(R/L) & 3.5MM Mini Jack

Output audio connector.....................................................Toslink,1XRCA(Coaxial)

Audio Connector.....................................................Toslink Audio and Digital Audio

 Sampling rate.....................................................48KHz

Mechanical

Size(L-W-H).....................................................50X40X35MM

Weight (Net).....................................................90g

 Operating Temperature.....................................................0 ℃ to +70℃

Operating Humidity.....................................................10% to 85 % RH (no condensation)

Storage Temperature.....................................................-10℃ to +80℃

Storage Humidity.....................................................5% to 90 % RH (no condensation)

 External Power Supply.....................................................5V DC@1A

Power Consumption.....................................................0.5 watts (max)
