SWAC01B,Digital to analog audio converter

 Features:

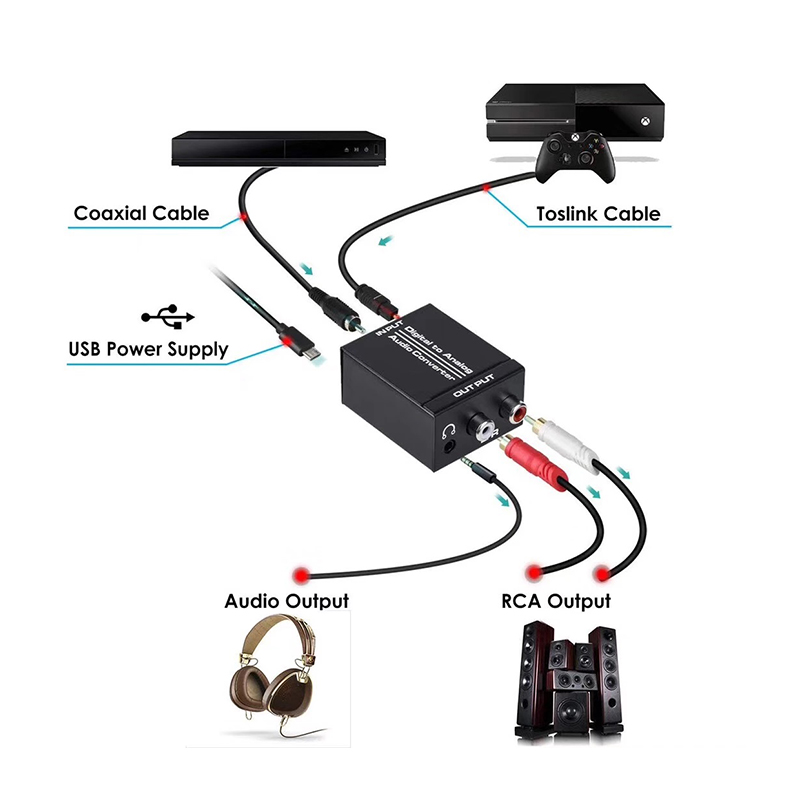

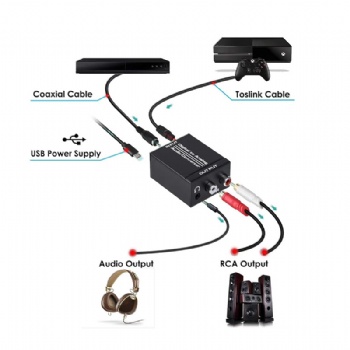

1. Converts Coaxial or Toslink Digital Audio Signals to Analog L/R RCA & 3.5mm Jack Audio Simultaneously (Not Support Reversed)

2. Support Connect to an amplifier via standard RCA jacks or a headphone via 3.5mm jack cable

3. Supports sampling rate at 32KHz, 44.1KHz, 48KHz and 96KHz

4. 24-bit SPDIF incoming bit stream on left and right channels

5. Provides electromagnetic-noise-free transmission

Specification:

Input Audio................................................................. Coaxial or Toslink digital audio

Output Audio................................................................. L/R audio

Input audio connector.................................................................Toslink,1XRCA(Coaxial)

Output audio connector.................................................................2XRCA(R/L)

Sampling rate.................................................................32, 44.1, 48 and 96 KHz

Operating temperature.................................................................0~70°C

Operating humidity.................................................................10%~85%RH(no condensation)

External power supply.................................................................5V DC/1A

Power consumption.................................................................0.5W

Dimension.................................................................50 x 40 x 26 mm

Color.................................................................Black
