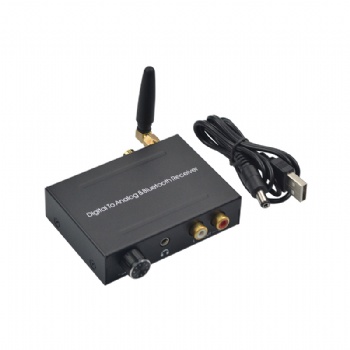

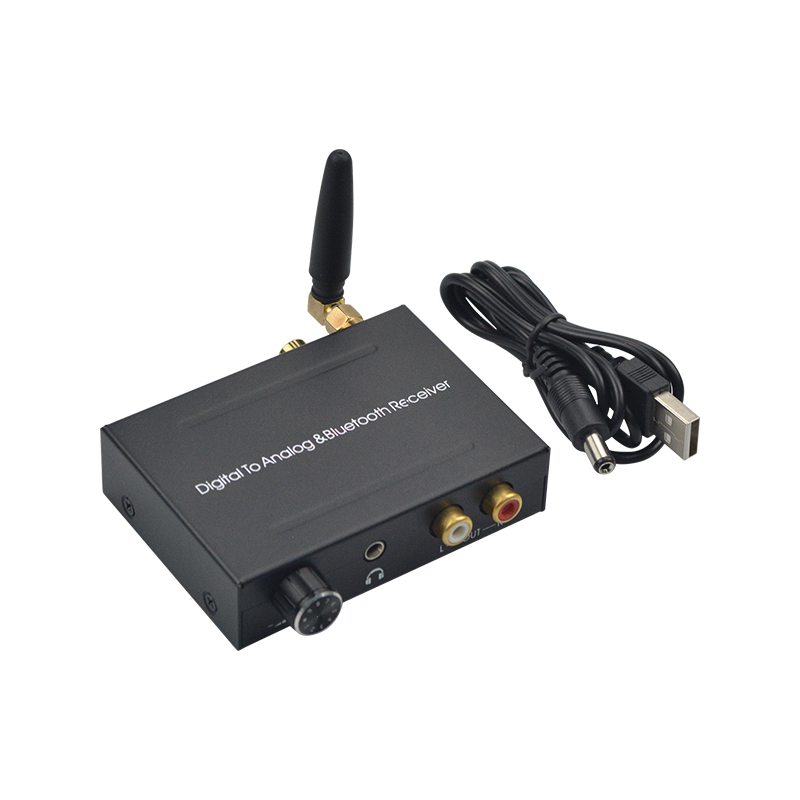

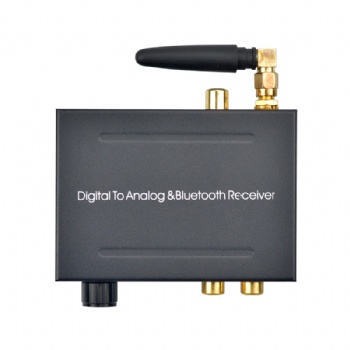

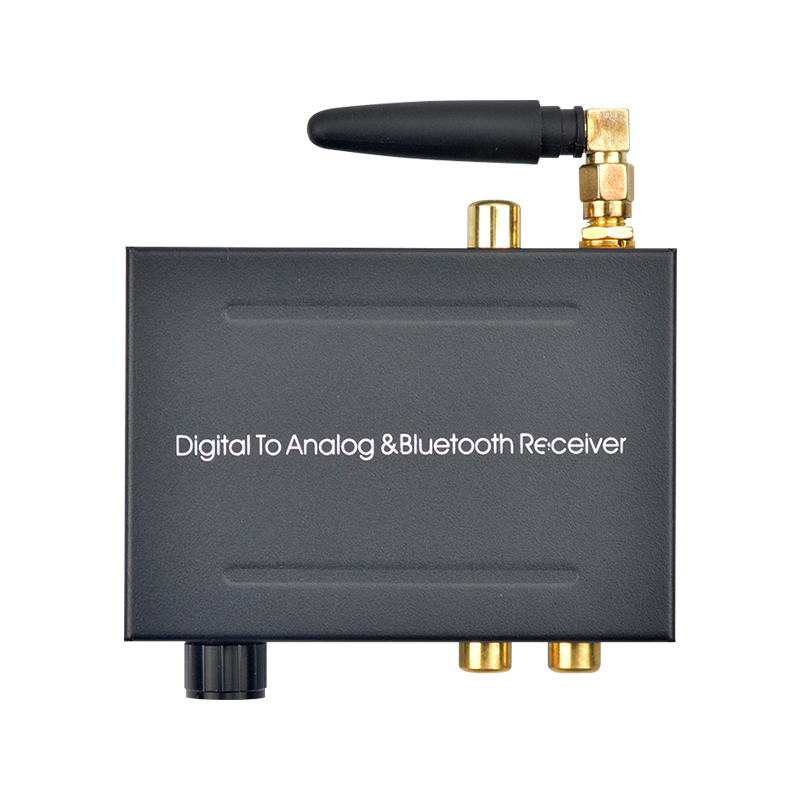

SWAC07A,Bluetooth 5.0 DAC digital to analog converter

Features:

1.Support digital audio signal conversion to analog audio

2.Bluetooth receiver, built-in Bluetooth 5.0 version chip

3.External Bluetooth antenna

4.Support automatic switching of Bluetooth mode

5.Personalized indicator

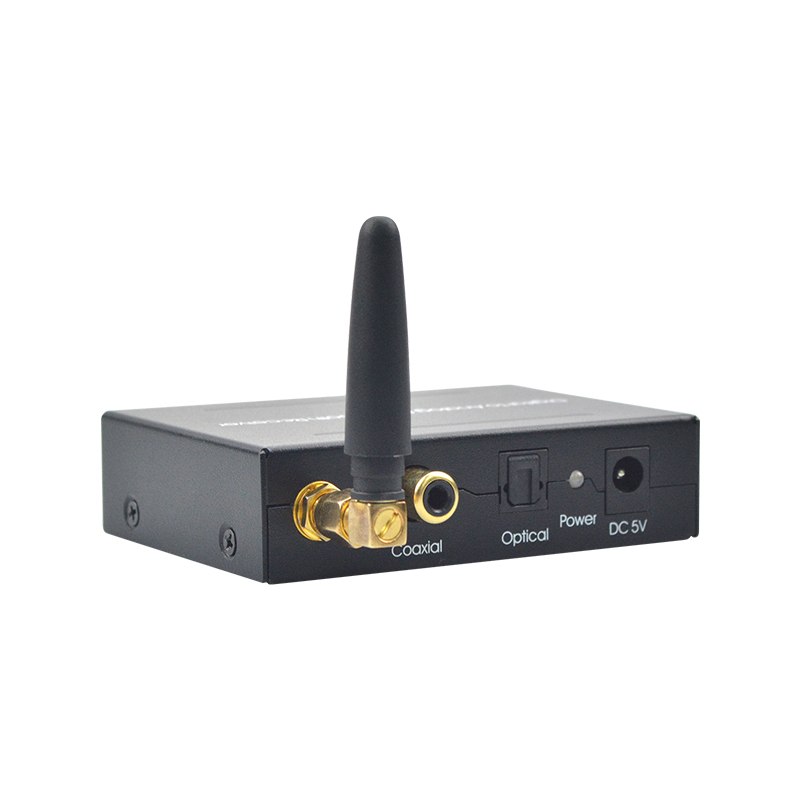

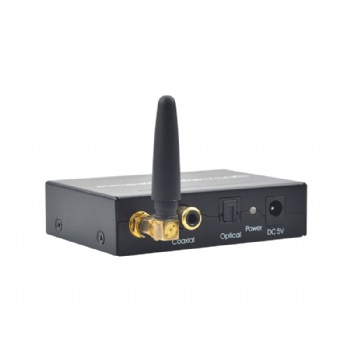

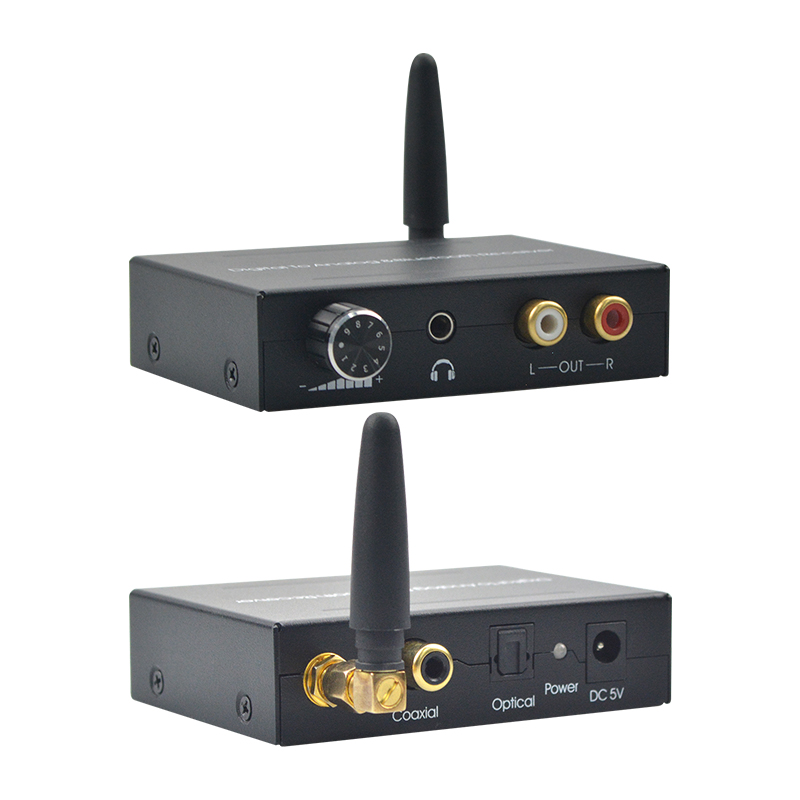

6.Support one fiber and one coaxial interface input

7.Built-in high-performance DAC chip supports 192Khz/24-bit audio parameters

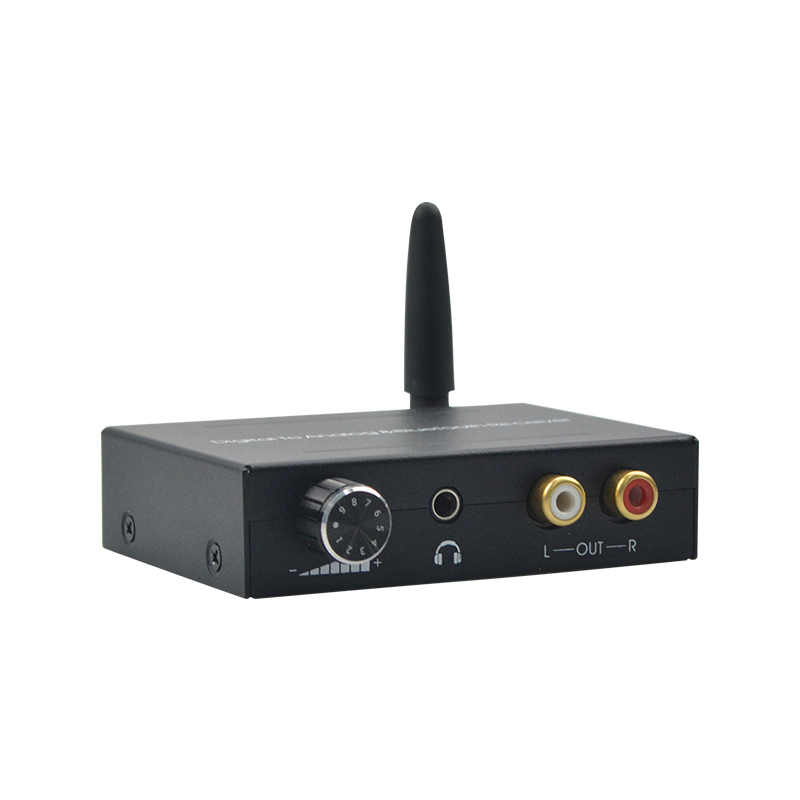

8.Support 2RCA and a 3.5mm audio port output

9.Support output volume control

10.Ultra low power consumption

Specification:

Optical/Coax Input: ....................Two Channel LCPM/24 Bit/192Khz

Bluetooth supports audio parameters......Two-channel LCPM/16-bit/48Khz

Bluetooth version...........................................................5.0version

RCA output maximum level...................................1.2Vrms

3.5mm audio port output maximum level..............................1.2Vrms

3.5mm audio port output maximum power....................................30mW

Maximum working current......................................5V/75mA

Working environment temperature....................................-10~+55°C

Storage environment temperature....................................-26~+60°C

Working environment humidity......................10~90%RH (no condensation)

Storage environment humidity.......................5~95% RH (no condensation)

Bare metal size..............................84.5x 92x 21.5 mm

Bare metal weight................................................ 143 g
