SWAC06,SPDIF to Coaxial BI-Directional Digital to analog audio converter

Features

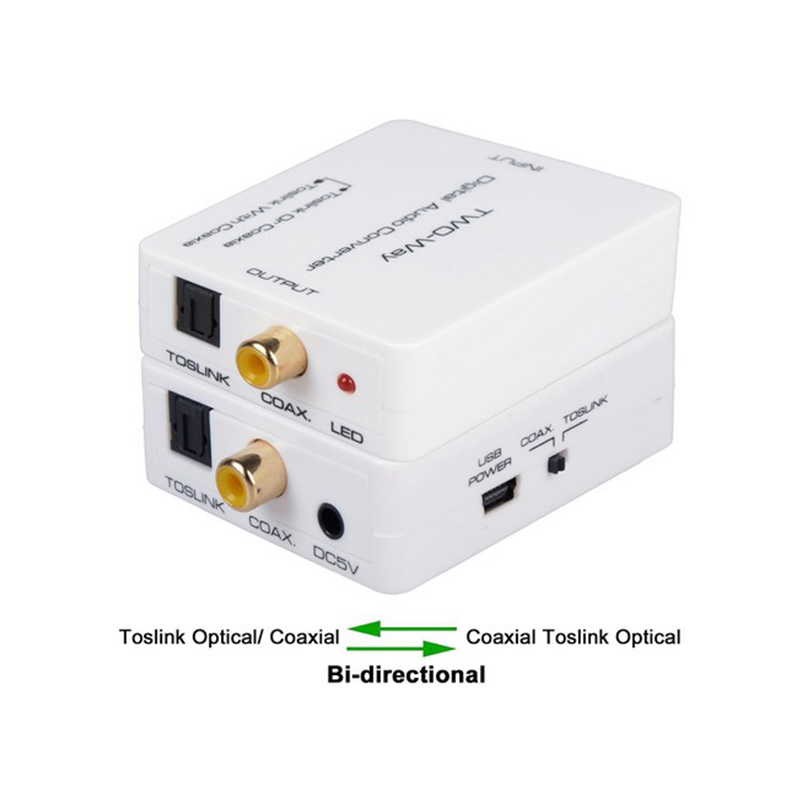

Supports two-way conversion: Coaxial to Toslink or Toslink to Coaxial.

Supports amplification of S/PDIF audio and extends the transferring distance, through coaxial or Toslink cables.

Select one input from Coaxial or Toslink input ports, and send S/PDIF audio signal to both Coaxial and Toslink output ports c.

Compact design and easy to install.

DC 5V power supply

Specifications

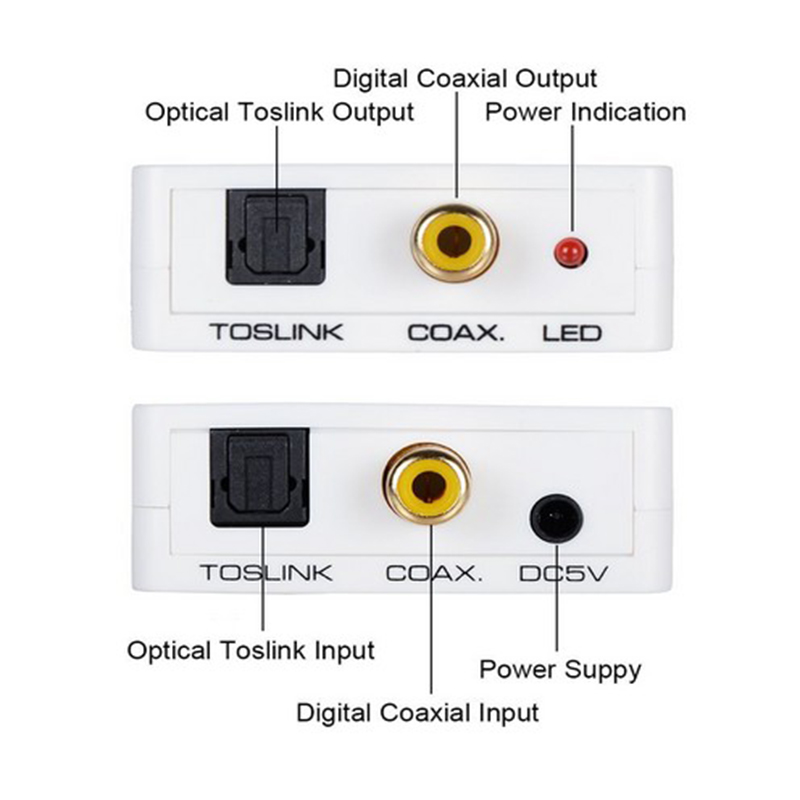

Input: ........................................1 x Coaxial RCA Jack;1 x Toslink (optical fiber)

Output:.....................................1 x Coaxial RCA Jack ;1 x Toslink (optical fiber)

Support audio format…............................................LPCM2.0/DTS/Dolby-AC3

Sampling frequency……….....…...............................................………..650nm

Max baud rate ……………….................................................................16Mbps

Output distance ...........≤10m(Use the optical fiber cable loss less the0.2Db/m )

Max working current………………………………………….......................100mA

Power adapter format………………………………………..………DC5V/USB5V

Power Consumption (Max).........................................................................0.5W

Operating Temperature...............................................0°C ~ 40°C / 2°F ~ 104°F

Storage Temperature ...........................................20°C ~ 60°C / -4°F ~ 140°F

Operating Humidity range............................... 20 ~ 90% RH (Non-condensing)

Dimension:........................................................................... 66 x 55 x 20 (mm)

Weight: ......................................................................................................40g
