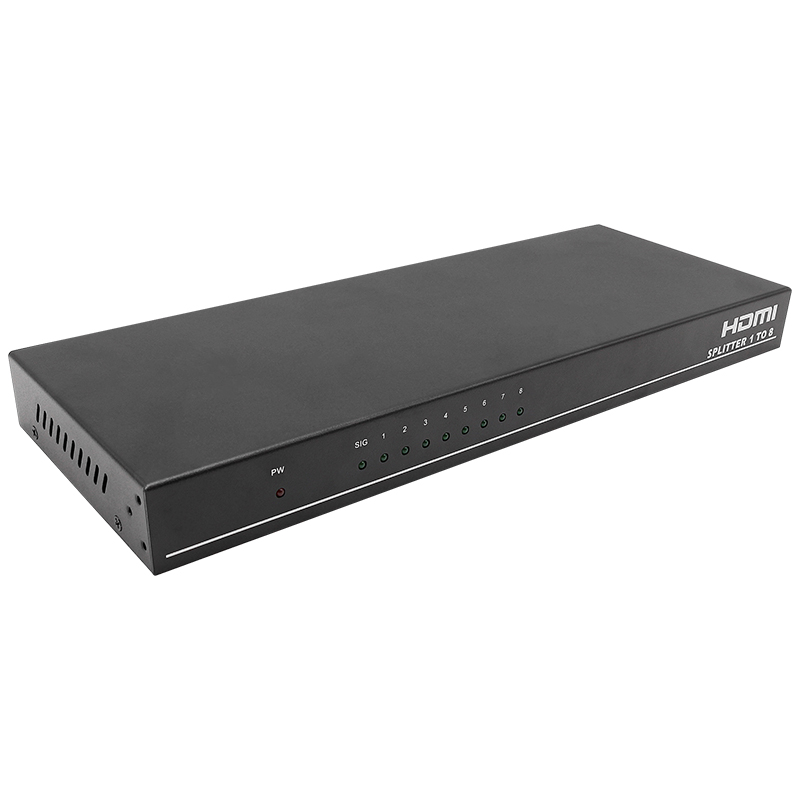

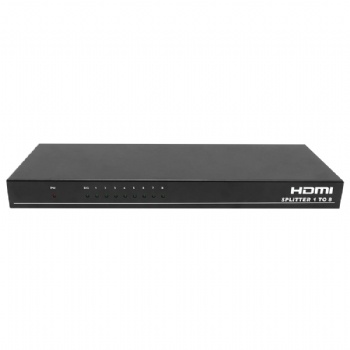

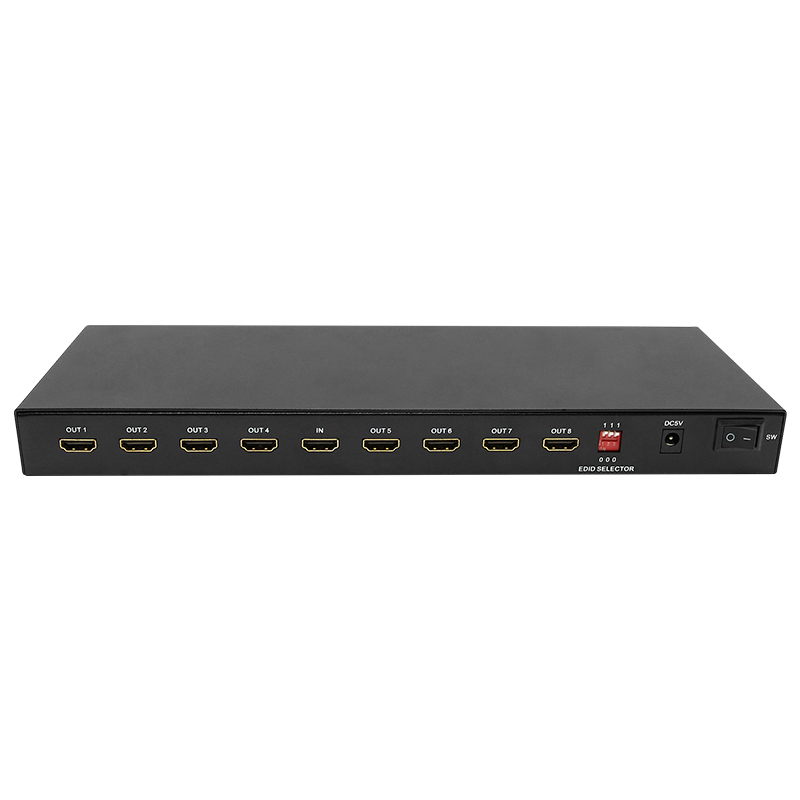

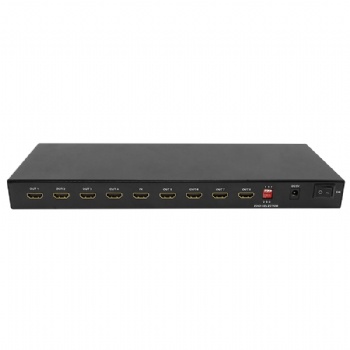

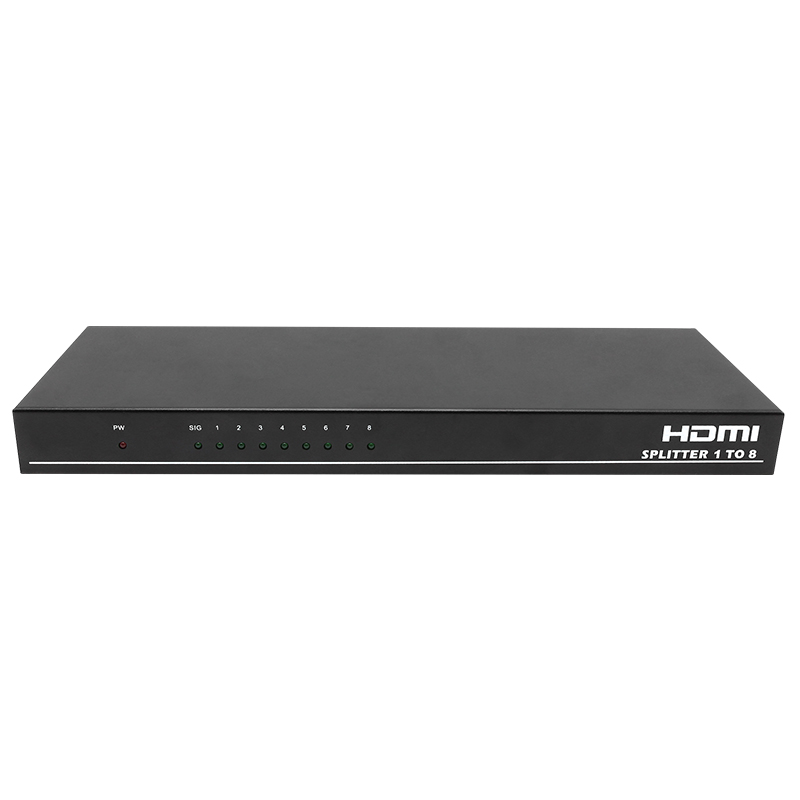

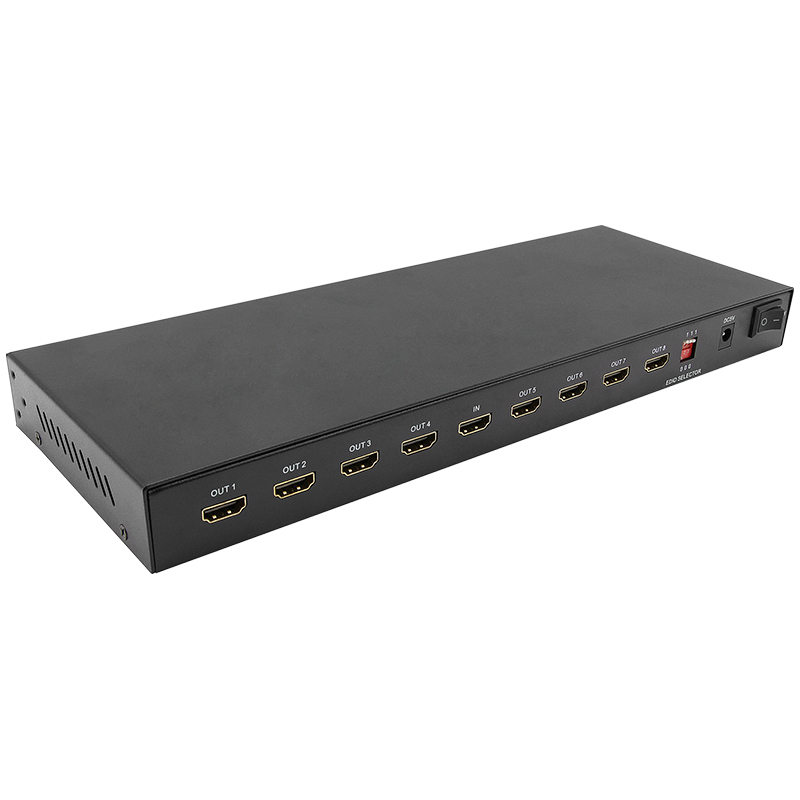

SWSP05,1x8 HDMI Splitter support 4K,3D, HDMI 1.4 Version

Features:

Support One HDMI input signal distribute to eight HDMI sink devices.

Support 4K x 2K@30HZ.

Support 3D.

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC.

Support DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD digital audio.

Support signal retiming.

Input and output both support 15M transmit distance if use the AWG 26 HDMI cable.

Lossless transmission.

Easy to install.

DC5V Power supply

Specifications:

HDMI resolution ………………………......4k2k/3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit/deep color 30bit,36bit

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………..340MHz

Max baud rate……………….…….………………….………………………………….. ….3.4Gbps

Input/Output TMDS signal ………….…………………………..……...… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….………………….≤15m AWG26 HDMI standard cable

Output cable distance……………………………….…...≤15m AWG26 HDMI standard cable

Max working current…………………………………………………………………….....2000mA

Power adapter format..Input: ……………....AC (50HZ, 60HZ) :100V-240V; Output: DC5V

Operation Temperature............................................................................................-15℃-50℃

Operating Humidity range………………………….….….......…….5 to 90%RH (No Condensation)

Storage Temperature.........................................................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H) ……………………………….…………………………320*120*30 (mm)

Weight…..………………………………………………………..…….…..……………………750g
