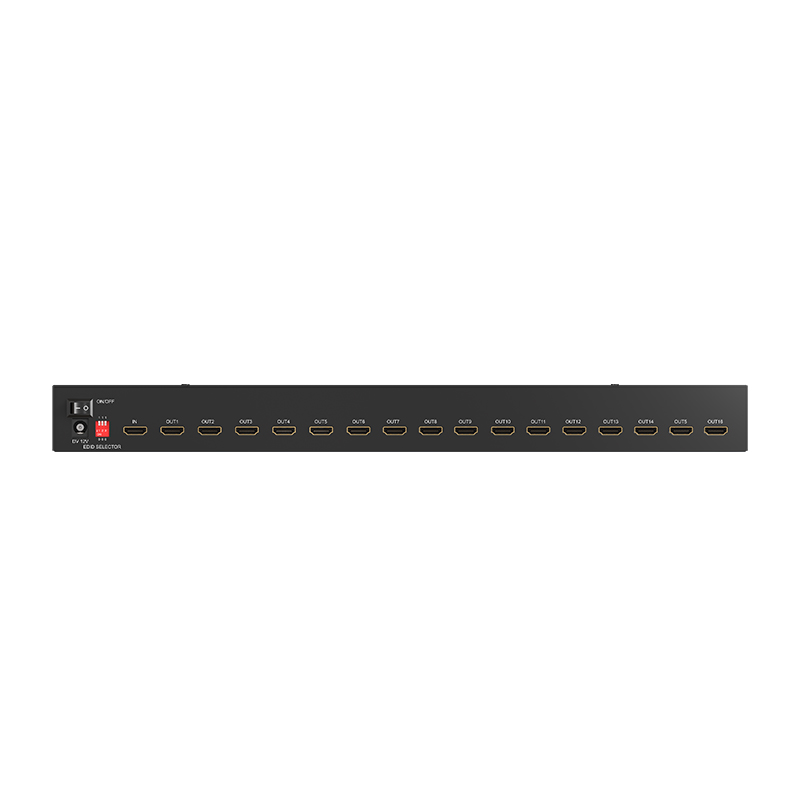

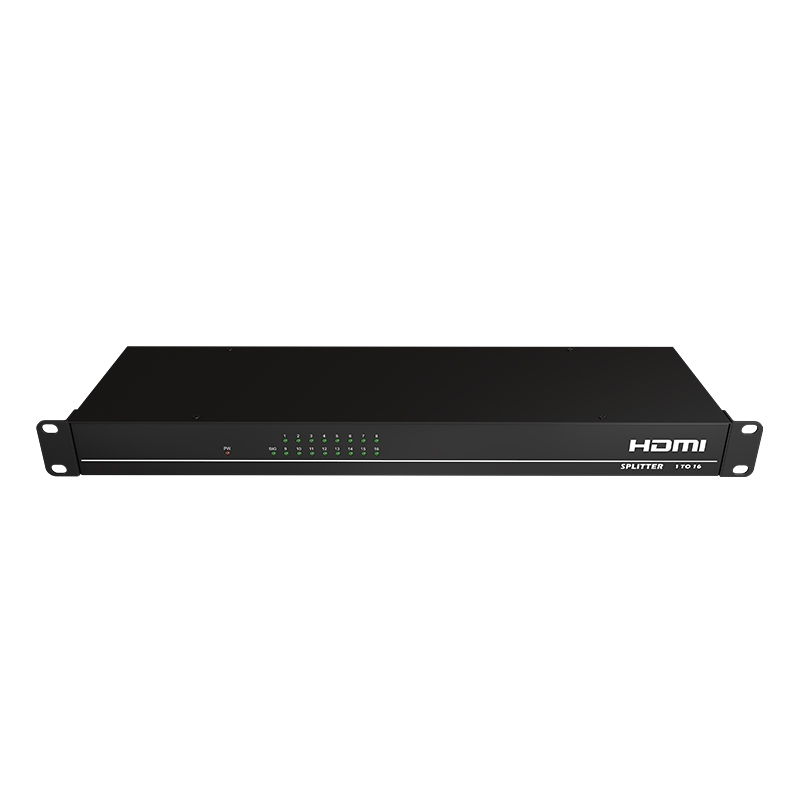

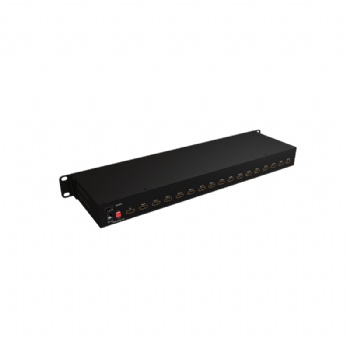

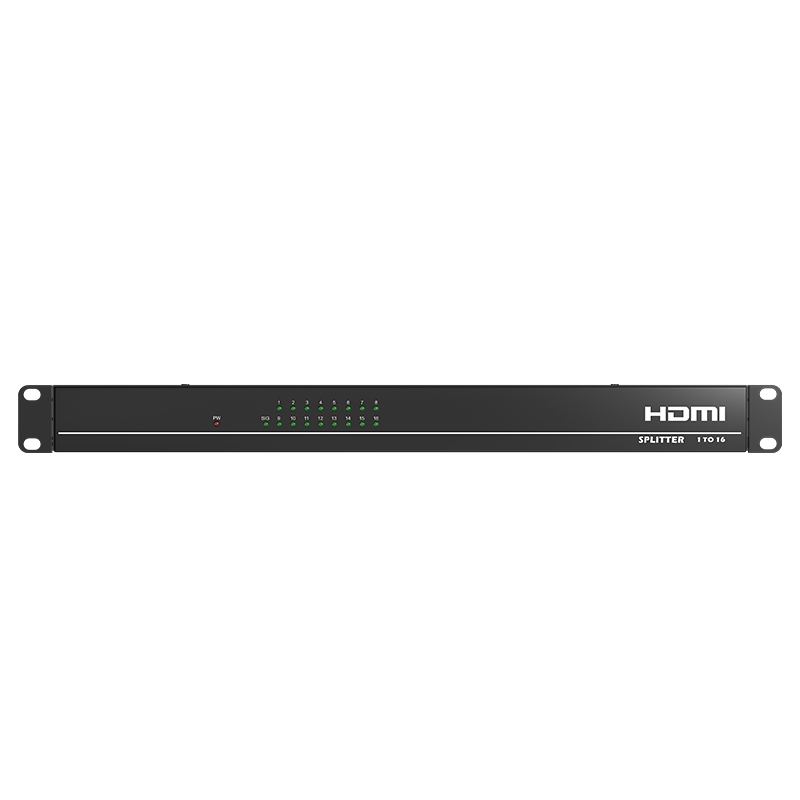

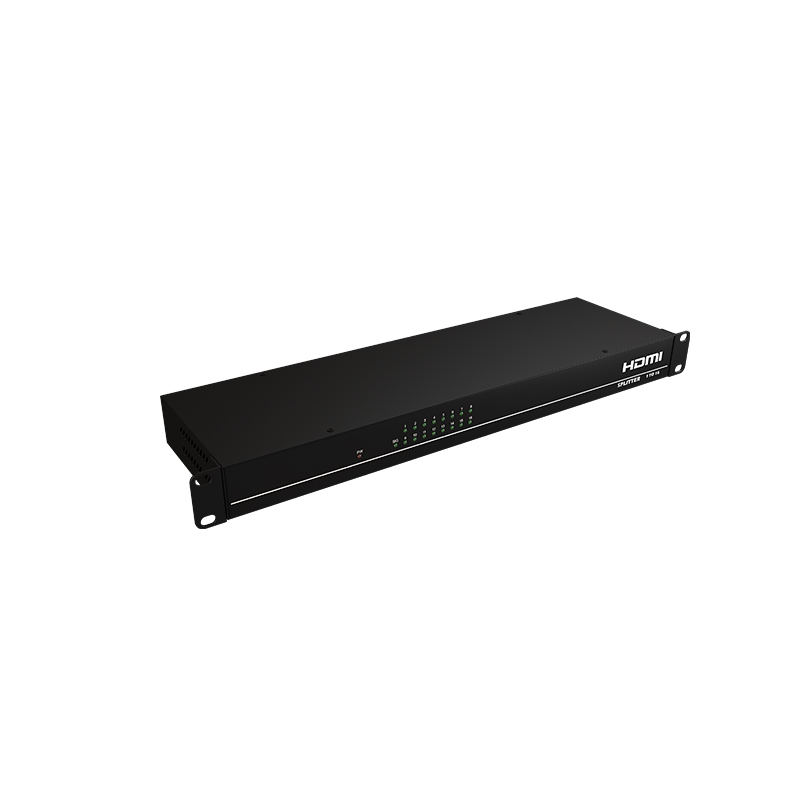

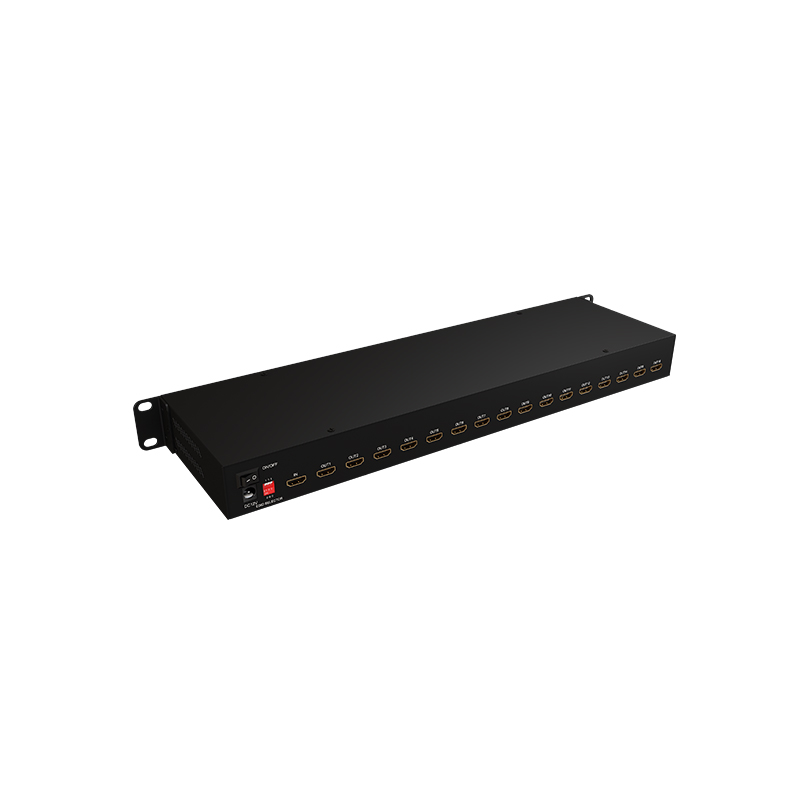

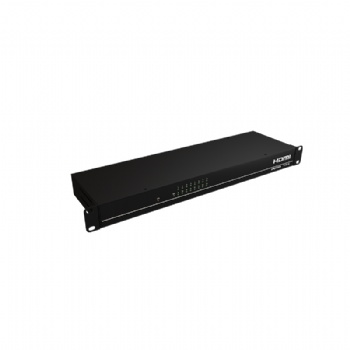

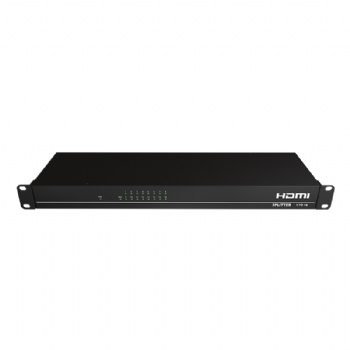

SWSP06,1x16 HDMI Splitter support 4K,3D ,HDMI 1.4 Version

FEATURES

Support One HDMI input signal distribute to sixteen HDMI sink devices.

Support 4K x 2K@30HZ.

Support 3D.

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC.

Support DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD digital audio.

Support signal retiming.

Input and output both support 15M transmit distance if use the AWG 26 HDMI cable.

Lossless transmission.

Compact design, easy to install.

DC12V Power supply

Specifications:

HDMI resolution ………………......4k2k@30Hz/3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format ………...............………………..…………….24bit/deep color 30bit,36bit

Support audio format…………....…….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth…………………………………............................………..…………………………………..300MHz

Max baud rate……………….…….………………….……………..............................…………………….. ….3Gbps

Input/Output TMDS signal ………….…………………….................……..……...… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ………………………………….....................…………..………… 5Volts p-p (TTL)

Input cable distance..…....…………….…………………................≤15m AWG26 HDMI standard cable

Output cable distance…………...............…………………….…...≤15m AWG26 HDMI standard cable

Max working current……………..........................……………………………………………………….....1500mA

Power adapter format..Input: ………..……....AC (50HZ, 60HZ) :100V-240V; Output: DC12V2A

Operating Temperature range……..….................………….………………………………… (-15 to +55℃)

Operating Humidity range………………..........………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H).....................……………………………….………………………… 440*130*45(mm)

Weight…..………………………………………………………..……...............................…..……………………1150g
