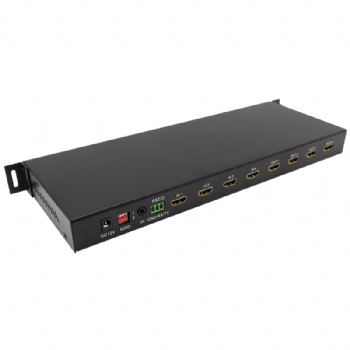

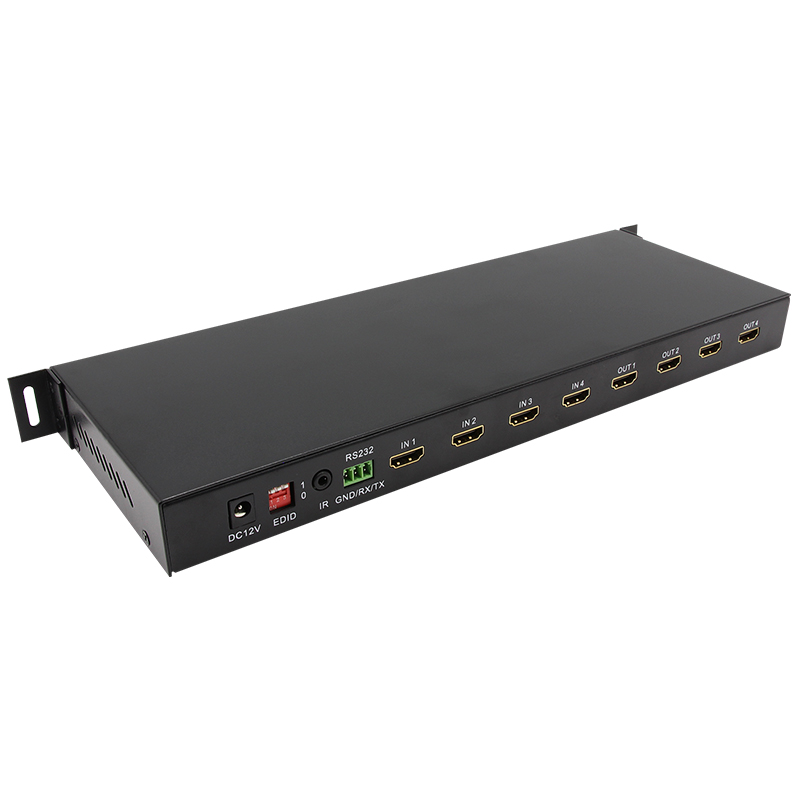

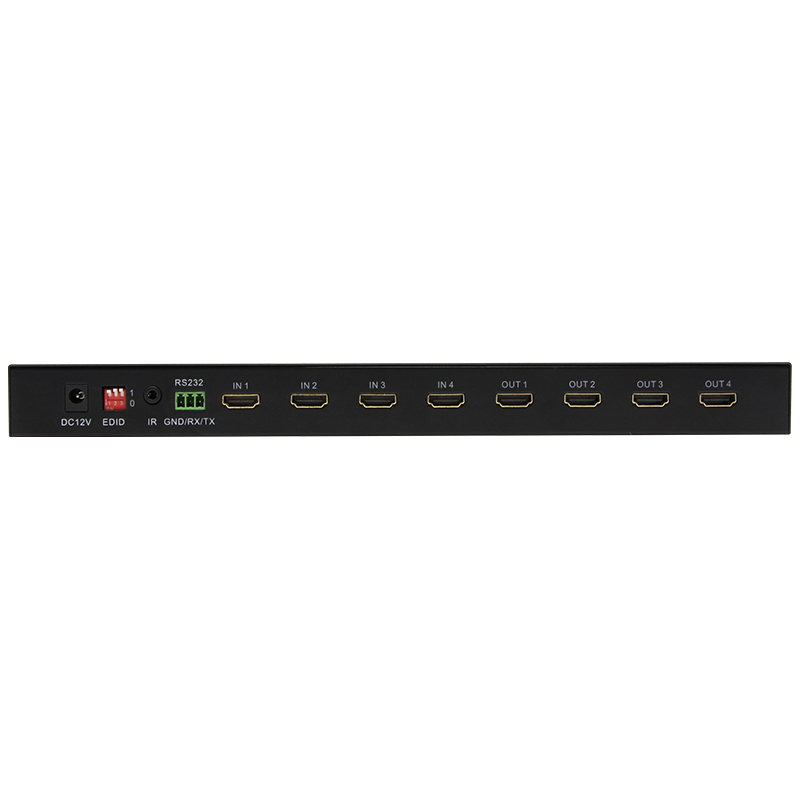

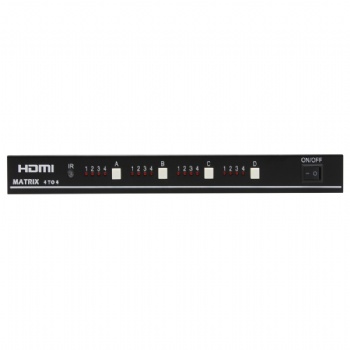

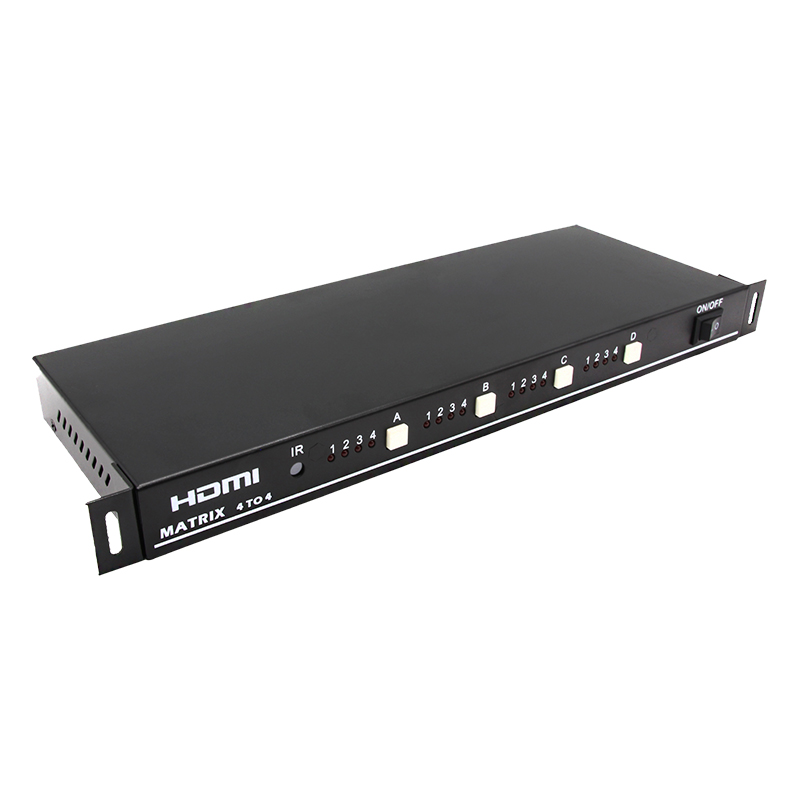

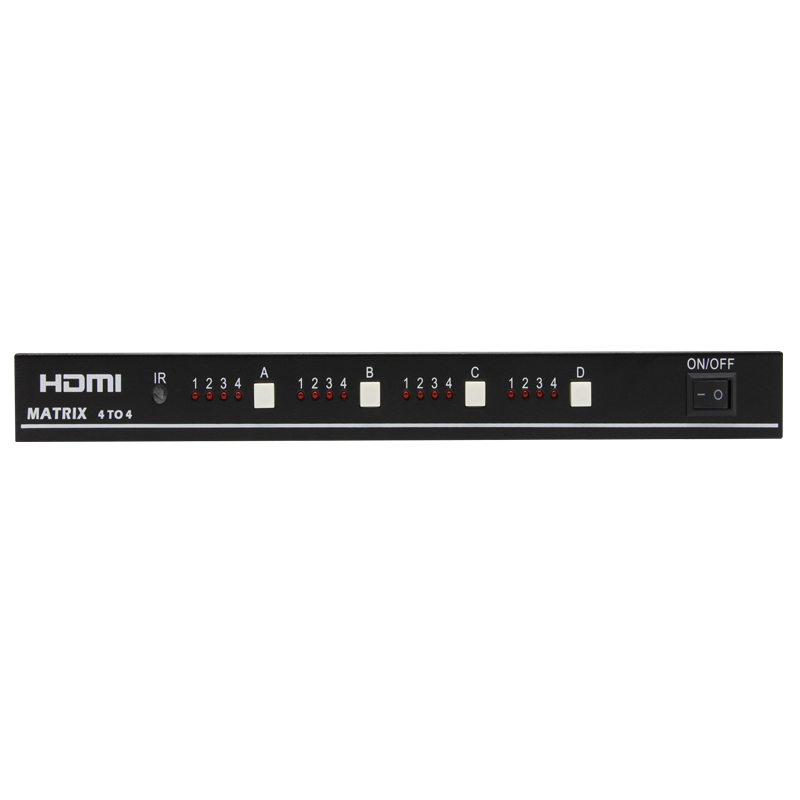

SWMX44,4x4 HDMI 1.4Version Matrix support 4K ,3D with RS232 control

Features

1.Allows up to four HDMI audio/video devices to be independently switched to four HDMI monitors, HDTV’s, or projectors.

2.The four output channels could show the same or different source simultaneously no matter the source is HDCP or not.

3.Reading and saving EDID function from displays.

4.Support high definition resolutions, including:

5.4K2K@30Hz,1080p, 3D, 1080i, 720p and other standard video formats.

6.Each port support both HDMI and DVI inputs.

7.With extra infrared extension receiver.

8.Three switching modes: panel buttons, local IR, RS232.

9.HDMI 1.4 supported.

10.Channel switching time within two seconds.

Specifications

Operating Temperature Range..................................................................0 to +35°C (32 to +95°F)

Operating Humidity Range..............................................................5 to 90 % RH (no condensation)

Input Video Signal.................................................................................................0.5-1.0 volts p-p

Input DDC Signal...................................................................................................5 volts p-p (TTL)

Video Format Supported...............................DTV/HDTV:3D/ 1080P/1080i/720P/576P/480P/576i/480i

Audio Format Supported.....................................................................................DTS-HD、Dolby HD

Output Video...................................................................................................................HDMI 1.4

Maximum Transmission Distance...................................................4K2K@30Hz 10m over HDMI cable

Power Consumption.................................................................................................24 Watts (Max.)

Dimensions......................................................................................................W320xH120xT30mm

Mass (Main unit)......................................................................................................................850g

NOTE: Specifications are subject to change without notice. Mass and dimensions are approximate
